English

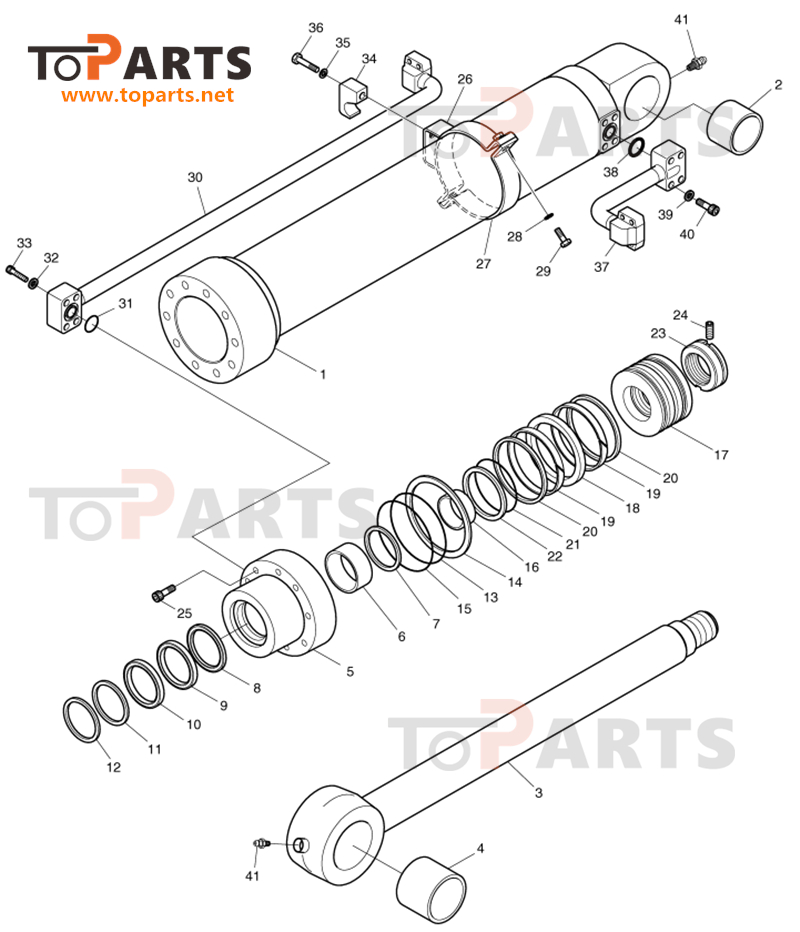

Parts list
|
Key No |
Part No |
Description |
Qty |
|
- |
K1000884A |
BUCKET CYLINDER |
1 |
|
- |
K1000884B |
BUCKET CYLINDER |
1 |
|
1 |
K9001868 |
TUBE ASS`Y |
1 |
|
2 |
K1000736 |
BUSH |
1 |
|
3 |
K9001869 |
ROD ASS`Y |
1 |
|
3 |
K9001869A |
ROD ASS'Y |
1 |
|
4 |
K1000738 |
BUSH |
1 |
|
4 |
K1000736 |
BUSH |
1 |
|
5 |
K9001870 |
COVER;ROD |
1 |
|
6 |
110-00097 |
DD-BUSH |
1 |
|
7 |
K9001401 |
RING;RETAINING |
1 |
|
8 |
K9001402 |
SEAL;BUFFER |
1 |
|
9 |
K9001403 |
U-PACKING |
1 |
|
10 |
K9001404 |
RING;BACK UP |
1 |
|
11 |
115-00084 |
WIPER;DUST |
1 |
|
12 |
115-00063 |
RING;RETAINING |
1 |
|
13 |
S8011151 |
O-RING |
1 |
|
14 |
1.180-00278 |
RING;BACK UP |
1 |
|
15 |
S8011201 |
O-RING |
1 |
|
16 |
K9001406 |
RING;CUSHION |
1 |
|
17 |
K9001871 |
PISTON |
1 |
|
18 |
K9001891 |
SEAL;SLIPPER |
1 |
|
19 |
115-00055 |
RING;WEAR |
2 |
|
20 |
K9001872 |
RING;DUST |
2 |
|
21 |
180-00276 |
O-RING |
1 |
|
22 |
K9001410 |
RING;BACK UP |
2 |
|
23 |
K9001862 |
NUT;PISTON |
1 |
|
24 |
1.120-00219 |
SCREW;SET |
1 |
|
25 |
S2222171 |
BOLT |
10 |
|
26 |
K9001873 |
PIPE BAND ASS`Y |
1 |
|
27 |
K9001874 |
BAND;PIPE |
1 |
|
28 |
S5100703 |
WASHER;SPRING |
2 |
|
29 |
S0560563 |
BOLT |
2 |
|
30 |
K9001875 |
PIPE ASS`Y-R |
1 |
|
31 |
S8000281 |
O-RING |
1 |
|
32 |
S5100603 |
WASHER |
4 |
|
33 |
S2212761 |
BOLT;SOCKET |
4 |
|
34 |
K9001413 |
CLAMP;PIPE |
1 |
|
35 |
S5100603 |
WASHER |
1 |
|
36 |
S2221873 |
BOLT |
1 |
|
37 |
K9001876 |
PIPE ASS`Y-H |
1 |
|
38 |
S8000281 |
O-RING |
1 |
|
39 |
S5100603 |
WASHER |
4 |
|
40 |
S2212761 |
BOLT;SOCKET |
4 |
|
41 |
S6710032 |
NIPPLE;GREASE |
2 |
|
* |

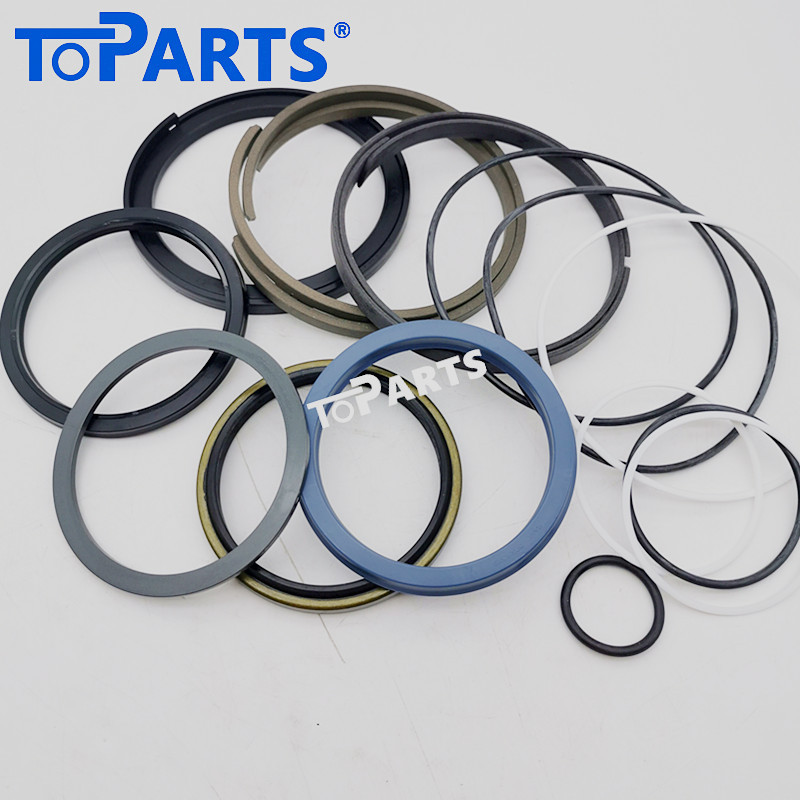

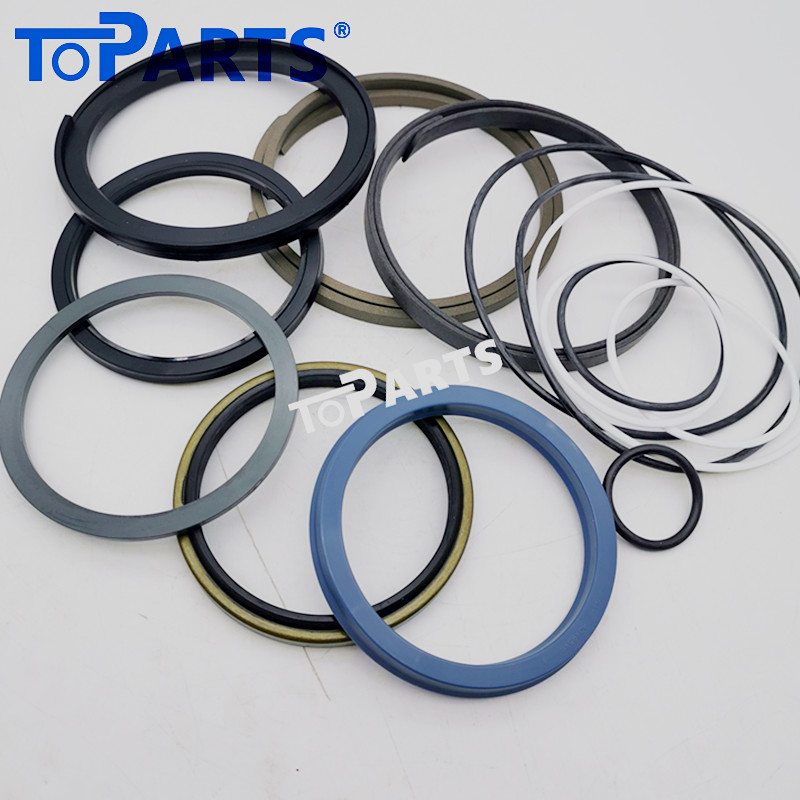

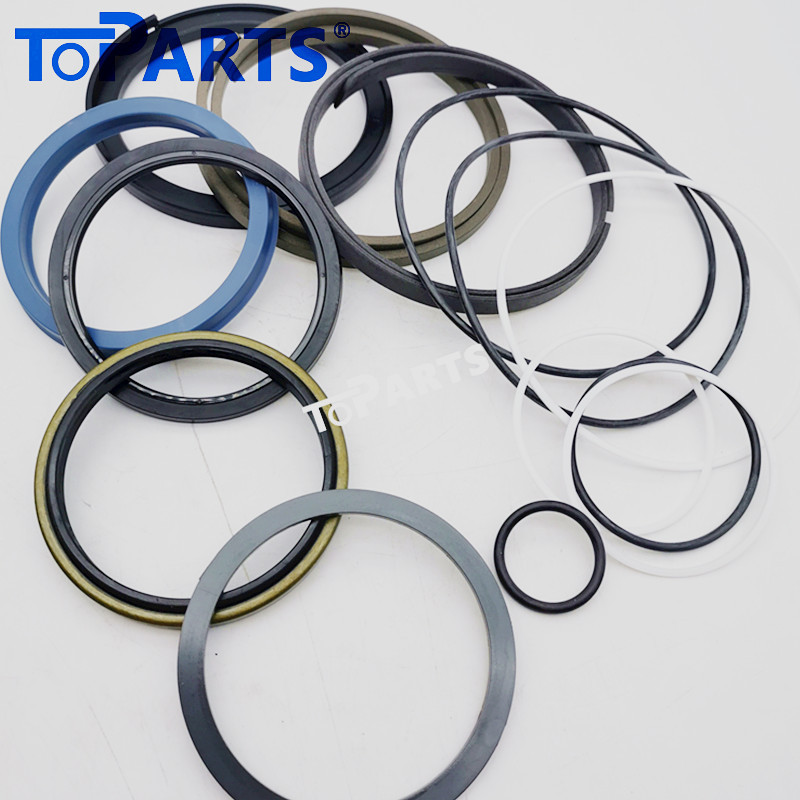

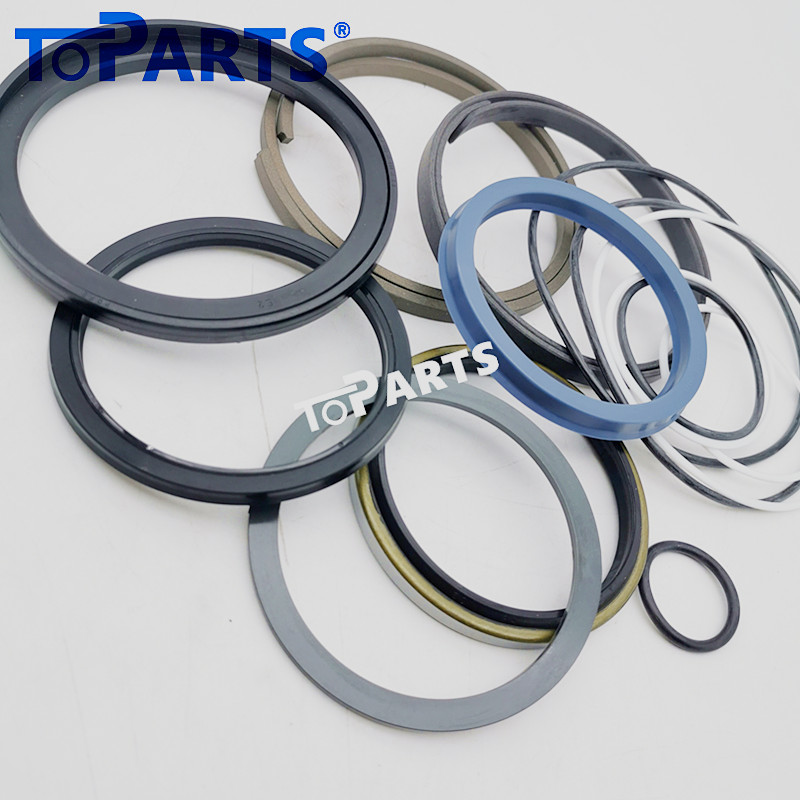

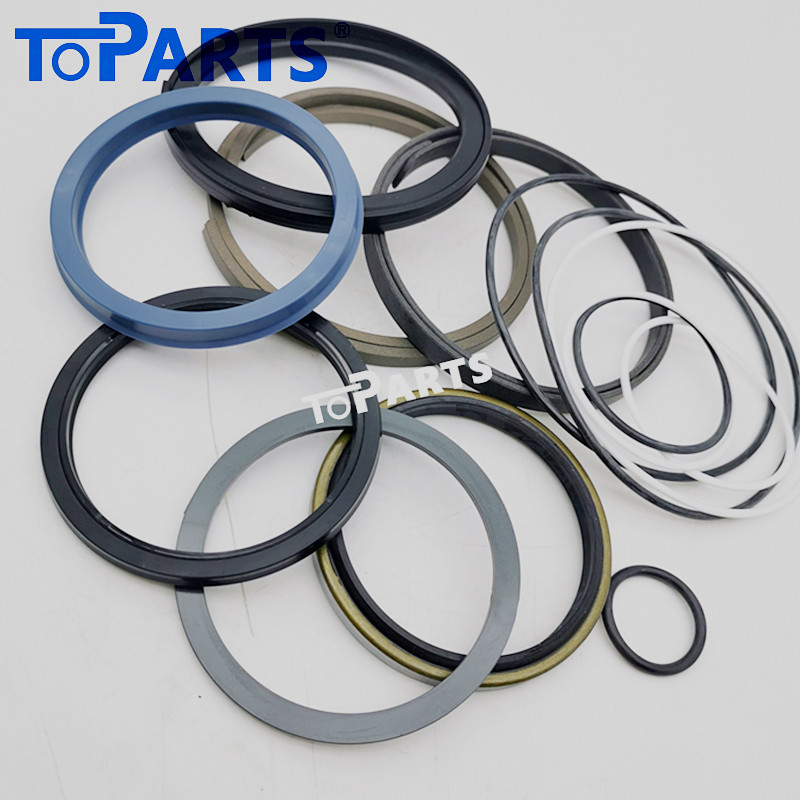

K9001892 |
SEAL KIT;BUCKET CYLINDER |
1 |
