English

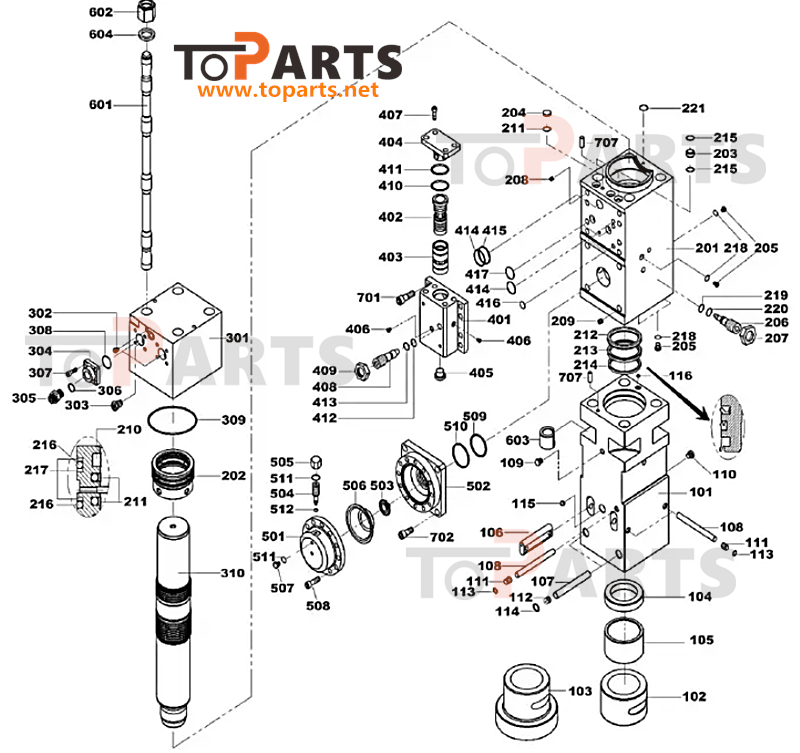

Parts list
|
NO |
PART NO. |
PART NAME |
Q'TY |
|
|
A2006A00 |
HAMMER TOTAL ASS'Y |
1 |
|
|
A2006610 |
FRONT HEAD SUB ASS'Y |
1 |
|
101 |
A2006810 |
FRONT HEAD |
1 |
|
102 |
A2006500 |
TOOL BUSHING(BOXTYPE) |
1 |
|
103 |
A2006090 |
TOOL BUSHING(OPEN TYPE) |
1 |
|
104 |
A2006100 |
THRUST RING |
1 |
|
105 |
A2006080 |
UPPER BUSHING |
1 |
|
106 |
A2006240 |
TOOL PIN |
2 |
|
107 |
A2006220 |
BUSHING PIN(LOWER) |
2 |
|
108 |
A2006230 |
BUSHING PIN(UPPER) |
3 |
|
109 |
B4006530 |
SOCKET PLUG |
1 |
|
110 |
B4006450 |
SOCKET PLUG |
1 |
|
111 |
B1306460 |
RUBBER PLUG |
3 |
|
112 |
B3006580 |
RUBBER PLUG |
2 |
|
113 |
B1006440 |
SNAP RING |
3 |
|
114 |
B3006570 |
SNAP RING |
2 |
|
115 |
B4006560 |
GREASE NIPPLE |
1 |
|
116 |
A2507380 |
O-RING |
1 |
|
|
A2006620 |
CYLINDER SUB ASS'Y |
1 |
|
201 |
A2006750 |
CYLINDER |
1 |
|
202 |
A2006040 |
SEAL HOUSING |
1 |
|
203 |
A2006250 |
CONNECTION BUSH |
2 |
|
204 |
A2006260 |
PLUG BUSH |
1 |
|
205 |
A2006450 |
SOCKET PLUG |
4 |
|
206 |
A3006330 |
ADJ UST BOLT 2 |
1 |
|
207 |
A3006320 |
ADJ UST NUT |
1 |
|
208 |
A3006380 |
HELI-COIL |
4 |
|
209 |
A3006390 |
HELI-COIL |
8 |
|
210 |
A2007010 |
GAS SEAL |
1 |
|
211 |
A2007020 |
STEP SEAL |
2 |
|
212 |
A2107250 |
BUFFER RING |
1 |
|
213 |
A2107260 |
U-PACKUNG |
1 |
|
214 |
A2107270 |
WIPER |
1 |
|
215 |
A2007140 |
O-RING |
5 |
|
216 |
A2007040 |
O-RING |
2 |
|
217 |
A2007050 |
BACKUP RING |
3 |
|
218 |
A2007150 |
O-RING |
4 |
|
219 |
A3007170 |
O-RING |
1 |
|
220 |
A3007180 |
BACKUP RING |
1 |
|
221 |
B1807310 |
O-RING |
1 |
|
|
A2006630 |
BACK HEAD SUB ASS'Y |
1 |
|
301 |
A2006740 |
BACK HEAD |
1 |
|
302 |
B4006910 |
SOCKET PLUG |
1 |
|
303 |
A3006590 |
GAS CHARGING VN ASS'Y |
1 |
|
304 |
A2006480 |
FLANGE |
2 |
|
305 |
A2706320 |
ADAPTER |
2 |
|
306 |
A2007140 |
O-RING |
2 |
|
307 |
SB1415035 |
SOCKET BOLT |
8 |
|
308 |
B6007330 |
O-RING |
2 |
|
309 |
B1807100 |
O-RING |
1 |
|
310 |
A2006050 |
PISTON |
1 |
|
311 |
A2006470 |
FLANGE |
2 |
|
|
A2006640 |
VALVE BLOCK SUB ASS'Y |
1 |
|
401 |
A2006150 |
VALVE BLOCK |
1 |
|
402 |
A2006170 |
VALVE GUIDE |
1 |
|
403 |
A2006180 |
VALVE SPOOL |
1 |
|
404 |
A2006320 |
VALVE BLOCK COVER |
1 |
|
405 |
B4006520 |
SOCKET PLUG |
1 |
|
406 |
B4006450 |
SOCKET PLUG |
2 |
|
407 |
SB1615040 |
SOCKET BOLT |
4 |
|
408 |
A2006310 |
ADJ UST BOLT1 |
1 |
|
409 |
A3006320 |
ADJ UST NUT |
1 |
|
410 |
B4007200 |
O-RING |
1 |
|
411 |
B6007360 |
BACKUP RING |
1 |
|
412 |
B1807310 |
O-RING |
1 |
|
413 |
A3007160 |
BACKUP RING |
1 |
|
414 |
B2507190 |
O-RING |
2 |
|
415 |
A2007090 |
BACKUP RING |
1 |
|
416 |
A2007110 |
O-RING |
2 |
|
417 |
B1507200 |
O-RING |
2 |
|
|
A2006650 |
ACCUMULATOR SUB ASS'Y |
|
|
501 |
A2006061 |
ACCUMULATOR COVER |
1 |
|
502 |
A2006830 |
ACCUMULATOR BOTTOM |
1 |
|
503 |
A3006340 |
ACCUMULATOR INNER VALVE |
1 |
|
504 |
A3006350 |
GAS CHARGING BOLT |
1 |
|
505 |
A3006360 |
GAS CHARGING CAP |
1 |
|
506 |
A2006460 |
MEMBRANE |
1 |
|
507 |
A2006510 |
PLUG |
1 |
|
508 |
SB1815045 |
SOCKET BOLT |
12 |
|
509 |
A3007200 |
O-RING |
1 |
|
510 |
A3007130 |
BACKUP RING |
1 |
|
511 |
B1807310 |
O-RING |
2 |
|
512 |
A3007190 |
O-RING |
1 |
|
|
A2006660 |
SIDE ROD SUB ASS'Y |
4 |
|
601 |
A2006110 |
SIDE ROD |
4 |
|
602 |
A2006130 |
SIDE ROD NUT(UPPER) |
4 |
|
603 |
A2006330 |
SIDE ROD NUT(LOWER) |
4 |
|
604 |
A2006140 |
SIDE ROD WASHER |
4 |
|
701 |
SB2025060 |
SOCKET BOLT |
8 |
|
702 |
SB2430070 |
SOCKET BOLT |
4 |
|
703 |
A2006280 |
TOOL-CONE |
1 |
|
704 |
A2006290 |
TOOL-CHISEL |
1 |
|
705 |
A2006300 |
TOOL-BLUNT |
1 |
|
706 |
A2006800 |
TOOL-MOIL |
1 |
|
707 |
A2006360 |
GUIDE PIN |
2 |
|
|
A210750C |
SEAL KIT |
1 |

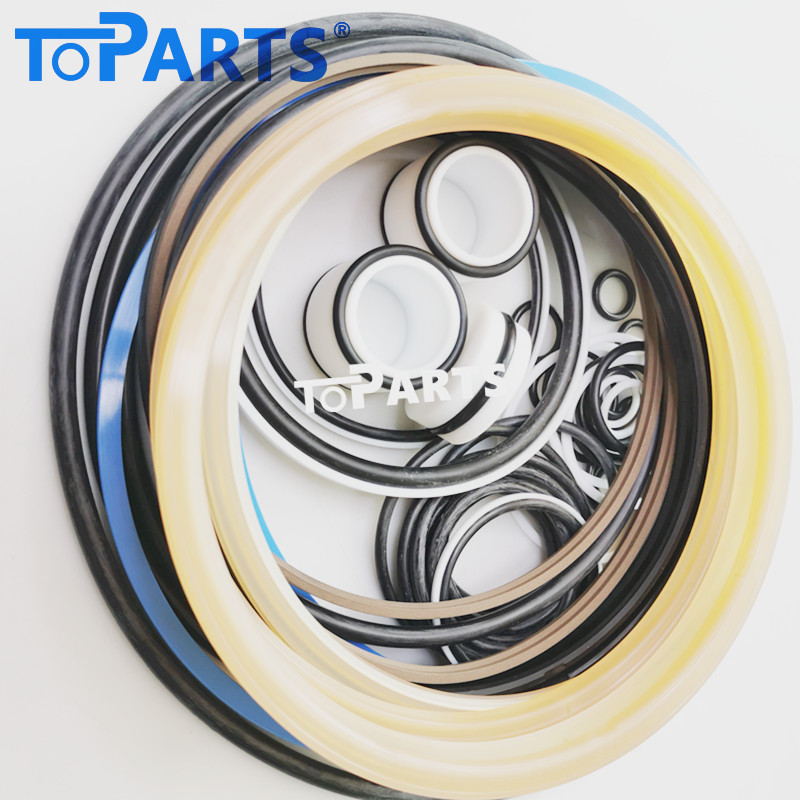

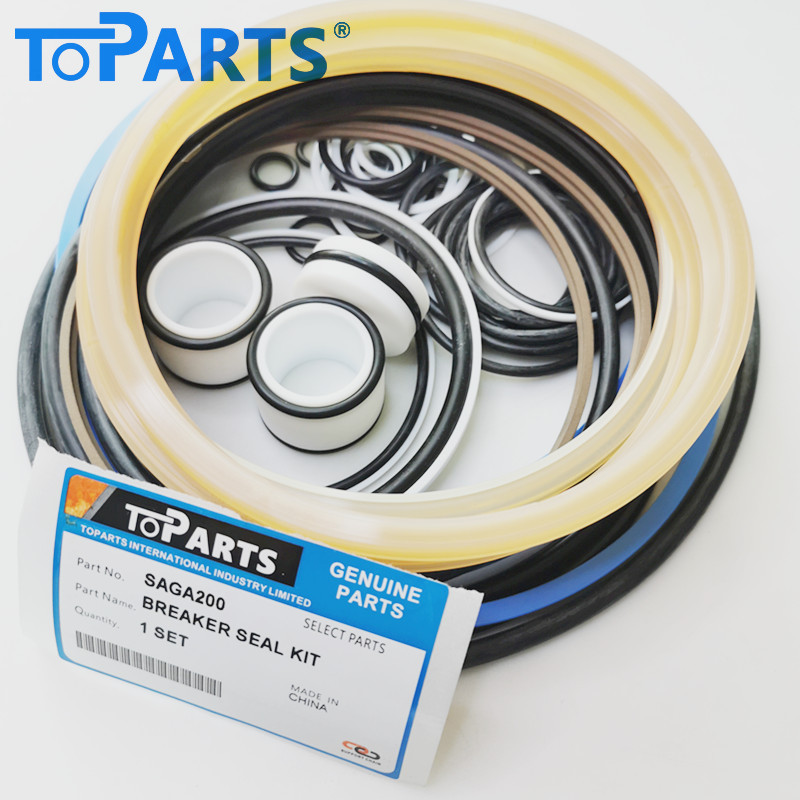

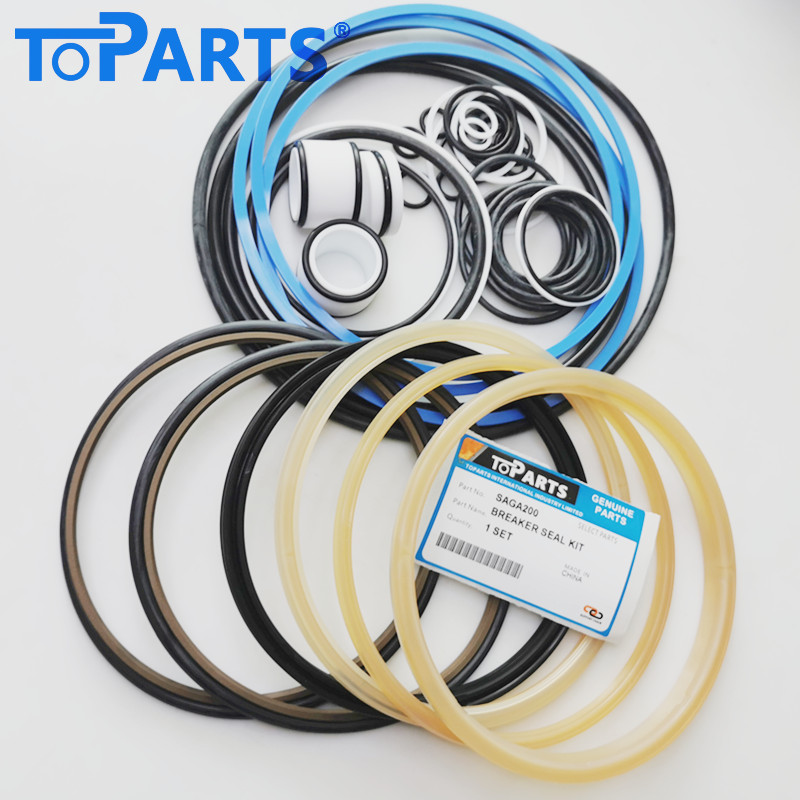

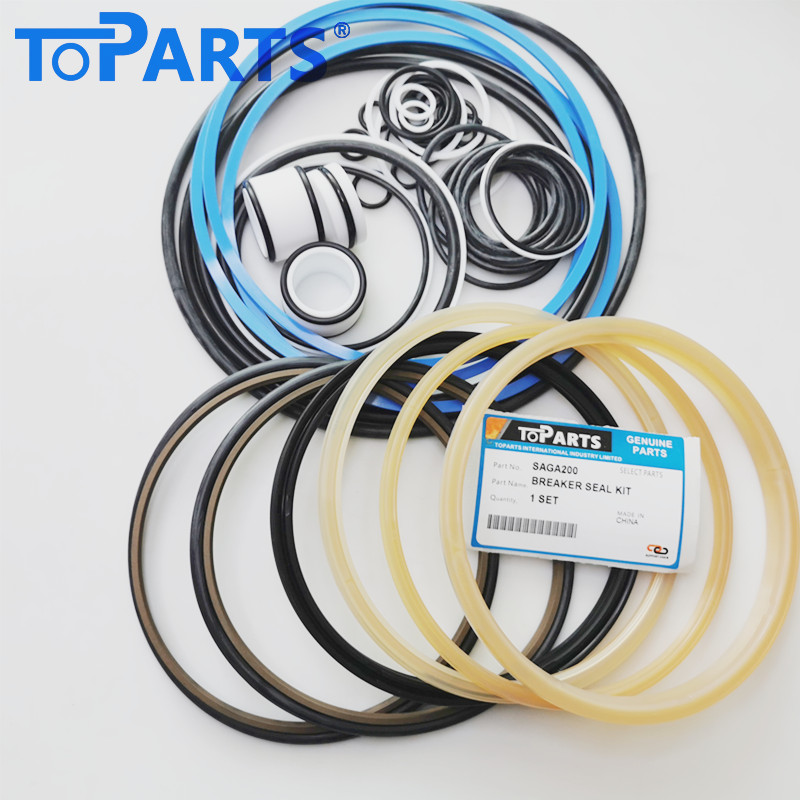

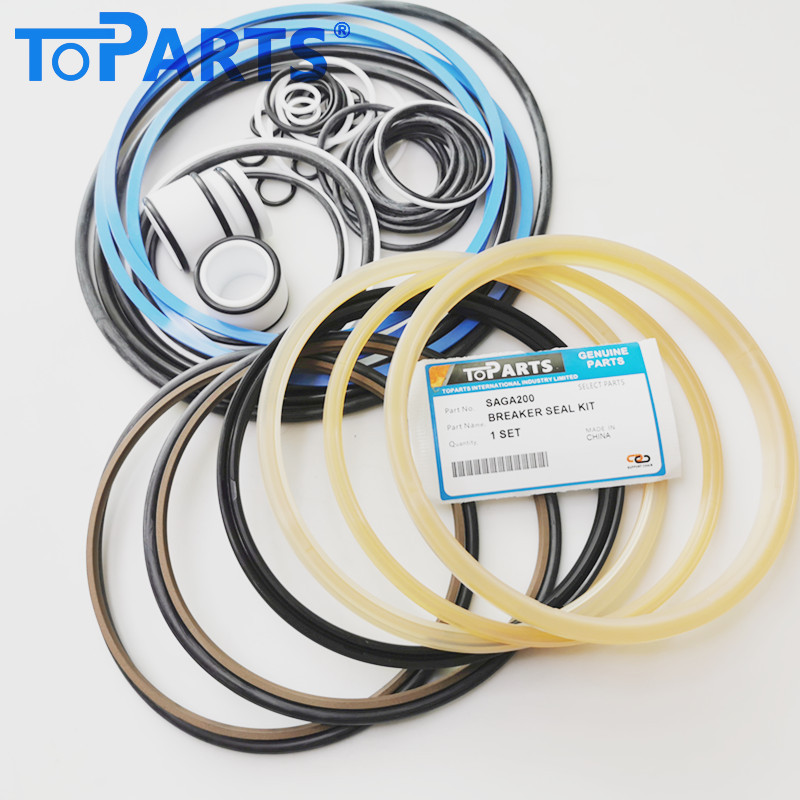

Toparts A210750C Hydraulic Breaker Seal Kit for SAGA200 Hydraulic Hammer
Restore the powerful, consistent performance of your demolition equipment with the Toparts A210750C Hydraulic Breaker Seal Kit. This high-quality service and repair kit is specifically engineered for the SAGA200 Hydraulic Hammer, ensuring maximum impact energy transfer and minimizing costly fluid loss.
Engineered for SAGA200 Performance
The SAGA200 is a robust hydraulic hammer designed for demanding breaking applications. Toparts understands that the seals must endure extreme pressure, high cycle rates, and abrasive conditions. Our A210750C seal kit is a high-precision, direct aftermarket replacement, meticulously crafted to meet or exceed OEM specifications for the SAGA200.
Key Features and Benefits:
Direct OEM Replacement: This kit is a seamless replacement for the SAGA OEM part number A210750C, guaranteeing perfect fitment and function within your SAGA200 hydraulic hammer.
Superior Material Quality: Manufactured using specialized, high-performance materials (including robust polyurethane, FKM, and NBR) that are built to withstand severe pressure spikes, high temperatures, and abrasive environmental conditions.
Restores Impact Energy: Worn seals cause internal fluid bypass, leading to a significant drop in impact force and operational efficiency. Replacing them with the Toparts A210750C kit restores your breaker's full, rated destructive power.
Extends Hammer Life: By maintaining proper internal sealing, the kit prevents hydraulic contamination and protects critical components—such as the piston and cylinder—from premature wear.
Comprehensive Repair Solution: Provides all the necessary seals for a complete and effective hydraulic service of the breaker.
Product Details:
Part Number (Seal Kit): A210750C
Compatible Model: SAGA200 Hydraulic Hammer / Breaker
Application: Hydraulic Breaker Seal Kit / Service Repair Kit
Manufacturer: Toparts
Don't compromise your breaking efficiency. Invest in the trusted quality and reliability of the Toparts A210750C Hydraulic Breaker Seal Kit and keep your SAGA200 operating at its powerful best.
