English
Parts list
|
HYDR. CYLINDER / HYDRAULCYLINDER 9126 2322 00 |
|||
|
no |
Part no |
Qty |
Description |
|
|
9120099007 |
1 |
SEALING SET |
|
1 |
– |
1 |
MANTLE |
|
2 |
9124956400 |
1 |
PISTON |
|
3 |
0196155224 |
1 |
SET SCREW |
|
4 |
9125672000 |
1 |
PISTON SEAL |
|
5 |
9123355200 |
1 |
CYLINDER COVER |
|
6 |
0663213500 |
1 |
O-RING |
|
7 |
0661150065 |
1 |
BACK-UP RING |
|
8 |
0665001012 |
1 |
SEAL RING |
|
9 |
0665910017 |
1 |
WIPER |
|
10 |
0663612300 |
1 |
O-RING |
|
11 |
9126430003 |
1 |
PISTON ROD |
|
12 |
0544210600 |
2 |
GREASE NIPPLE |
|
13 |
0501001300 |
2 |
BEARING,SP.PL. |
|
14 |
0335214100 |
2 |
CIRCLIP |

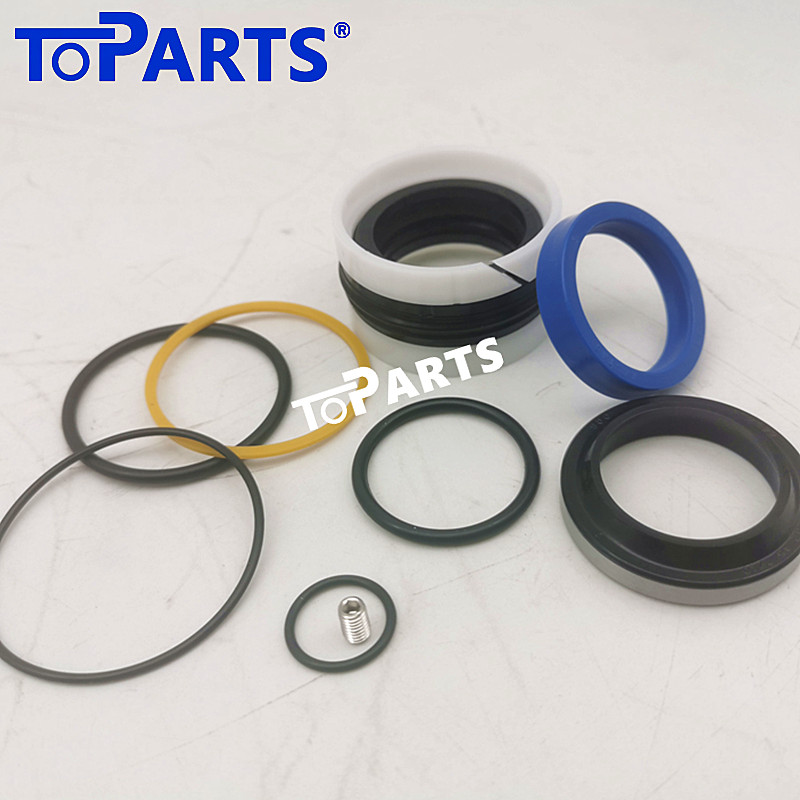

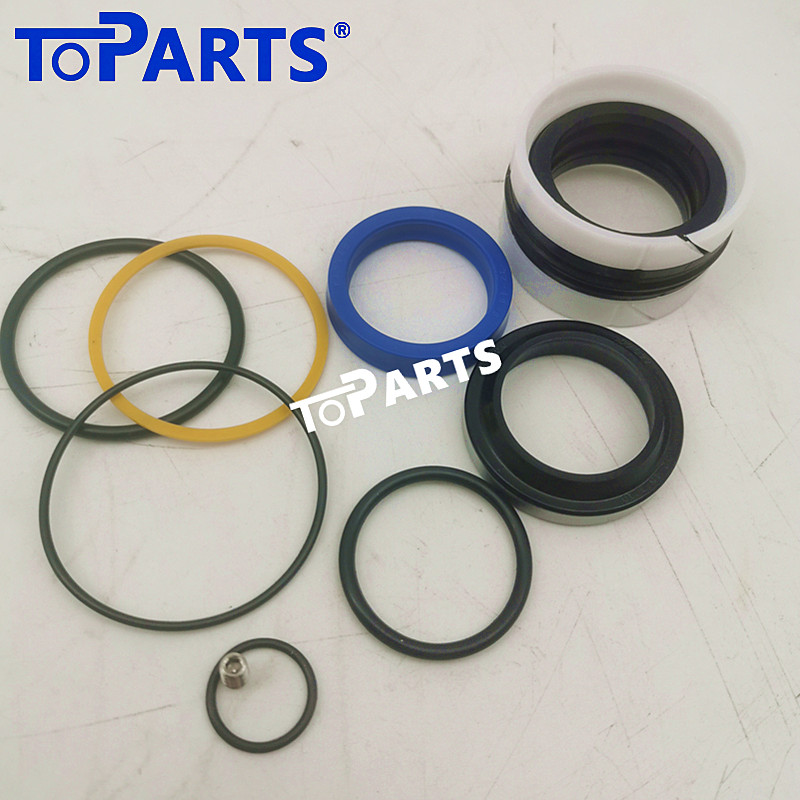

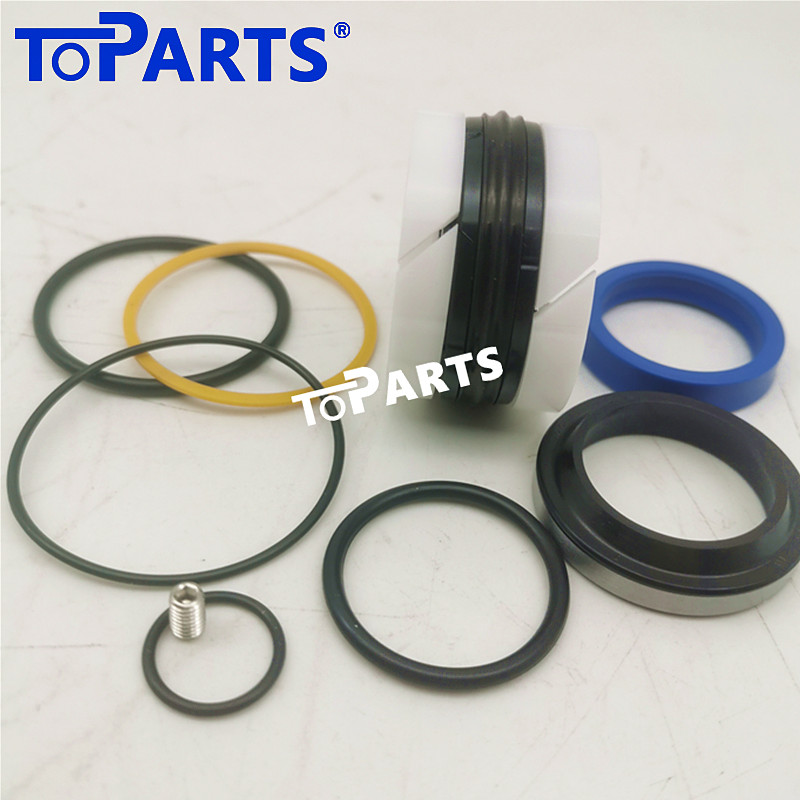

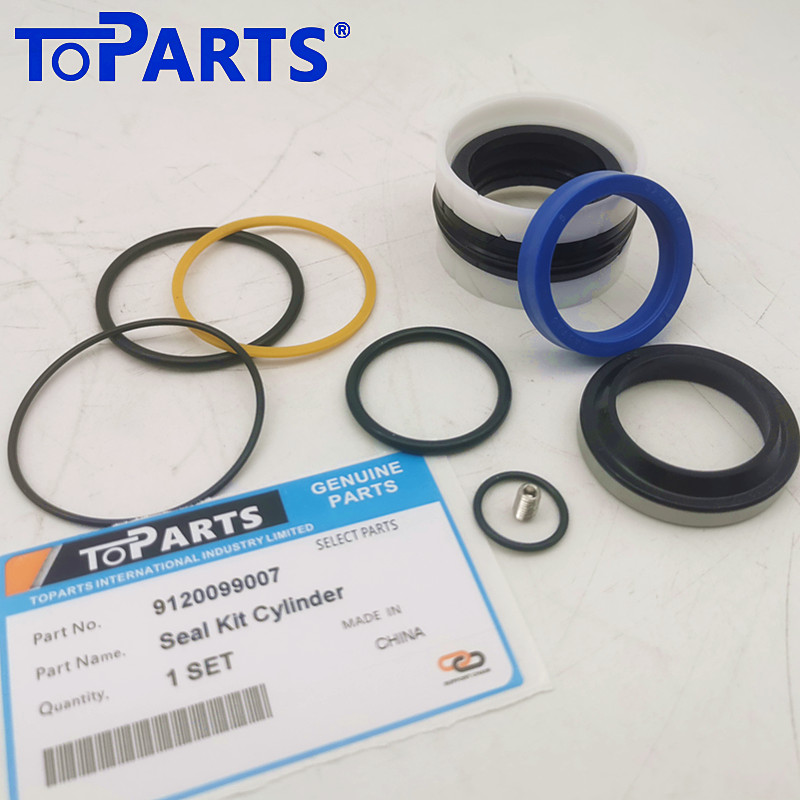

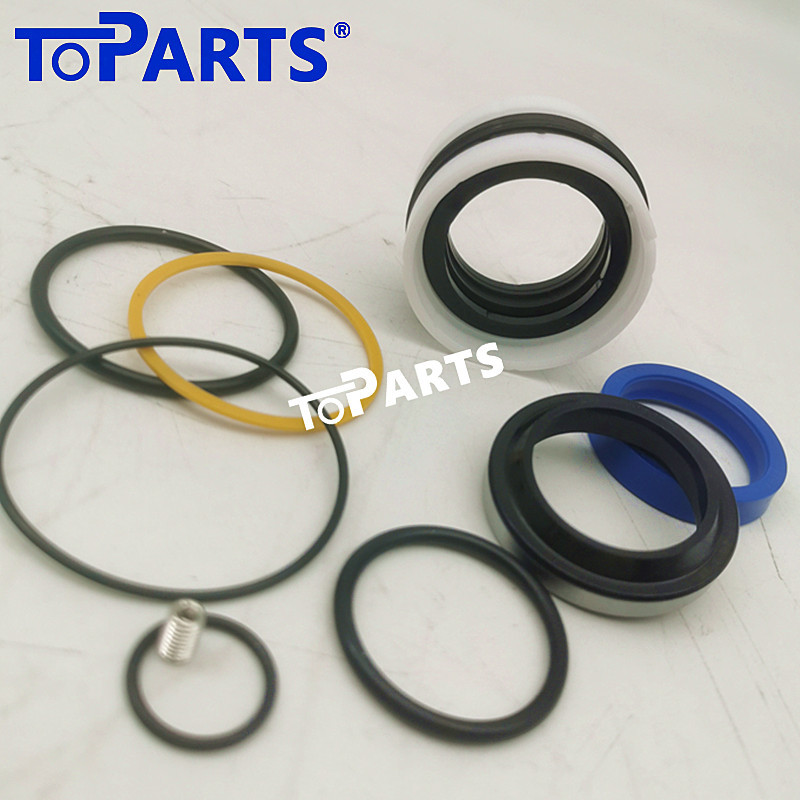

Toparts 9120099007 Hydraulic Rock Drill Seal Kit for Atlas Copco Boomer Face Drill
Achieve maximum drilling power, reliability, and extended equipment life with the Toparts 9120099007 Hydraulic Rock Drill Seal Kit. This crucial service and repair kit is specifically engineered for the drifter unit on your Atlas Copco Boomer Face Drill Rig, ensuring reliable operation under the most punishing conditions.
Engineered for Atlas Copco Drifters
The drifter on an Atlas Copco Boomer Rig is subjected to extreme hydraulic pressures, intense percussion, and abrasive environmental conditions. The Toparts 9120099007 seal kit is a high-precision, direct aftermarket replacement for the original seals. It is meticulously crafted to meet or exceed OEM quality standards, guaranteeing a perfect fit and dependable sealing function.
Key Features and Benefits:
Direct OEM Replacement: This kit is a seamless replacement for the Atlas Copco OEM part number 9120099007, ensuring full compatibility with the drifter unit on your Boomer Face Drill.
Superior Material Quality: Manufactured using specialized, high-grade materials (including high-performance polyurethanes, FKM, and PTFE), our seals are built to withstand the operational extremes of rock drilling, including high pressure surges, heat, and severe vibration.
Restores Percussion Power: Worn seals cause internal fluid bypass, leading to a significant drop in percussion pressure and reduced drilling speed. Replacing them with the Toparts 9120099007 kit restores the drifter's maximum impact energy and reliable penetration rates.
Extends Drifter Life: By maintaining proper internal sealing, the kit effectively prevents contamination ingress and significantly reduces friction and wear on the intricate and expensive internal components of your drill rig's drifter.
Comprehensive Repair Solution: The kit contains all the necessary seals, O-rings, and specialized components required for a complete and effective hydraulic overhaul of the drifter unit.
Product Details:
Part Number (Seal Kit): 9120099007
Compatible Machine: Atlas Copco Boomer Face Drill Rigs (Drifter Unit)
Application: Hydraulic Rock Drill Seal Kit / Service Repair Kit
Manufacturer: Toparts
Don't compromise your drilling schedule or equipment health. Invest in the trusted quality and reliability of the Toparts 9120099007 Hydraulic Rock Drill Seal Kit for your Atlas Copco Boomer Face Drill.
