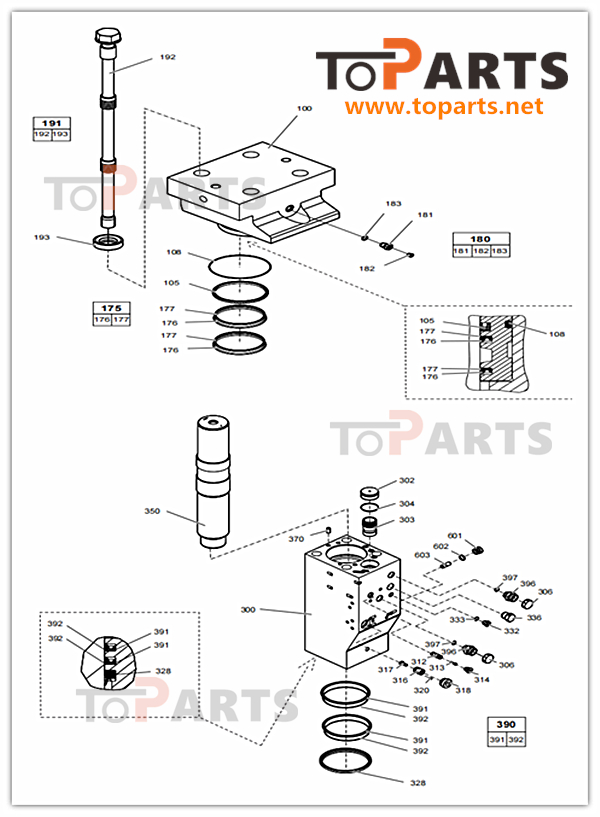

Parts list
|
No. |
Description |
Quantity |
Part number |
|
|
Seal kit |
1 |
3363098729 |
|
120 |
Seal |
1 |
3363103417 |
|
122 |
O-ring |
1 |
3360478169 |
|
127 |
Seal kit |
2 |
3363103152 |
|
128 |
Seal |
1 |
3363102141 |
|
129 |
Back-up ring |
1 |
3363102143 |
|
182 |
Threaded plug |
1 |
3360478426 |
|
183 |
O-ring |
1 |
3360175125 |
|
303 |
O-ring |
1 |
3363098702 |
|
305 |
Wiper |
1 |
3363098705 |
|
315 |
O-ring |
1 |
3360478171 |
|
390 |
Seal kit |
2 |
3363103153 |
|
391 |
Seal |
1 |
3363102145 |
|
392 |
Back-up ring |
1 |
3363102147 |
|
397 |
O-ring |
2 |
3360314551 |
|
602 |
O-ring |
1 |
3363083245 |
|
|
Plastic parts kit |
1 |
3363094814 |
|
2 |
Elastic pad |
1 |
3363033957 |
|
3 |
Shock absorber |
2 |
3361847637 |
|
4 |
Guide plate |
2 |
3363099197 |
|
5 |
Guide plate |
1 |
3363099195 |
|
6 |
Guide plate |
1 |
3363099193 |
|
|
Tensioning bolt kit |
1 |
3363098381 |
|
191 |
Tensioning bolt |
2 |
3363102111 |
|
192 |
Washer |
2 |
3363097773 |
|
487 |
Threaded insert |
2 |
3363031774 |
|
|
Anti-Seize 120 g |
1 |
3363094300 |
|
|
DustProtector kit |
1 |
3363098382 |
|
11 |
Floating ring |
1 |
3363099143 |
|
12 |
Counter ring |
1 |
3363035775 |
|
13 |
Guide ring |
1 |
3363035777 |
|
405 |
Bolt |
2 |
3360478169 |
|
486 |
Locking bush |
2 |
3361854363 |
|
|
Noise protection kit |
1 |
3363098733 |
|
31 |
Cover |
1 |
3363099199 |
|
32 |
Allen screw |
4 |
3360103750 |
|
33 |
Pair of lock washers |
4 |
3361850596 |
|
34 |
Plug |
2 |
3363086011 |
|
35 |
Plug |
10 |
3363086015 |
|
36 |
Plug |
1 |
3362267893 |
|
|
Lower breaker part kit |
1 |
3363098383 |
|
401 |
Retainer bar |
2 |
3363102119 |
|
405 |
Bolt |
2 |
3362261850 |
|
409 |
Plug |
4 |
3362262925 |
|
482 |
Impact ring |
1 |
3363102129 |
|
483 |
Wear bush |
1 |
3363102131 |
|
484 |
Wear bush |
1 |
3363102137 |
|
485 |
Bolt |
2 |
3362261850 |
|
486 |
Locking bush |
4 |
3361854363 |
|
|
Chisel paste |
1 |
3315038100 |
|
|
Test gauge |
1 |
3361852169 |
|
|
Lower breaker part kit |
1 |
3363098385 |
|
18 |
Base for wiper |
1 |
3363099145 |
|
19 |
Wiper |
1 |
3363099147 |
|
401 |
Retainer bar |
2 |
3363102119 |
|
405 |
Bolt |
2 |
3362261850 |
|
409 |
Plug |
4 |
3362262925 |
|
482 |
Impact ring |
1 |
3363102129 |
|
483 |
Wear bush |
1 |
3363102131 |
|
484 |
Wear bush |
1 |
3363102137 |
|
485 |
Bolt |
2 |
3362261850 |
|
486 |
Locking bush |
4 |
3361854363 |
|
|
Chisel paste |
1 |
3315038100 |
|
|
Test gauge |
1 |
3361852169 |
Our customers

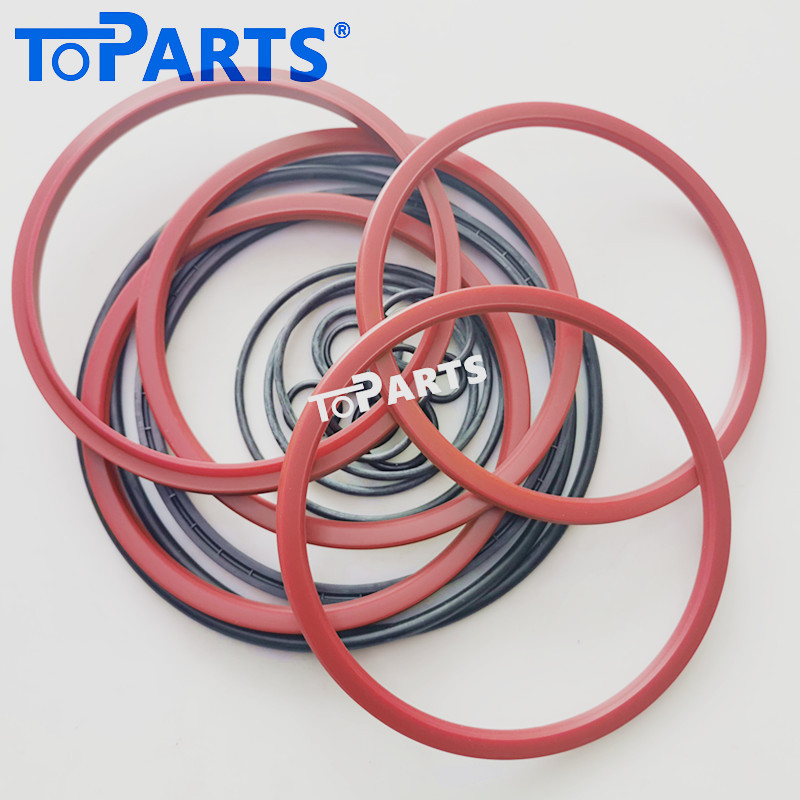

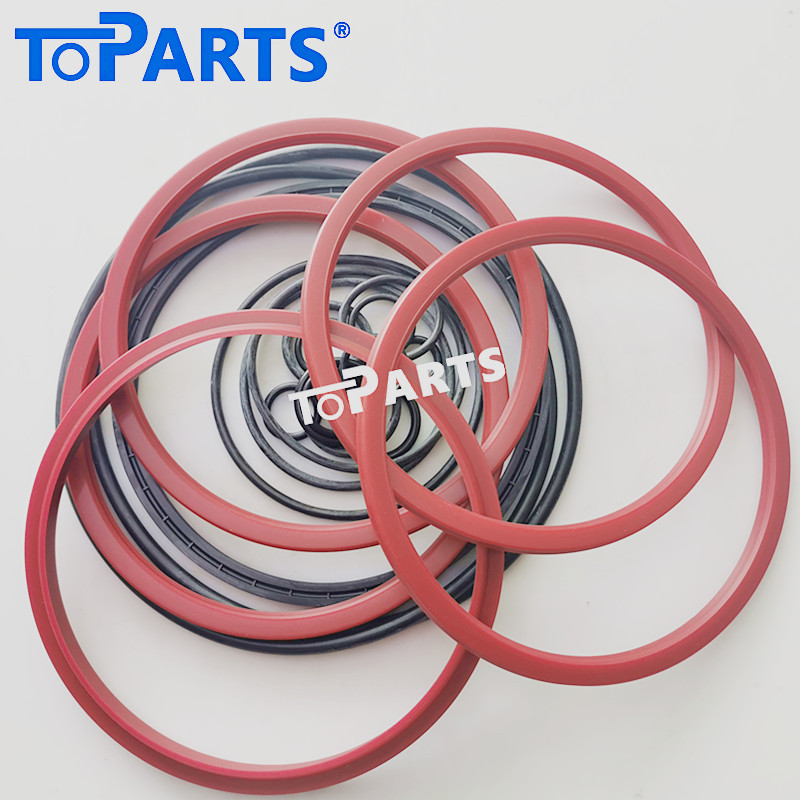

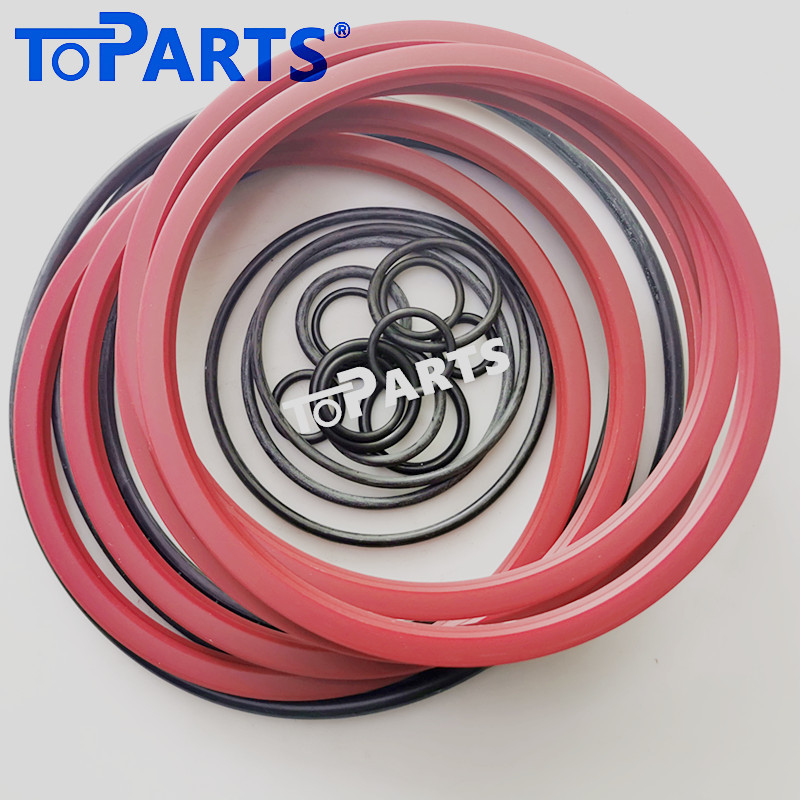

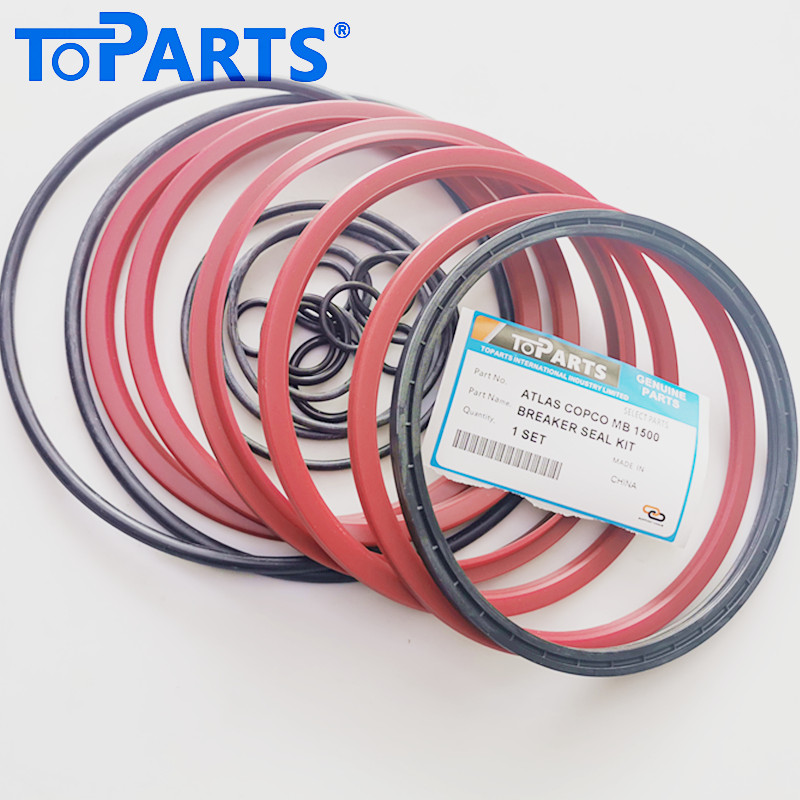

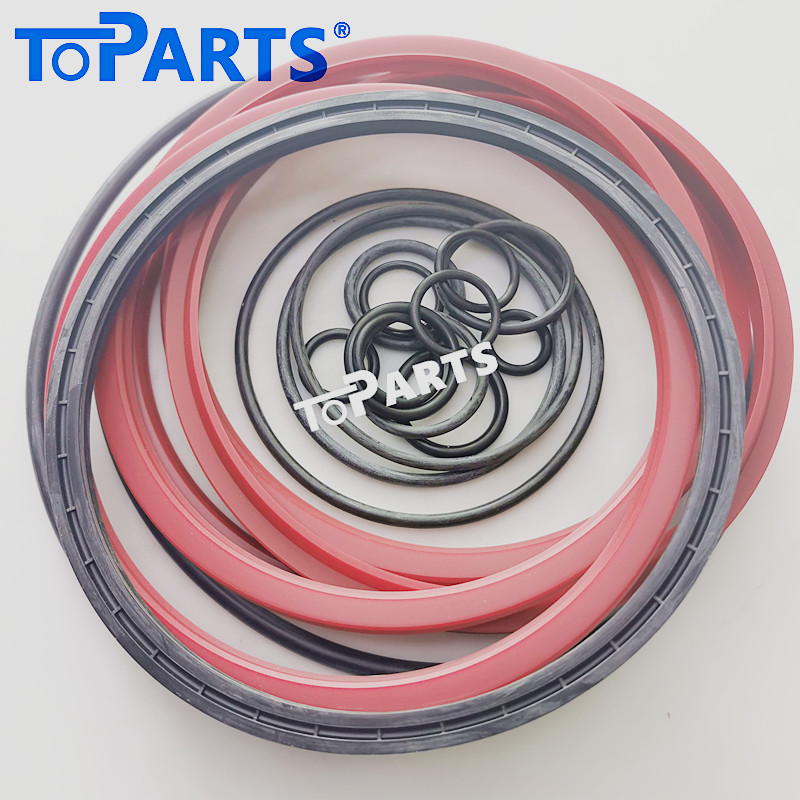

Toparts 3363098729 Seal Kit for Atlas Copco MB1500 Hydraulic Breaker
Keep your Atlas Copco MB1500 hydraulic breaker operating at peak performance with the Toparts 3363098729 Seal Kit. Designed and manufactured by Toparts, a trusted name in aftermarket heavy equipment parts, this comprehensive seal kit provides all the necessary components to restore your breaker's hydraulic integrity, prevent leaks, and ensure efficient power transfer.
Why a Quality Seal Kit is Crucial
Hydraulic breakers operate under immense pressure and constant motion. Over time, the seals within the breaker can wear down, leading to:
Oil leaks: Reducing hydraulic fluid levels and creating a messy work environment.
Loss of power: Inefficient hydraulic pressure directly impacts the breaker's impact force.
Contamination: Worn seals can allow dirt and debris into the hydraulic system, causing further damage.
Increased downtime: Leading to costly repairs and project delays.
Replacing your seals with a high-quality kit like the Toparts 3363098729 is essential for preventative maintenance and extends the overall lifespan of your Atlas Copco MB1500.
Key Features of the Toparts 3363098729 Seal Kit
Perfect Compatibility: Specifically engineered to fit the Atlas Copco MB1500 hydraulic breaker, ensuring a precise fit and optimal function.
Premium Quality Materials: Manufactured from high-grade, durable elastomers and specialized compounds, designed to withstand extreme temperatures, high pressures, and abrasive working conditions.
Comprehensive Contents: Each kit contains all the necessary seals, O-rings, wipers, and buffers required for a complete overhaul of the hydraulic section of your MB1500 breaker.
Restores Performance: By replacing worn seals, this kit helps restore the breaker's original power, efficiency, and responsiveness.
Cost-Effective Solution: Toparts provides a reliable aftermarket alternative to OEM parts, offering significant savings without compromising on quality or performance.
Reduced Downtime: Regular maintenance with quality seal kits prevents major failures, keeping your equipment operational and reducing costly unscheduled downtime.
Investing in the Toparts 3363098729 Seal Kit means investing in the longevity and efficiency of your Atlas Copco MB1500 hydraulic breaker. Trust Toparts for dependable aftermarket solutions that keep your heavy machinery running strong.
