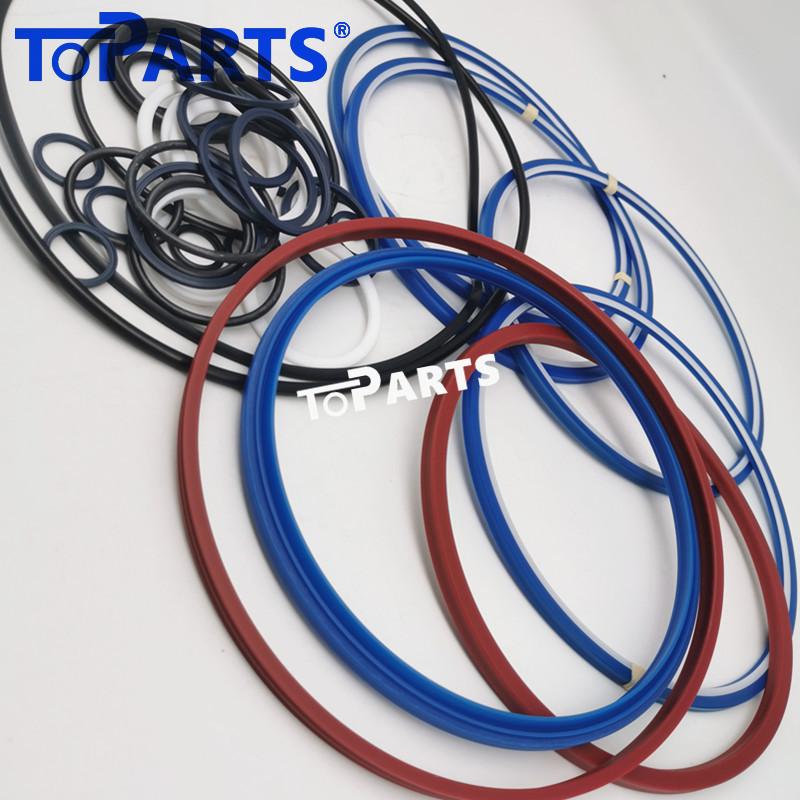

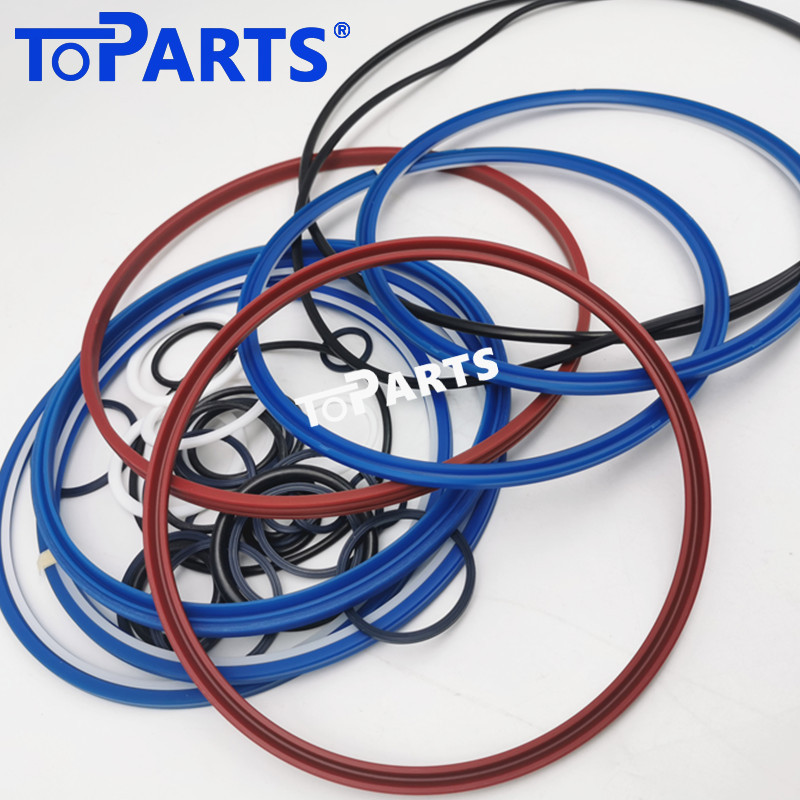

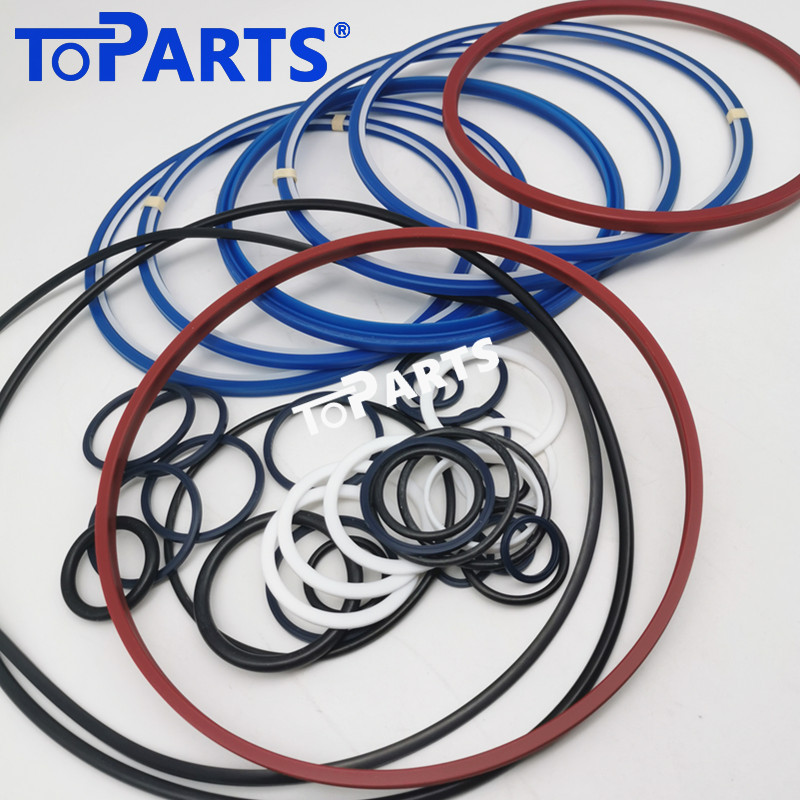

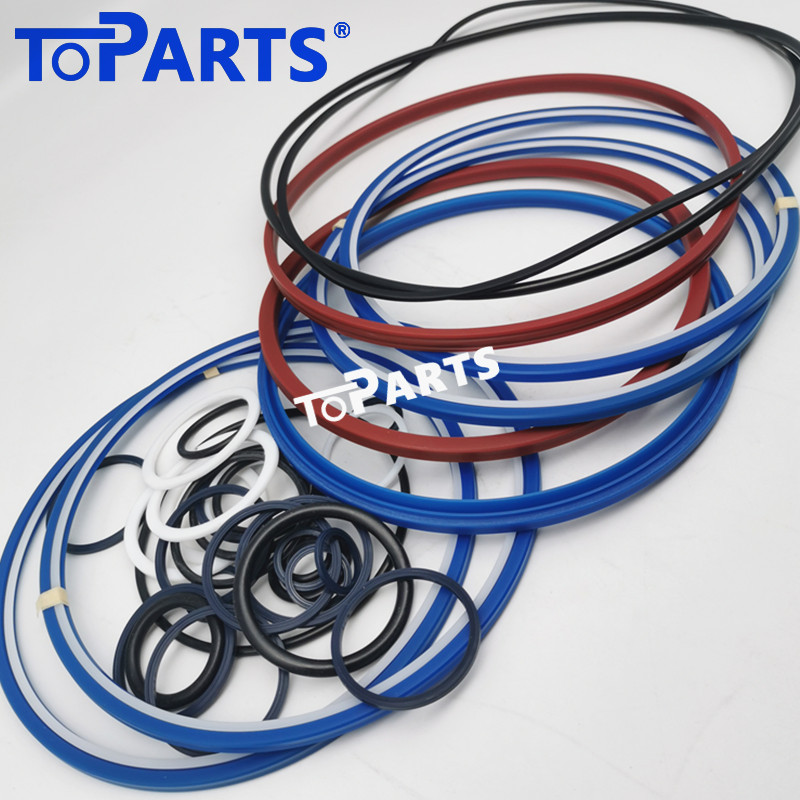

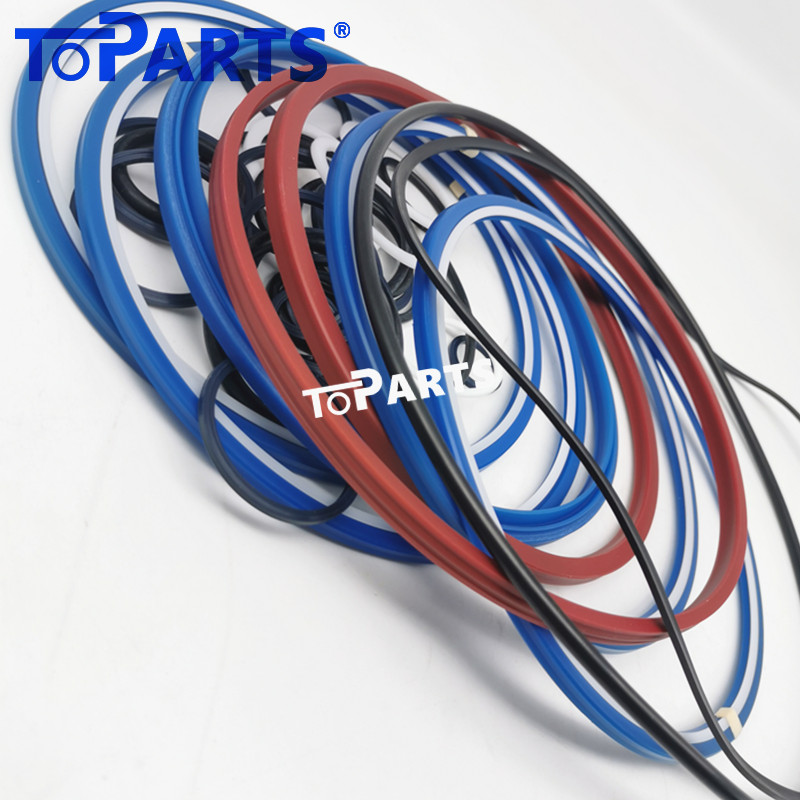

3363066096 Hydraulic Breaker Seal Kit for Atlas Copco HB4200 Hydraulic Hammer Repair Seal Kit

Model:Atlas Copco HB4200 Hydraulic breaker
Part Name:Hydraulic breaker seal kit, Hydraulic hammer seal kit
Tool:180MM
Part Number:3363 0660 96
Material:TPU+HNBR+PTFE
Packaging Details: bag or box +carton
Certification: IOS 9001
MOQ:1set
Description Review
Description
Model:Atlas Copco HB4200 Hydraulic breaker
Part Name:Hydraulic breaker seal kit, Hydraulic hammer seal kit
Tool:180MM
Part Number:3363 0660 96
Material:TPU+HNBR+PTFE
Packaging Details: bag or box +carton
Certification: IOS 9001
Delivery Time: 2-5days upon payments confirmed
Position:Atlas Copco Hydraulic Breaker Systerm
Brand:TOPARTS, OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability:50
MOQ:1set
Parts list

Item

Part No.

Name

Qty

KIT

3363066096

Seal kit

1

.104

3360314364

O-ring

1

.105

3360328046

Back-up ring

1

.110

3360314373

O-ring

2

.112

3361031810

O-ring

1

.115

3360478171

O-ring

1

.123

3360314370

O-ring

1

.124

3360314375

O-ring

1

.125

3363087483

Back-up ring

1

.145(146-147)

3361850422

Seal kit

2

..146



O-ring

2

..147



Back-up ring

2

.182

3360478426

Threaded plug

1

.183

3360175125

O-ring

1

.203

3361846277

Seal

1

.204

3363098138

Seal

1

.290(291-292)

3363085582

Seal kit

2

..291



Seal

1

..292



Back-up ring

1

.301

3362267585

Seal

6

.302

3362267589

Seal

8

.305

3363083671

Wiper

1

.390(391-392)

3363085583

Seal kit

2

..391



Seal

1

..392



Back-up ring

1

.401

3362267586

Seal

1

.602

3363083245

O-ring

1

KIT

3363091732

Seal kit for swivel joint for automatic lubrication system

1

KIT

3363094885

Plastic parts kit

1

.2

3361356789

Elastic pad

1

.3

3361356925

Shock absorber

2

.4

3362269803

Guide plate

2

.5

3362265215

Guide plate

2

.6

3363086237

Plate

1

KIT

3363094353

Tensioning bolt kit

1

.192



Tensioning bolt

2

.193

3363093653

Washer

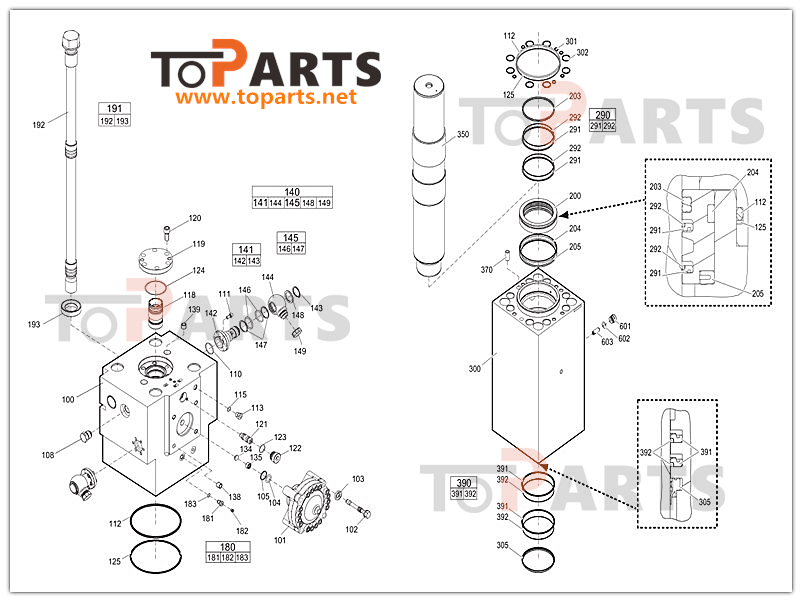

Exploded view

Toparts 3363066096 Hydraulic Breaker Seal Kit for Atlas Copco HB4200

Restore the heavy-hitting power and hydraulic precision of your demolition equipment with the Toparts 3363066096 Hydraulic Breaker Seal Kit. Specifically engineered for the Atlas Copco / Epiroc HB4200 Hydraulic Hammer, this premium service kit is the definitive solution for professional-grade maintenance and leak prevention in high-intensity environments.

Optimized for Large-Scale Demolition Performance

The Atlas Copco HB4200 is a heavy-duty breaker designed for the most challenging tasks in mining, quarrying, and primary demolition. Such massive impact energy requires a sealing system that can withstand extreme pressure spikes and high operating temperatures. Toparts has developed the 3363066096 kit to meet these rigorous demands, ensuring your hammer maintains its factory-spec performance.

Key Features and Benefits:

Direct OEM Compatibility: Precision-manufactured to match Atlas Copco part number 3363066096, ensuring a perfect, leak-free fit for the HB4200 series without the need for adjustments.

Advanced Material Engineering: Our seals are crafted from high-performance Polyurethane (PU), PTFE, and specialized NBR. These materials offer superior resistance to abrasion, heat, and the high-frequency vibrations inherent in heavy hammering.

Restores Impact Energy: By eliminating internal fluid bypass and maintaining nitrogen gas pressure, this kit ensures that 100% of the hydraulic energy is converted into productive breaking force.

Comprehensive Protection: Includes all necessary components—such as rod seals, buffer seals, wiper seals, and O-rings—designed to keep contaminants out and keep the hydraulic system clean.

Extends Equipment Lifecycle: Regular maintenance with Toparts' high-quality seals prevents "cylinder scoring" and expensive piston damage, significantly reducing the total cost of ownership.

Product Specifications:

Feature:Details

Part Number:3363066096

Compatible Model:Atlas Copco / Epiroc HB4200

Component Type:Full Hydraulic Sealing Repair Kit

Materials:Premium PU, PTFE, and High-Grade Elastomers

Application:Heavy-Duty Mining, Quarrying, and Demolition

Manufacturer:Toparts

Why Choose Toparts?

Toparts is a leading manufacturer of high-end sealing solutions for the global construction and mining industries. Our 3363066096 seal kit provides the perfect balance of OEM-level reliability and aftermarket value, keeping your HB4200 operational on the job site where it belongs.

Would you like me to check the availability of the matching Lower Bushing or the complete Gas Charging Kit for your HB4200?
Tag:Hydraulic breaker seal kitHydraulic hammer seal kit ,Atlas Copco Hydraulic breaker seal kit,Hydraulic breaker repair seal kit
