English

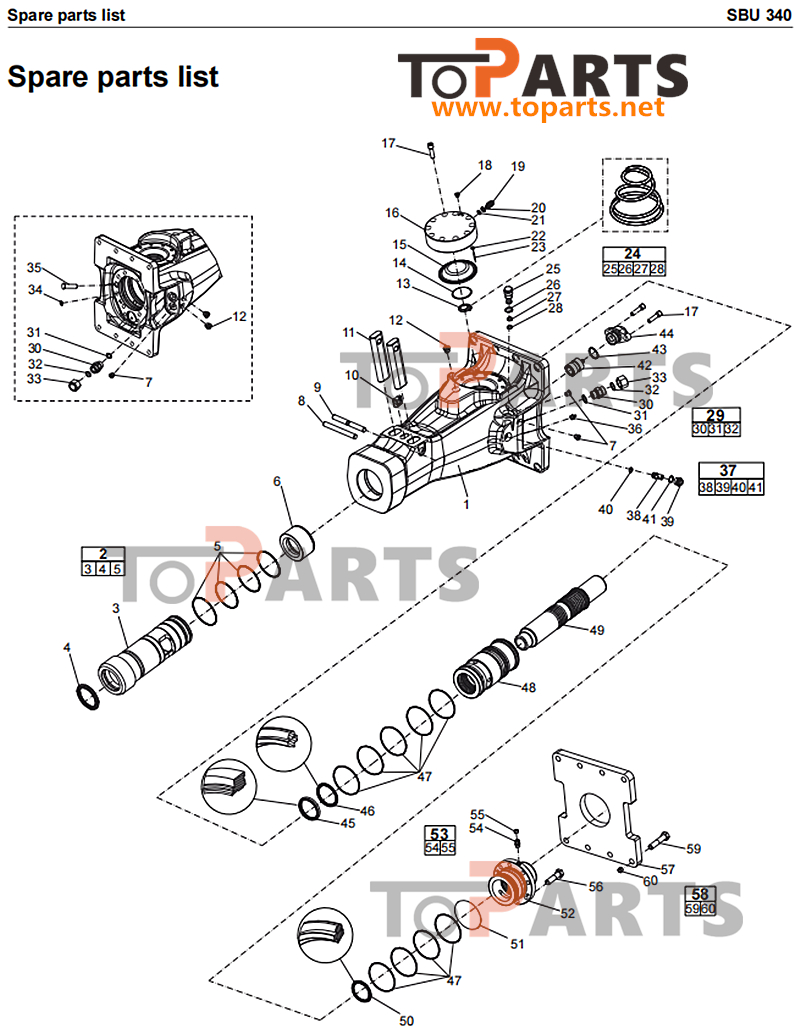

Parts list
|
No. |
Description |
Quantity |
Part number |
|
1 |
Breaker body |
1 |
- |
|
2(3-5) |
Bushing standard, complete |
1 |
3315301980 |
|
3 |
Bushing |
1 |
- |
|
4 |
Scraper ring |
1 |
3315325000 |
|
5 |
O-ring |
4 |
0663210617 |
|
6 |
Stop ring |
1 |
3315301400 |
|
7 |
Plug |
3 |
0686644207 |
|
8 |
Spring pin, option |
1 |
0108169128 |
|
9 |
Lock pin |
1 |
3315203100 |
|
10 |
Lock buffer |
1 |
3315141900 |
|
11 |
Tool retainer |
2 |
3315203000 |
|
12 |
Hexagon socket plug |
3 |
0686371801 |
|
13 |
Coil spring |
1 |
3315303500 |
|
14 |
Diaphragm support |
1 |
3315400700 |
|
15 |
Diaphragm |
1 |
3315235000 |
|
16 |
Accumulator house |
1 |
3315355400 |
|
17 |
Hexagon socket screw |
12 |
0211196534 |
|
18 |
Plug |
1 |
0686371805 |
|
19 |
Charge valve |
1 |
3315366000 |
|
20 |
O-ring |
1 |
0663212000 |
|
21 |
Seal ring |
1 |
3115329002 |
|
22 |
O-ring |
1 |
0663211400 |
|
23 |
Parallel pin |
1 |
0101414000 |
|
24(25-28) |
Pressure relief valve, complete |
1 |
3315365800 |
|
25 |
Pressure relief valve |
1 |
- |
|
26 |
O-ring |
1 |
9125621100 |
|
27 |
O-ring |
1 |
0663210421 |
|
28 |
Support ring |
1 |
0661200401 |
|
29(30-32) |
Nipple, complete |
1 |
0570700004 |
|
30 |
Nipple |
1 |
- |
|
31 |
Seal ring |
1 |
0664000004 |
|
32 |
O-ring |
1 |
0663210217 |
|
33 |
Cap |
2 |
0570700010 |
|
34 |
Seal |
1 |
0665090014 |
|
35 |
Plug |
1 |
3315336700 |
|
36 |
Grease nipple |
1 |
0544215300 |
|
37(38-41) |
Restrictor standard, complete |
1 |
3315369464 |
|
38 |
Restictor, standard |
1 |
- |
|
39 |
Restrictor plug |
1 |
- |
|
40 |
O-ring |
1 |
0663210421 |
|
41 |
O-ring |
1 |
9125621100 |
|
42 |
Control valve |
1 |
3315362400 |
|
43 |
O-ring |
1 |
0663990033 |
|
44 |
Valve cover |
1 |
3315362900 |
|
45 |
Wiper |
1 |
0665909957 |
|
46 |
Piston rod seal |
1 |
0665070137 |
|
47 |
Seal ring |
9 |
0663990031 |
|
48 |
Liner |
1 |
3315355200 |
|
49 |
Piston |
1 |
3315354700 |
|
50 |
Piston rod seal |
1 |
0665070146 |
|
51 |
O-ring |
1 |
0663210669 |
|
52 |
Back head |
1 |
3315355300 |
|
53(54-55) |
Check valve, complete |
1 |
3315244881 |
|
54 |
Check valve |
1 |
- |
|
55 |
Valve rubber |
1 |
3315280800 |
|
56 |
Hexagon head screw |
8 |
0147148103 |
|
57 |
Base plate |
1 |
3315356600 |
|
58(59-60) |
Set of eight screws, complete |
1 |
3315365360 |
|
59 |
Screw |
8 |
- |
|
60 |
Nut |
8 |
- |

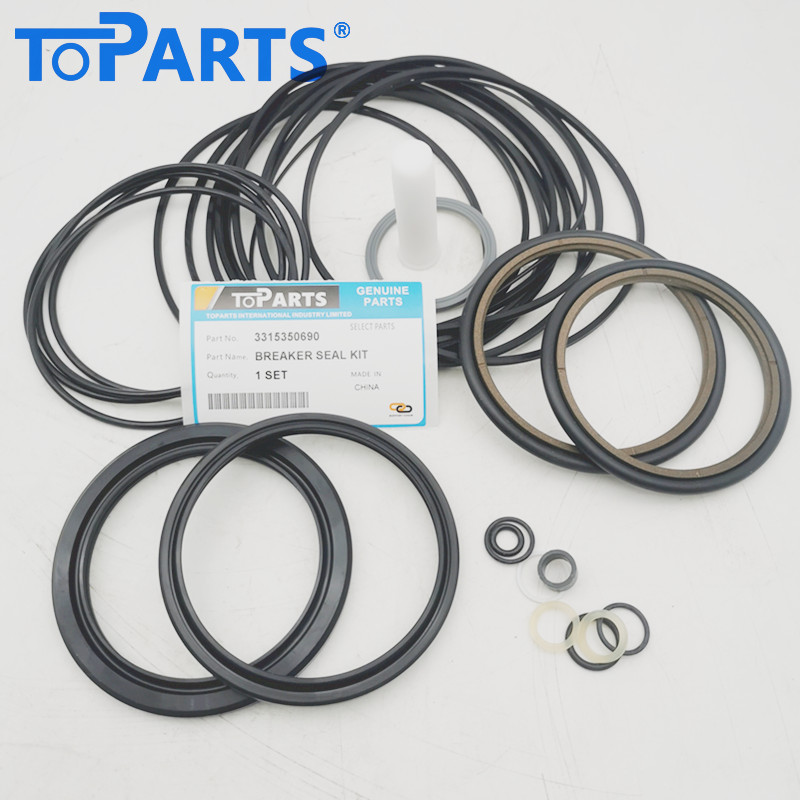

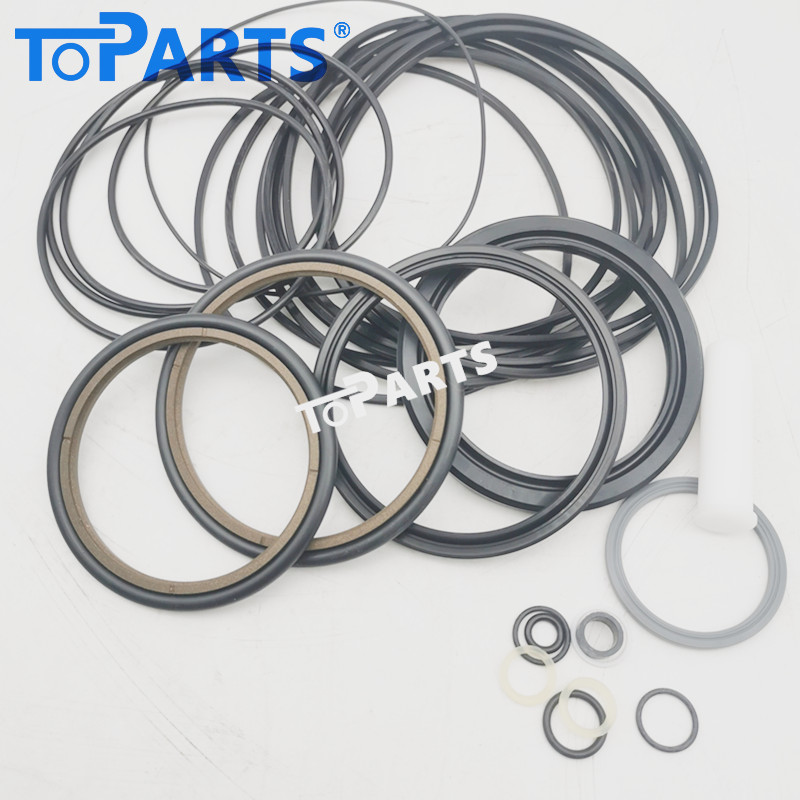

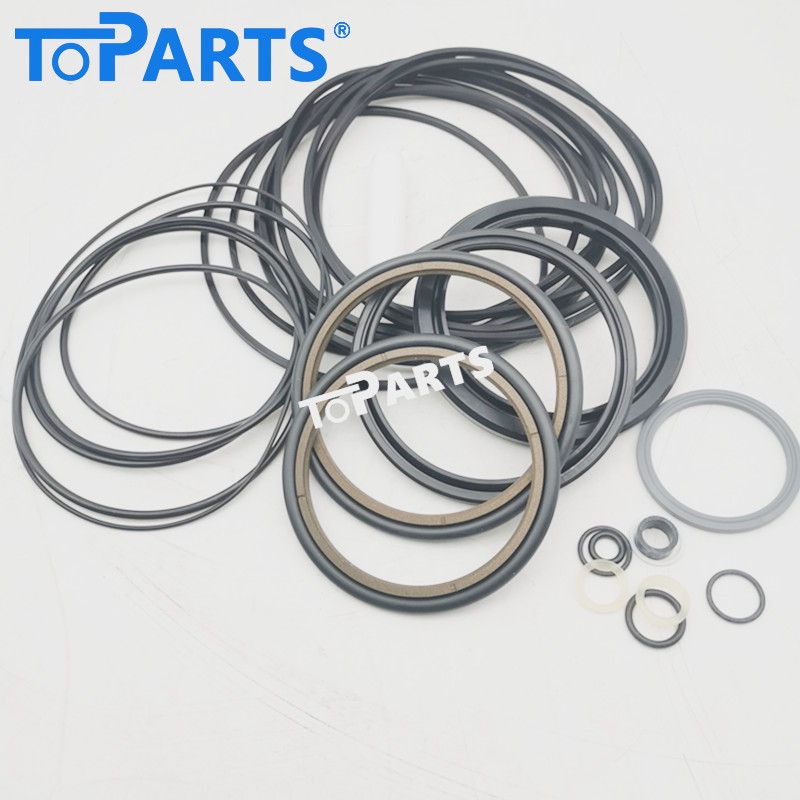

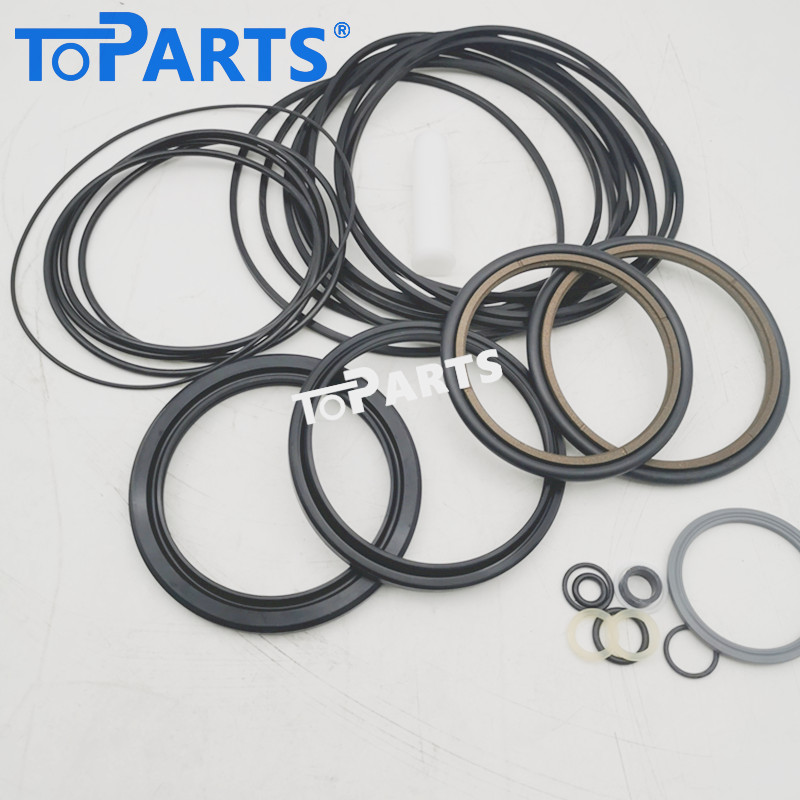

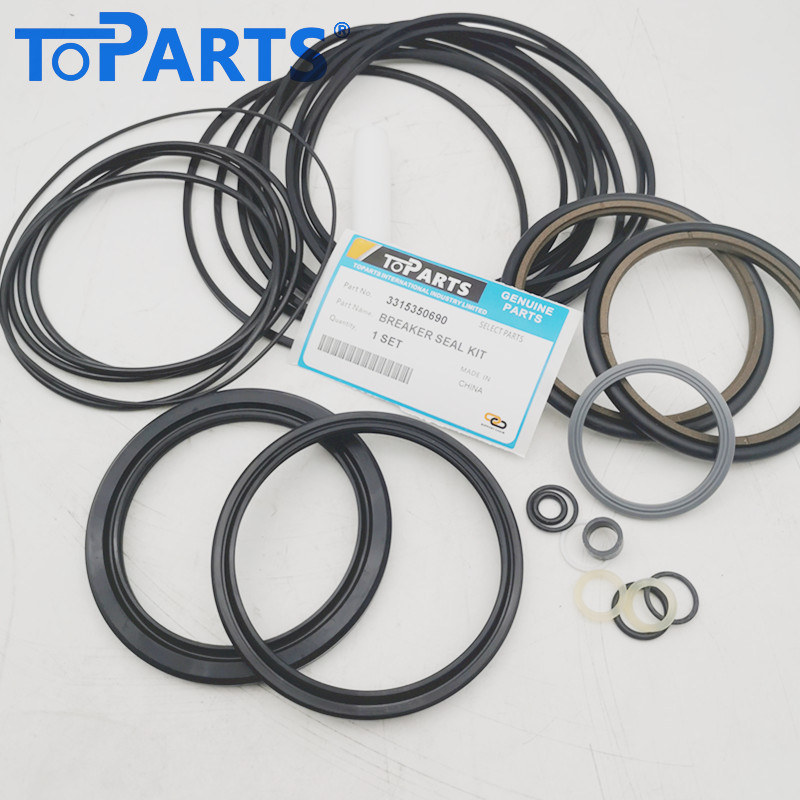

Toparts 3315350690 Hydraulic Breaker Seal Kit for Atlas Copco SBU340
Restore the powerful, reliable performance of your hydraulic attachment with the Toparts 3315350690 Hydraulic Breaker Seal Kit. This high-quality service and repair kit is specifically engineered for the Atlas Copco SBU340 Hydraulic Hammer, ensuring maximum power transfer and minimizing costly fluid loss.
Engineered for Atlas Copco SBU340 Reliability
The Atlas Copco SBU340 is a heavy-duty breaker used in demanding demolition and rock breaking applications. Toparts understands that the seals must endure extreme impact, high cycle rates, pressure fluctuations, and harsh environments. Our 3315350690 seal kit is a high-precision, direct aftermarket replacement, meticulously crafted to meet or exceed OEM specifications for the SBU340.
Key Features and Benefits:
Direct OEM Replacement: This kit is a seamless replacement for the Atlas Copco OEM part number 3315350690, guaranteeing perfect fitment and function within your SBU340 hydraulic hammer.
Superior Material Quality: Manufactured using specialized, high-performance materials (including robust polyurethane, FKM, and NBR) that are built to withstand severe pressure spikes, high temperatures, and abrasive environmental conditions.
Restores Impact Energy: Worn seals cause internal fluid bypass, leading to a significant drop in impact force and operational efficiency. Replacing them with the Toparts 3315350690 kit restores your breaker's full, rated destructive power.
Extends Hammer Life: By maintaining proper internal sealing, the kit prevents hydraulic contamination and protects critical components—such as the piston and cylinder—from premature wear.
Comprehensive Repair Solution: Provides all the necessary seals for a complete and effective hydraulic service of the breaker.
Product Details:
Part Number (Seal Kit): 3315350690
Compatible Model: Atlas Copco SBU340 Hydraulic Breaker / Hammer
Application: Hydraulic Breaker Seal Kit / Service Repair Kit
Manufacturer: Toparts
Don't compromise your breaking efficiency. Invest in the trusted quality and reliability of the Toparts 3315350690 Hydraulic Breaker Seal Kit and keep your Atlas Copco SBU340 operating at its powerful best.
