English

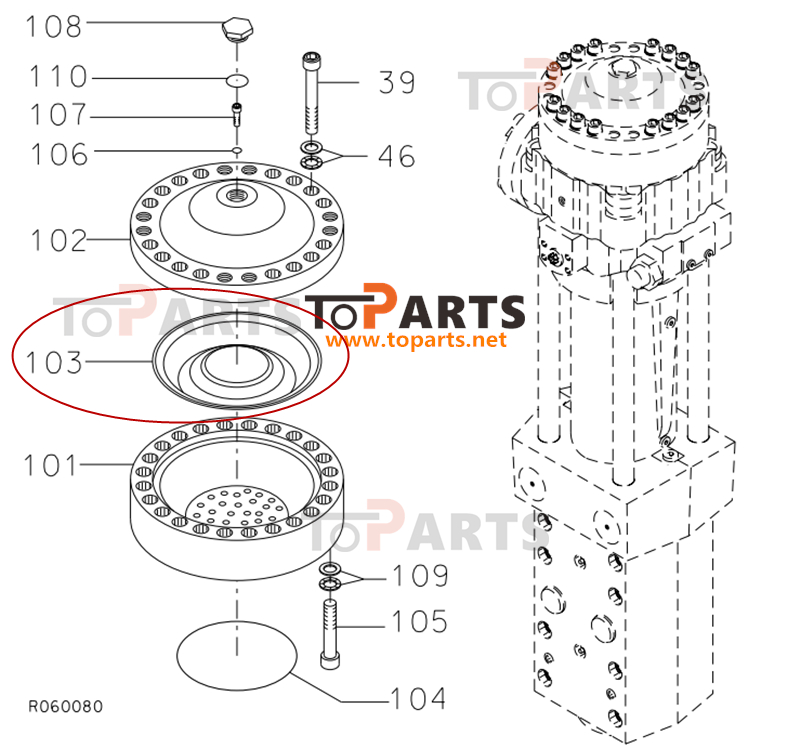

Parts list
|
Item |
Description |
Part no. |
Qty |
|
1 |
Low pressure accumulator(incl.parts01-110) |
100661 |
1 |
|
101 |
Accumulator bottom |
100662 |
1 |
|
102 |
Accumulator cover |
100663 |
1 |
|
103 |
Membrane |
300909 |
1 |
|
104 |
O-ring |
90002 |
1 |
|
105 |
Hex.socket screw |
900028 |
8 |
|
106 |
Usit-ring |
90056 |
1 |
|
107 |
Filling plug |
42074 |
1 |
|
108 |
Shield plug |
400300 |
1 |
|
109 |
Lock washer |
91010 |
24 |
|
110 |
O-ring |
910006 |
1 |
|
39 |
Hex.socket screw |
900029 |
16 |
|
|
*)Are included in seal set |
|
|
Our customers

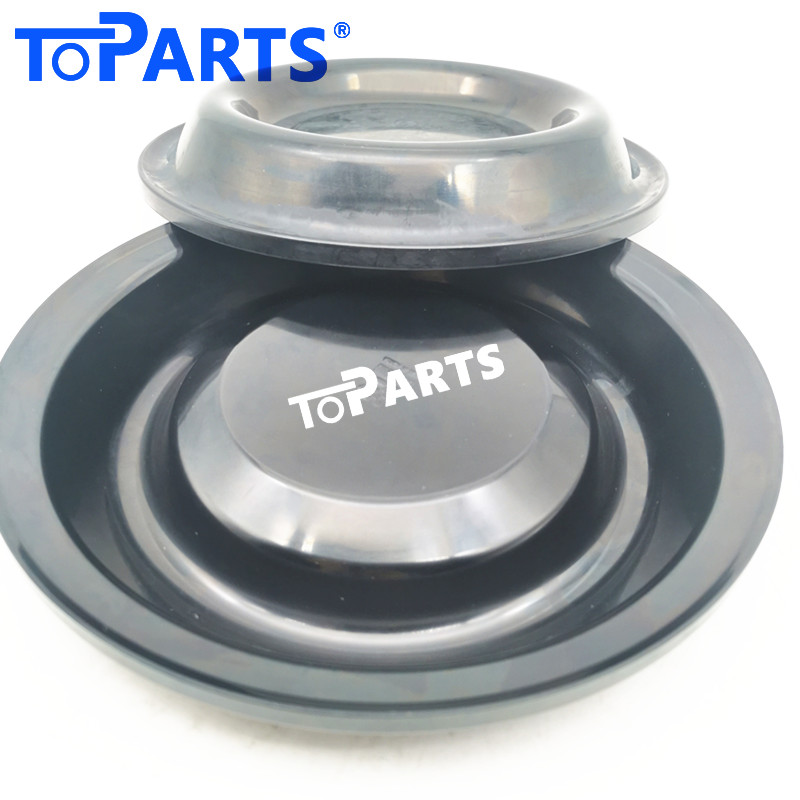

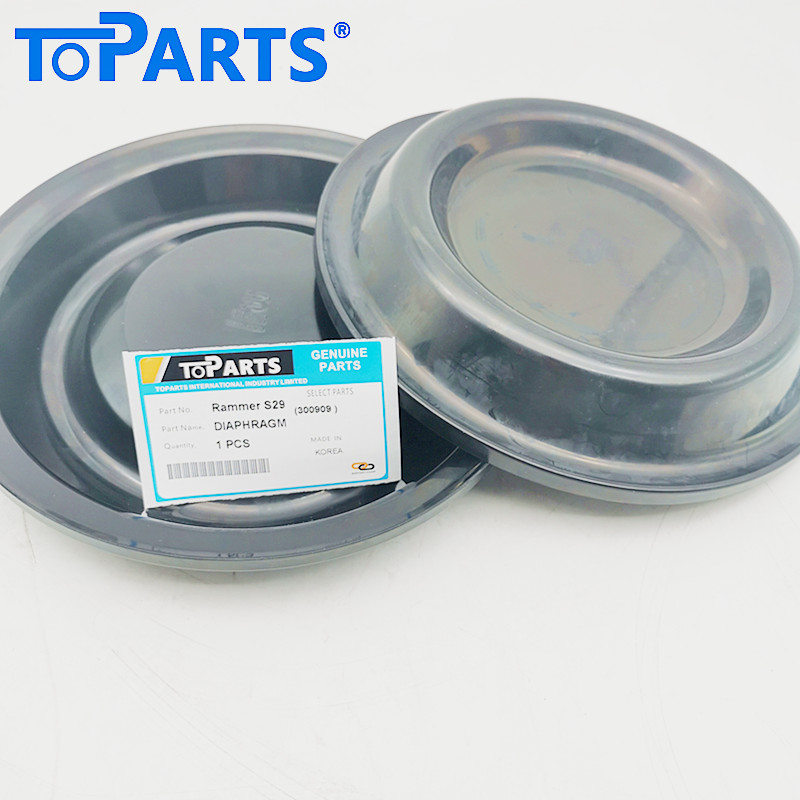

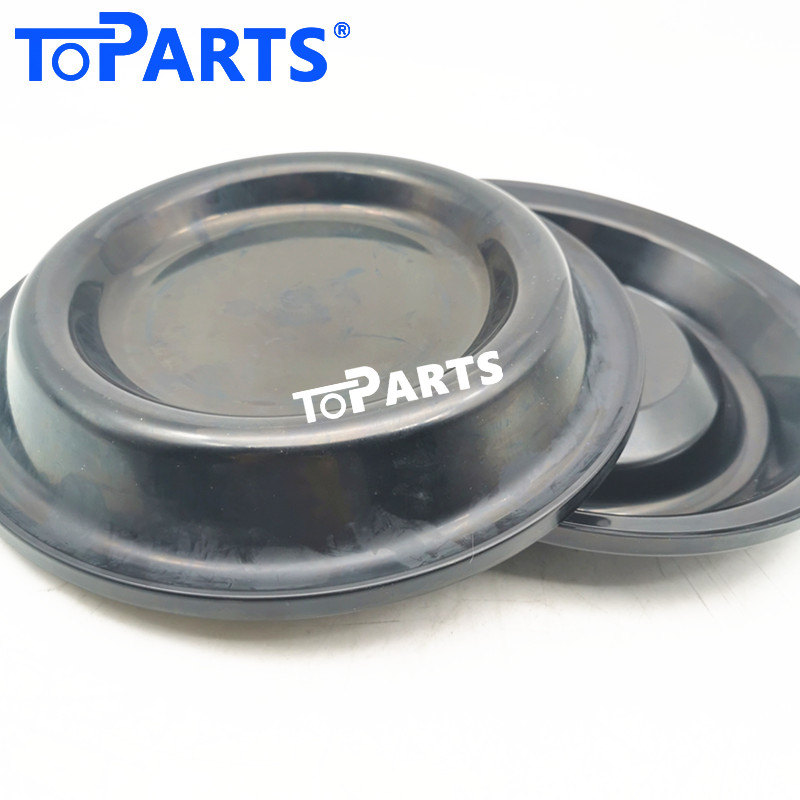

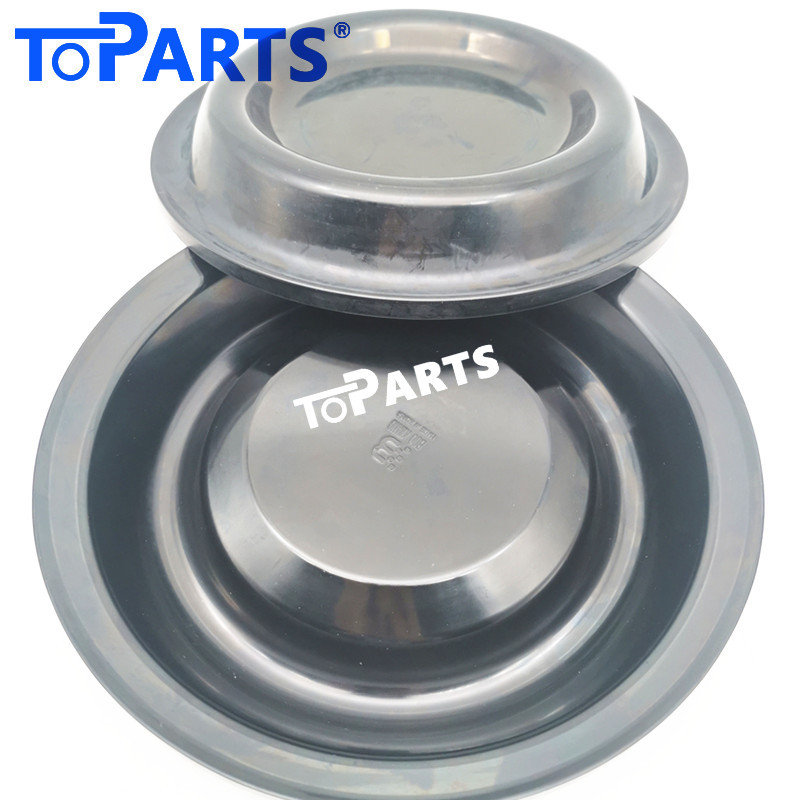

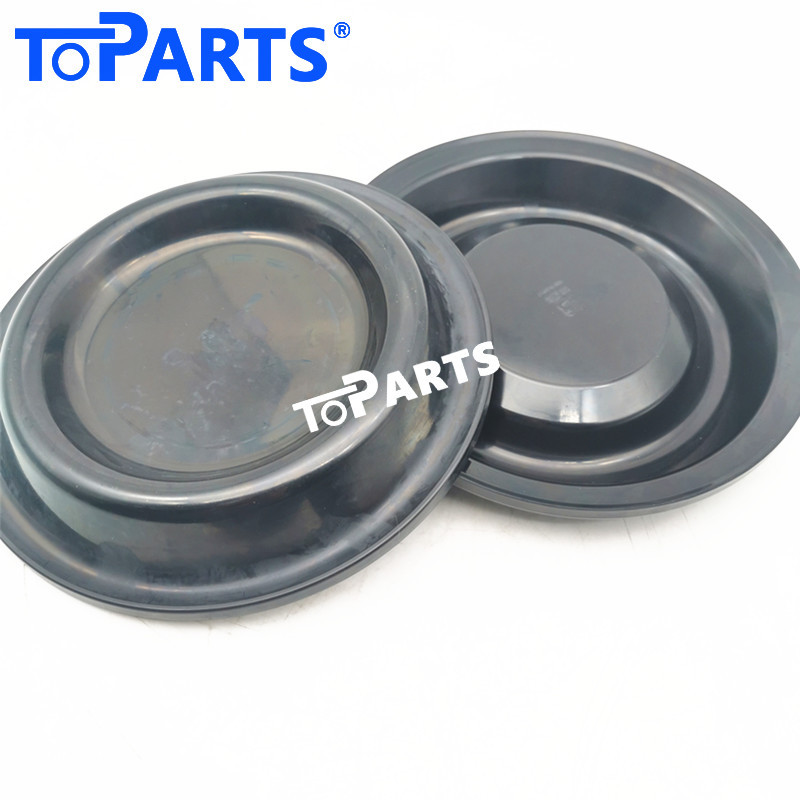

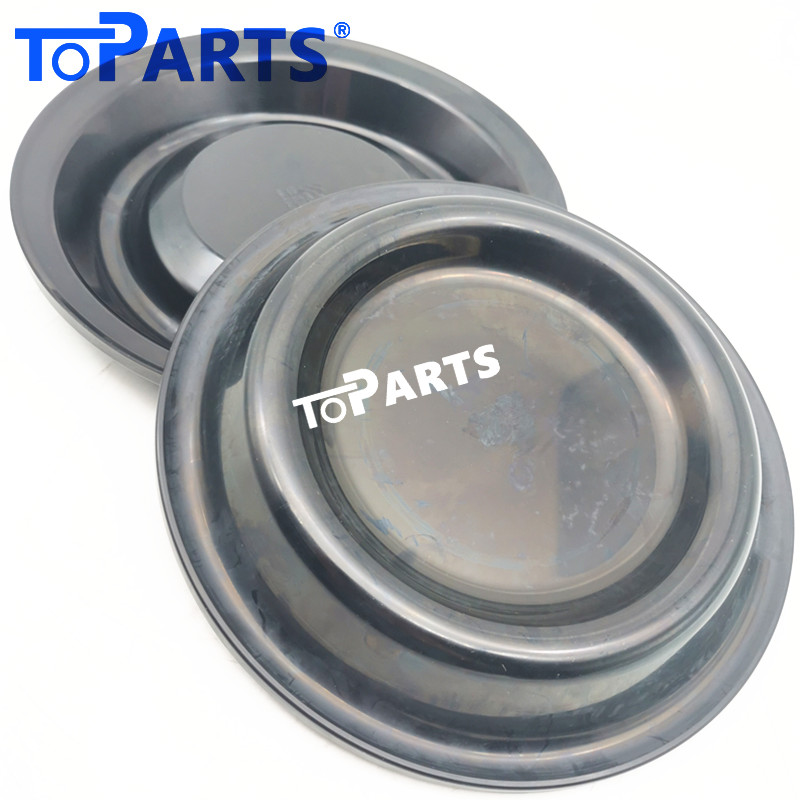

Toparts 300909 Hydraulic Breaker Diaphragm for Rammer S29
Restore the optimal performance and protect the vital components of your hydraulic hammer with the Toparts 300909 Hydraulic Breaker Diaphragm (Membrane). This essential component is specifically designed for the accumulator on the Rammer S29 Hydraulic Hammer, guaranteeing stable pressure regulation and reliable operation.
Engineered for Rammer S29 Accumulators
The diaphragm is the critical element within the accumulator, serving as a flexible barrier that separates the highly pressurized nitrogen gas from the hydraulic oil. Failure of this part leads directly to pressure loss, cavitation, and rapid wear of the hammer's internal mechanism. The Toparts 300909 diaphragm is a high-precision, direct aftermarket replacement, meticulously engineered to handle the intense pressure fluctuations and high impact forces of the Rammer S29.
Key Features and Benefits:
Direct OEM Replacement: This membrane is a seamless replacement for the Rammer OEM part number 300909, ensuring full compatibility and secure, straightforward installation in the S29 accumulator.
Superior Material Quality: Manufactured from highly durable, specialized elastomers, our diaphragm provides exceptional resistance to high temperatures, chemical attack from hydraulic fluids, and constant high-pressure flexing, ensuring a significantly extended service life.
Restores Impact Energy: A new, properly installed diaphragm restores correct accumulator function, preventing hydraulic pressure decay and ensuring the hammer delivers maximum, consistent impact energy.
Protects Internal Components: By maintaining effective separation and damping, the diaphragm prevents damaging pressure spikes and cavitation, protecting the hammer's piston, cylinder, and other sensitive hydraulic parts from premature failure.
Cost-Effective Maintenance: Replacing the accumulator membrane is the most crucial and economical preventive step to maintain hydraulic stability and avoid the substantial costs associated with major hammer repairs.
Product Details:
Part Number (Membrane): 300909
Component Type: Hydraulic Breaker Diaphragm / Accumulator Membrane
Compatible Model: Rammer S29 Hydraulic Hammer
Application: Accumulator Gas-Oil Separation and Damping
Manufacturer: Toparts
Don't compromise the output or lifespan of your hydraulic hammer. Choose the trusted quality and high performance of the Toparts 300909 Hydraulic Breaker Diaphragm for your Rammer S29.
