Name: 2401-9287KT Doosan Travel Motor Seal Kit for DH220LC SOLAR225LC Excavator Travel Motor 2401-9287
Brand: TOPARTS
SKU: TP0306
Price: 25.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Home > Travel motor Seal kit

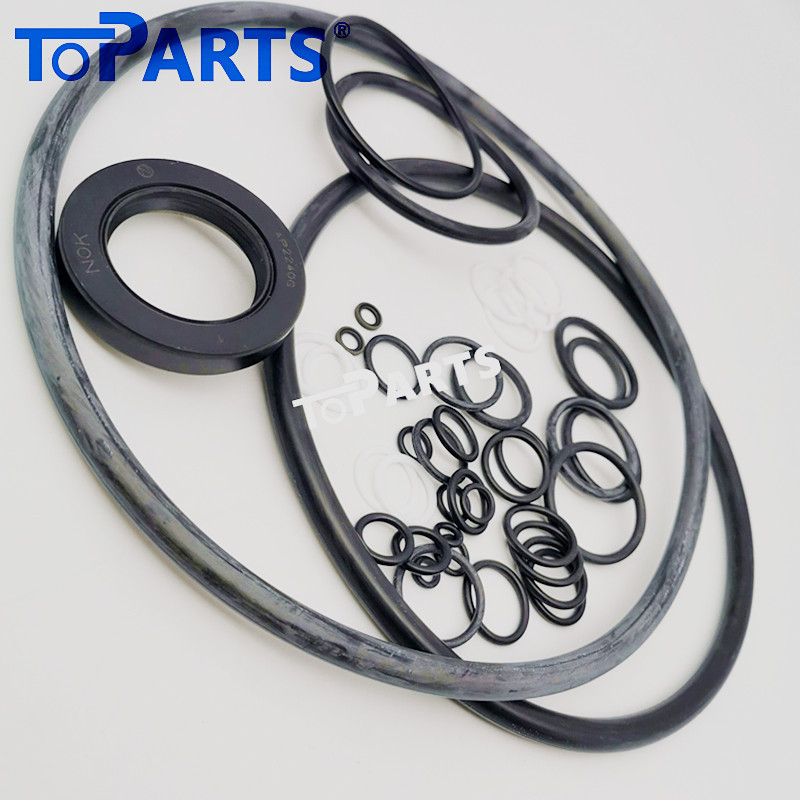

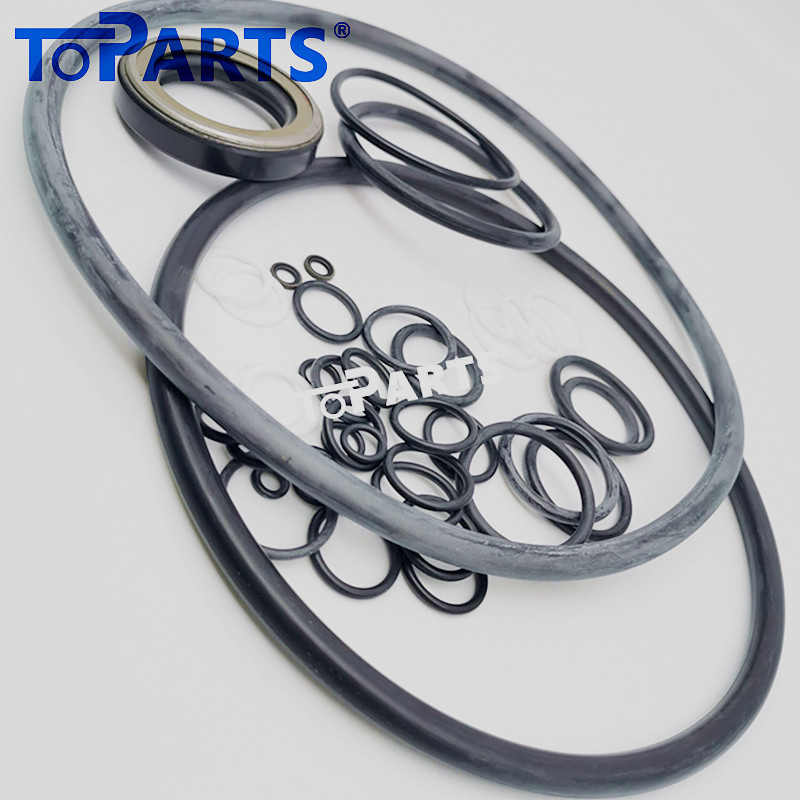

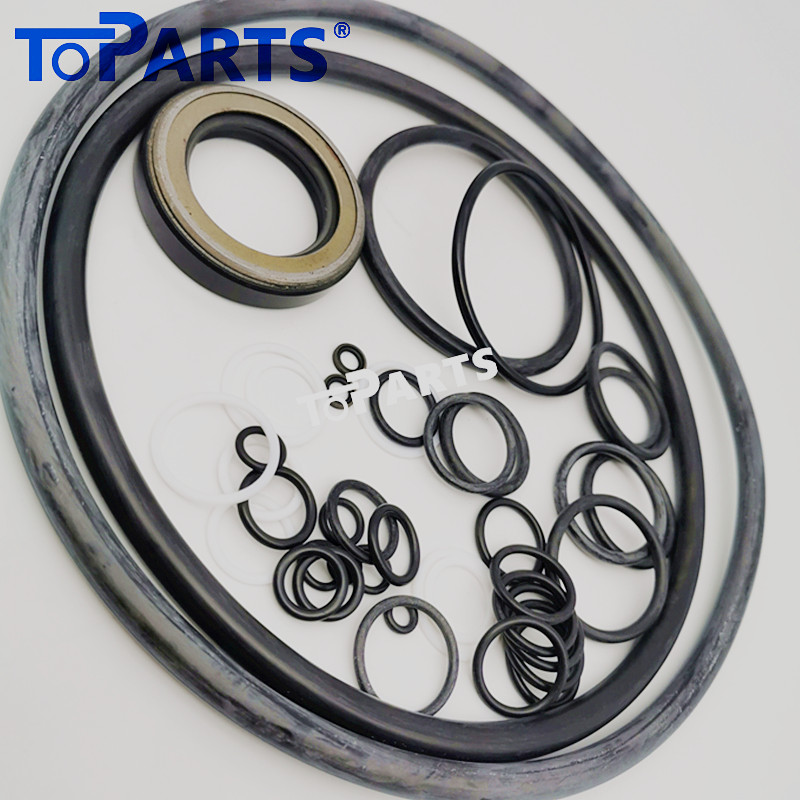

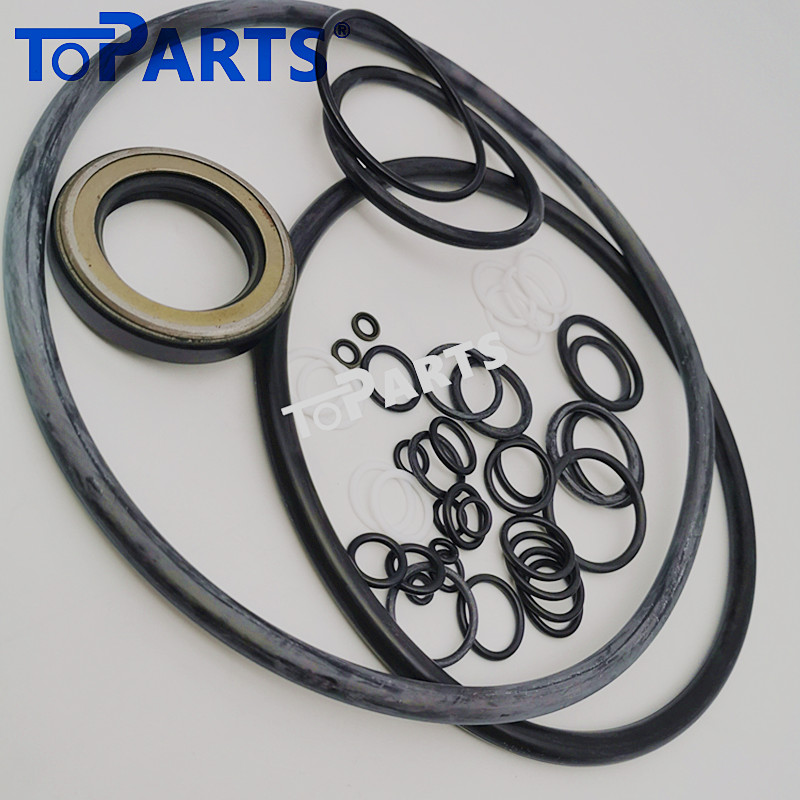

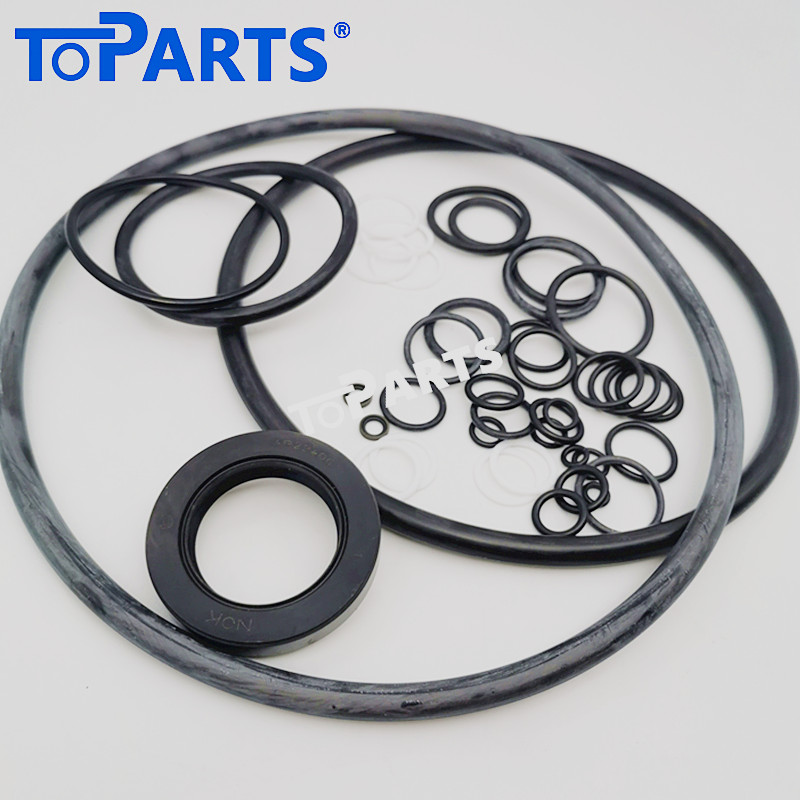

2401-9287KT Doosan Travel Motor Seal Kit for DH220LC SOLAR225LC Excavator Travel Motor 2401-9287

Description Review

Description

Model:2401-9287KT Travel motor Seal Kit

Part Name:Travel motor Seal Kit

Motor Part Number:2401-9287

Part Number:2401-9287KT

For:Doosan SOLAR170LC,SOLAR175LC,SOLAR220LL,SOLAR225LC

Material:Steel+NBR

Certification: IOS 9001

Packaging Details: bag or box +carton

Delivery Time:2-5days upon payments confirmed

Brand:Hyundai,TOPARTS, OEM or as Required

Payment Terms:TT/Paypal/WEST UNION

Supply Ability:500

MOQ:1set
Parts list

Key No	Part No	Description	Qty
-	2401-9287	TRAVEL DEVICE	2
-	2401-9287A	TRAVEL DEVICE	2
*	718191	TRAVEL MOTOR	1
102	131155	SHAFT	1
103	133591	PLATE;SWASH	1
104	131149	BLOCK;CYLINDER	1
*	716689	PISTON & SHOE ASS'Y	9
105	131147	PISTON	1
106	131148	SHOE	1
107	131150	PLATE;RETAINER	1
108	132323	BALL;THRUST	1
109	132324	PLATE;TIMING	1
110	116976	WASHER	2
111	131356A	COLLAR(WASHER)	1
112	131158	P/PISTON	1
113	131159	SPRING	12
114	131153	SPRING	1
115	131160	PLATE;FRICTION	2
116	116979	PLATE;MATING	2
132	215823	SEAL;OIL	1
135	228569	O-RING	1
139	228570	O-RING	1
145	215824	RING;SNAP	1
149	229127	BEARING;BALL	1
150	229128	BEARING;BALL	1
151	131154	ROLLER	5
*	716694	PISTON & SHOE ASS'Y	1
161	131184	PISTON(TWO SPEED)	1
162	131185	SHOE(TWO SPEED)	1
167	131161	PIVOT	1
171	131146	PIN;PARALLEL	2
193	123744	SPRING	1
*	716680	RELIEF VALVE ASS'Y	2
201	131178	VALVE	2
202	131179	SLEEVE	2
203	131180	RETAINER;SPRING	2
204	131181	PLUG	2
205	131182	SHIM	2
206	131183	SPRING	2
208	201706	O-RING	2
209	206597	O-RING	2
210	201710	O-RING	2
211	228576	RING;BACK UP	4
217	228577	RING;BACK UP	4
219	201729	O-RING	2
220	228578	SEAL;PISTON	2
*	718553	REAR FLANGE KIT	1
301	132622	FLANGE;REAR	1
323	132318	SPOOL	1
324	204548	PLUG	2
325	131167	STOPPER	2
326	104126B	PLUG	2
327	105637	VALVE	2
328	211668B	SPRING	2
330	123743	SPRING	2
336	201733	O-RING	2
337	201719	O-RING	2
341	131177	PIN;PARALELL	1
343	200709	BOLT;SOCKET M16X40	12
346	108061A	PLUG;PT	2
352	131170	PLUG;RO	2
354	224308	PLUG	8
355	201710	O-RING	2
357	131145	PLUG;RO	2
358	201689	O-RING	2
359	207424	O-RING	2
363	131173	SPOOL	1
366	131174	SPIRNG	1
368	200162	BALL;STEEL	2
379	228574	FILTER	1
380	131186	PLUG	2
381	131165	PISTON	1
382	131187	PLUG	2
383	201749	O-RING	2
384	225118	O-RING	2
385	228582	BALL;STEEL	2
397	116482	ORIFICE	1
398	108064A	PLUG;PT	4
900	2401-9287KT	SEAL KIT;TRAVEL MOTOR	1

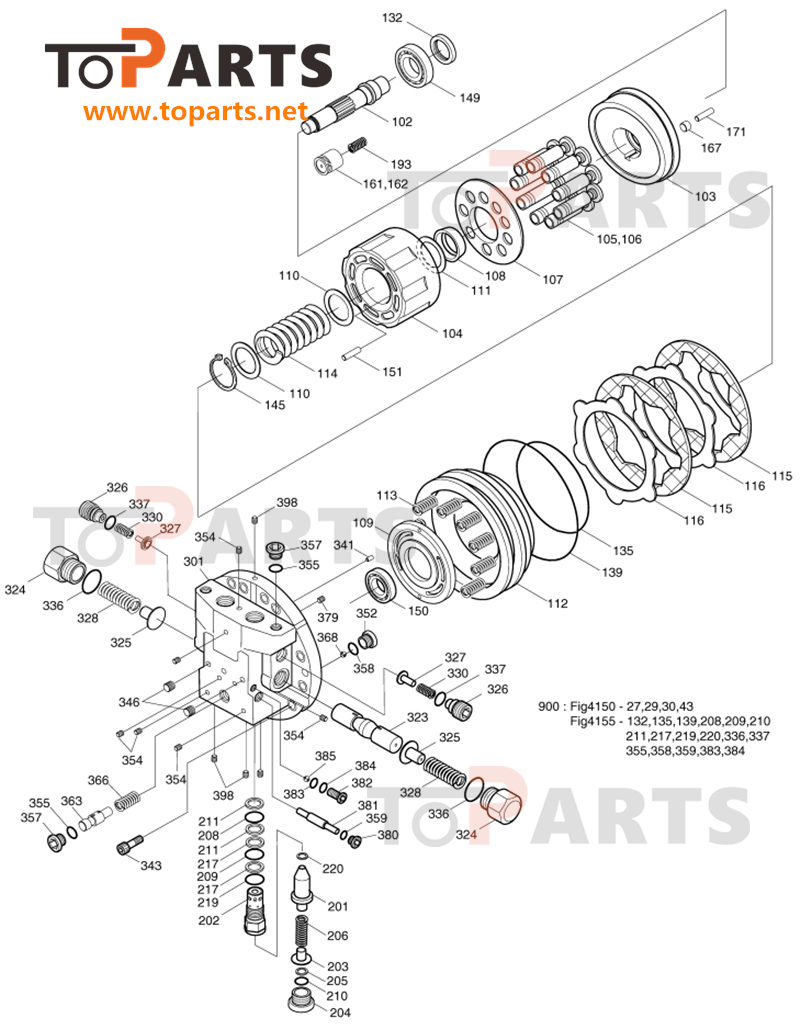

Exploded view

Keep Your Doosan Excavator Moving with Toparts' 2401-9287KT Travel Motor Seal Kit

Is your Doosan DH220LC or SOLAR225LC excavator losing drive power or showing signs of a leaky travel motor? A worn-out seal kit is a common culprit. Don't let a compromised travel motor slow down your productivity! Toparts, a trusted name in aftermarket heavy equipment parts, offers the 2401-9287KT Doosan Travel Motor Seal Kit – the precise solution you need to restore your excavator's crucial mobility.

This comprehensive service seal kit, proudly manufactured and sold by Toparts, is meticulously designed for the Doosan DH220LC and SOLAR225LC excavator travel motors (specifically addressing part number 2401-9287). Each component within the kit is crafted from high-quality, durable materials engineered to withstand the demanding conditions of continuous operation. These seals are built to endure high pressures, varying temperatures, and exposure to the contaminants commonly found on job sites.

Why Choose Toparts' 2401-9287KT Seal Kit?

Perfect Fit & Compatibility: As an aftermarket specialist, Toparts ensures this kit is engineered for a precise fit with your Doosan DH220LC or SOLAR225LC travel motor, guaranteeing seamless integration and reliable operation.

Enhanced Durability: Made from premium-grade materials, these seals offer exceptional resistance to wear, abrasion, and leaks. This significantly extends the lifespan of your travel motor, protecting your investment.

Restored Performance: By effectively sealing the hydraulic system, this kit prevents fluid loss and maintains consistent pressure, bringing back your excavator's full travel power and efficiency.

Cost-Effective Repair: Opting for a high-quality seal kit from Toparts is a far more economical solution than replacing an entire travel motor. This helps you manage repair costs efficiently and gets your equipment back to work faster.

Minimized Downtime: Addressing seal issues promptly with this reliable kit reduces operational delays, helping you keep your projects on schedule and maximizing your uptime.

Don't let a failing travel motor sideline your operations. Investing in the 2401-9287KT Doosan Travel Motor Seal Kit from Toparts means investing in the continued reliability and efficiency of your Doosan excavator. Ensure your machine moves smoothly and powerfully, tackling any job site challenge with confidence.

Ready to get your Doosan DH220LC or SOLAR225LC excavator back in top traveling condition? Choose Toparts for quality and reliability.
