Parts list
|
NO. |
Part Number |
Quantity |
Product Name |
|
|
VOE14563808 |
1 |
Cylinder |
|
|
VOE14563809 |
1 |
Cylinder |
|
1 |
VOE14884935 |
1 |
•Lock washer |
|
2 |
SA9612-09540 |
1 |
•Bearing |
|
3 |
SA1146-06890 |
1 |
•Lock nut |
|
4 |
|
1 |
•Head |
|
5 |
SA1146-06870 |
1 |
•Pad |
|
6 |
SA1146-08110 |
1 |
•Seal |
|
7 |
|
1 |
•Tube |
|
|
|
1 |
•Tube |
|
8 |
SA9624-11617 |
1 |
••Bushing |
|
9 |
VOE14560205 |
2 |
••Seal |
|
10 |
SA9481-11003 |
1 |
••Nipple |
|
11 |
VOE14564260 |
1 |
•Rod |
|
12 |
SA9624-11617 |
1 |
••Bushing |
|
13 |
VOE14560205 |
2 |
••Seal |
|
14 |
SA9481-11003 |
1 |
••Nipple |
|
15 |
VOE14884731 |
1 |
•Piston seal |
|
16 |
|
1 |
•Piston |
|
17 |
SA9568-01400 |
2 |
•Seal |
|
18 |
SA9565-11400 |
2 |
•Wear ring |
|
19 |
VOE13949445 |
13 |
•Screw |
|
20 |
VOE13963059 |
1 |
•Set screw |
|
21 |
VOE990639 |
1 |
•O-ring |
|
22 |
VOE990649 |
1 |
•O-ring |
|
23 |
SA9556-09500 |
1 |
•Retaining ring |
|
24 |
SA9557-08500 |
1 |
•Retaining ring |
|
25 |
SA9567-20950 |
1 |
•Back-up ring |
|
26 |
SA9564-20950 |
1 |
•Seal |
|
27 |
SA9563-20950 |
1 |
•Seal |
|
28 |
SA9566-31300 |
1 |
•Back-up ring |
|
100 |
VOE14589126 |
1 |
Sealing kit |
|
Cylinder Position |
Primary Part Number |
Alternative / Updated Number |
Maintenance Suggestion |
|
Boom Cylinder |
14589123 |
14513711 |
Essential for lifting; recommended to replace in pairs to ensure balanced hydraulic pressure. |
|
Arm / Stick Cylinder |
14589124 |
14513712 |
High-wear component; check for "arm drift" to maintain digging precision. |
|
Bucket Cylinder |
14589125 |
14513713 |
Most active cylinder; standard replacement part for every major service. |
|
Dozer Blade Cylinder |
14589126 |
VOE14589126 |
Ground-level component; features reinforced wiper seals to block mud and debris. |
|
Track Adjuster Seal |
14531302 |
14502856 |
Critical for track tensioning; prevents downtime caused by track derailment. |
Product Description

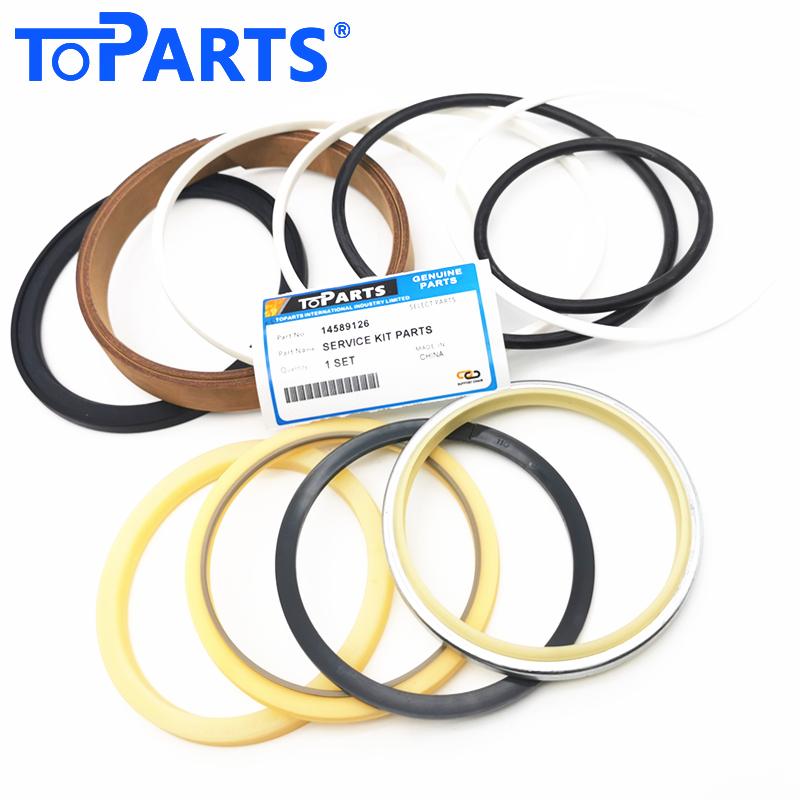

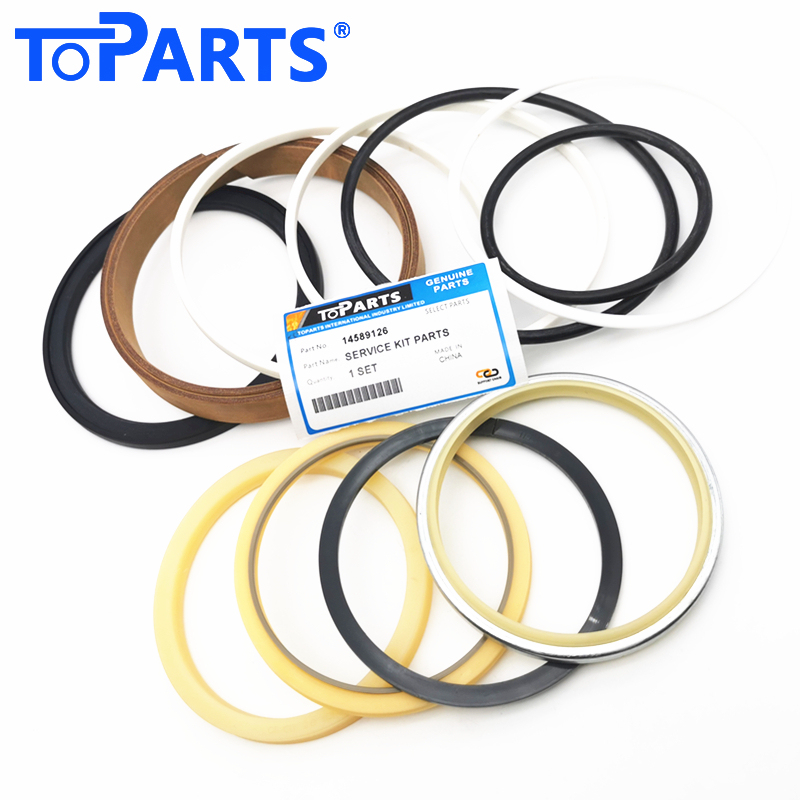

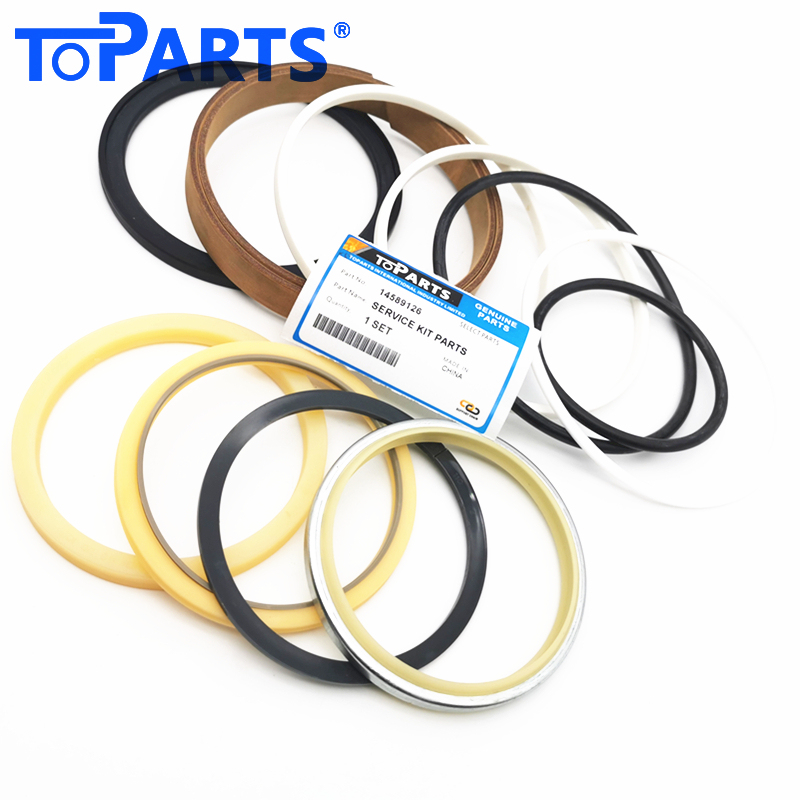

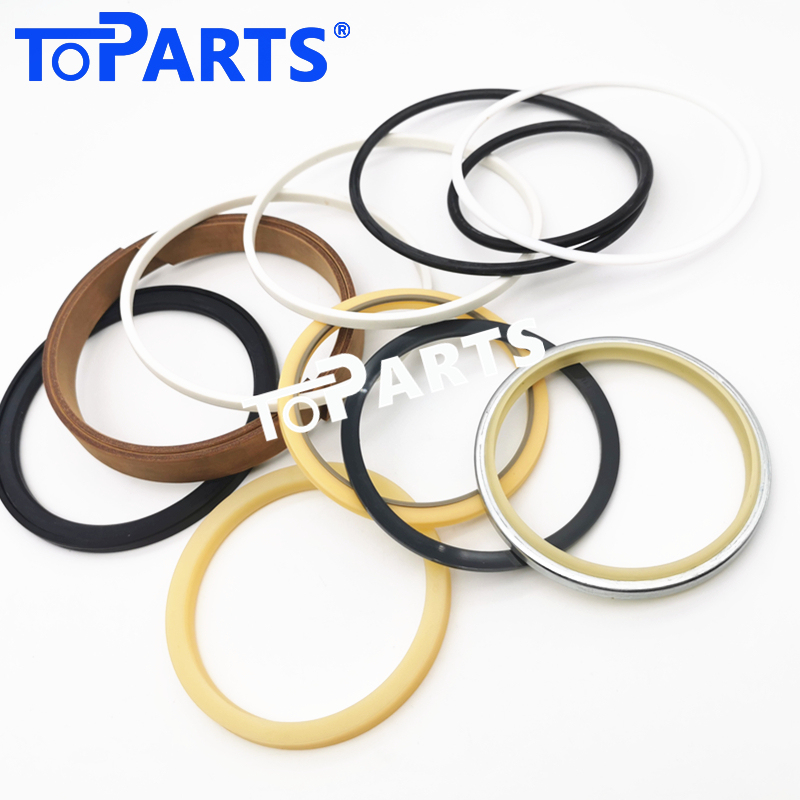

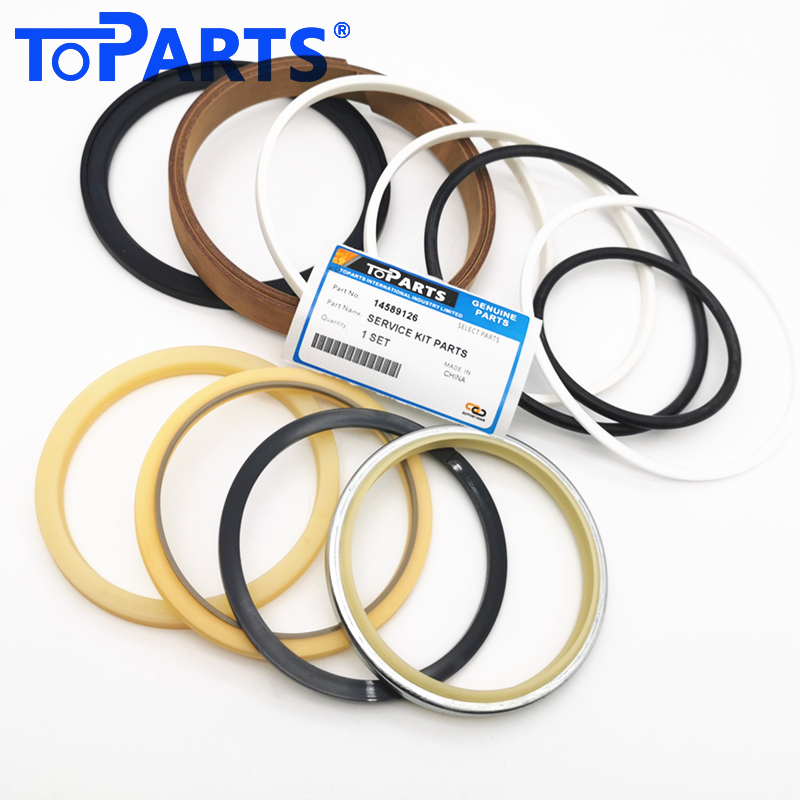

High-Performance Dozer Blade Cylinder Service Seal Kit for Volvo EC160DL Excavators
Keep your Volvo EC160DL leveling and backfilling efficiently with this premium Dozer Blade Cylinder Seal Kit. The blade cylinder is constantly exposed to debris and high ground-impact forces; our repair kit (Part Number 14589126) is specifically engineered to maintain a perfect seal under these grueling conditions.
At Toparts, we specialize in sealing solutions that extend the life of your hydraulic components. Our kits are manufactured from advanced materials that resist external contaminants and high-pressure friction, ensuring your EC160DL maintains its blade stability and down-pressure performance.
Product Features:
Exact Fitment: Tailored specifically for the Volvo EC140DL (EC160D Series) excavator dozer blade hydraulic system.
OEM Quality Standard: Fully compatible with OEM number 14589126, designed to meet or exceed original sealing specifications.
Superior Material Grade: Features high-grade Polyurethane (PU) and Nitrile (NBR) for maximum resistance to wear, mud, and extreme temperatures.
Leak-Free Reliability: Precision-engineered to prevent internal fluid bypass, ensuring the blade holds its position without drifting.
All-in-One Overhaul Kit: Includes all essential rod seals, piston seals, heavy-duty wiper seals, and O-rings for a professional cylinder rebuild.
Technical Specifications:
Machine Brand: Volvo
Model: EC160DL / EC160D
Component Type: Dozer Blade Cylinder / Blade Jack Cylinder
Part Number: 14589126
Category: Hydraulic Repair Components
Condition: Brand New Aftermarket Replacement
