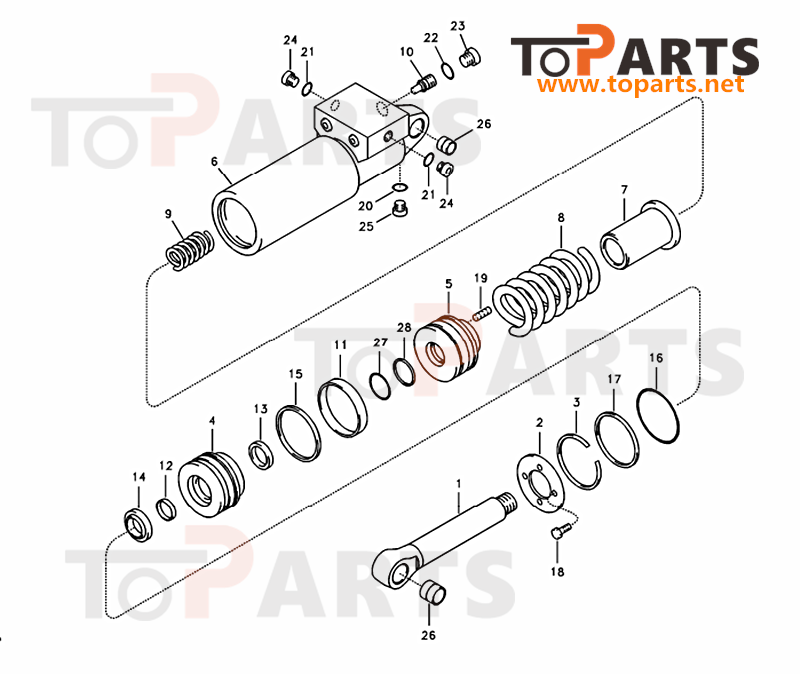

Parts list
|
NO. |
Part Number |
Quantity |
Product Name |
|
|
VOE14522370 |
1 |
Cylinder |
|
1 |
VOE14522990 |
1 |
•Piston rod |
|
2 |
VOE14523125 |
1 |
•Cover |
|
3 |
VOE14523129 |
1 |
•Ring |
|
4 |
VOE14523123 |
1 |
•Gland |
|
5 |
VOE14523124 |
1 |
•Piston |
|
6 |
VOE14523122 |
1 |
•Tube |
|
7 |
VOE14523126 |
1 |
•Sleeve |
|
8 |
VOE14523128 |
1 |
•Spring |
|
9 |
VOE14523127 |
1 |
•Spring |
|
10 |
VOE14523105 |
1 |
•Non-return valve |
|
11 |
VOE14523130 |
1 |
•Ring |
|
12 |
VOE14522983 |
1 |
•Ring |
|
13 |
|
1 |
•Seal |
|
14 |
|
1 |
•Seal |
|
15 |
VOE14523131 |
1 |
•Gasket |
|
16 |
VOE990589 |
1 |
•O-ring |
|
17 |
SA9566-20650 |
1 |
•Back-up ring |
|
18 |
VOE997500 |
4 |
•Six point socket screw |
|
19 |
SA9023-10602 |
1 |
•Set screw |
|
20 |
VOE983495 |
1 |
•O-ring |
|
21 |
VOE983505 |
2 |
•O-ring |
|
22 |
VOE990557 |
1 |
•O-ring |
|
23 |
VOE14883847 |
1 |
•Plug |
|
24 |
SA9415-11032 |
2 |
•Plug |
|
25 |
SA9415-11012 |
1 |
•Plug |
|
26 |
SA9611-02525 |
2 |
•Bearing |
|
27 |
VOE990607 |
1 |
•O-ring |
|
28 |
SA9566-10320 |
1 |
•Back-up ring |
|
100 |
VOE14523132 |
1 |
Sealing kit |
|
Cylinder Position |
Primary Part Number |
Alternative / Updated Number |
Maintenance Suggestion |
|
Boom Cylinder |
14513714 |
14589158 / 14510288 |
Essential for lifting power; replace in pairs to prevent unbalanced stress on the boom. |
|
Arm / Stick Cylinder |
14513715 |
14589159 |
High-pressure area; replace when experiencing "Arm Drift" during heavy excavation. |
|
Bucket Cylinder |
14513716 |
14589160 |
Most active component; high-wear part due to continuous digging cycles. |
|
Quick-Fit Cylinder |
14523132 |
VOE14523132 |
Safety Critical: Ensures secure locking of buckets, hammers, and other attachments. |
|
Track Adjuster Seal |
14531302 |
14502856 |
Crucial for track tension; prevents costly downtime caused by thrown tracks. |
|
Main Pump Seal Kit |
14533496 |
VOE14533496 |
Restores hydraulic system flow and prevents power loss across the entire machine. |
Product Description

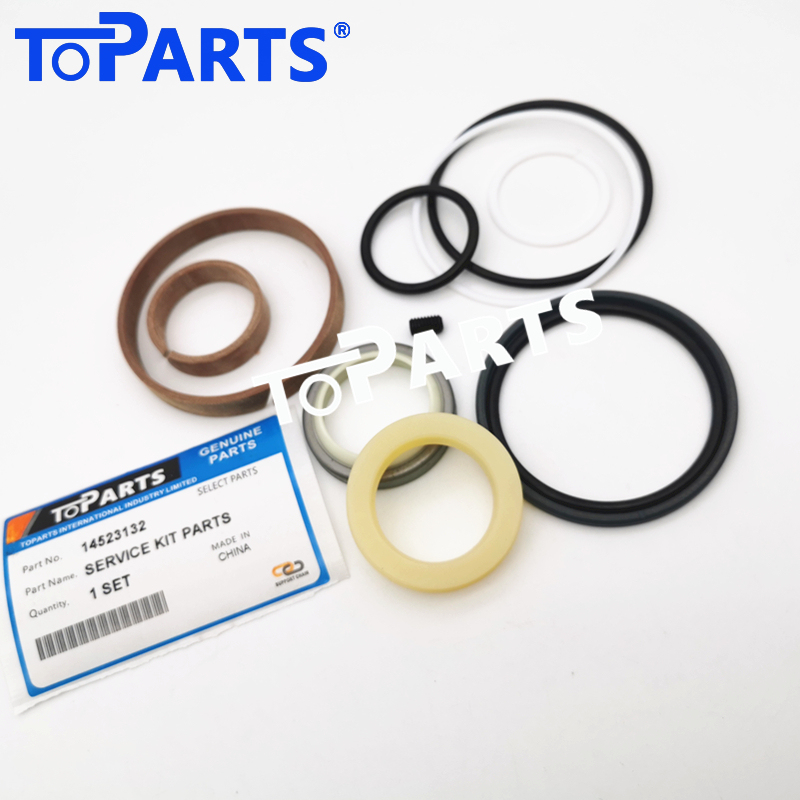

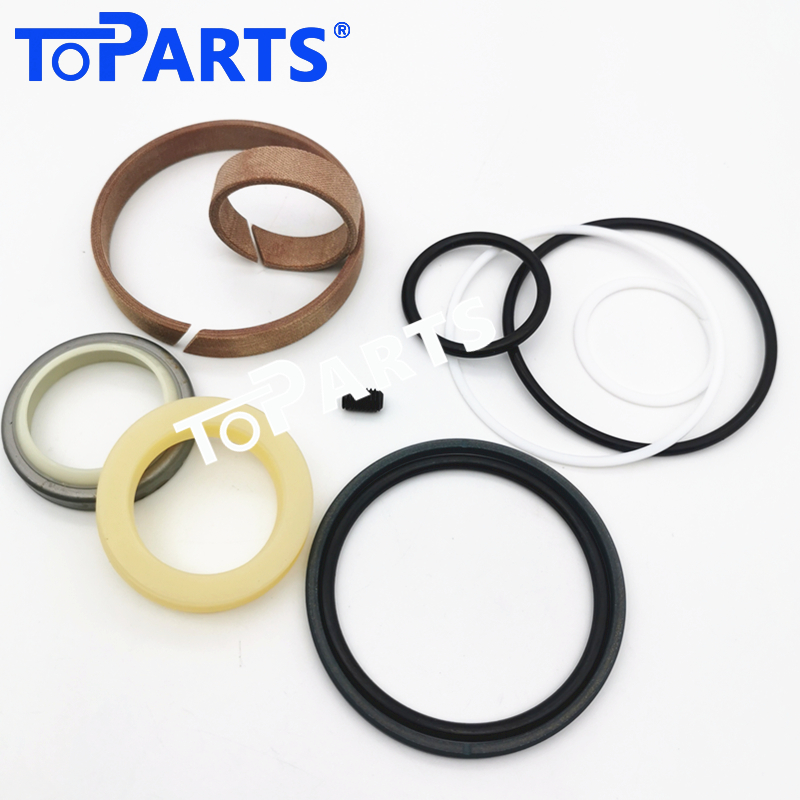

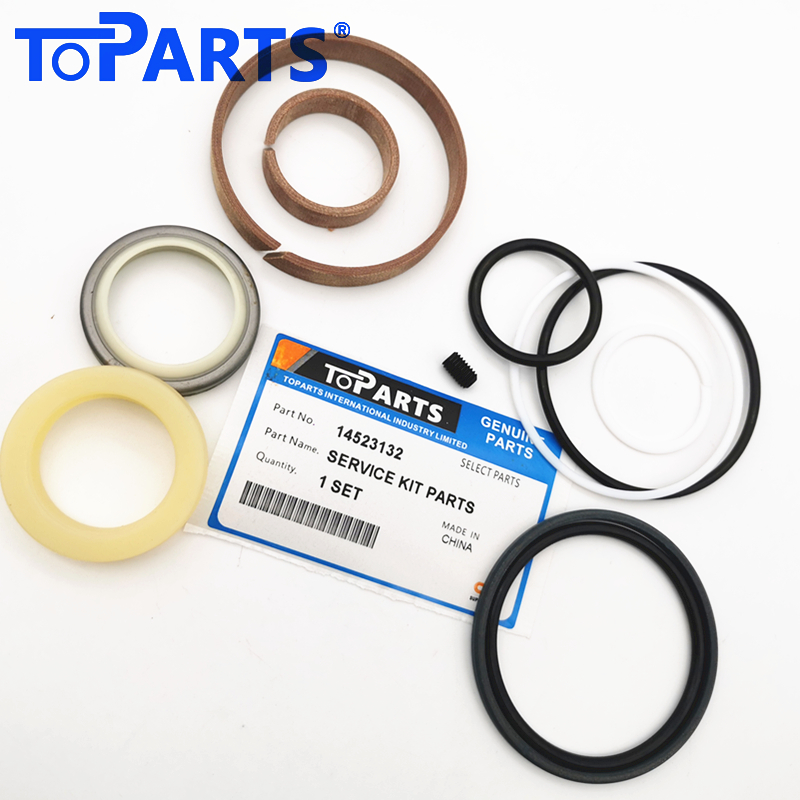

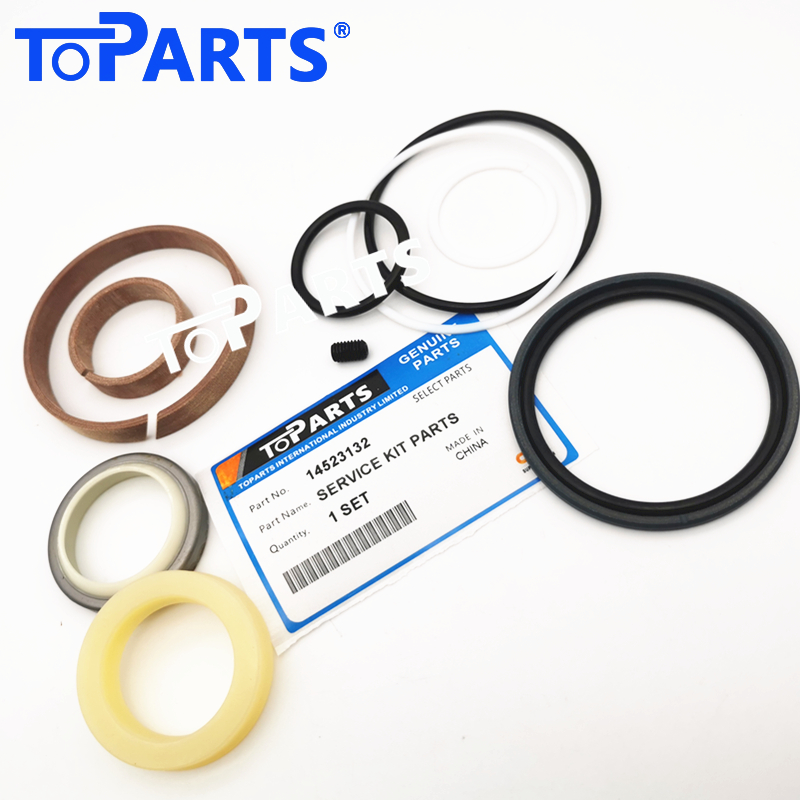

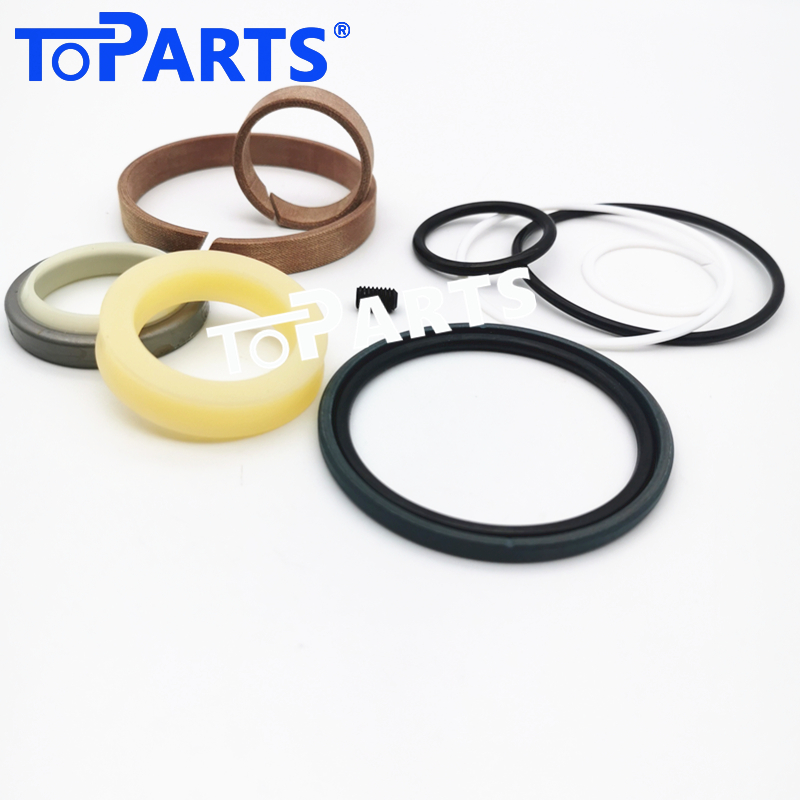

Premium Quick-Fit Cylinder Service Seal Kit for Volvo EC240CL Excavators
Ensure fast, secure, and reliable attachment changes for your Volvo EC240CL with this premium Quick-Fit (Quick Coupler) Cylinder Seal Kit. The quick-fit cylinder is vital for locking your bucket or hammer safely in place. Our repair kit (Part Number 14523132) is engineered to maintain consistent hydraulic pressure, preventing accidental unlocking and ensuring operational safety.
At Toparts, we prioritize precision and safety. Our seal kits are manufactured from high-performance materials that resist high-pressure spikes and environmental contaminants, ensuring your EC240CL's coupling system remains responsive and tight.
Product Features:
Exact Fitment: Specially designed for the Volvo EC240CL (EC240C Series) excavator quick-fit/quick coupler hydraulic system.
OEM Quality Standard: Fully compatible with OEM number 14523132, meeting or exceeding original sealing and safety specifications.
High-Grade Materials: Features premium Polyurethane (PU) and Nitrile (NBR) for excellent resistance to hydraulic fluids, pressure, and temperature extremes.
Safety First: Precision-engineered to eliminate internal leaks, ensuring the locking pins remain fully engaged during heavy-duty tasks.
Complete Overhaul Kit: Includes all necessary rod seals, piston seals, wiper seals, and O-rings for a professional and lasting cylinder rebuild.
Technical Specifications:
Machine Brand: Volvo
Model: EC240CL / EC240C
Component Type: Quick-Fit Cylinder / Quick Coupler Cylinder
Part Number: 14523132
Category: Hydraulic Safety & Repair Components
Condition: Brand New Aftermarket Replacement
