Parts list
|
Item |
Description |
Part no |
Qty |
|
Kit |
Seal set(incl.parts 1-25) |
103988 |
1 |
|
2 |
Seal |
400330 |
1 |
|
3 |
Seal |
400332 |
1 |
|
4 |
Wiper |
911017 |
1 |
|
5 |
Seal |
911015 |
2 |
|
6 |
Seal |
911016 |
1 |
|
7 |
Wiper |
911018 |
1 |
|
8 |
Seal |
400339 |
1 |
|
9 |
Seal |
902668 |
6 |
|
10 |
O-ring |
90000 |
1 |
|
11 |
O-ring |
94035 |
5 |
|
12 |
O-ring |
94133 |
1 |
|
13 |
O-ring |
902122 |
1 |
|
14 |
O-ring |
90012 |
2 |
|
15 |
O-ring |
90005 |
2 |
|
16 |
O-ring |
94071 |
2 |
|
17 |
Seal |
40104 |
1 |
|
18 |
Usit-ring |
90056 |
1 |
|
19 |
O-ring |
901026 |
1 |
|
20 |
O-ring |
90030 |
1 |
|
21 |
Seal |
40533 |
1 |
|
22 |
Seal |
41374 |
1 |
|
23 |
O-ring |
90031 |
1 |
|
24 |
O-ring |
90007 |
1 |
|
25 |
O-ring |
910006 |
1 |
Our customers

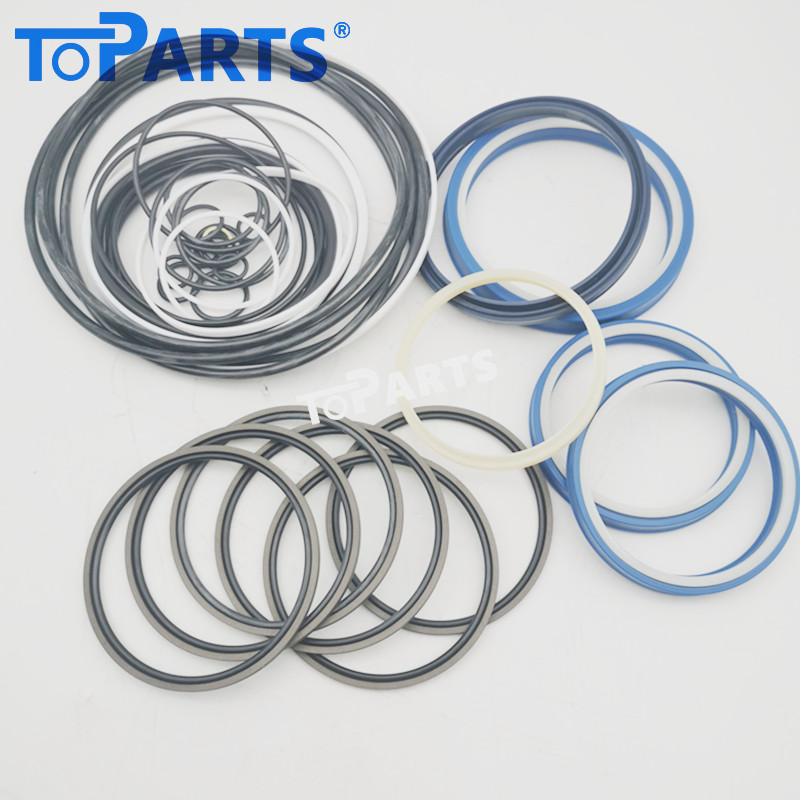

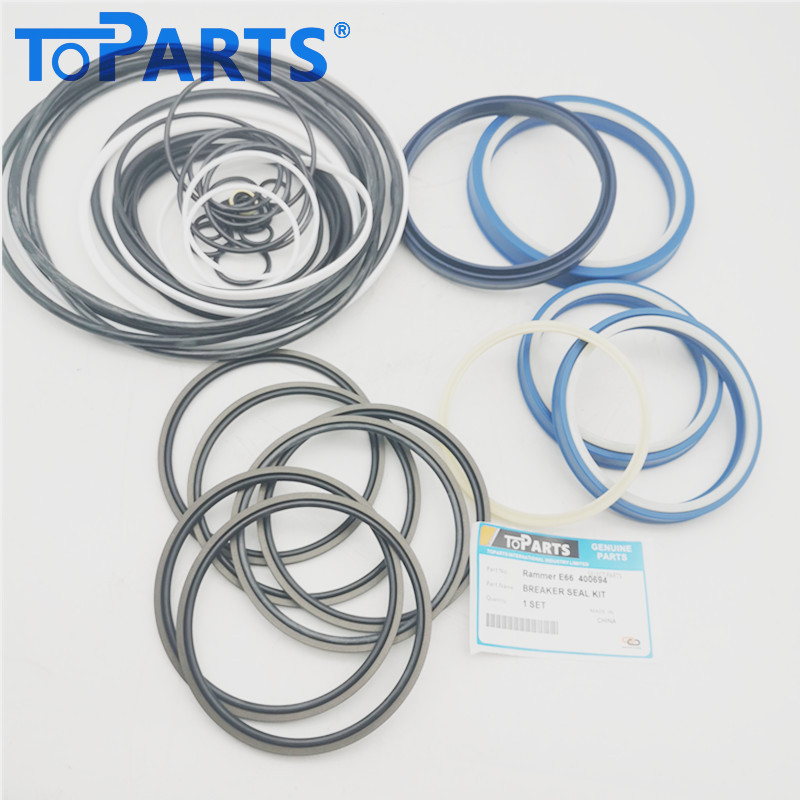

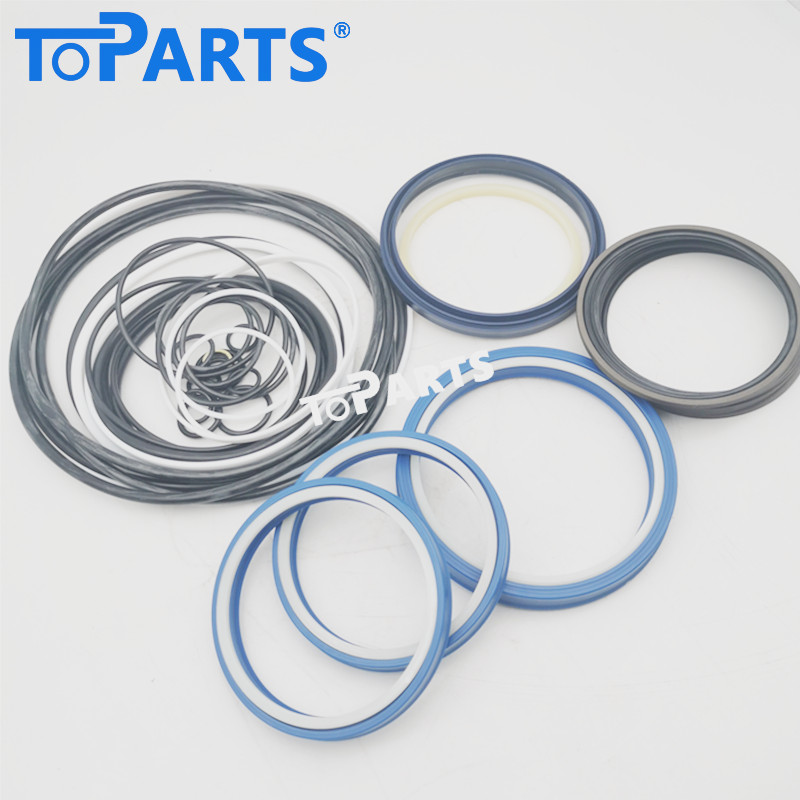

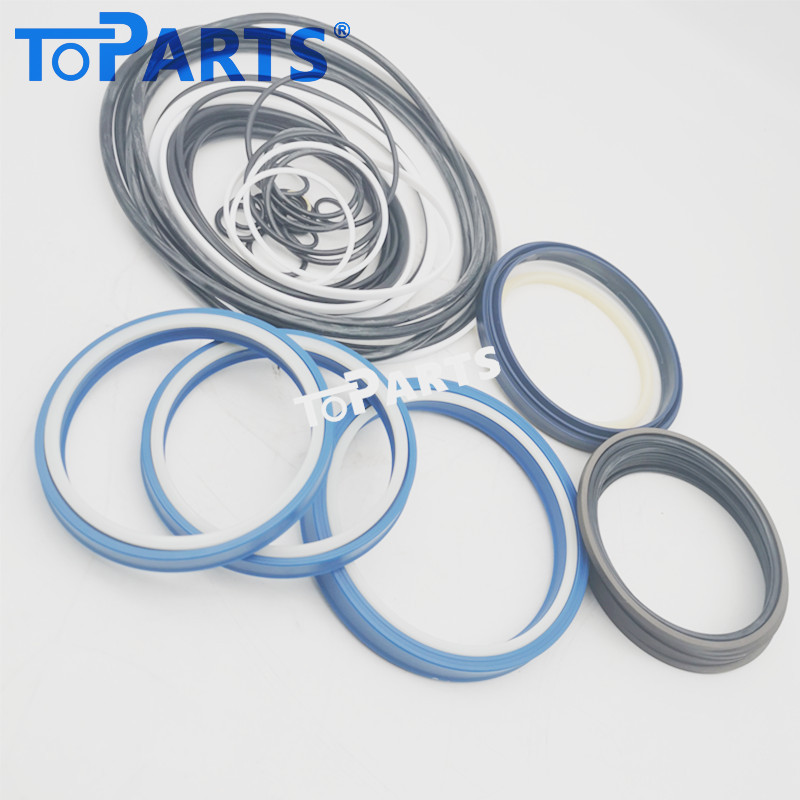

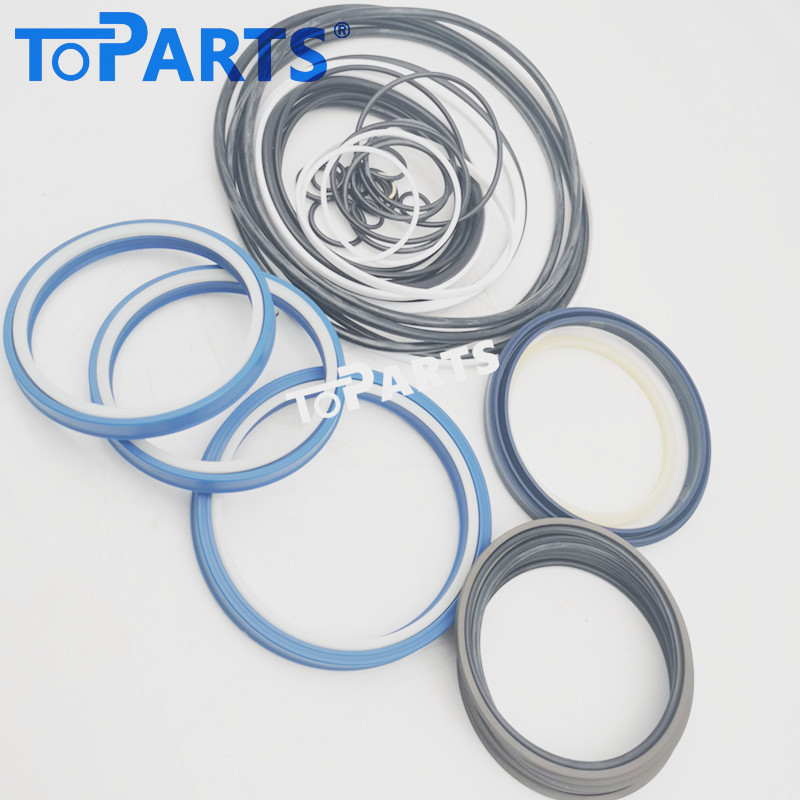

Toparts 103988 Hydraulic Breaker Seal Kit for Rammer E66 Hammer
Restore the striking power and hydraulic efficiency of your demolition equipment with the Toparts 103988 Hydraulic Breaker Seal Kit. Specifically engineered for the Rammer E66 Hydraulic Hammer, this high-quality service and repair kit is designed to prevent leaks and ensure consistent, heavy-duty performance on the job site.
Engineered for Rammer E66 Impact Performance
The Rammer E66 is a high-performance breaker used in demanding construction and demolition tasks. To maintain its rated impact energy and prevent internal damage, the sealing system must withstand extreme vibrations and high-pressure hydraulic pulses. Toparts has developed the 106638 seal kit as a precision-matched, direct aftermarket replacement that meets the rigorous demands of the original equipment.
Key Features and Benefits:
Direct OEM Replacement: Fully compatible with Rammer OEM part number 103988, ensuring a perfect fit and seamless installation for the E66 series hammers.
Superior Material Quality: Manufactured using high-performance, wear-resistant materials (including specialized Polyurethane and premium NBR). These materials are chosen for their exceptional resistance to heat, abrasion, and hydraulic fluid breakdown.
Restores Impact Power: By eliminating internal fluid bypass, this kit ensures the hammer maintains maximum hydraulic pressure, restoring the full breakout force required for rock and concrete demolition.
Comprehensive Protection: High-quality wiper and buffer seals prevent dust and debris from entering the hydraulic system, protecting the piston and cylinder bore from premature wear and scoring.
Cost-Effective Maintenance: Provides a professional-grade alternative to expensive OEM kits, allowing you to overhaul your equipment with confidence while managing maintenance budgets effectively.
Product Details:
Part Number (Seal Kit): 103988
Compatible Machine: Rammer E66 Hydraulic Hammer (Breaker)
Application: Full Hydraulic Sealing Overhaul / Service Repair
Manufacturer: Toparts
Durability: Optimized for high-frequency vibration and high-pressure environments.
Don't let hydraulic leaks lead to costly downtime or reduced productivity. Invest in the Toparts 103988 Hydraulic Breaker Seal Kit to keep your Rammer E66 performing at its peak strength and reliability.
