Parts list
|
Pos |
Order Nr . |
Quantity |
Designation |
|
1 |
|
1 |
ROTOR |
|
2 |
|
1 |
STATOR |
|
3 |
10 01 13 85 |
1 |
COVER |
|
4 |
70 21 967 |
1 |
PIPE COUPLING |
|
5 |
70 16 408 |
1 |
FLANGE |
|
6 |
70 16 409 |
1 |
HOLLOW SCREW |
|
7 |
70 16 410 |
2 |
SHEET GASKET |
|
9 |
40 02 435 |
1 |
TOOTH LOCK WASHER J 19 |
|
11 |
11 14 04 65 |
3 |
SOCKET HEAD SCREW ISO 4762 M6X20 8.8 480H |
|
12 |
10 87 55 90 |
5 |
SOCKET HEAD SCREW ISO 4762 M6X35 8.8 480H |
|
13 |
46 00 031 |
8 |
WASHER SPRING 6 |
|
14 |
49 01 104 |
4 |
PARALLEL PIN 4m6X10-A |
|
999 |
10009605 |
1 |

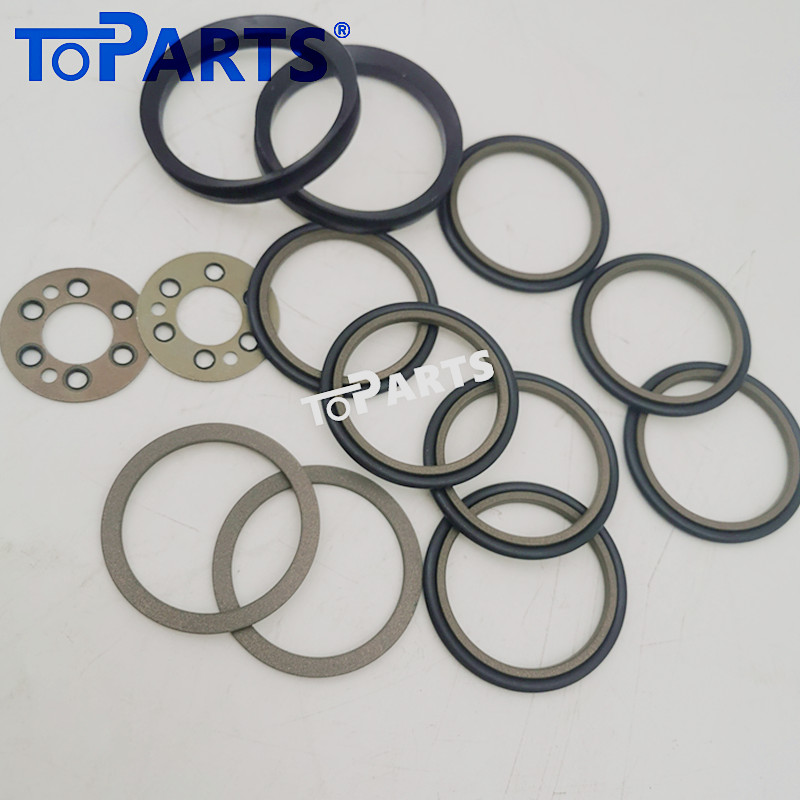

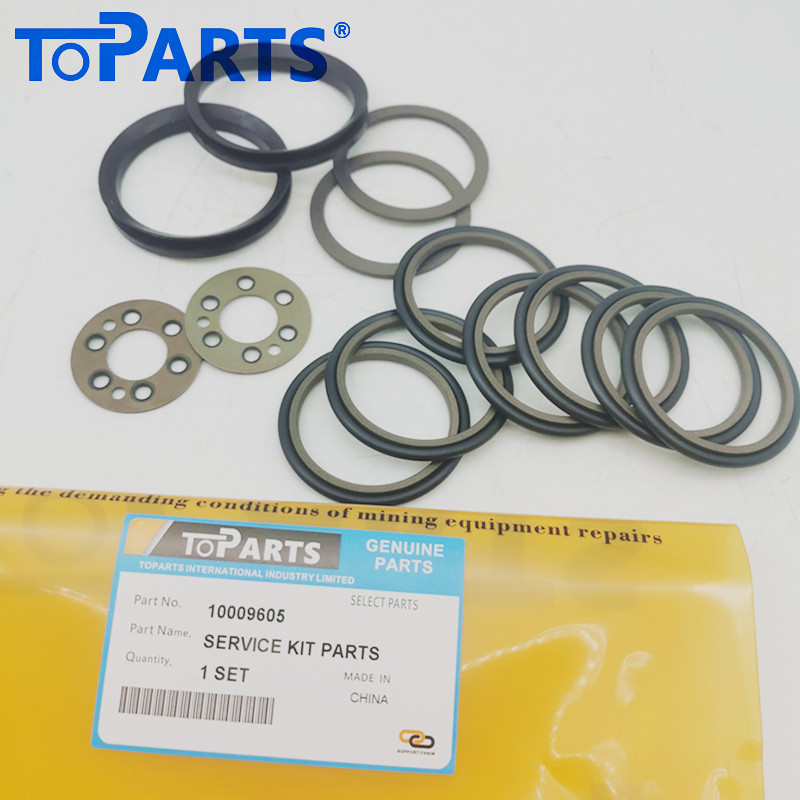

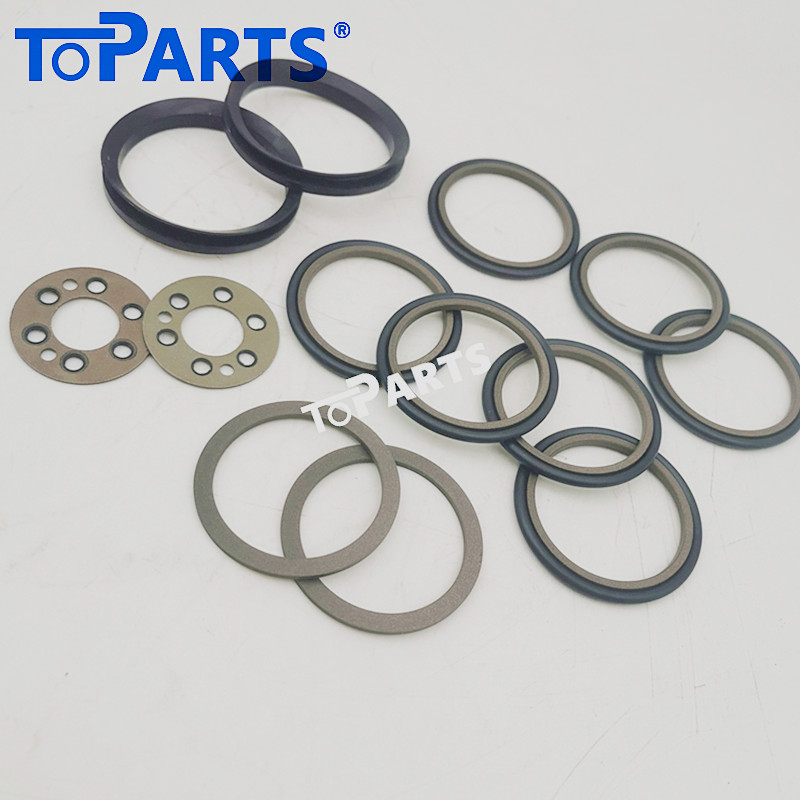

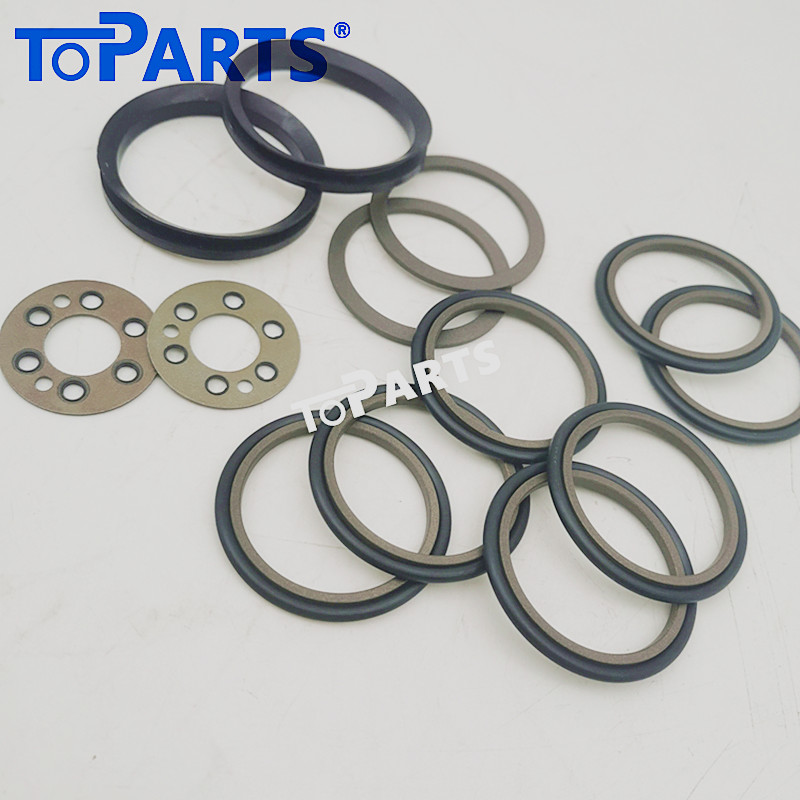

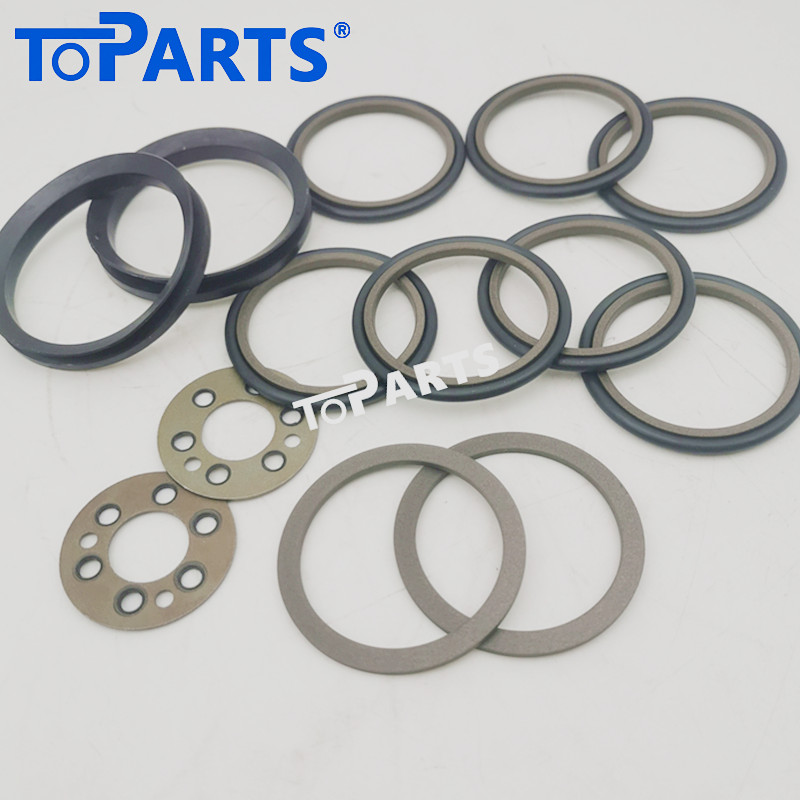

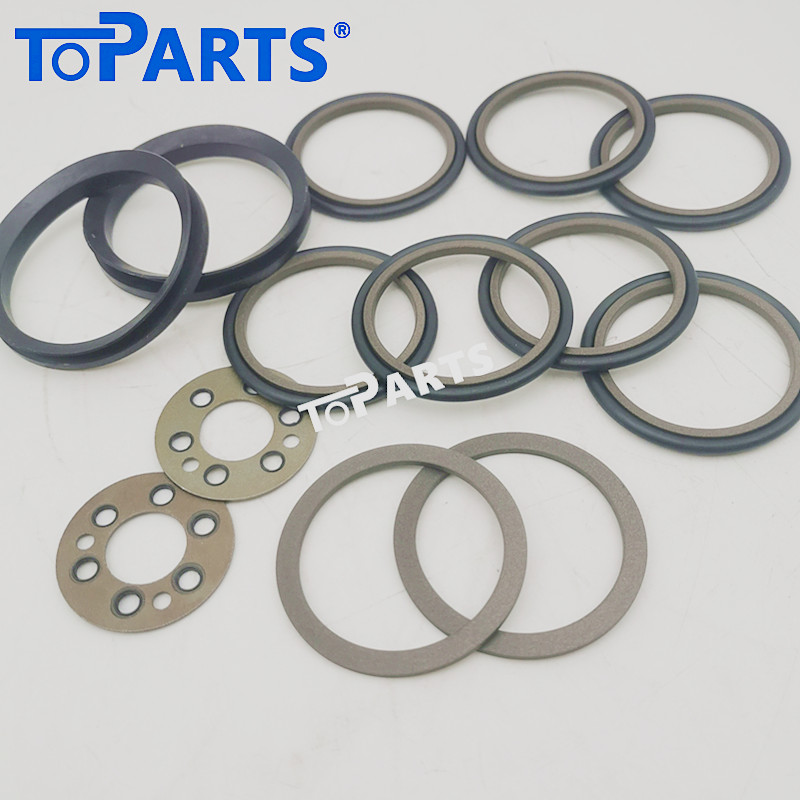

SEALING SET ROTARY TRANSMISSION |

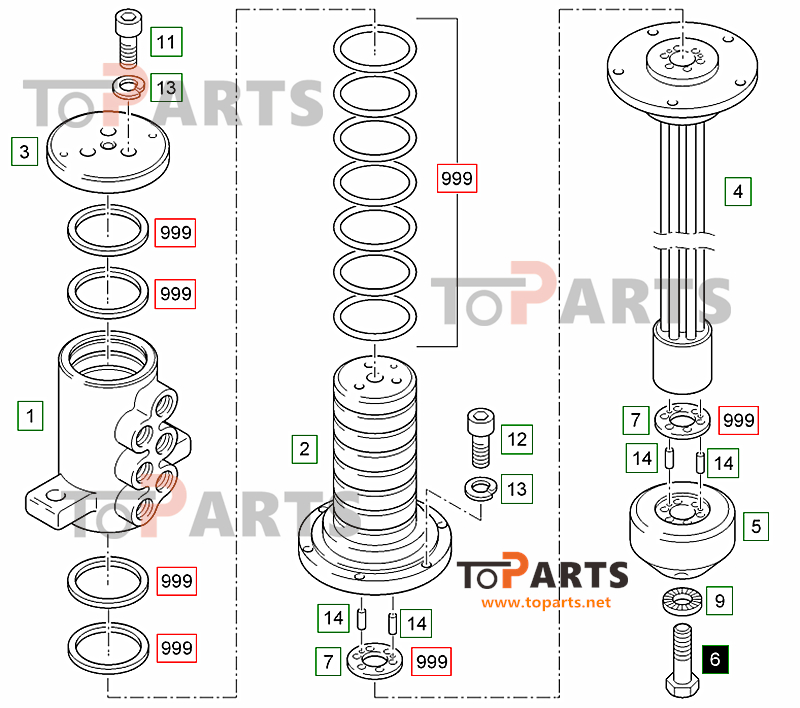

Exploded View
|
APPLICATION |
MISC: |
ROD |
BORE |
KIT |
|
MODEL R900 C-LI, R900 C HD-S LI, R900 C HD-SL LI |
||||
|
Boom Adj (Hyd Adj) |
|
|
140 mm |
LBH-9165363 |
|
Boom Lift (Hyd Adj & Std) |
|
70 mm |
|
LBH-9172122 |
|
|
|
120 mm |
LBH-9172577 |
|
|
Boom Lift (Ind Boom) |
|
85 mm |
|
LBH-9158175 |
|
|
|
125 mm |
LBH-9060977 |
|
|
Boom Offset |
100mm Bore Cyl |
50 mm |
|
LBH-9062932 |
|
90mm Bore Cyl |
50 mm |
|
LBH-9061030 |
|
|
90mm Bore Cyl |
|
90 mm |
LBH-9061380 |
|
|
Bucket (2.25m, 2.45m, 2.65m Stick) |
|
70 mm |
|
LBH-9172117 |
|
|
|
100 mm |
LBH-9174200 |
|
|
Bucket (5.2m Stick) |
|
60 mm |
|
LBH-9061404 |
|
|
|
|
90 mm |
LBH-9061380 |
|
Dozer Blade |
|
|
130 mm |
LBH-9111341 |
|
Stick |
|
|
130 mm |
LBH-9171671 |
|
Swivel Rotary (C-LI) |
|
95 mm |
|
LBH-9265132 |
|
Swivel Rotary (HDS & HDSL) |
|
95 mm |
|
LBH-9144401 |
