English

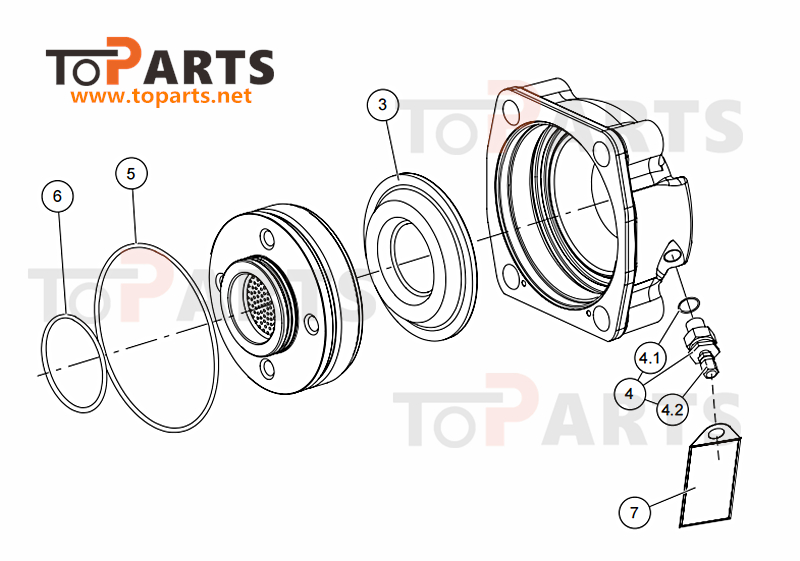

Parts list
|
Ref. |
Part no. |
Description EN |
|
|
3 |
09260298 |
DIAPHRAGM |
1 |
|
4 |
80759069 |
VALVE |
1 |
|
4.1 |
86973329 |
O-RING |
1 |
|
4.2 |
85168219 |
PROTECTING CAP |
1 |
|
5 |
52213490 |
O-RING |
1 |
|
6 |
81953209 |
O-RING |
1 |
|
7 |
15154858 |
SIGN |
1 |
Our customers

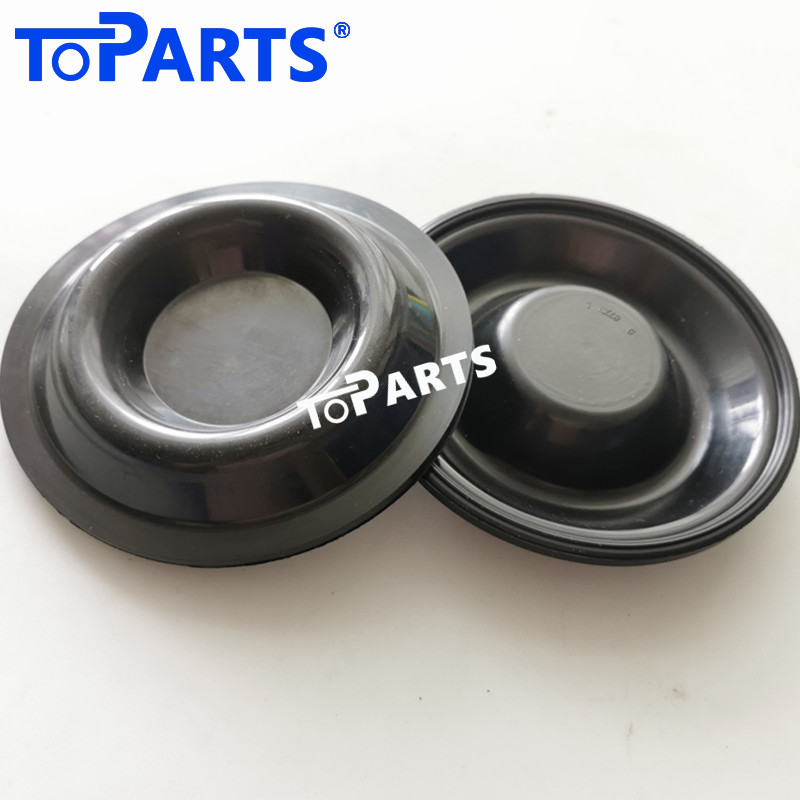

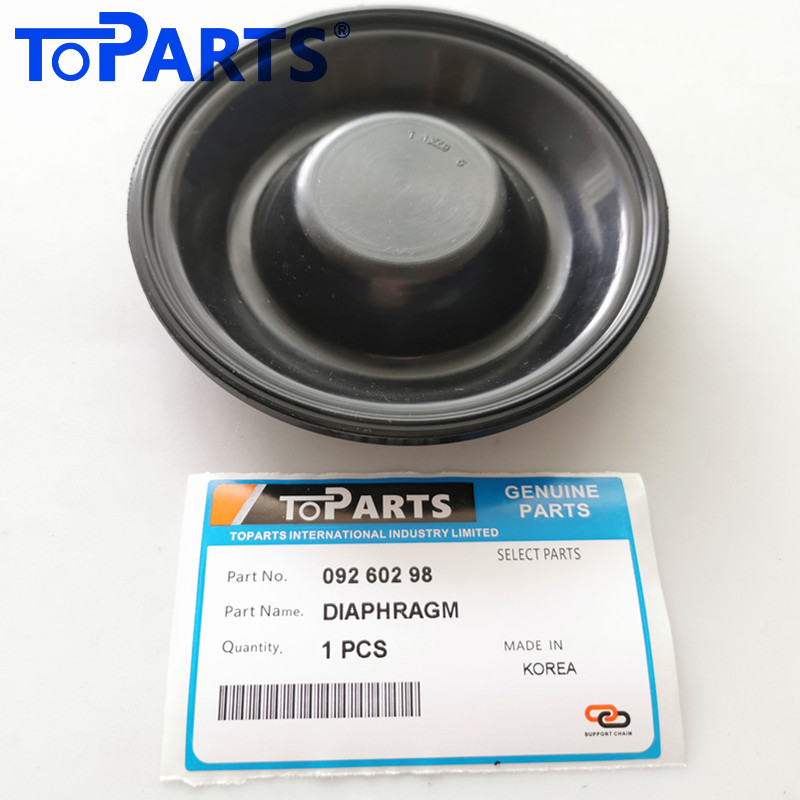

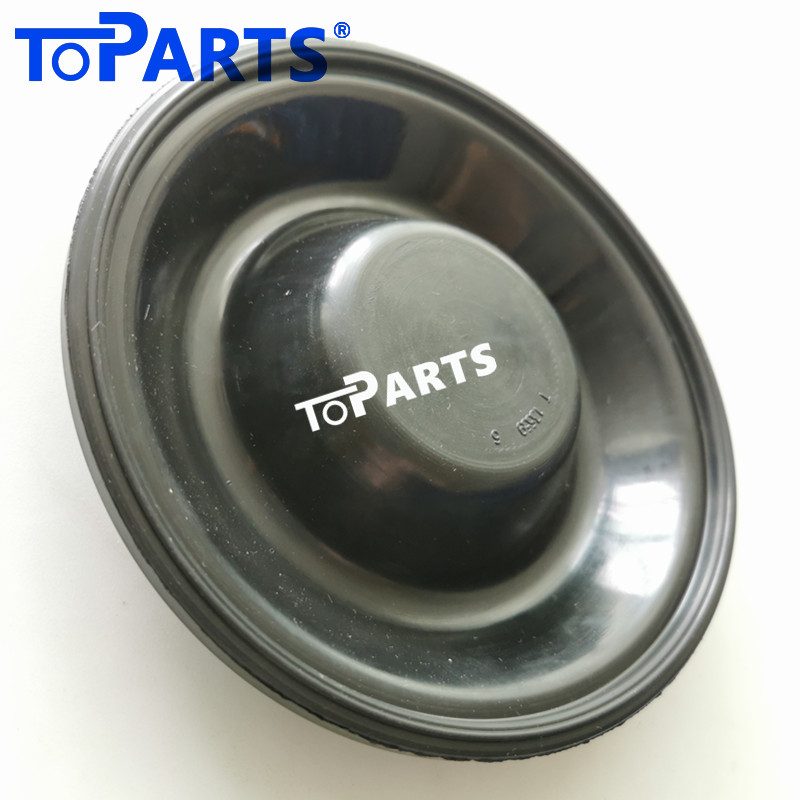

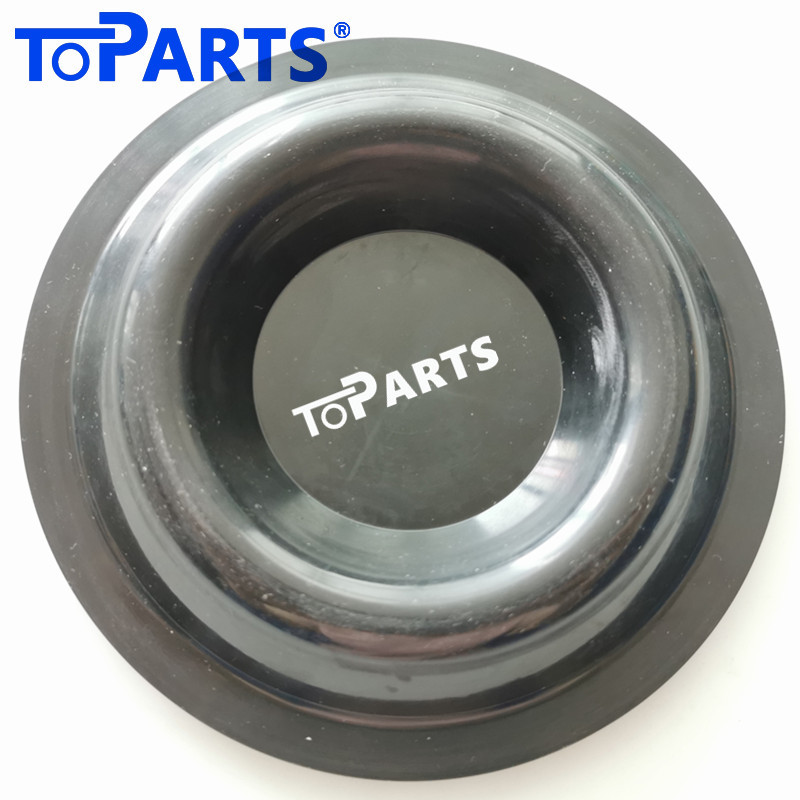

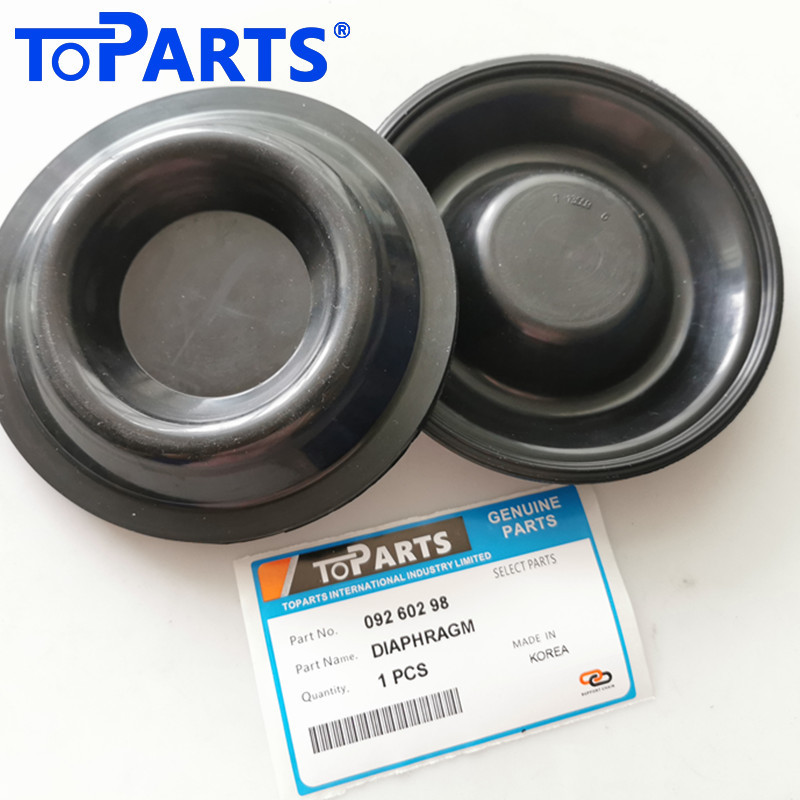

Toparts 09260298 Hydraulic Rock Drill Diaphragm for Sandvik HLX5
Ensure the longevity and consistent energy delivery of your drilling equipment with the Toparts 09260298 Hydraulic Rock Drill Diaphragm (Membrane). This essential component is specifically designed for the accumulator on the Sandvik HLX5 Hydraulic Rock Drill, guaranteeing stable pressure regulation and reliable operation.
Engineered for Sandvik HLX5 Accumulators
The diaphragm is the critical element within the accumulator, acting as a flexible barrier between the pressurized gas (nitrogen) and the hydraulic oil. Failure of this part leads directly to pressure loss, cavitation, and rapid wear of the drifter's internal components. The Toparts 09260298 diaphragm is a high-precision, direct aftermarket replacement, meticulously engineered to handle the intense pressure fluctuations and high cycle rates of the Sandvik HLX5.
Key Features and Benefits:
Direct OEM Replacement: This membrane is a seamless replacement for the Sandvik OEM part number 09260298, ensuring full compatibility and easy, secure installation in the HLX5 accumulator.
Superior Material Quality: Manufactured from highly durable, specialized elastomers, our diaphragm provides exceptional resistance to high temperatures, hydraulic fluids, and constant flexing, ensuring a significantly extended service life.
Restores Percussion Energy: A new membrane restores proper accumulator function, preventing hydraulic pressure decay and ensuring the drifter delivers maximum, consistent impact energy for faster penetration.
Protects Drifter Components: By maintaining effective separation and damping, the diaphragm prevents damaging pressure spikes and cavitation, protecting the piston, seals, and other sensitive hydraulic parts from premature failure.
Cost-Effective Maintenance: Replacing the accumulator membrane is the most crucial and economical preventive step to correct hydraulic system instability and avoid the substantial costs of major drifter repairs.
Product Details:
Part Number (Membrane): 09260298
Component Type: Hydraulic Rock Drill Diaphragm / Accumulator Membrane
Compatible Model: Sandvik HLX5 Hydraulic Rock Drill
Application: Accumulator Gas-Oil Separation and Damping
Manufacturer: Toparts
Don't compromise the output or lifespan of your high-value drilling equipment. Invest in the trusted quality and performance of the Toparts 09260298 Hydraulic Rock Drill Diaphragm for your Sandvik HLX5.
