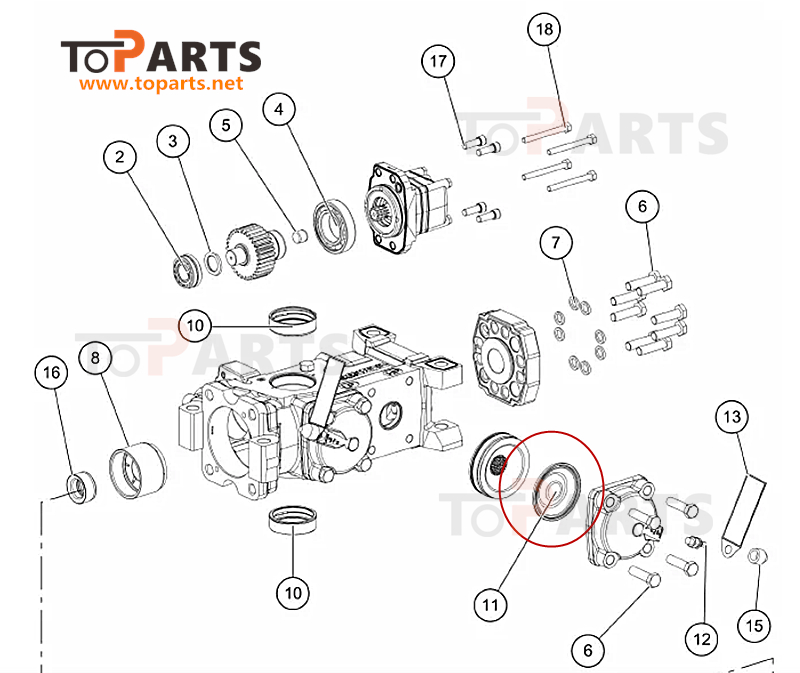

Parts list
|
Ref. |
Part No. |
QTY |
UOM |
Item name |
|
1 |
BG00397111 |
1 |
EA |
SEAL KIT |
|
2 |
55012164 |
1 |
EA |
BEARING,ROLLER,SPHERICAL |
|
3 |
55195375 |
1 |
EA |
SHIM |
|
4 |
51111150 |
1 |
EA |
BEARING,BALL,DEEP GROOVE |
|
5 |
55218876 |
1 |
EA |
PIN |
|
6 |
86321729 |
16 |
EA |
HEXAGON HEAD BOLT (HALF THREAD) |
|
7 |
85068749 |
12 |
EA |
WASHER,LOCK,DOUBLE |
|
8 |
55200602 |
1 |
EA |
BUSHING,BEARING |
|
9 |
55077569 |
1 |
EA |
BUSHING,BEARING |
|
10 |
BG00387185 |
2 |
EA |
BUSHING |
|
11 |
04114808 |
2 |
EA |
DIAPHRAGM |
|
12 |
80759069 |
2 |
EA |
VALVE |
|
12.1 |
86973329 |
1 |
EA |
O-RING |
|
12.2 |
85168219 |
1 |
EA |
CAP,PROTECTING |
|
13 |
15154858 |
2 |
EA |
SIGN |
|
14 |
72085150 |
1 |
EA |
GREASE CARTRIDGE |
|
15 |
08537018 |
2 |
EA |
CAP,PROTECTING |
|
16 |
55060290 |
1 |
EA |
CHUCK |
|
17 |
86611729 |
4 |
EA |
HEXAGON SOCKET HEAD BOLT(HALFTHREAD) |
|
18 |
88144189 |
4 |
EA |
HEXAGON HEAD BOLT(HALF THREAD) |
|
19 |
BG00396952 |
1 |
EA |
GUARD |
|
20 |
44221850 |
4 |
EA |
HEXAGON HEAD SCREW(FULL THREAD) |
|
21 |
80044849 |
4 |
EA |
HEXAGON HEAD SCREW(FULL THREAD) |
|
22 |
85128339 |
4 |
EA |
WASHER,LOCK,DOUBLE |
|
23 |
BG00343241 |
1 |
EA |
BUSHING,BEARING |
|
24 |
55060046 |
1 |
EA |
BUSHING,SHANK |
Our customers

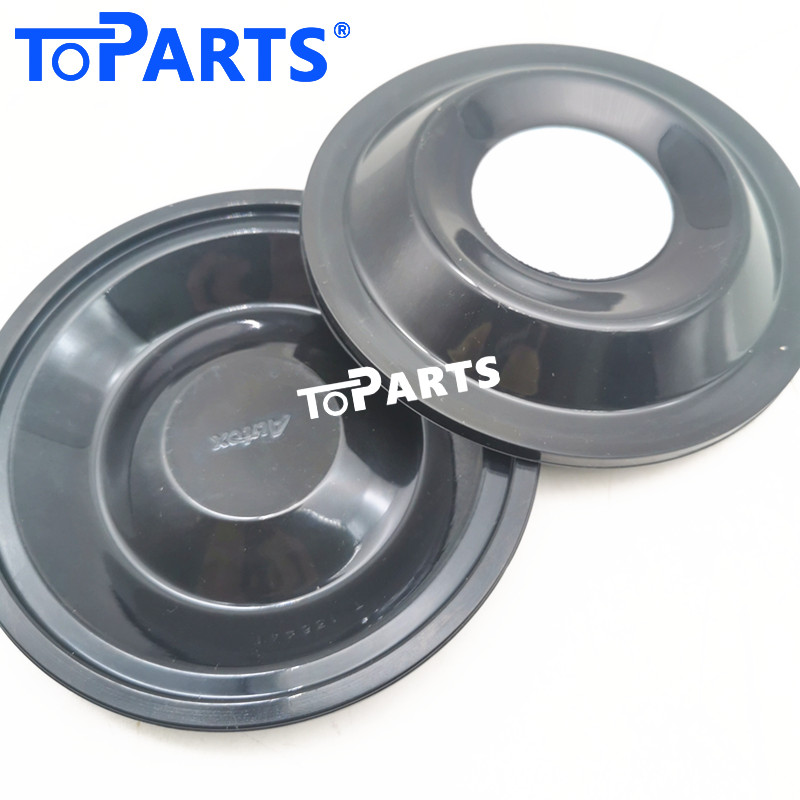

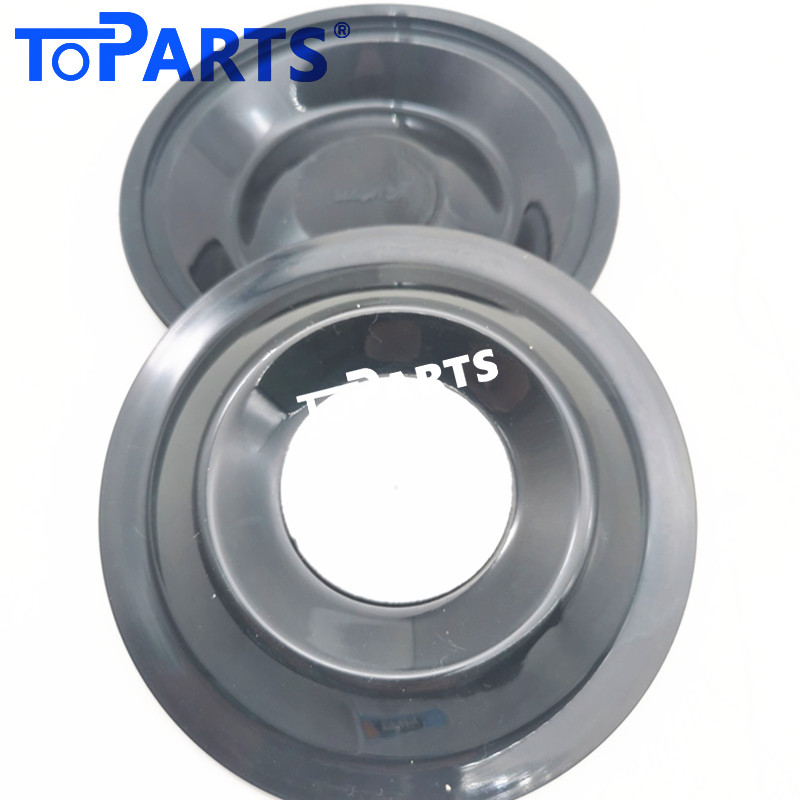

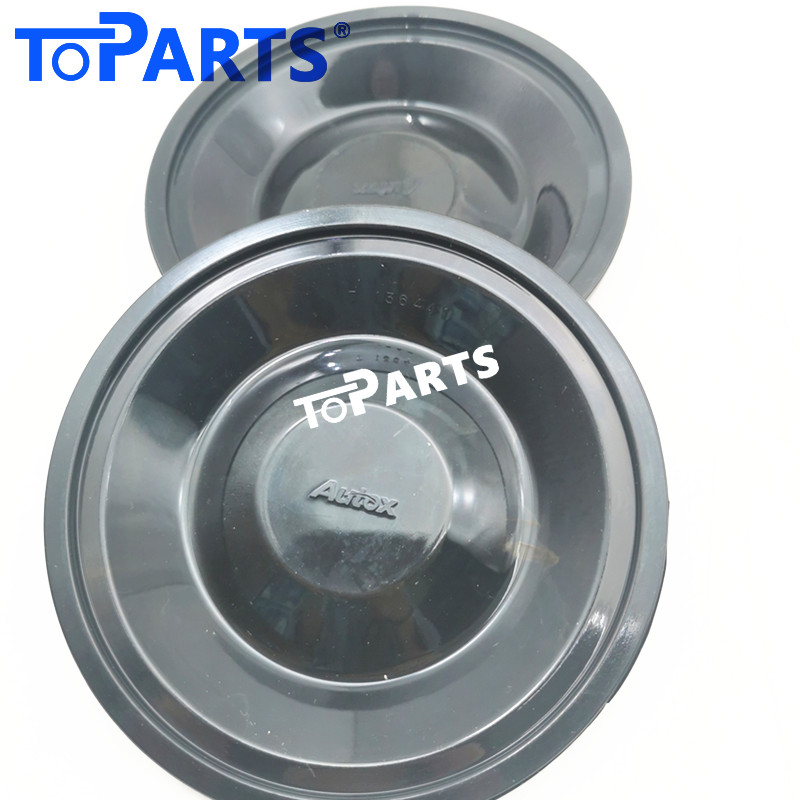

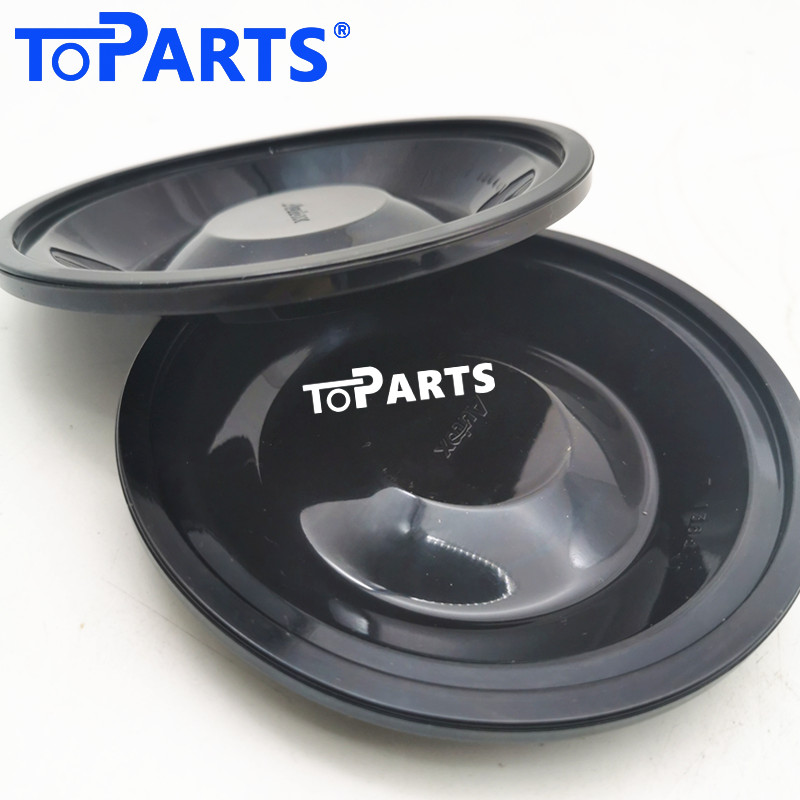

Toparts 04114808 Hydraulic Rock Drill Diaphragm for Sandvik HL510
Ensure maximum uptime and consistent drilling power with the Toparts 04114808 Hydraulic Rock Drill Diaphragm (Membrane). This essential component is specifically designed for the accumulator on the Sandvik HL510 Hydraulic Rock Drill, guaranteeing stable pressure regulation and critical system protection.
Engineered for Sandvik HL510 Accumulators
The diaphragm is the most crucial protective element in the hydraulic drifter's accumulator. It maintains the vital separation between the pressurized nitrogen gas and the hydraulic oil. A failed diaphragm leads to pressure instability, cavitation, and rapid, severe damage to the drifter unit. The Toparts 04114808 diaphragm is a high-precision, direct aftermarket replacement, engineered to withstand the extreme pressure cycles and operational demands of the Sandvik HL510.
Key Features and Benefits:
Direct OEM Replacement: This membrane is a seamless replacement for the Sandvik OEM part number 04114808, ensuring perfect compatibility and secure, straightforward installation in the HL510 accumulator.
Superior Material Quality: Manufactured from highly durable, specialized, and resilient elastomers, our diaphragm provides exceptional resistance to high temperatures, chemical attack from hydraulic fluids, and constant high-pressure flexing, ensuring a long and reliable service life.
Restores Percussion Energy: A new, properly installed membrane restores correct accumulator function, preventing hydraulic pressure decay and ensuring the drifter delivers maximum, consistent impact energy for superior penetration rates.
Protects Drifter Components: By effectively separating the gas and oil, the diaphragm prevents damaging pressure spikes and cavitation, which safeguards the piston, seals, and other complex, sensitive components of the drifter from premature wear and failure.
Cost-Effective Prevention: Replacing the accumulator diaphragm is the single most important and cost-effective preventive maintenance measure to maintain hydraulic stability and avoid the tremendous costs associated with major drifter repairs.
Product Details:
Part Number (Membrane): 04114808
Component Type: Hydraulic Rock Drill Diaphragm / Accumulator Membrane
Compatible Model: Sandvik HL510 Hydraulic Rock Drill
Application: Accumulator Gas-Oil Separation and Damping
Manufacturer: Toparts
Don't gamble with the performance or lifespan of your drilling assets. Choose the trusted quality and high performance of the Toparts 04114808 Hydraulic Rock Drill Diaphragm for your Sandvik HL510.
Tag:Hydraulic breaker diaphragm,Atlas Copco Hydraulic breaker seal kit,Hydraulic breaker repair seal kit,Hydraulic Rock Drills seal kit
