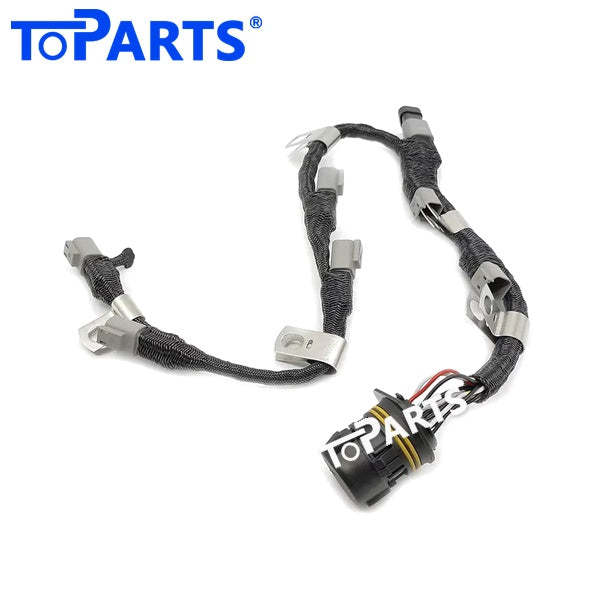

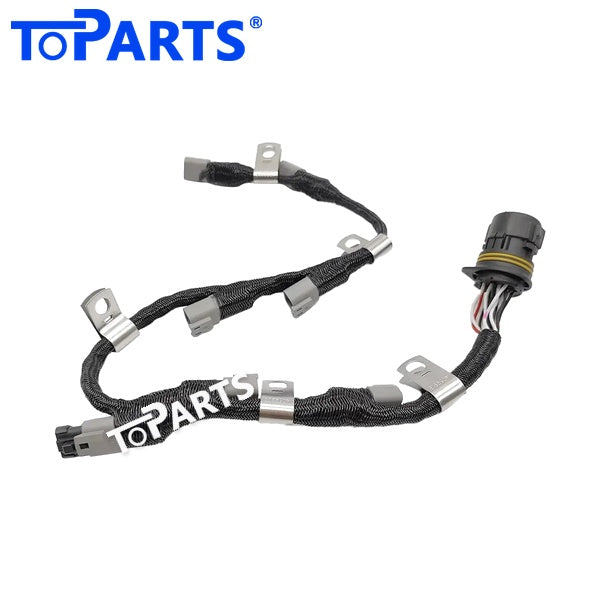

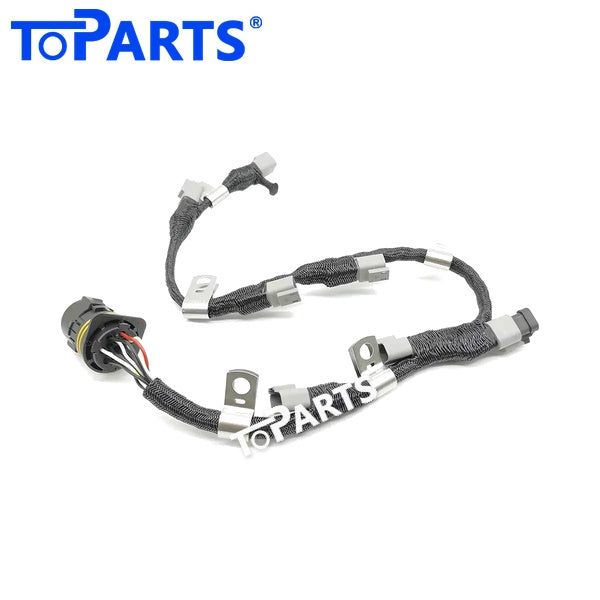

4022870 2864516 Electronic Control Module Wiring Harness for Cummins ISM QSM M11 Engine
Keep your Cummins CM570 870 working with the TOPARTS 4022870 2864516 Engine Electronic Control Module Wiring Harness. It replaces the original harness one-for-one and is built for the vibration, heat and dirt that come with daily work on site.
Engine reference: M11. Please confirm your engine model along with the machine model when checking fitment.
Its Role in the Machine
Think of this harness as the communication line of the engine. Speed sensors, temperature senders, pressure switches and fuel system components all report back through it, and the controller sends its commands out along the same path.
Mounted directly on the engine, this harness bundles the circuits that connect the electronic control unit with the parts doing the real work: sensors that measure, and actuators that respond. Clean, uninterrupted signals here are what allow the engine to run smoothly and efficiently.
On electronically controlled Cummins engines, a healthy harness is essential for accurate fueling and fault-free ECM communication.
Tips for a Smooth Installation
- Label each connector on the old harness with masking tape before you unplug anything.
- Photograph the routing, clip positions and ground points from several angles.
- Clean and inspect the ECM connector pins; bent pins cause more faults than people expect.
- Keep the new harness clear of the exhaust manifold and turbocharger, and refit all heat shields.
- Clear stored fault codes after installation and run the engine to working temperature to confirm everything reads correctly.
The Cost of Waiting
Dealer lead times for wiring harnesses can stretch to weeks. Ordering a replacement in advance, or as soon as faults begin to appear, keeps your project on schedule and avoids rental costs for a substitute machine.
Made to Last on the Job Site
We check connector fit, wire continuity and overall layout before shipping, so the harness you receive is ready to install. The materials are chosen for the temperature range, vibration and contamination found on construction equipment.
Keeping the New Harness in Good Shape
Avoid aiming a pressure washer directly at connectors and the ECM. Water forced past the seals is a common cause of corrosion and intermittent faults. A light spray and a dry cloth are kinder to the electrical system.
How to Tell It Is Time for a New One
Common warning signs are:
- Problems that come and go when the engine heats up or when the machine vibrates
- Fault codes for sensors, injectors or the ECM appearing on the monitor
- Visible heat damage, cracked insulation or chafed wires near the engine block
- Gauges for engine temperature or oil pressure reading erratically
If these symptoms persist after checking fuses, batteries and grounds, the wiring itself is the next thing to suspect.
Part Information
- Part Name: Engine Electronic Control Module Wiring Harness
- Part Number: 4022870, 2864516, 4004573
- Engine: M11
- Condition: Genuine new
- Product Weight: 1.5 kg / 3.31 lbs
- Brand: TOPARTS
- Feature: Original connector layout; plug-and-play installation
Compatible Models
Cummins Engine ISM,QSM,M11,6B5.9,ISM CM570,ISM CM570/870,ISM CM875,ISM CM876,ISM CM876 E,M11 CELECT,M11 CELECT PLUS,M11 MECHANICAL, QSM11 CM570,QSM11 CM876
Ordering Information
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
