8-98034537-0 Engine Wiring Harness for Hitachi ZX135US-3 Excavator
Electrical faults can stop an excavator as surely as a mechanical failure. The 8-98034537-0 Engine Wiring Harness replaces damaged or aged wiring on Hitachi ZX135US-3 excavator and returns the affected circuits to dependable operation.
Why This Harness Matters
Every start, every throttle change and every load the excavator takes on is managed through this harness. It routes power and data between the ECM and the engine-mounted components, so a single damaged wire here can show up as a problem anywhere in the engine's behaviour.
Think of this harness as the communication line of the engine. Speed sensors, temperature senders, pressure switches and fuel system components all report back through it, and the controller sends its commands out along the same path.
Hitachi excavators are popular on the used market, and harness replacement is one of the most effective ways to restore an older Hitachi to dependable everyday use.
Make Sure It Fits

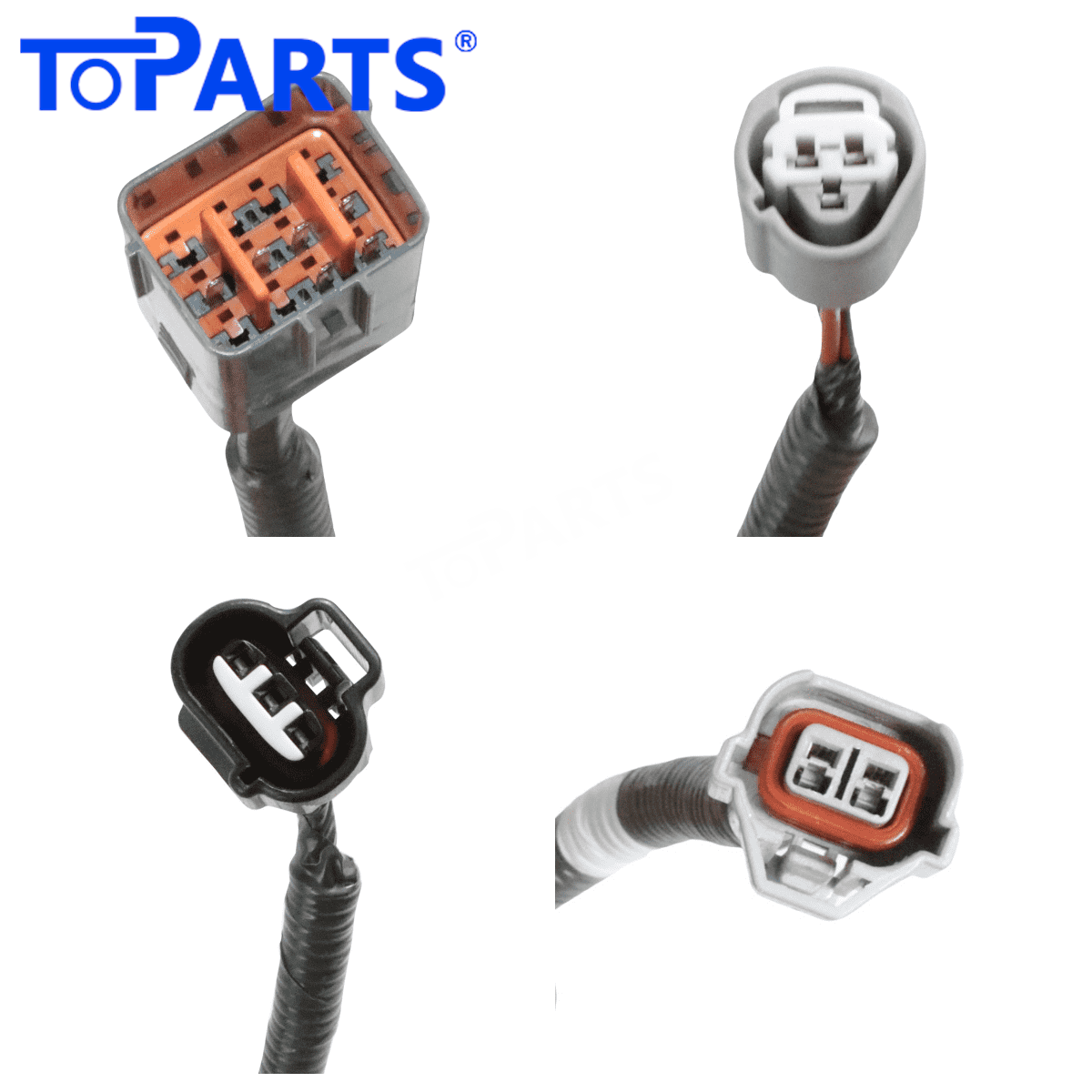

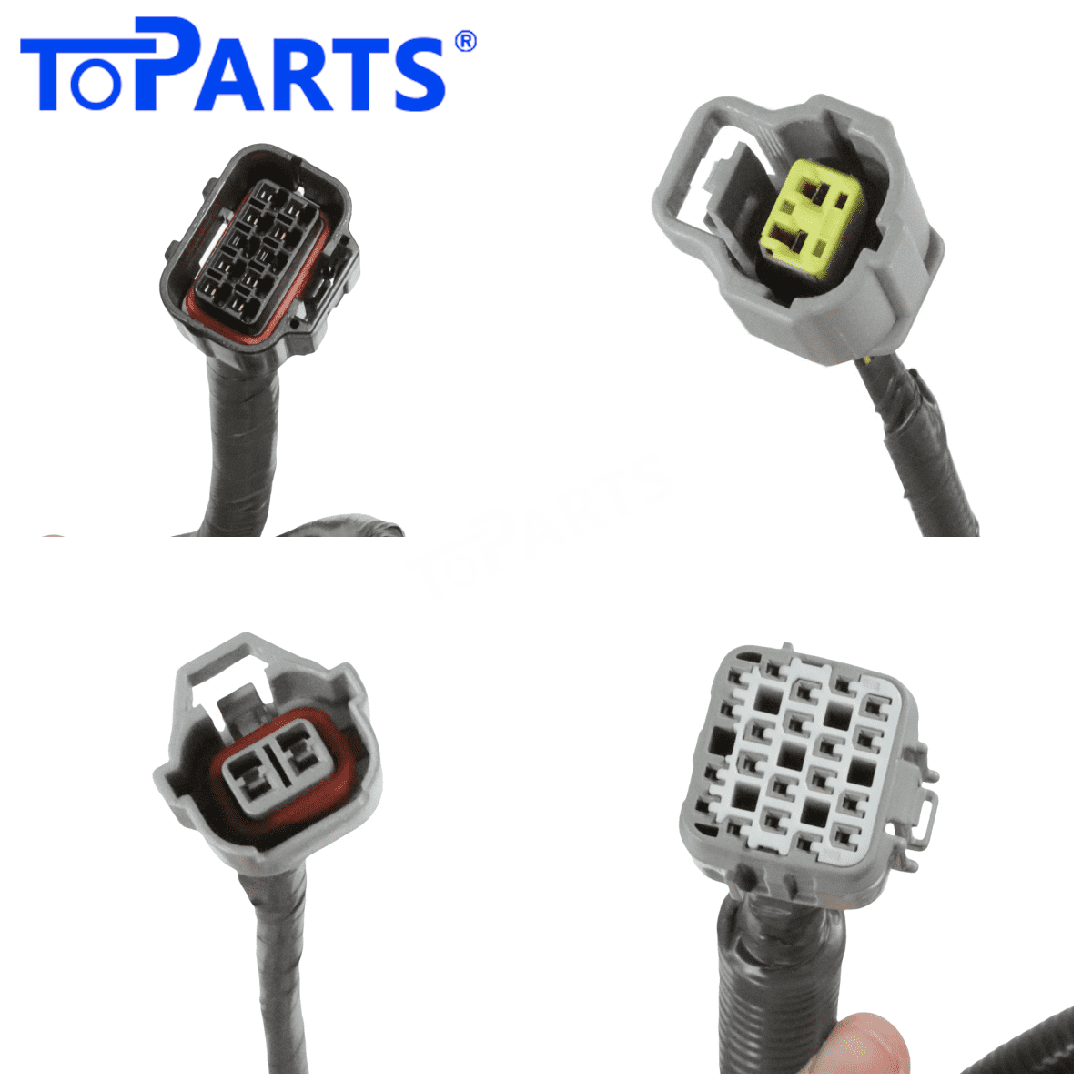

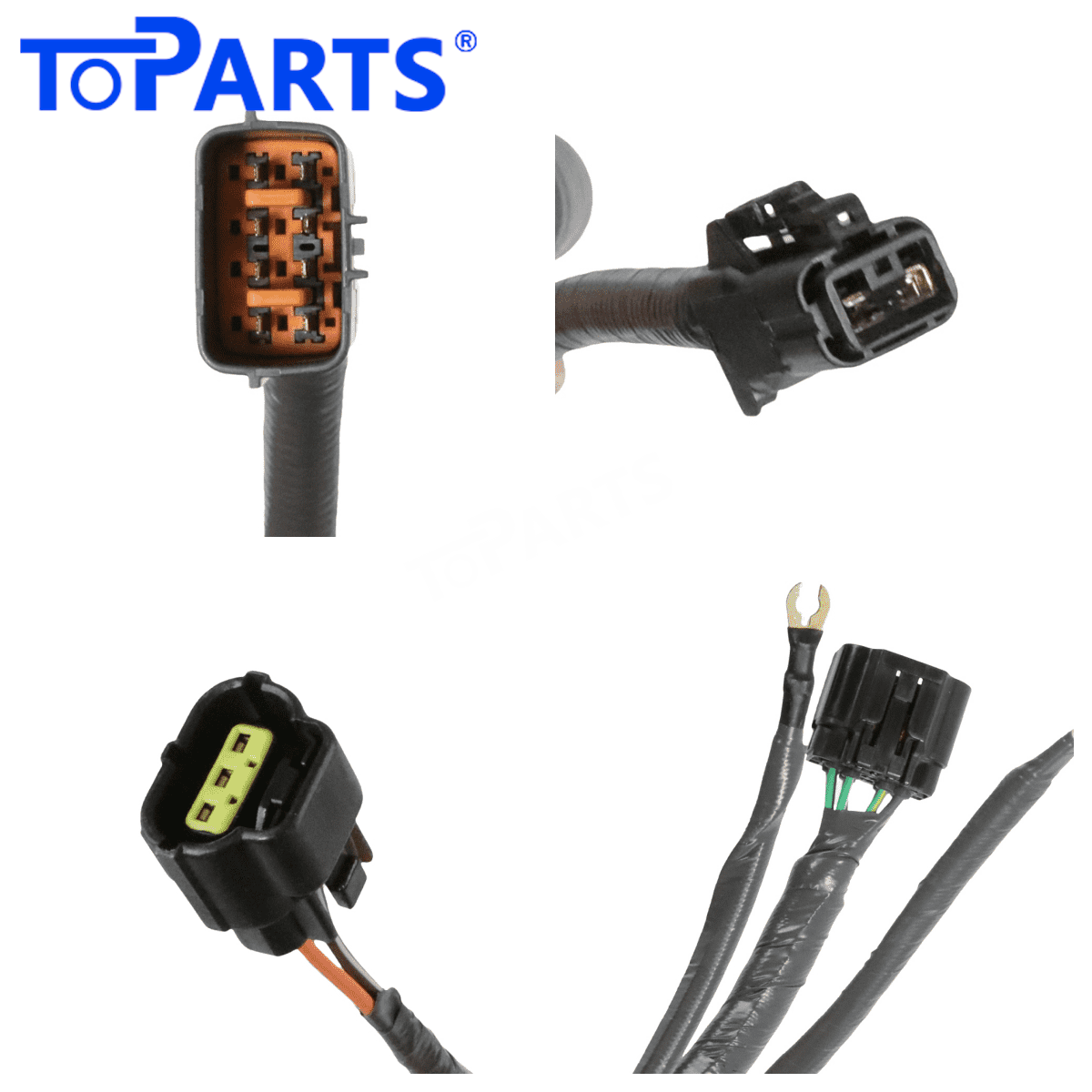

Before ordering, compare the part number printed on the label of your original harness with 8-98034537-0. It is also worth comparing the connector shapes and the number of branches with our product photos. If your machine's serial range or engine variant differs, send us your machine details and we will confirm compatibility before you buy.
Looking After Your Wiring
Once the new harness is fitted, a quick look during routine services goes a long way. Check for rubbing points, loose clamps and oil contamination, and keep the engine bay and battery area clean so that debris does not build up around the wiring.
Signs Your Harness Needs Replacing
Watch for these symptoms:
- Engine cranks but will not start, or starts only after several attempts
- Engine stalling, misfiring or running roughly at idle
- Gauges for engine temperature or oil pressure reading erratically
- Sudden loss of power or the engine entering a derated mode
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
Installation Tips
- Label each connector on the old harness with masking tape before you unplug anything.
- Photograph the routing, clip positions and ground points from several angles.
- Clean and inspect the ECM connector pins; bent pins cause more faults than people expect.
- Keep the new harness clear of the exhaust manifold and turbocharger, and refit all heat shields.
- Clear stored fault codes after installation and run the engine to working temperature to confirm everything reads correctly.
Replace or Repair?
Splicing a damaged section can get a machine moving again, but each joint is a new point of failure. Old wire around the repair is usually just as aged as the part that broke, so the next fault is often not far away. A complete new harness resets the clock on the entire circuit.
Product Details
- Part Name: Engine Wiring Harness
- Part Number: 8-98034537-0, 8980345370
- Condition: Aftermarket new
- Product Weight: 0.5 kg / 1.10 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Matches original routing and length; durable, heat-resistant insulation
Applicable Models
Hitachi ZX135US-3 Excavator
Payment & Shipping
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
