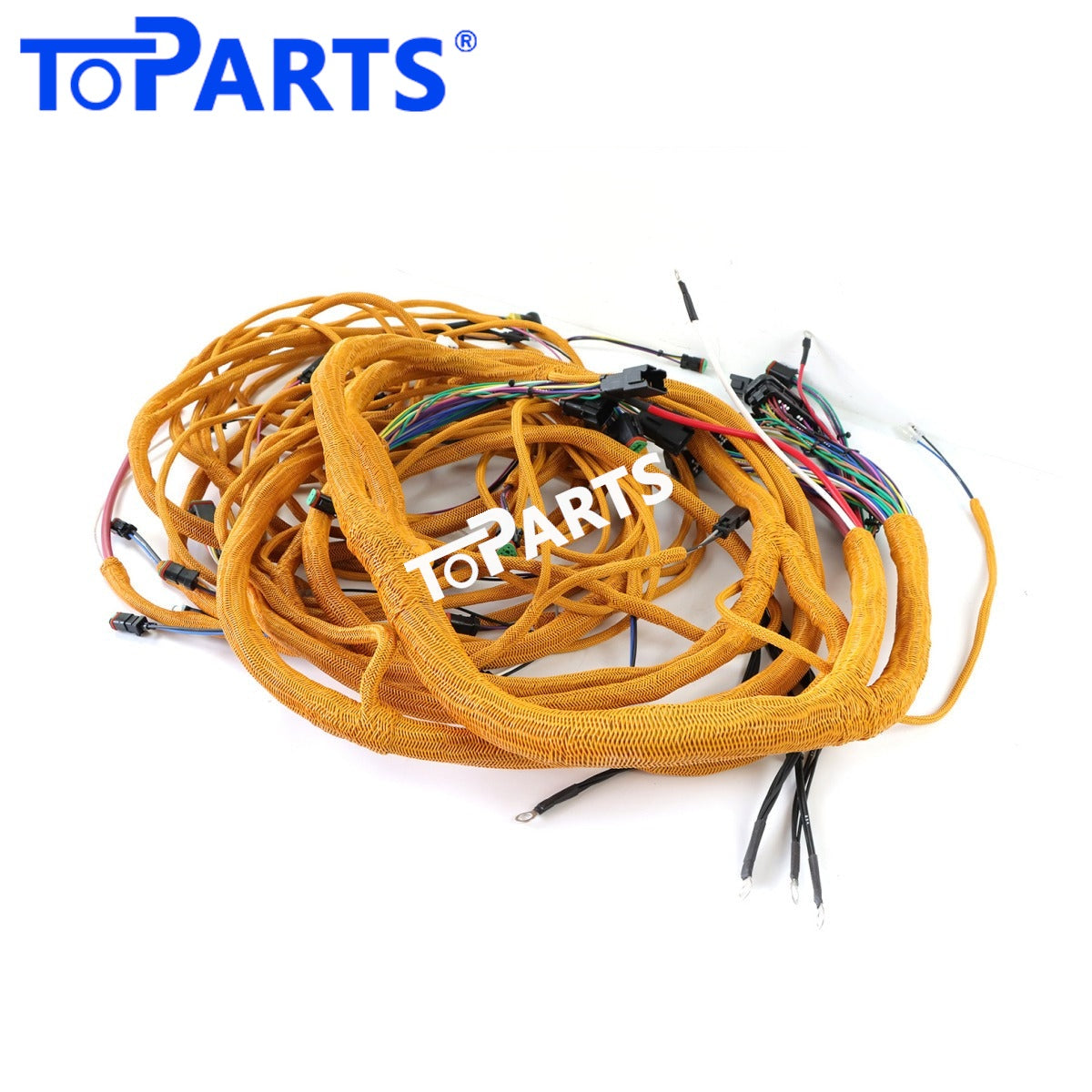

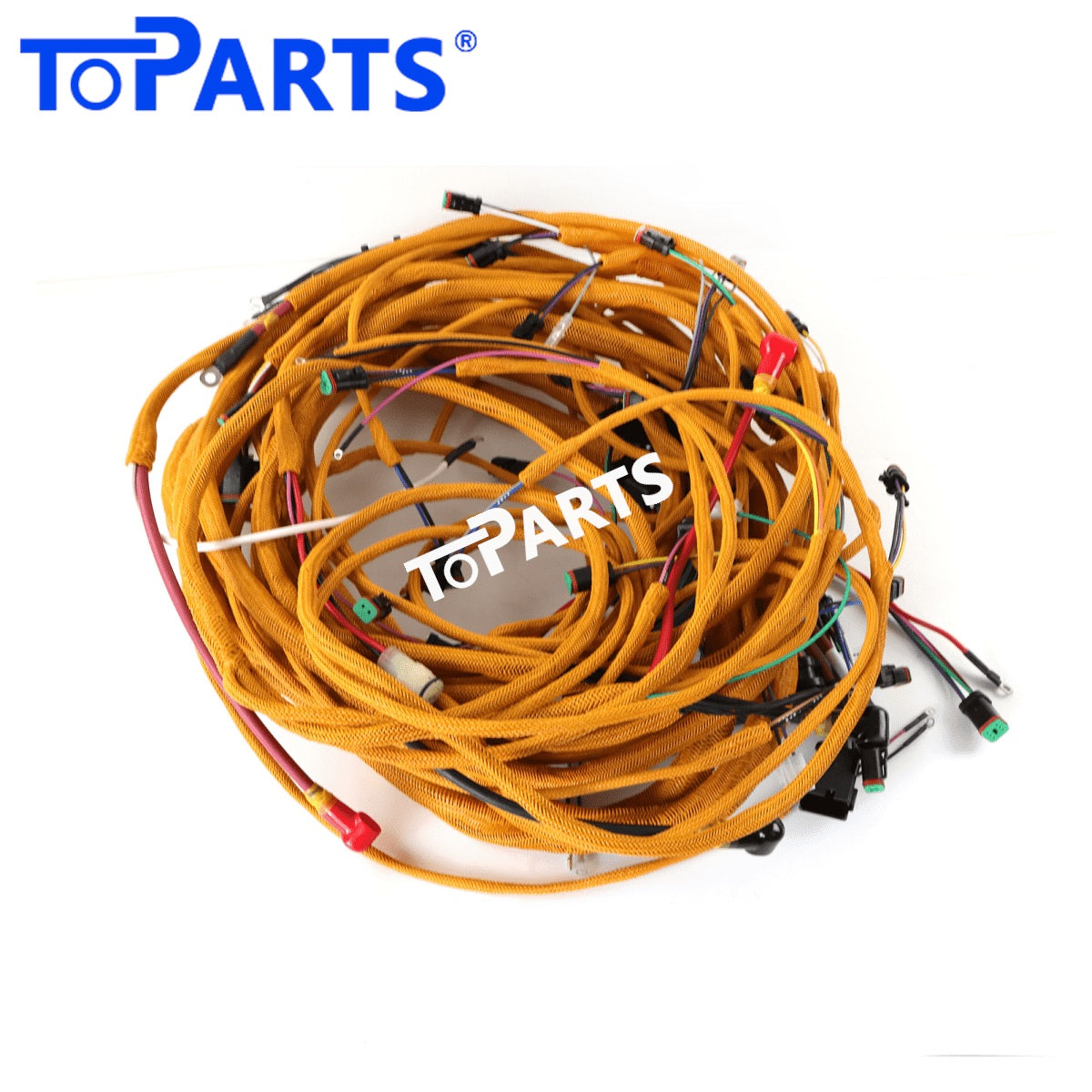

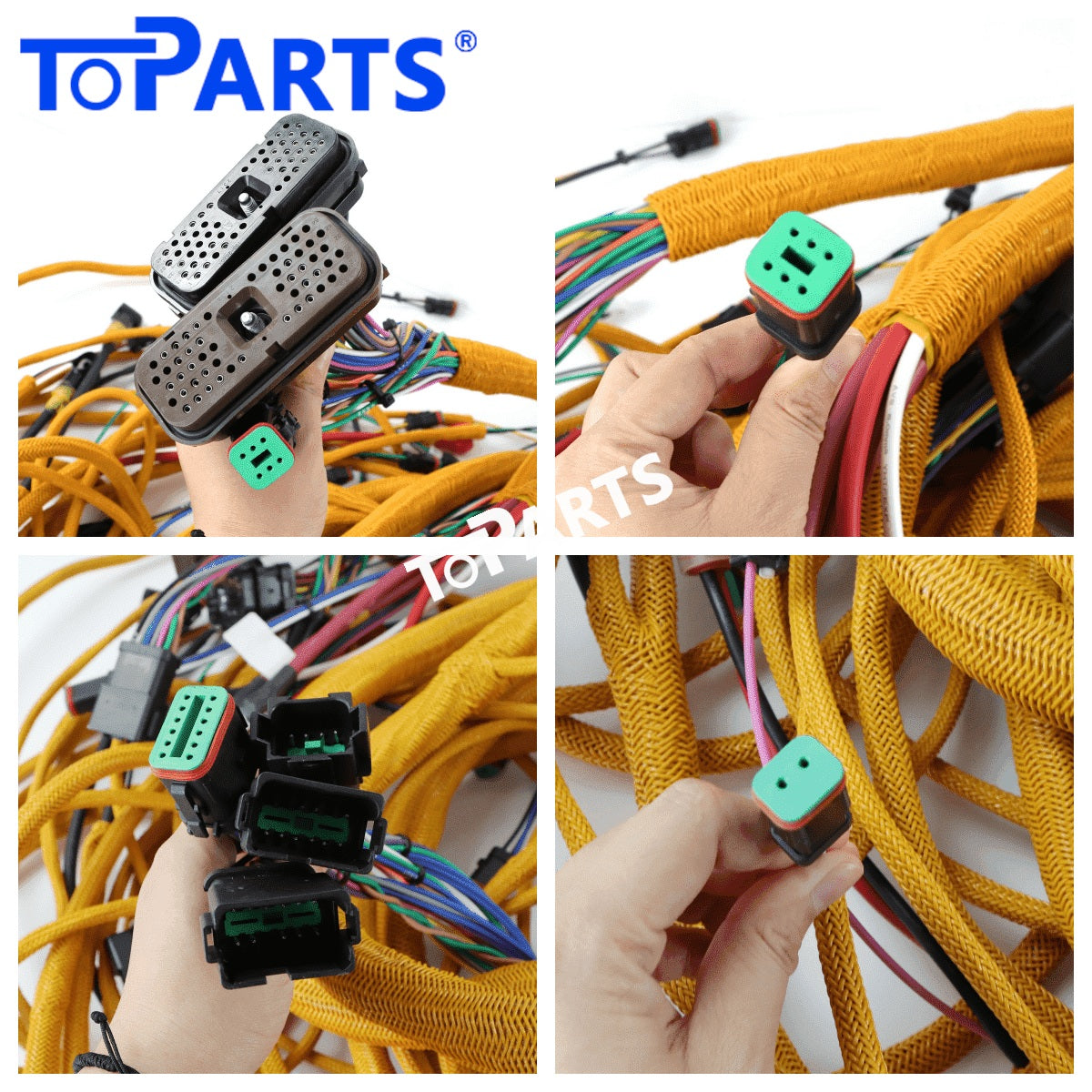

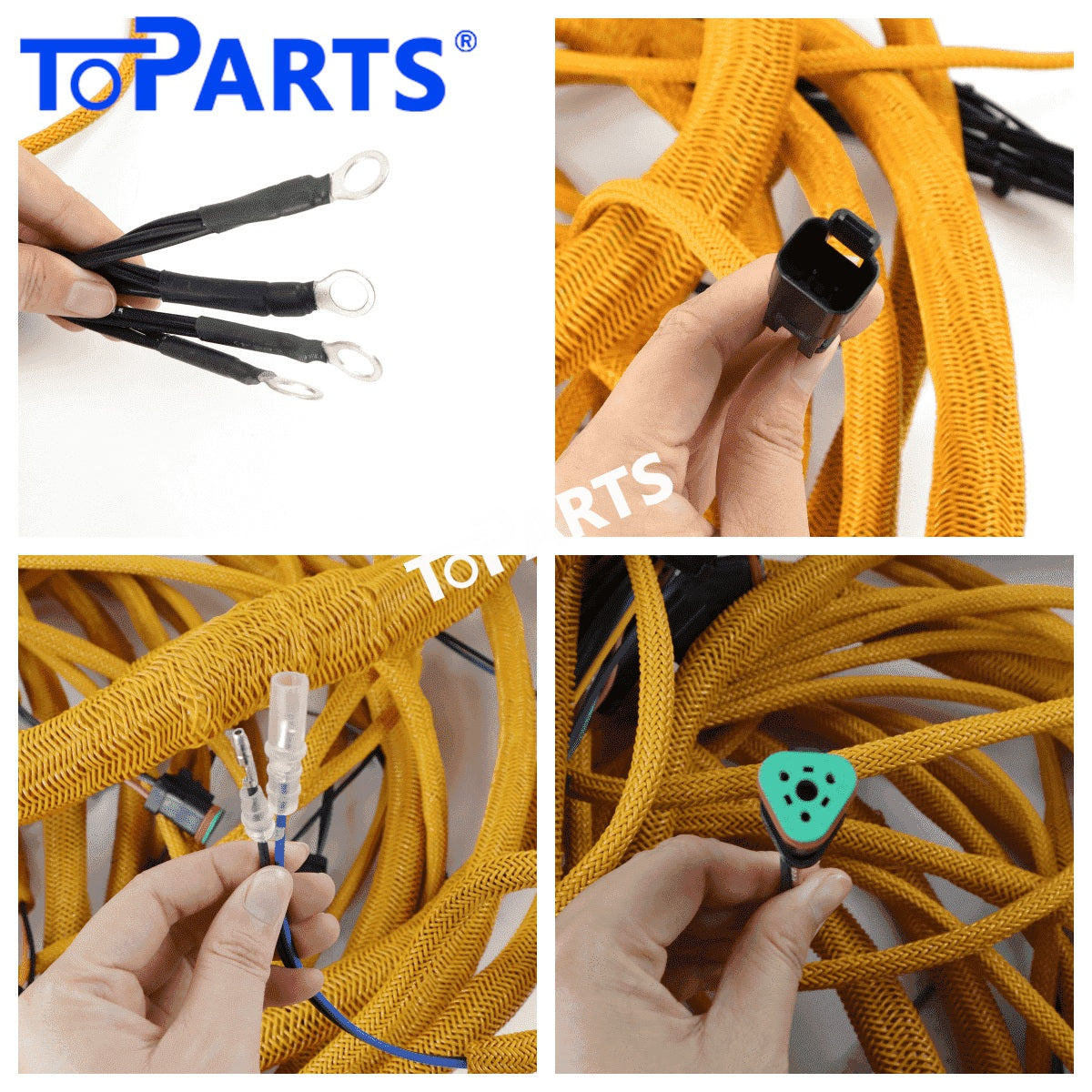

233-1033 2331033 External Wiring Harness for Caterpillar CAT 320C E320C Excavator
Keep your Caterpillar 320C E320C working with the TOPARTS 233-1033 2331033 External Wiring Harness. It replaces the original harness one-for-one and is built for the vibration, heat and dirt that come with daily work on site.
Part Information
- Part Name: External Wiring Harness
- Part Number: 233-1033, 2331033
- Condition: Aftermarket new
- Product Weight: 15 kg / 33.07 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Strict quality control standards; stable performance and high reliability
Application
Caterpillar CAT 320C E320C Excavator
Function Overview
Laid out around the frame and through the house of the excavator, this harness is the long-distance carrier of the electrical system. It ties together the cab controls, controllers, pump and valve solenoids, sensors and lighting into one connected network.
Where the engine harness serves the engine, the external or main harness serves the whole machine. It connects the major systems of the excavator, so when it is damaged the symptoms can appear in places that seem unrelated: lights, gauges, solenoids, starting and more.
On Cat equipment, a damaged harness often shows up as active diagnostic codes before any visible failure, so replacing the wiring can clear problems that look like sensor or ECM faults.
The Cost of Waiting
Dealer lead times for wiring harnesses can stretch to weeks. Ordering a replacement in advance, or as soon as faults begin to appear, keeps your project on schedule and avoids rental costs for a substitute machine.
Replace or Repair?
Harness repairs are hard to do well in the field. Moisture gets into joints, tape loosens with heat, and intermittent faults come back. Replacing the harness gives you factory-style connections throughout and makes future troubleshooting far simpler.
Common Symptoms of a Failing Harness
Typical signs include:
- Hydraulic functions slowing down or stopping because solenoids lose signal
- Monitor warnings that disappear when the machine is stopped
- Rodent damage, crushed sections or wires worn through where the harness rubs the frame
- Starting problems traced to wiring rather than the battery or starter
Intermittent faults like these are classic signs of ageing wiring, and they rarely improve on their own.
Installation Tips
- Disconnect the battery isolator before starting.
- Work section by section, transferring clips and ties as you go, rather than removing the whole harness at once.
- Check every ground strap and clean its contact surface to bare metal.
- Add protective sleeving wherever the old harness showed signs of rubbing.
- Test lights, horn, solenoids and the monitor before refitting covers.
Make Sure It Fits
Model names are not always enough to confirm fitment, because manufacturers sometimes change harness designs within a model's production run. Check the part number on your existing harness, or send us your machine model and serial number, and we will check it for you.
Order & Delivery
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
