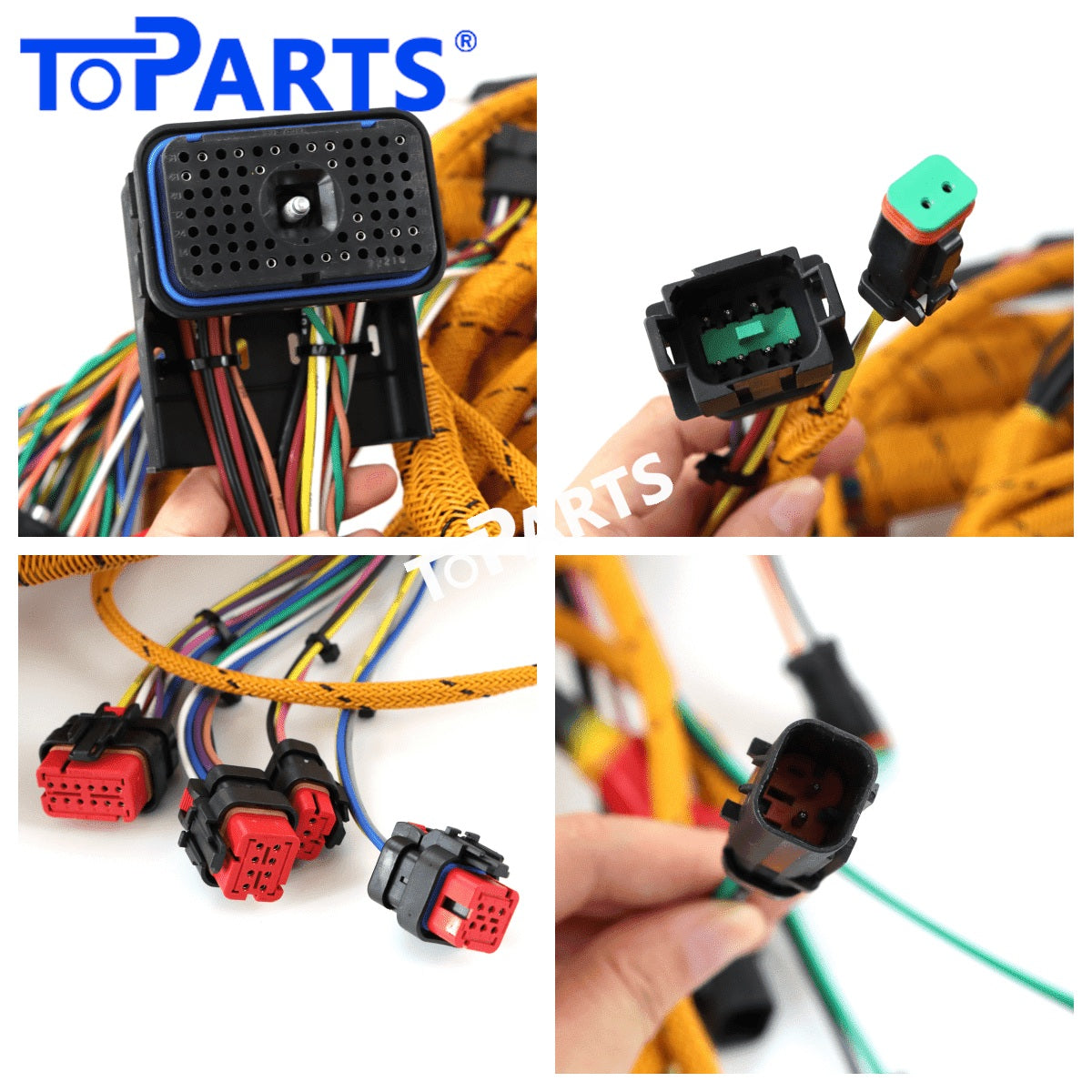

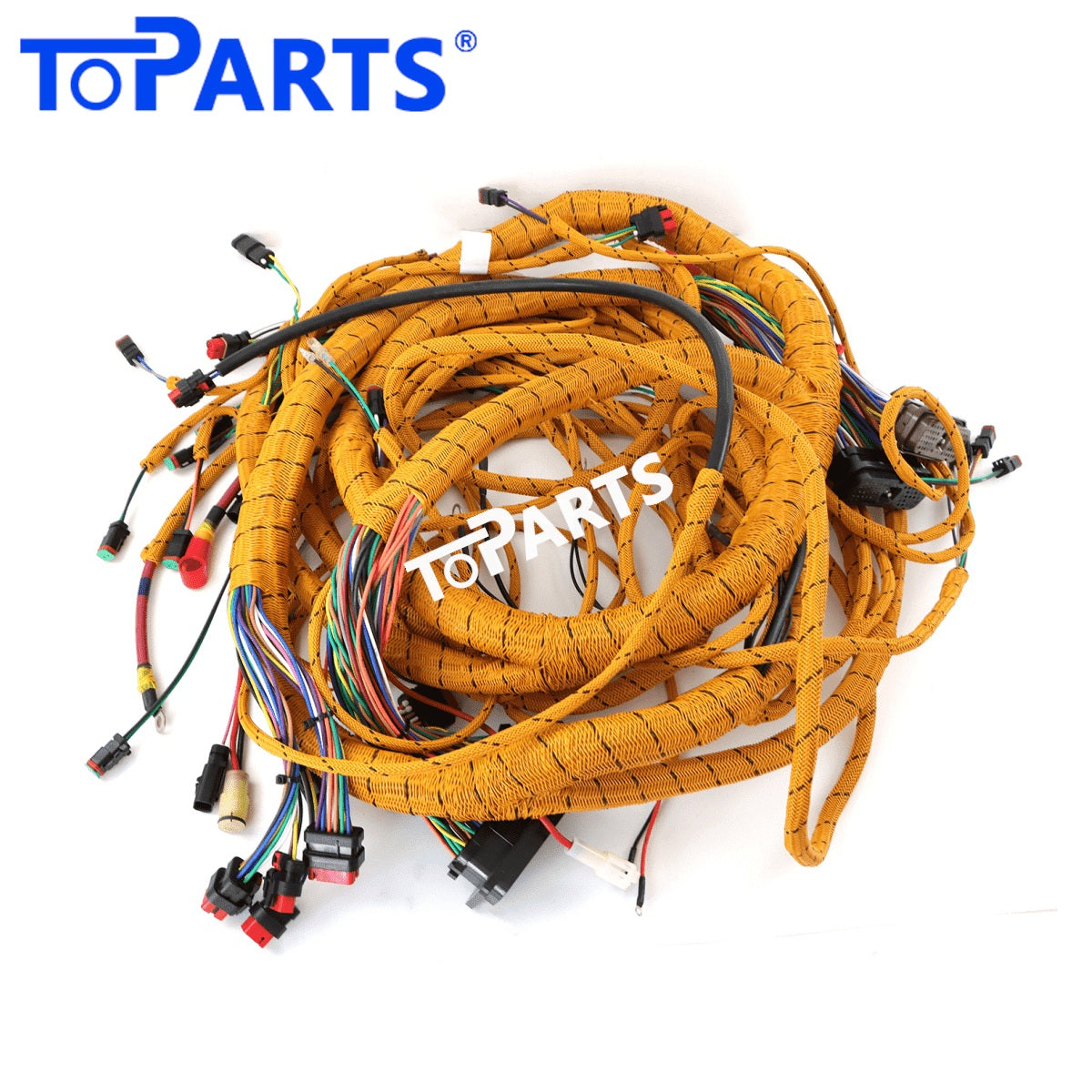

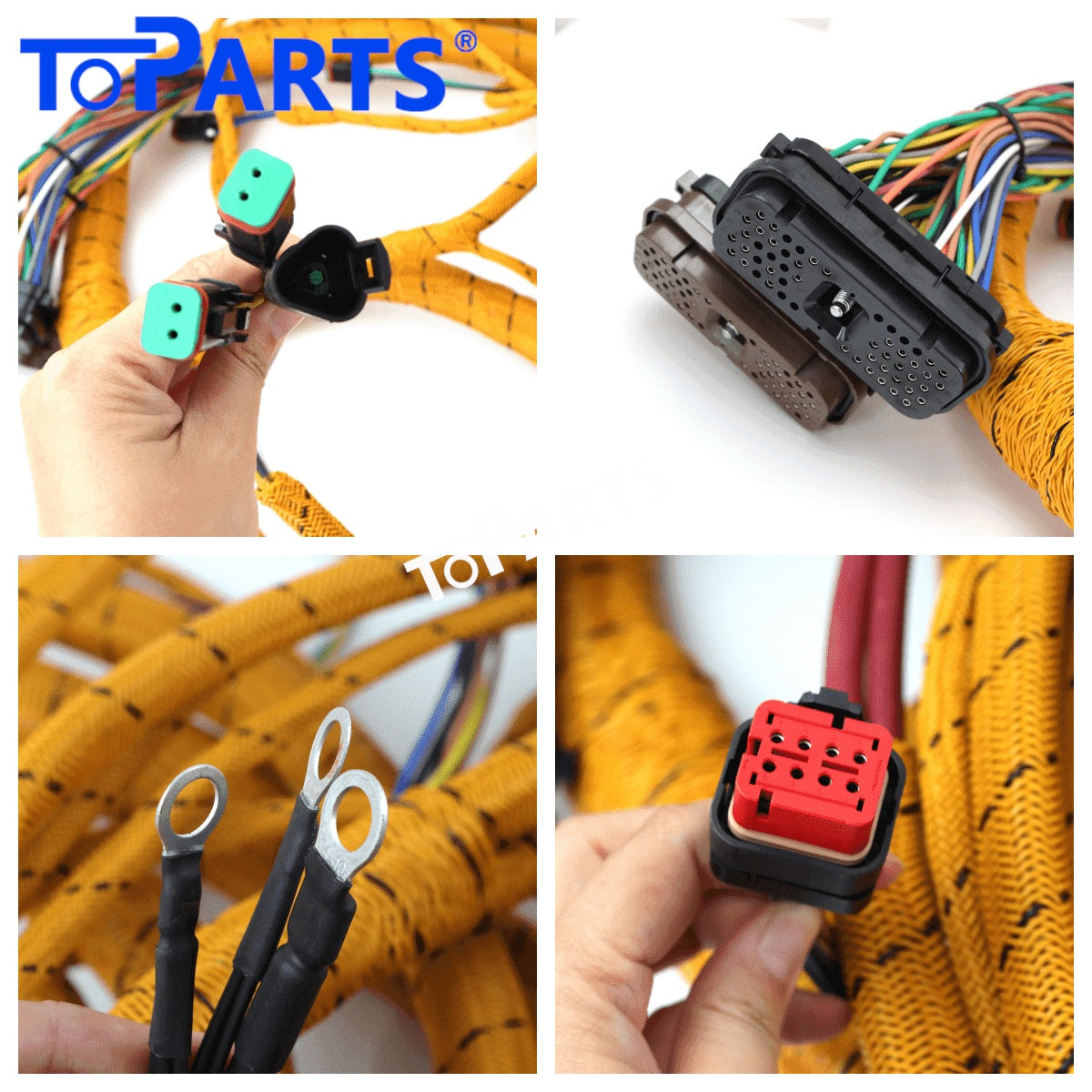

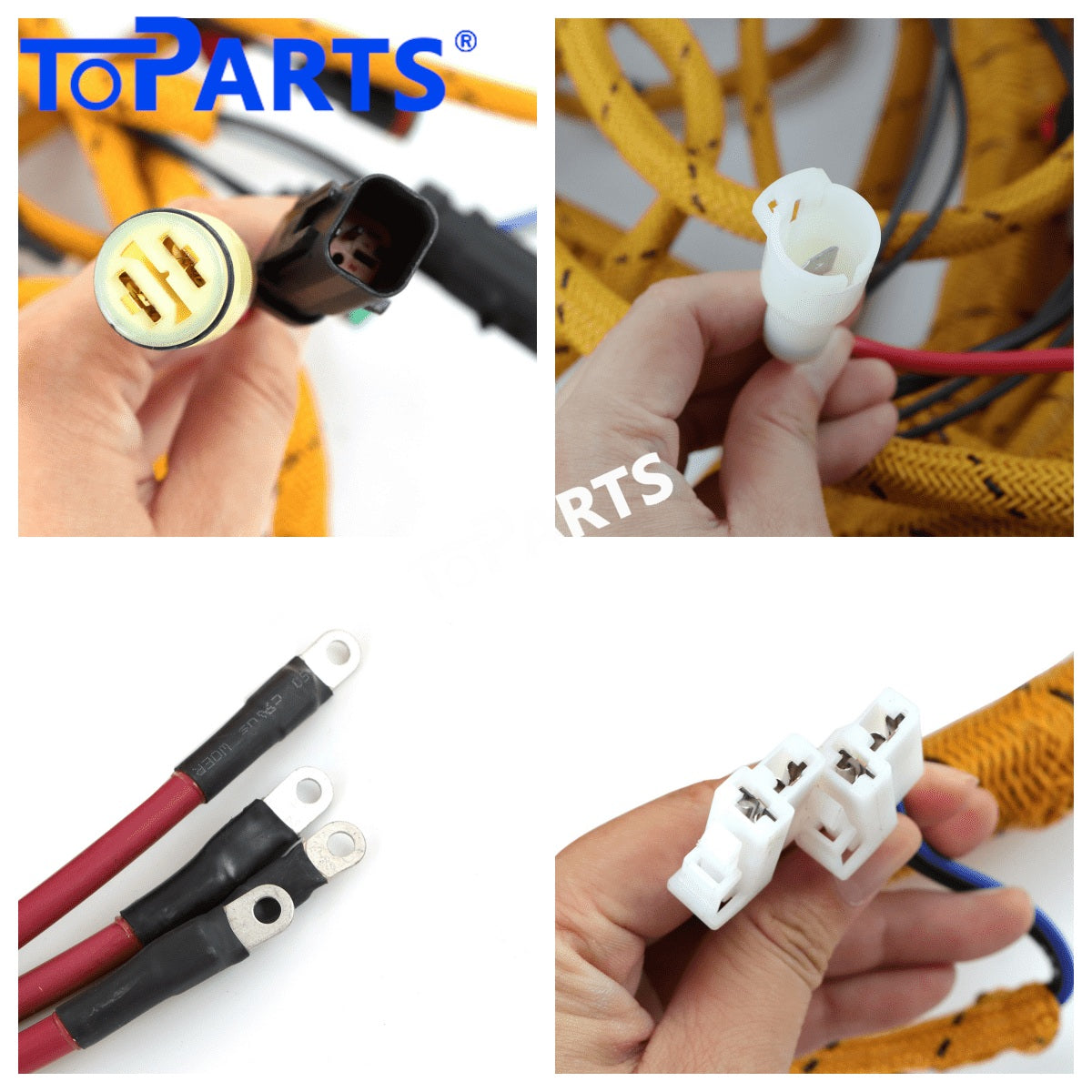

366-9320 3669320 External Wiring Harness for Caterpillar CAT Excavator 329D 329D
Electrical faults can stop an excavator as surely as a mechanical failure. The 366-9320 3669320 External Wiring Harness replaces damaged or aged wiring on Caterpillar 329D, 325D, 326D, 324D excavators and returns the affected circuits to dependable operation.
Part Information
- Part Name: External Wiring Harness
- Part Number: 366-9320, 3669320
- Condition: Aftermarket new
- Product Weight: 15 kg / 33.07 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Quality checked before shipping; built for heavy-duty use
Compatible Models
Caterpillar CAT Excavator 329D 329D L 325D L 326D L 324D L 324D 324D LN 329D L
Why This Harness Matters
Because it runs through the most exposed areas of the machine, the main harness takes more abuse than almost any other electrical part. Swinging, vibration, dust, washdowns and rodents all take their toll, which is why it is one of the most commonly replaced harnesses on older machines.
Laid out around the frame and through the house of the excavator, this harness is the long-distance carrier of the electrical system. It ties together the cab controls, controllers, pump and valve solenoids, sensors and lighting into one connected network.
Caterpillar machines rely heavily on electronic engine and machine control, which makes healthy wiring essential for performance and fault-free operation.
Make Sure It Fits
Model names are not always enough to confirm fitment, because manufacturers sometimes change harness designs within a model's production run. Check the part number on your existing harness, or send us your machine model and serial number, and we will check it for you.
What You Get with TOPARTS
TOPARTS harnesses are made to the original layout so that every connector reaches its component without strain. Protective conduit and tape guard the wires against abrasion, heat and oil in the engine bay and around the frame.
Common Questions
What should I do if the part does not match?
Contact us with photos of the original and the new part. We will help you resolve the issue quickly.
Can I replace only part of the harness?
For a reliable result we recommend replacing the complete harness, since the rest of the old wiring has aged under the same conditions.
Is this harness plug-and-play?
Yes. It is built to the original layout with matching connectors, so it installs in place of the original without cutting or splicing.
Installation Tips
- Work section by section, transferring clips and ties as you go, rather than removing the whole harness at once.
- Check every ground strap and clean its contact surface to bare metal.
- Add protective sleeving wherever the old harness showed signs of rubbing.
- Test lights, horn, solenoids and the monitor before refitting covers.
Signs Your Harness Needs Replacing
You may notice:
- Starting problems traced to wiring rather than the battery or starter
- Rodent damage, crushed sections or wires worn through where the harness rubs the frame
- Several unrelated circuits failing at once
- Blown fuses that keep recurring with no obvious cause
Intermittent faults like these are classic signs of ageing wiring, and they rarely improve on their own.
Order & Delivery
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
