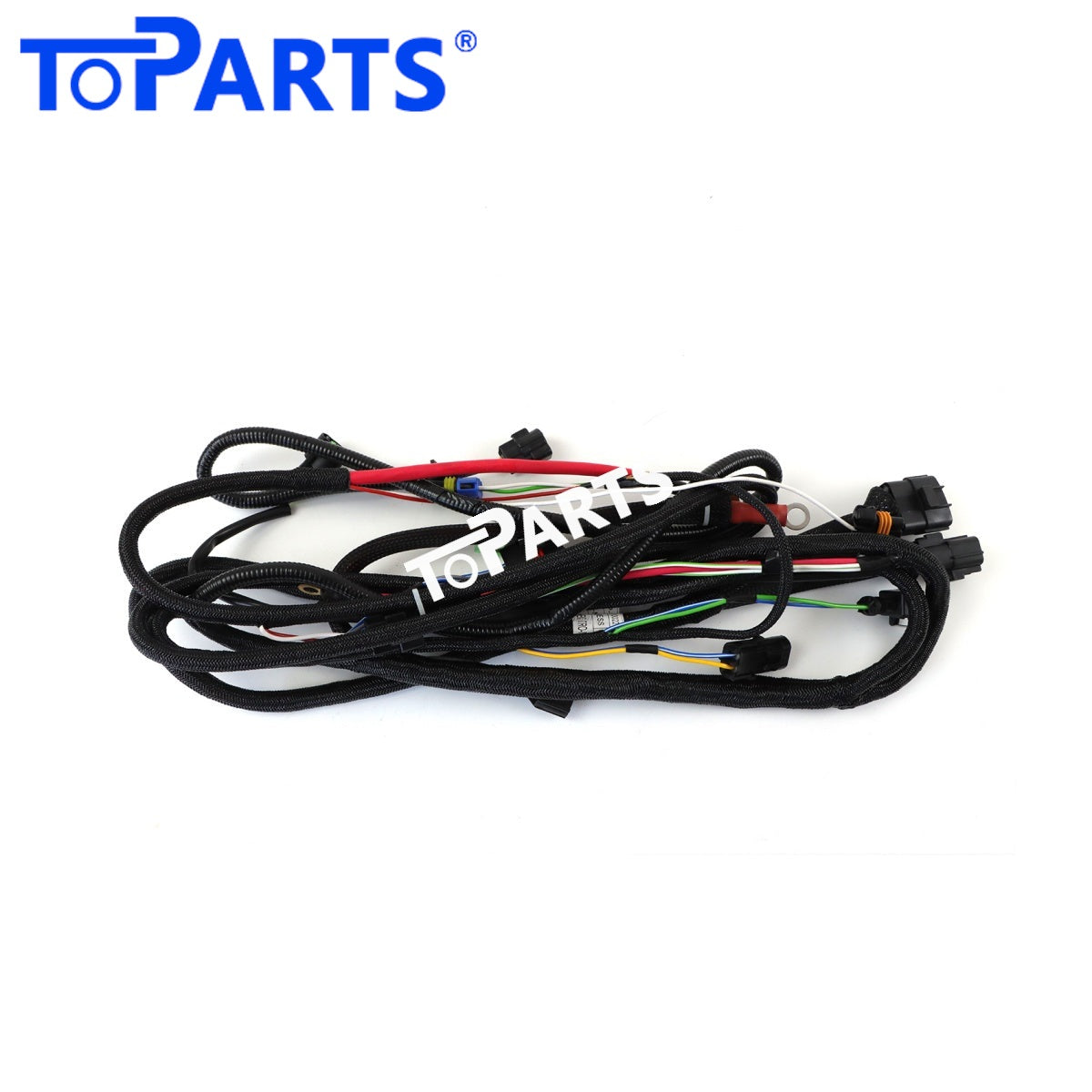

21N8-10022 Engine Wiring Harness for Hyundai R290LC-7 Excavator
Keep your Hyundai R290LC-7 working with the TOPARTS 21N8-10022 Engine Wiring Harness. It replaces the original harness one-for-one and is built for the vibration, heat and dirt that come with daily work on site.
Its Role in the Machine
Mounted directly on the engine, this harness bundles the circuits that connect the electronic control unit with the parts doing the real work: sensors that measure, and actuators that respond. Clean, uninterrupted signals here are what allow the engine to run smoothly and efficiently.
The Engine Wiring Harness is the nerve center of the engine bay. It links the engine control module to the sensors, injectors and actuators that keep combustion on target, carrying every signal the ECM needs to read speed, temperature and pressure and respond in milliseconds.
Hyundai Robex excavators use electronic control for both engine and hydraulics, so a damaged harness can affect power, response and fault reporting.
Signs Your Harness Needs Replacing
Typical signs include:
- Problems that come and go when the engine heats up or when the machine vibrates
- Visible heat damage, cracked insulation or chafed wires near the engine block
- Sudden loss of power or the engine entering a derated mode
- Gauges for engine temperature or oil pressure reading erratically
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
Construction and Quality
We check connector fit, wire continuity and overall layout before shipping, so the harness you receive is ready to install. The materials are chosen for the temperature range, vibration and contamination found on construction equipment.
Repair vs. Replacement
Patching wiring takes time: tracing the fault, cutting, crimping and sealing, often in an awkward position. When the insulation is hardened along the whole length, that time is better spent fitting a new harness that solves every weak spot at once.
The Cost of Waiting
Dealer lead times for wiring harnesses can stretch to weeks. Ordering a replacement in advance, or as soon as faults begin to appear, keeps your project on schedule and avoids rental costs for a substitute machine.
Installation Guide
- Label each connector on the old harness with masking tape before you unplug anything.
- Photograph the routing, clip positions and ground points from several angles.
- Clean and inspect the ECM connector pins; bent pins cause more faults than people expect.
- Keep the new harness clear of the exhaust manifold and turbocharger, and refit all heat shields.
- Clear stored fault codes after installation and run the engine to working temperature to confirm everything reads correctly.
Specifications
- Part Name: Engine Wiring Harness
- Part Number: 21N8-10022, 21N810022
- Condition: Genuine new
- Product Weight: 6 kg / 13.23 lbs
- Brand: TOPARTS
- Feature: Original connector layout; plug-and-play installation
Fits the Following Machines
Hyundai R290LC-7 Excavator
Ordering Information
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
