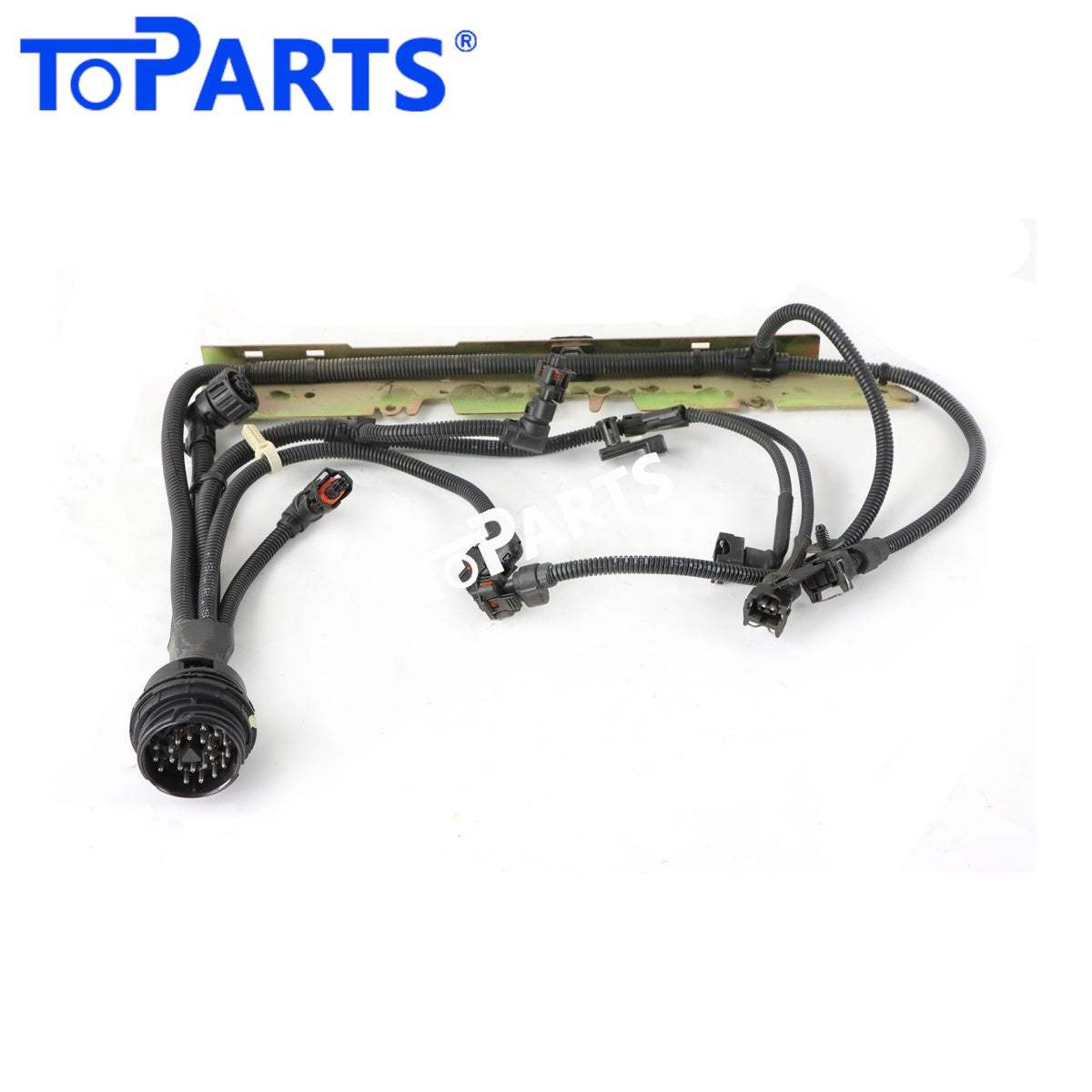

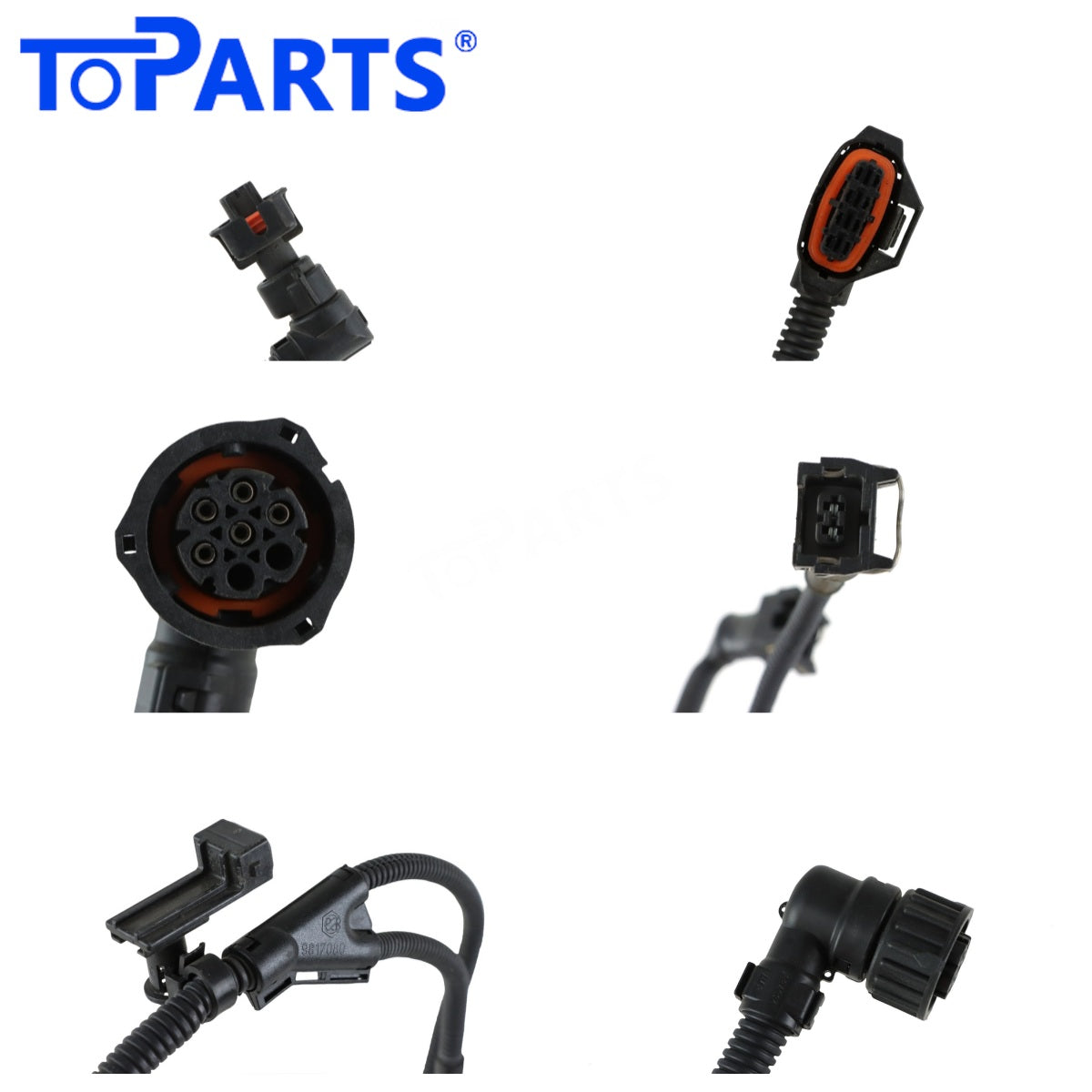

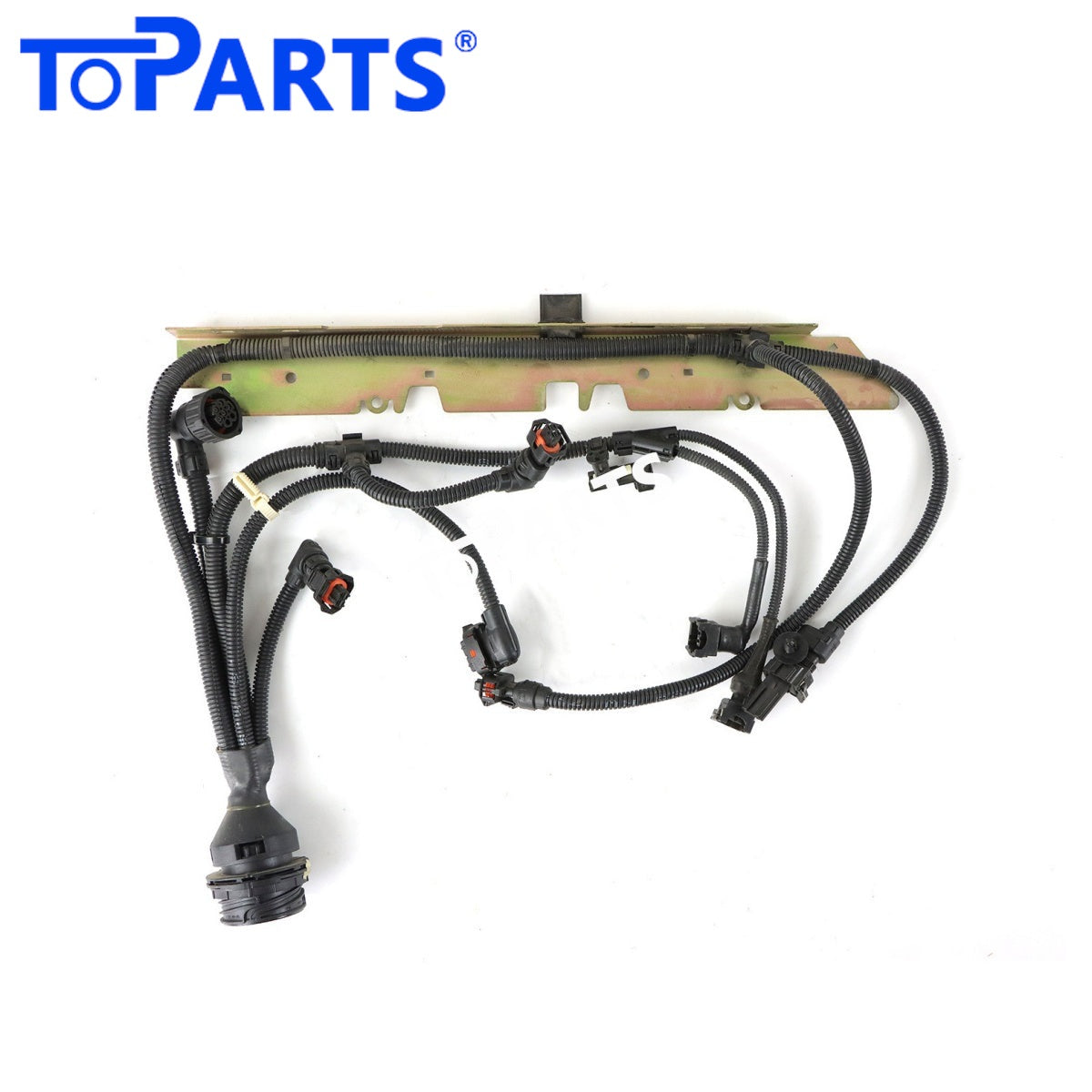

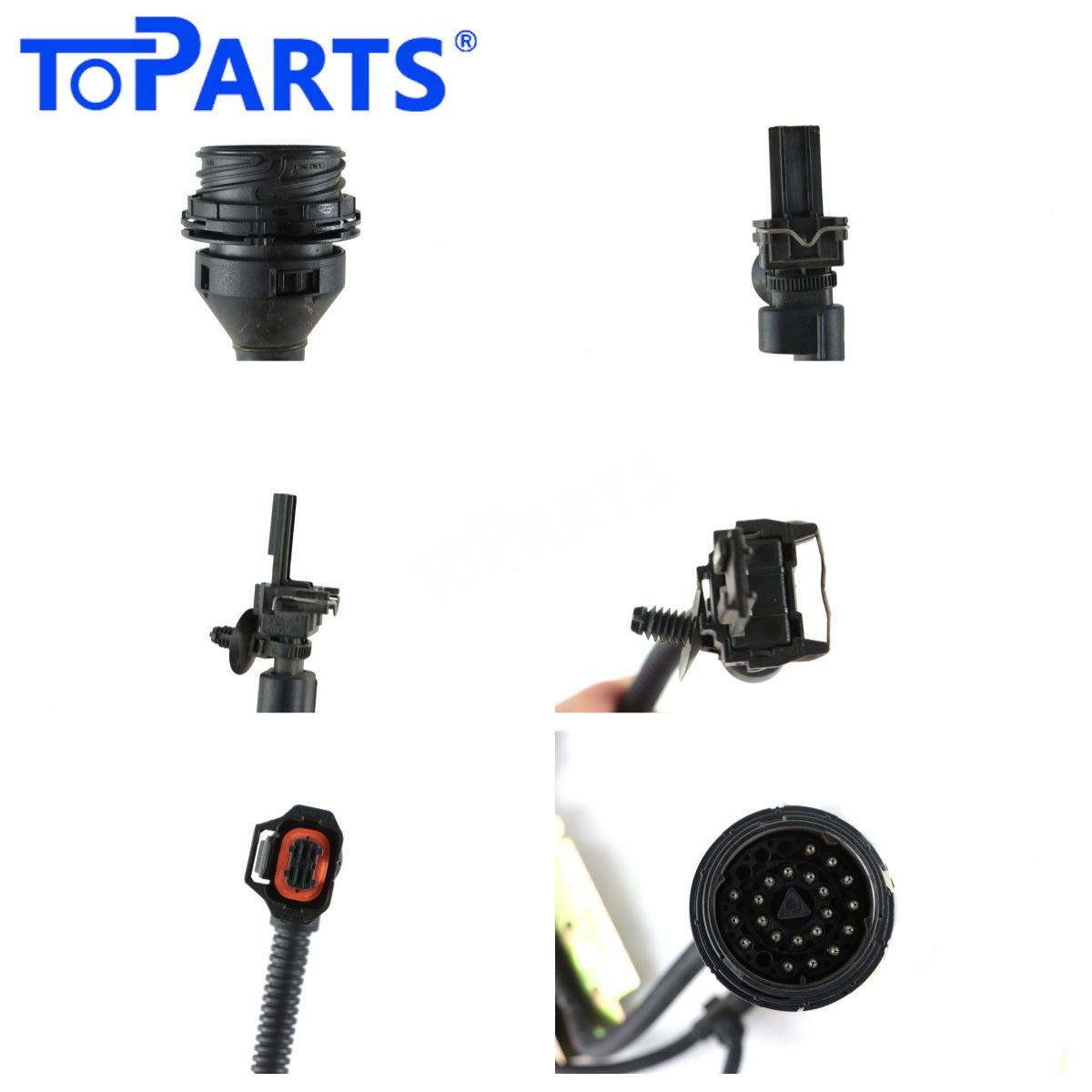

20555276 VOE20718807 Cab Wiring Harness for Volvo EC140B EC210B EC360B Excavator
When the original harness on your Volvo EC140B EC210B has worn out, the 20555276 VOE20718807 Cab Wiring Harness is a straightforward way to get the machine back to full function. It is made to the same layout as the original, with matching connectors at every branch.
Product Details
- Part Name: Cab Wiring Harness
- Part Number: 20555276, VOE20718807
- Condition: Aftermarket new
- Product Weight: 4 kg / 8.82 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Strict quality control standards; stable performance and high reliability
Application
Volvo EC140B EC210B EC360B Excavator
Function Overview
The internal harness lives inside the operator's cab and connects everything the operator touches and sees: the monitor, switch panels, joysticks, key switch, controllers and relays. It is the link between the operator's commands and the rest of the machine.
Inside the cab, this harness ties the monitor panel, controller, key switch and control switches into one circuit network. When it starts to fail, the first signs are usually in the cab itself: dead switches, flickering displays or controls that respond only some of the time.
On Volvo machines, wiring problems often appear as communication or sensor faults on the display. A new harness removes the wiring as a variable in the diagnosis.
Common Symptoms of a Failing Harness
You may notice:
- Monitor flickering, going blank or resetting while working
- Key switch or start circuit failing intermittently
- Joystick or work mode functions not responding
- Faults that appear when the seat or console is moved
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
Repair vs. Replacement
Harness repairs are hard to do well in the field. Moisture gets into joints, tape loosens with heat, and intermittent faults come back. Replacing the harness gives you factory-style connections throughout and makes future troubleshooting far simpler.
Reducing Downtime
Dealer lead times for wiring harnesses can stretch to weeks. Ordering a replacement in advance, or as soon as faults begin to appear, keeps your project on schedule and avoids rental costs for a substitute machine.
Installation Tips
- Remove the seat or console covers as needed to get clear access.
- Unplug the monitor and controller connectors carefully and check their locking tabs.
- Route the harness exactly as the original to avoid pinching under floor plates or seat rails.
- Test every switch and the monitor before refitting the panels.
How to Verify Compatibility
The fastest way to confirm fit is to match the part number 20555276 VOE20718807 against the tag on your old harness or your parts book. If the tag is missing or unreadable, a few clear photos of the connectors are usually enough for us to identify the right part.
Ordering Information
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
