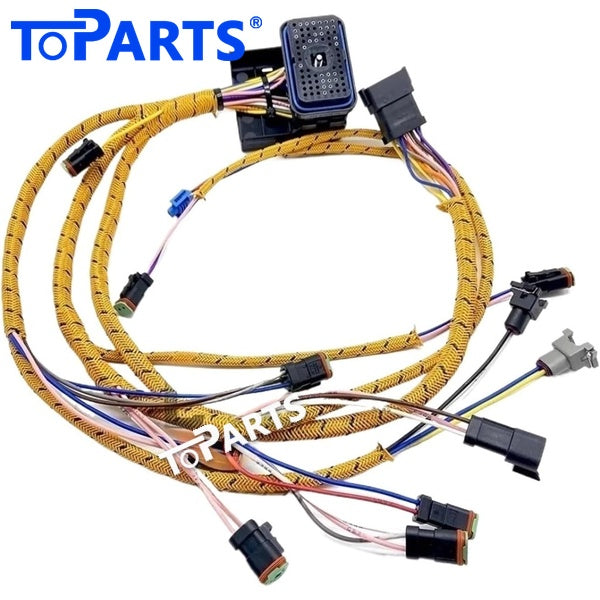

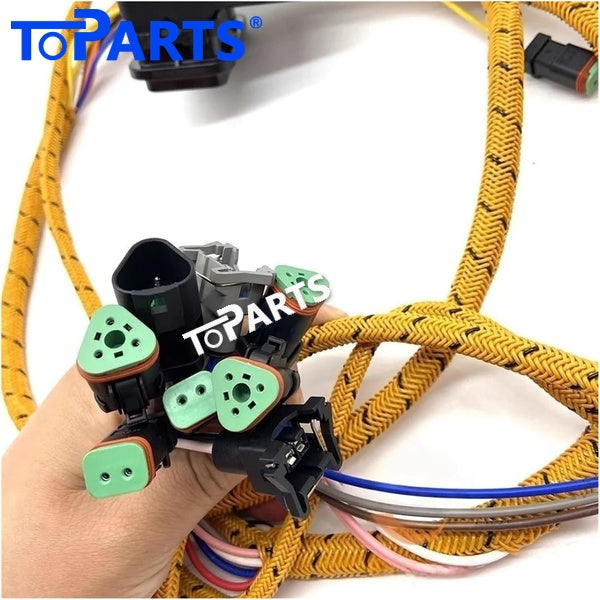

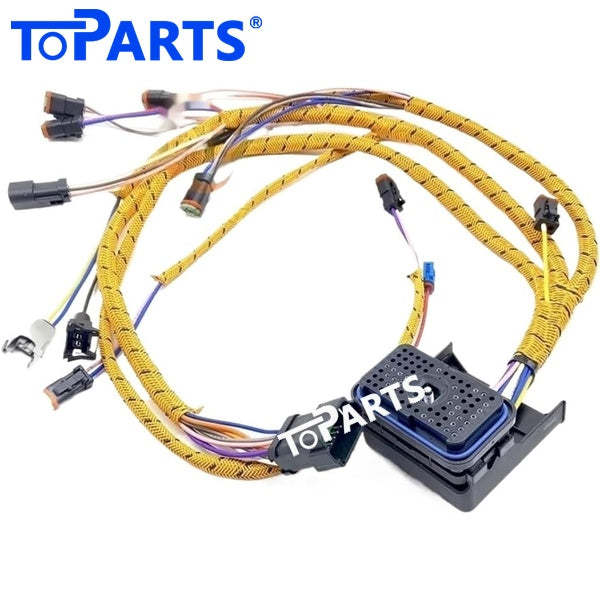

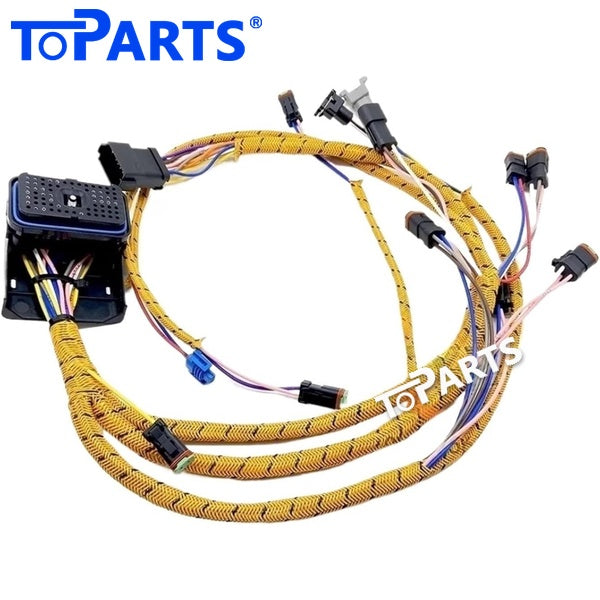

210-5564 2105564 Engine Wiring Harness for Caterpillar CAT C7 3126E Engine
Looking for part 210-5564 2105564? This Engine Wiring Harness is made for Caterpillar C7, 3126E and reproduces the original harness design, from wire lengths and branch points to the connector types on each end.
It is used with the C7, 3126E engine and is matched to that engine's sensor and connector layout.
Part Information
- Part Name: Engine Wiring Harness
- Part Number: 210-5564, 2105564
- Engine: C7, 3126E
- Condition: Aftermarket new
- Product Weight: 1 kg / 2.20 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Quality checked before shipping; built for heavy-duty use
Application
Caterpillar CAT C7 3126E Engine
Why This Harness Matters
The Engine Wiring Harness is the nerve center of the engine bay. It links the engine control module to the sensors, injectors and actuators that keep combustion on target, carrying every signal the ECM needs to read speed, temperature and pressure and respond in milliseconds.
Every start, every throttle change and every load the engine takes on is managed through this harness. It routes power and data between the ECM and the engine-mounted components, so a single damaged wire here can show up as a problem anywhere in the engine's behaviour.
Caterpillar machines rely heavily on electronic engine and machine control, which makes healthy wiring essential for performance and fault-free operation.
The Cost of Waiting
Dealer lead times for wiring harnesses can stretch to weeks. Ordering a replacement in advance, or as soon as faults begin to appear, keeps your project on schedule and avoids rental costs for a substitute machine.
Installation Tips
- Label each connector on the old harness with masking tape before you unplug anything.
- Photograph the routing, clip positions and ground points from several angles.
- Clean and inspect the ECM connector pins; bent pins cause more faults than people expect.
- Keep the new harness clear of the exhaust manifold and turbocharger, and refit all heat shields.
- Clear stored fault codes after installation and run the engine to working temperature to confirm everything reads correctly.
When to Replace It
You may notice:
- Fault codes for sensors, injectors or the ECM appearing on the monitor
- Gauges for engine temperature or oil pressure reading erratically
- Problems that come and go when the engine heats up or when the machine vibrates
- Sudden loss of power or the engine entering a derated mode
- Engine stalling, misfiring or running roughly at idle
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
Keeping the New Harness in Good Shape
Avoid aiming a pressure washer directly at connectors and the ECM. Water forced past the seals is a common cause of corrosion and intermittent faults. A light spray and a dry cloth are kinder to the electrical system.
Make Sure It Fits
Before ordering, compare the part number printed on the label of your original harness with 210-5564 2105564. It is also worth comparing the connector shapes and the number of branches with our product photos. If your machine's serial range or engine variant differs, send us your machine details and we will confirm compatibility before you buy.
Shipping and Payment
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
