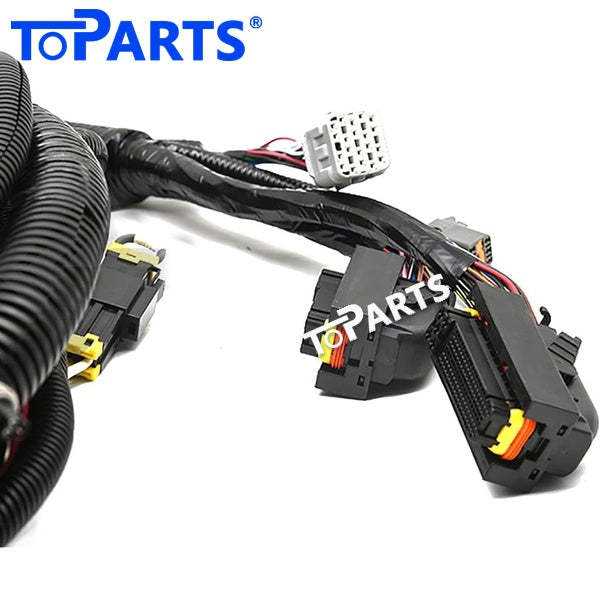

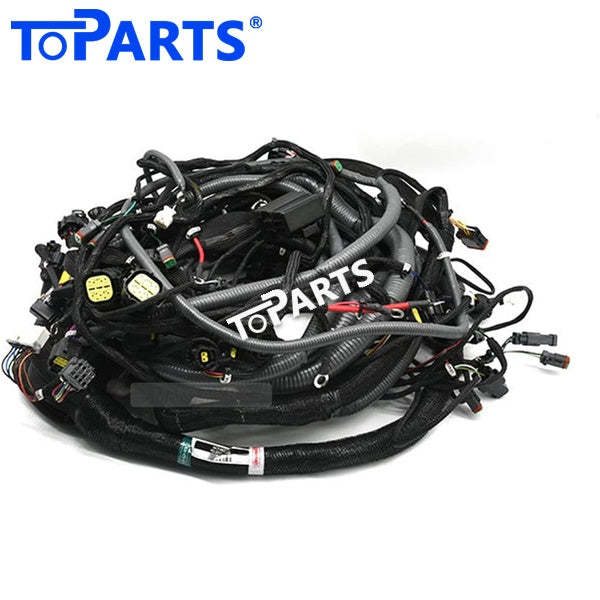

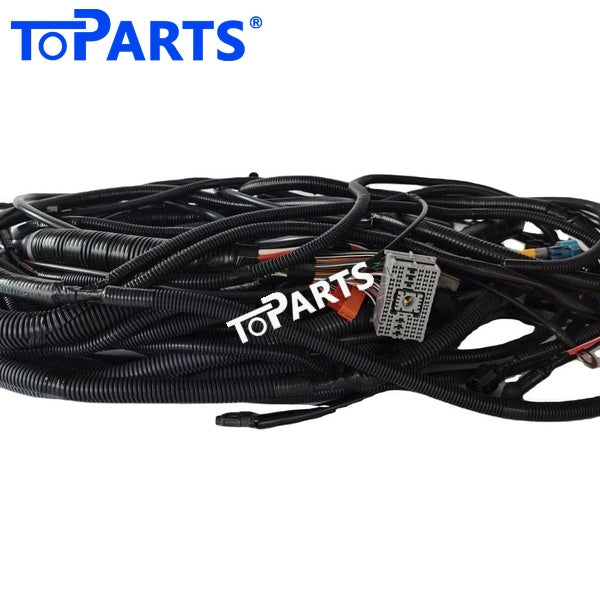

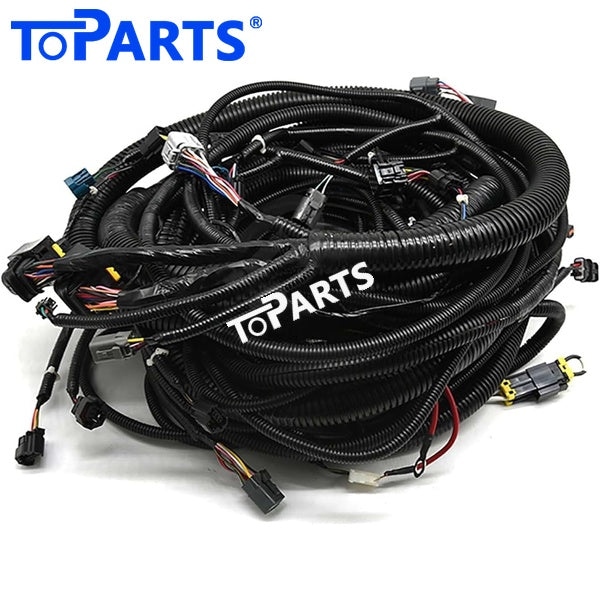

0005471 Wiring harness for ZX330-3 ZX350-3 ZX360-3 Hitachi Excavator
Electrical faults can stop an excavator as surely as a mechanical failure. The 0005471 Wiring Harness replaces damaged or aged wiring on Hitachi ZX330-3, ZX330-3-HCMC, ZX330-3F, ZX350-3-AMS, ZX350H-3, ZX350H-3F excavators and returns the affected circuits to dependable operation.
Part Information
- Part Name: Wiring Harness
- Part Number: 0005471, 0006001
- Condition: Aftermarket new
- Product Weight: 8 kg / 17.64 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Strict quality control standards; stable performance and high reliability
Compatible Models
Hitachi ZX330-3, ZX330-3-HCMC, ZX330-3F, ZX350-3-AMS, ZX350H-3, ZX350H-3F, ZX350K-3, ZX350K-3F, ZX350LC-3-HCME, ZX350LC-3F-HCME, ZX350LC-3FAMS, ZX350LCN-3FAMS, ZX350LCN-3FHCME, ZX360H-3-HCMC, ZX360LC-3-HCMC
Its Role in the Machine
Designed to the original routing, length and connector layout, this harness drops into place where the old one was removed, so the circuits it serves return to normal operation without rewiring.
Every wire in this harness has a job: delivering power, carrying a sensor signal or switching a component on and off. When the insulation hardens or terminals loosen, those jobs stop getting done reliably, and replacing the harness is the most direct fix.
Hitachi ZAXIS and EX series machines combine electronic engine control with electronically managed hydraulics, so both systems depend on sound wiring to deliver their rated performance.
Maintenance Advice
Once the new harness is fitted, a quick look during routine services goes a long way. Check for rubbing points, loose clamps and oil contamination, and keep the engine bay and battery area clean so that debris does not build up around the wiring.
Check Fitment Before Ordering
Before ordering, compare the part number printed on the label of your original harness with 0005471. It is also worth comparing the connector shapes and the number of branches with our product photos. If your machine's serial range or engine variant differs, send us your machine details and we will confirm compatibility before you buy.
Made to Last on the Job Site
We check connector fit, wire continuity and overall layout before shipping, so the harness you receive is ready to install. The materials are chosen for the temperature range, vibration and contamination found on construction equipment.
How to Tell It Is Time for a New One
You may notice:
- Cracked, hardened or chafed insulation
- Recurring fault codes linked to this circuit
- Signs of heat damage or melted sections
- Electrical functions working intermittently
- Loose, corroded or damaged connectors
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
Fitting Advice
- Take photos and label connectors before removing the old harness.
- Inspect the mating connectors for corrosion and clean them if needed.
- Secure the new harness with the original clips and keep it away from heat and sharp edges.
- Test all related functions before refitting covers.
