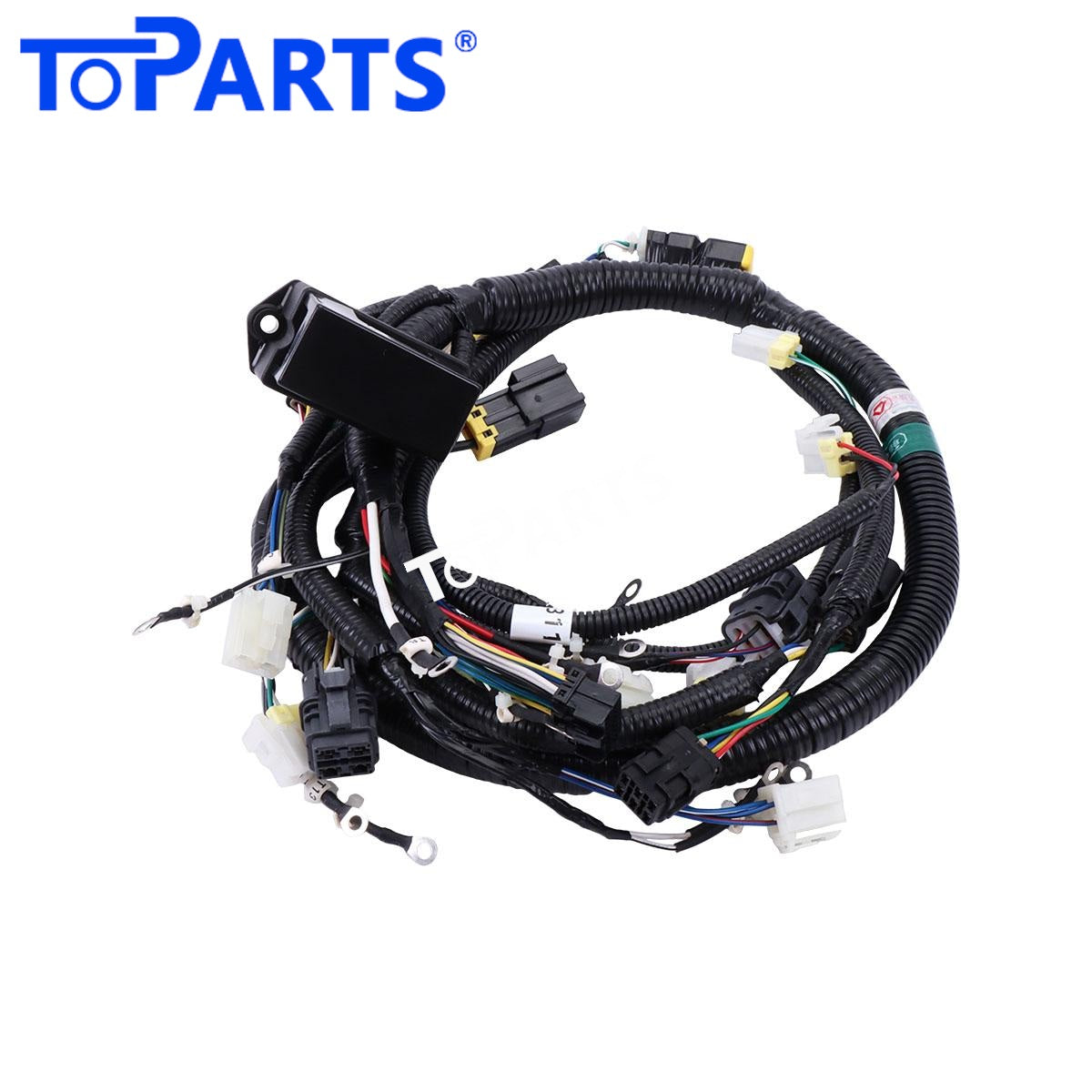

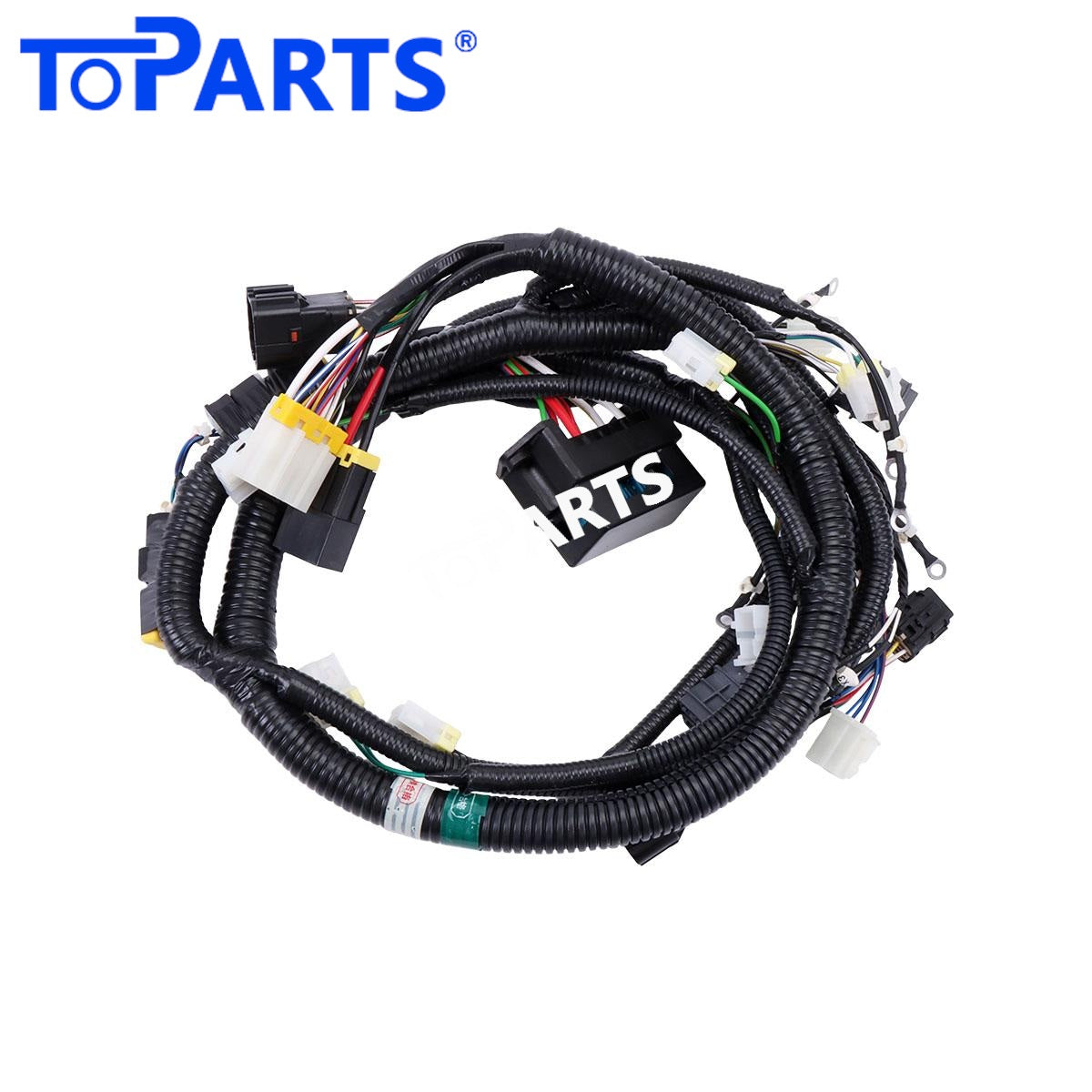

201-06-73113 Internal Wiring Harness for Komatsu Excavator PC60-7 PC70-7
Looking for part 201-06-73113? This Internal Wiring Harness is made for Komatsu PC60-7, PC70-7 excavators and reproduces the original harness design, from wire lengths and branch points to the connector types on each end.
Specifications
- Part Name: Internal Wiring Harness
- Part Number: 201-06-73113, 2010673113
- Condition: Aftermarket new
- Product Weight: 3 kg / 6.61 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Strict quality control standards; stable performance and high reliability
Fits the Following Machines
Komatsu Excavator PC60-7 PC70-7
Function Overview
Protected from weather but not from wear, the cab harness flexes every time a seat is adjusted, a console is moved or a panel is opened. Over the years, these small movements loosen terminals and fatigue wires, especially behind the seat and under the floor plate.
Inside the cab, this harness ties the monitor panel, controller, key switch and control switches into one circuit network. When it starts to fail, the first signs are usually in the cab itself: dead switches, flickering displays or controls that respond only some of the time.
Komatsu excavators are known for long service lives, and many keep working well past the point where their original wiring has aged. A new harness is often the key to keeping an older Komatsu reliable.
Questions Buyers Often Ask
How long does shipping take?
Orders are shipped by express courier such as DHL, FedEx, UPS or TNT, and you will receive a tracking number by email as soon as your parcel leaves our warehouse.
Is this a genuine or aftermarket part?
Please see the Condition line in the specifications above. Every part is checked for fit and continuity before shipping.
What should I do if the part does not match?
Contact us with photos of the original and the new part. We will help you resolve the issue quickly.
Confirming Fitment

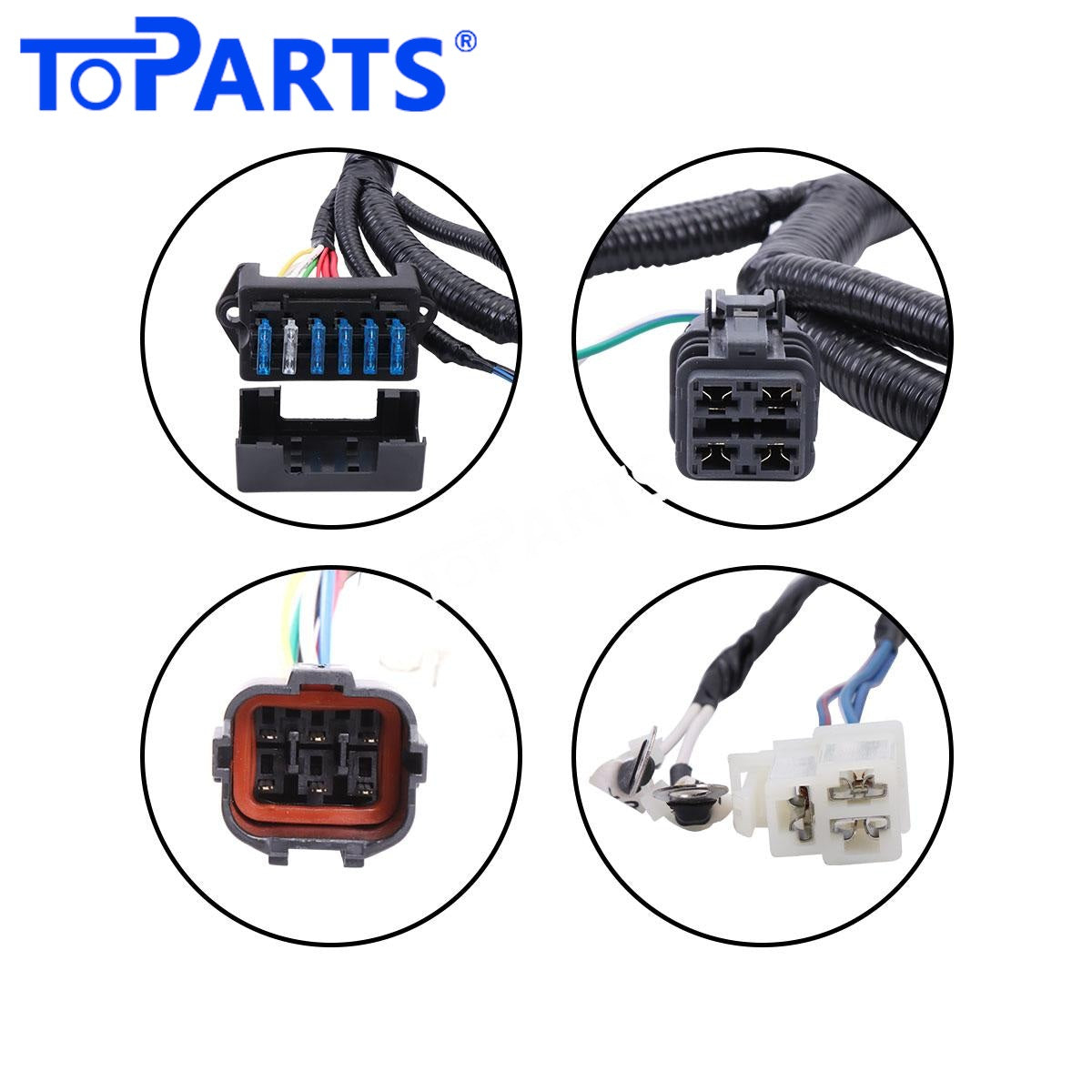

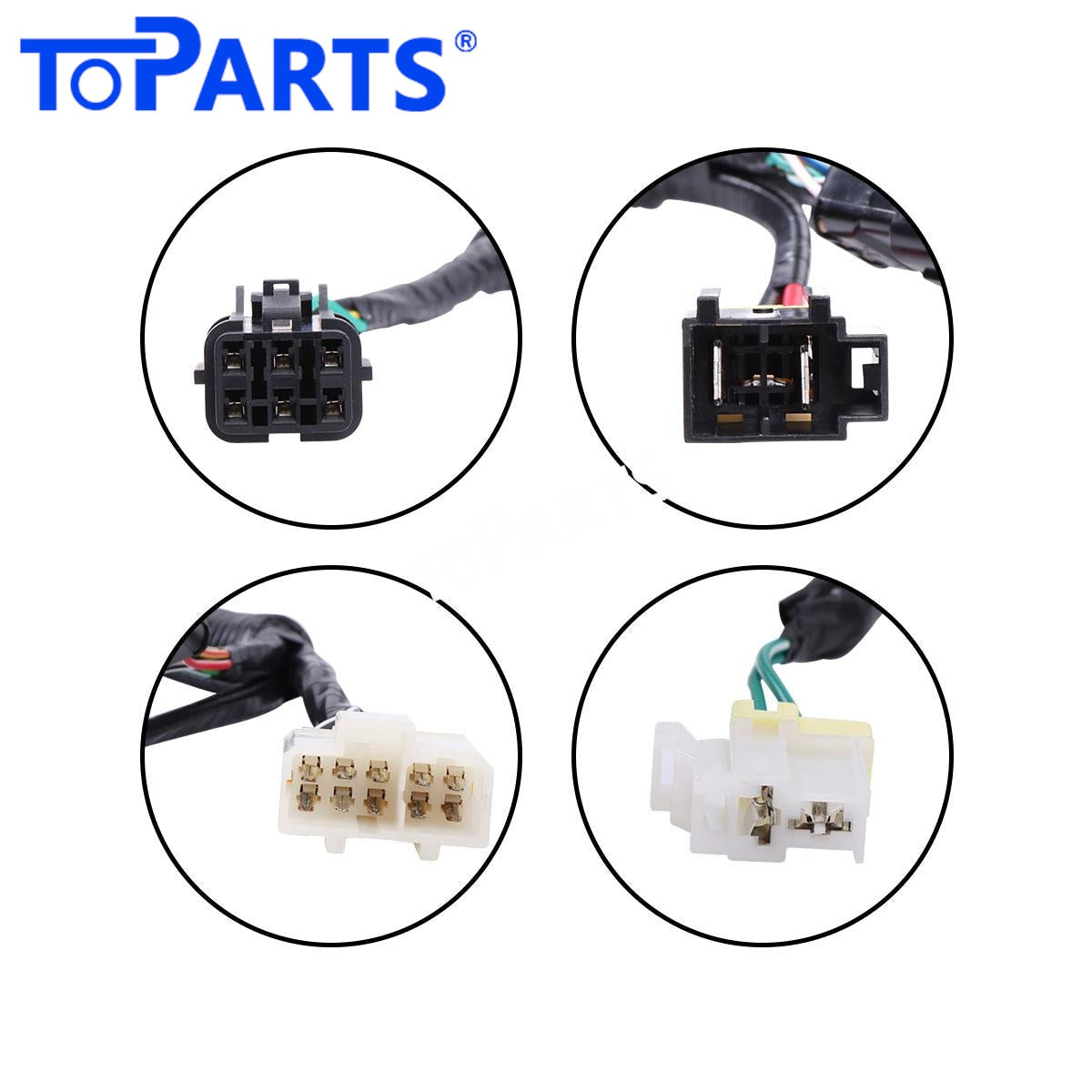

Before ordering, compare the part number printed on the label of your original harness with 201-06-73113. It is also worth comparing the connector shapes and the number of branches with our product photos. If your machine's serial range or engine variant differs, send us your machine details and we will confirm compatibility before you buy.
What You Get with TOPARTS
The goal is simple: a harness that fits like the original and keeps working like it. Matching connectors, correct branch lengths and durable insulation mean stable performance and high reliability in daily heavy-duty use.
Installation Tips
- Remove the seat or console covers as needed to get clear access.
- Unplug the monitor and controller connectors carefully and check their locking tabs.
- Route the harness exactly as the original to avoid pinching under floor plates or seat rails.
- Test every switch and the monitor before refitting the panels.
Warning Signs to Watch For
Common warning signs are:
- Burnt smell or discoloured connectors behind panels
- Key switch or start circuit failing intermittently
- Faults that appear when the seat or console is moved
- Monitor flickering, going blank or resetting while working
If these symptoms persist after checking fuses, batteries and grounds, the wiring itself is the next thing to suspect.
Ordering Information
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
