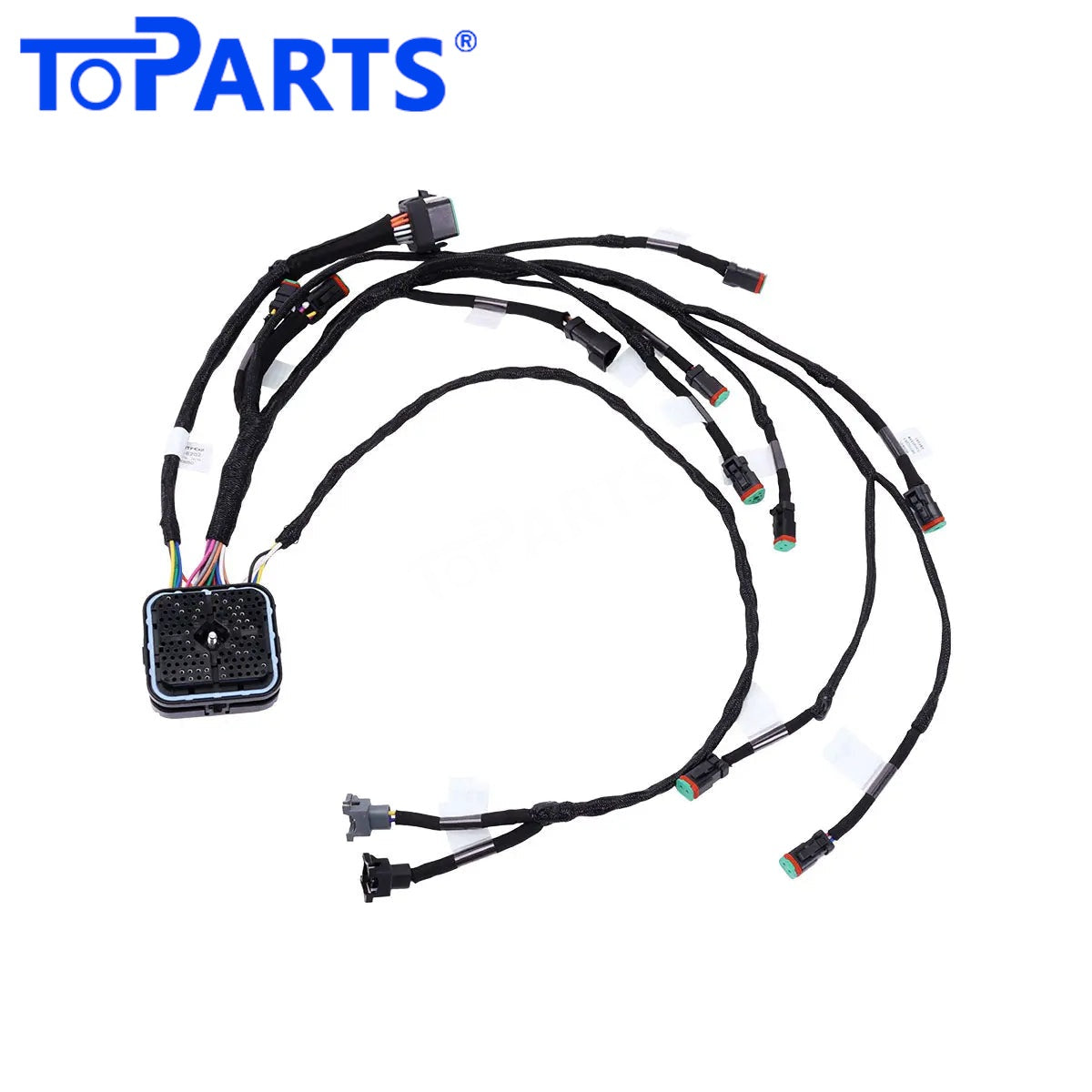

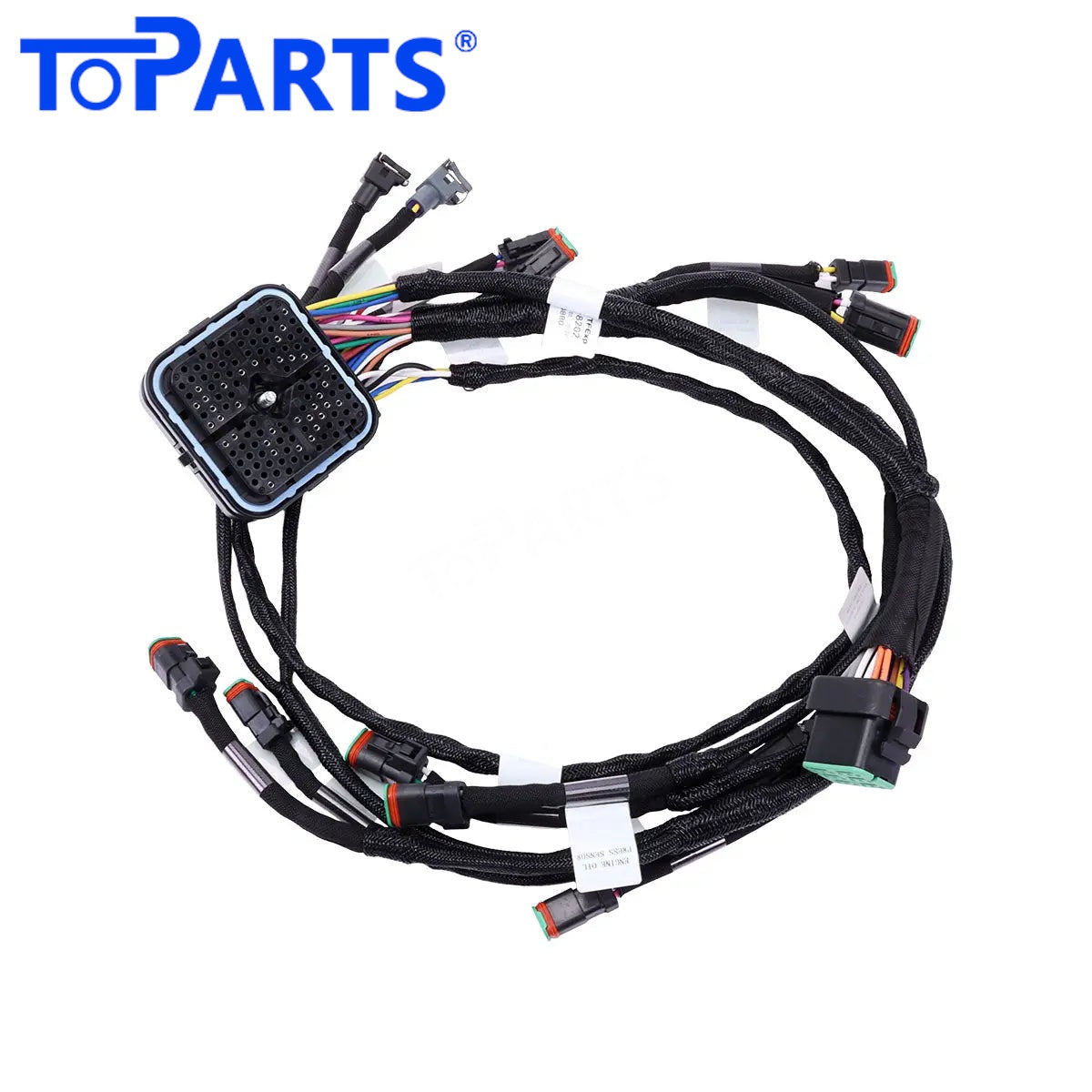

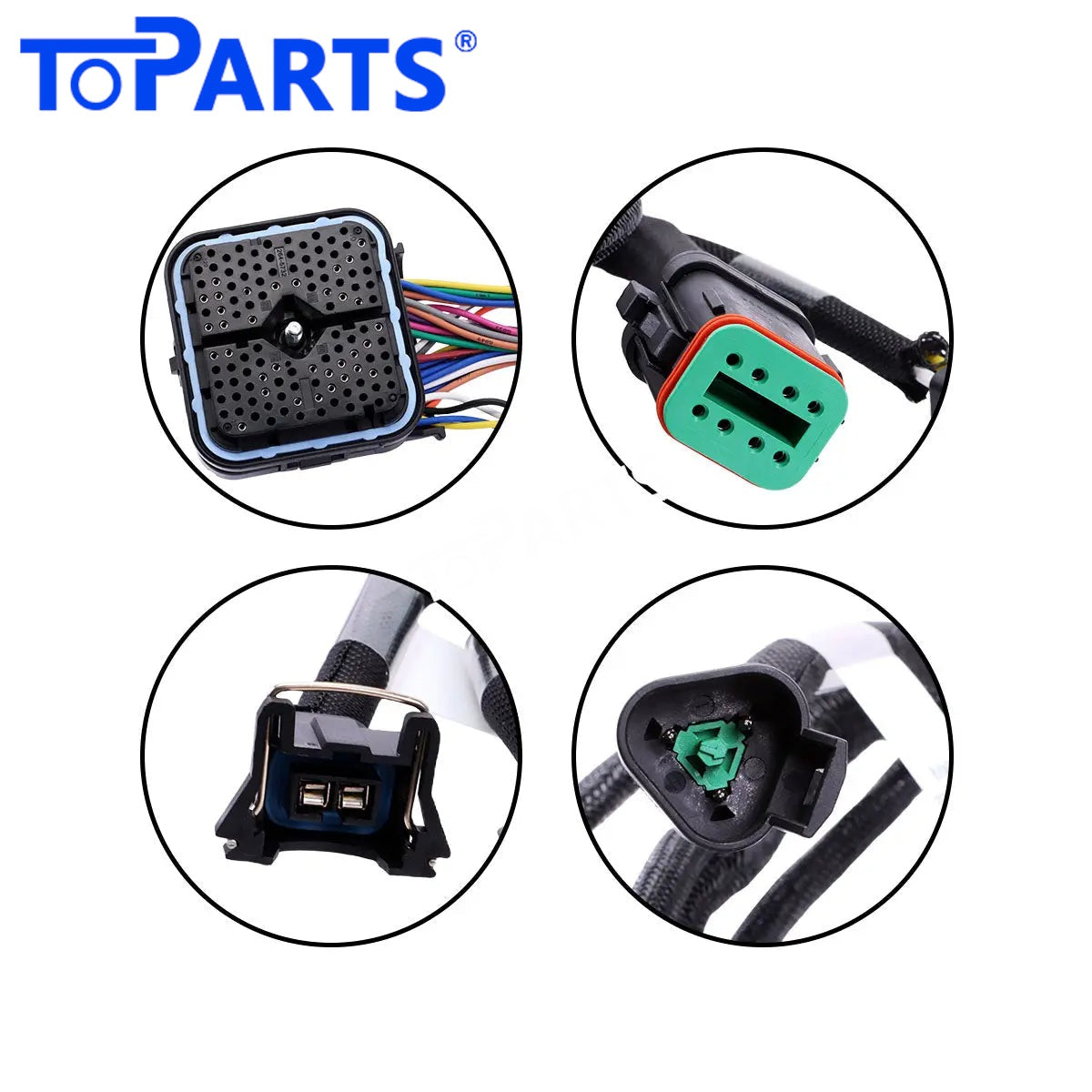

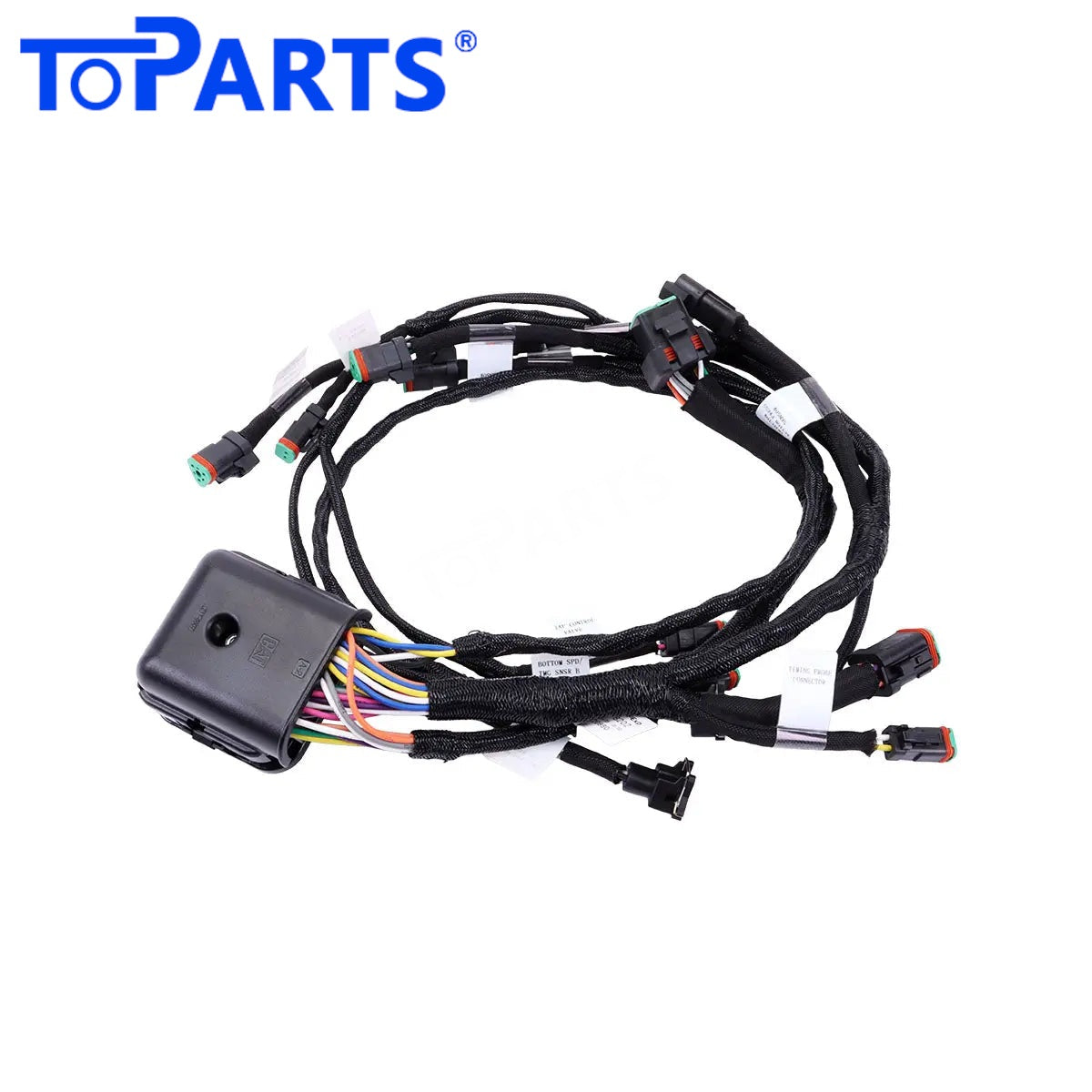

235-8202 2358202 Engine Wiring Harness for Caterpillar CAT C9 Engine Excavator E330D E336D
Restore reliable electrical performance to your Caterpillar E330D E336D with the 235-8202 2358202 Engine Wiring Harness. Built as a direct replacement for the original part, it matches the factory routing, connector layout and length, so it goes in where the old one came out.
Engine reference: C9. Please confirm your engine model along with the machine model when checking fitment.
Specs at a Glance
- Part Name: Engine Wiring Harness
- Part Number: 235-8202, 2358202
- Engine: C9
- Condition: Aftermarket new
- Product Weight: 3 kg / 6.61 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Quality checked before shipping; built for heavy-duty use
Fits the Following Machines
Caterpillar CAT Excavator C9 Engine E330D E336D
How It Works on Your Machine
Every start, every throttle change and every load the excavator takes on is managed through this harness. It routes power and data between the ECM and the engine-mounted components, so a single damaged wire here can show up as a problem anywhere in the engine's behaviour.
Think of this harness as the communication line of the engine. Speed sensors, temperature senders, pressure switches and fuel system components all report back through it, and the controller sends its commands out along the same path.
Caterpillar machines rely heavily on electronic engine and machine control, which makes healthy wiring essential for performance and fault-free operation.
Signs Your Harness Needs Replacing
You may notice:
- Problems that come and go when the engine heats up or when the machine vibrates
- Engine cranks but will not start, or starts only after several attempts
- Fault codes for sensors, injectors or the ECM appearing on the monitor
- Engine stalling, misfiring or running roughly at idle
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
The Cost of Waiting
An excavator sitting idle waiting for parts costs money every hour. Having the correct harness on hand means the repair becomes a scheduled job instead of an emergency, and the machine is back at work as soon as installation is finished.
Before and During Installation
- Label each connector on the old harness with masking tape before you unplug anything.
- Photograph the routing, clip positions and ground points from several angles.
- Clean and inspect the ECM connector pins; bent pins cause more faults than people expect.
- Keep the new harness clear of the exhaust manifold and turbocharger, and refit all heat shields.
- Clear stored fault codes after installation and run the engine to working temperature to confirm everything reads correctly.
Replace or Repair?
Patching wiring takes time: tracing the fault, cutting, crimping and sealing, often in an awkward position. When the insulation is hardened along the whole length, that time is better spent fitting a new harness that solves every weak spot at once.
Maintenance Advice
Once the new harness is fitted, a quick look during routine services goes a long way. Check for rubbing points, loose clamps and oil contamination, and keep the engine bay and battery area clean so that debris does not build up around the wiring.
Shipping and Payment
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
