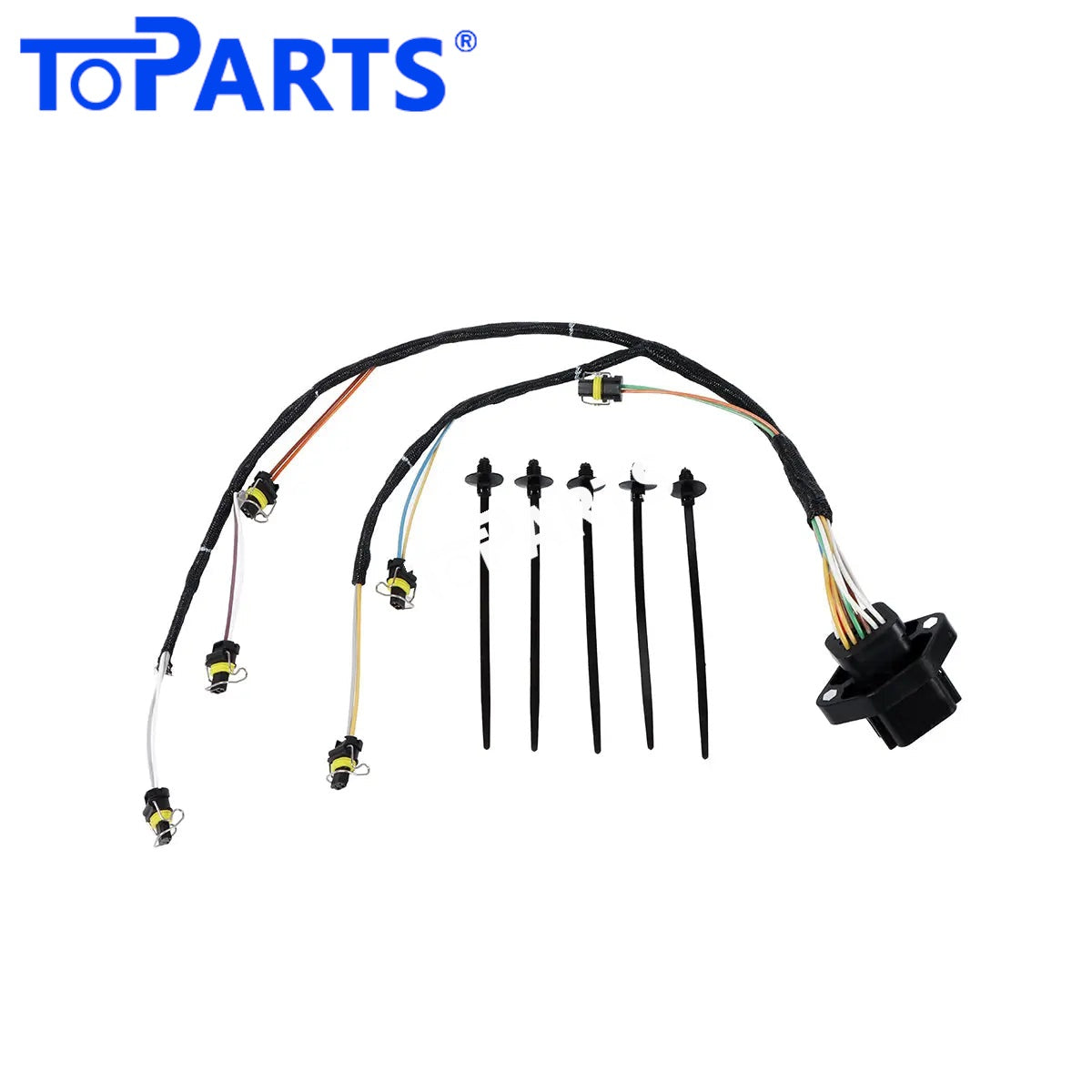

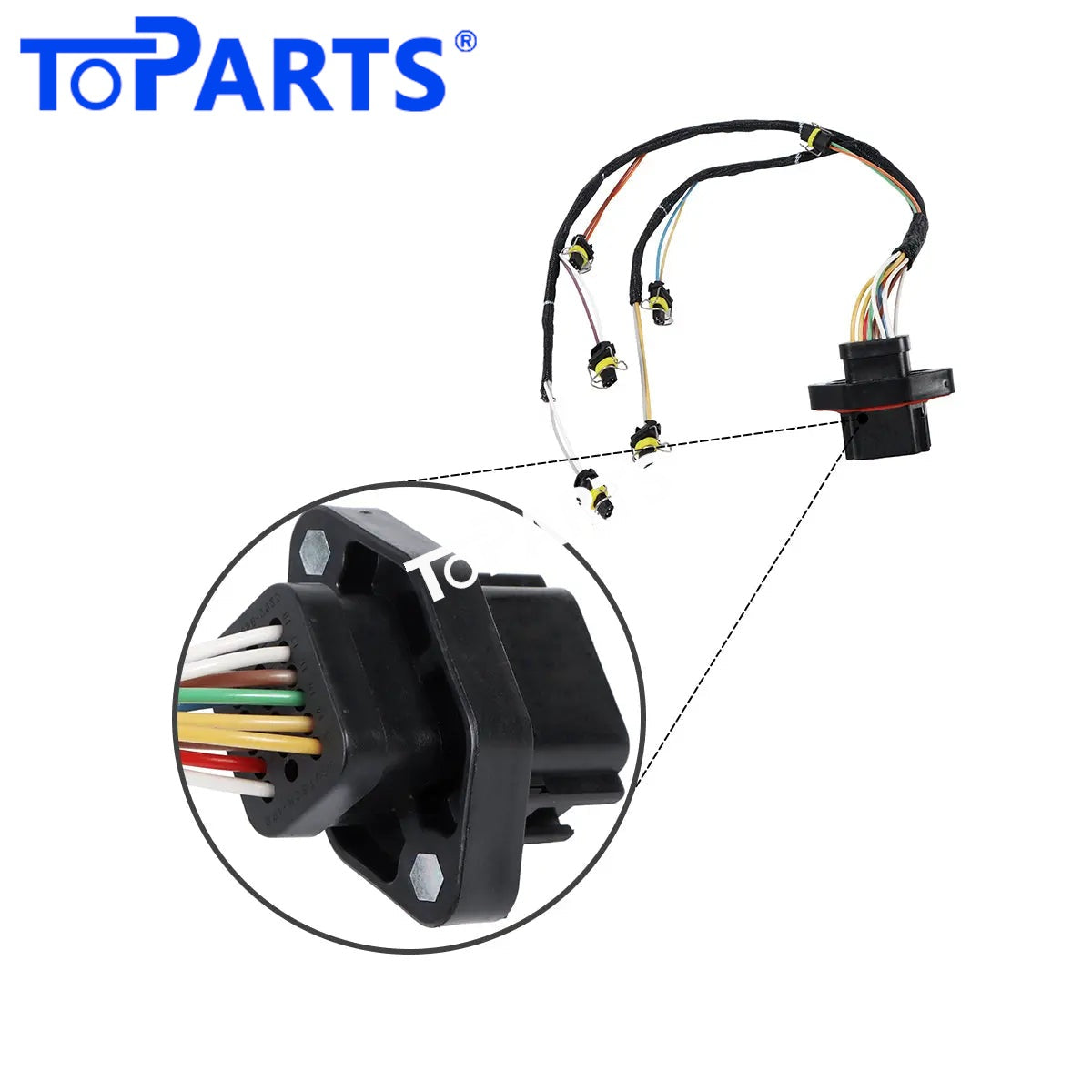

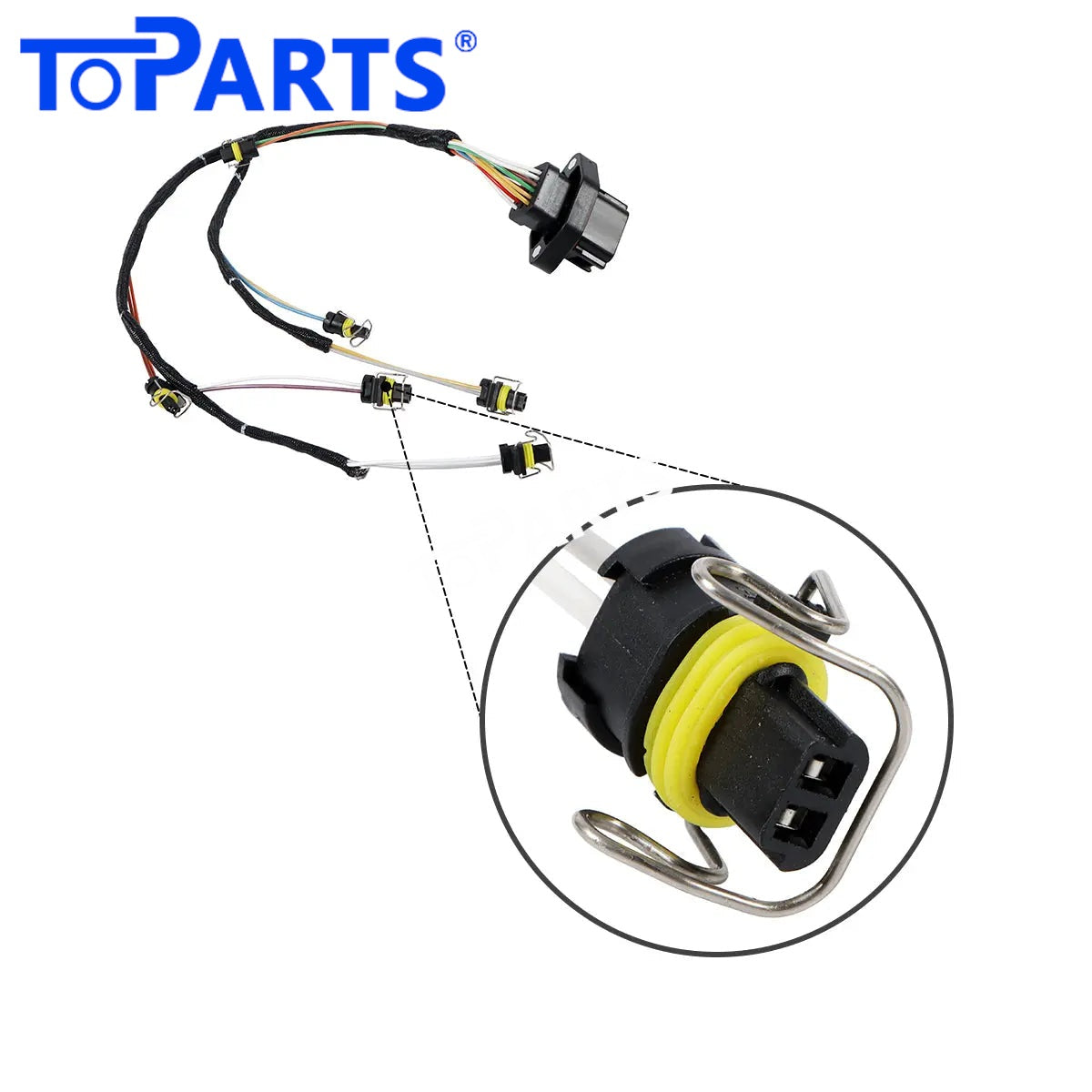

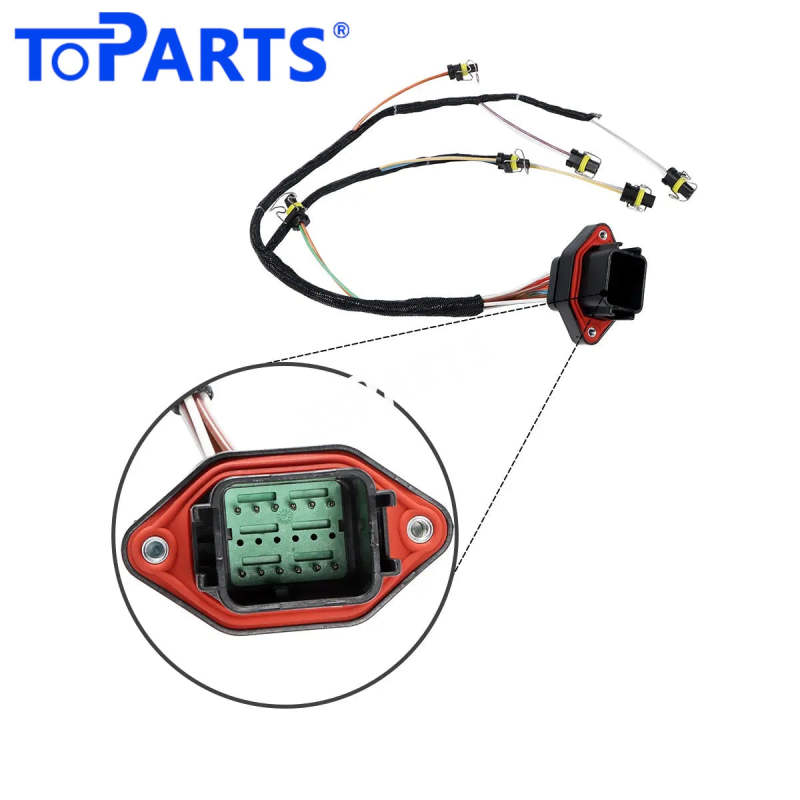

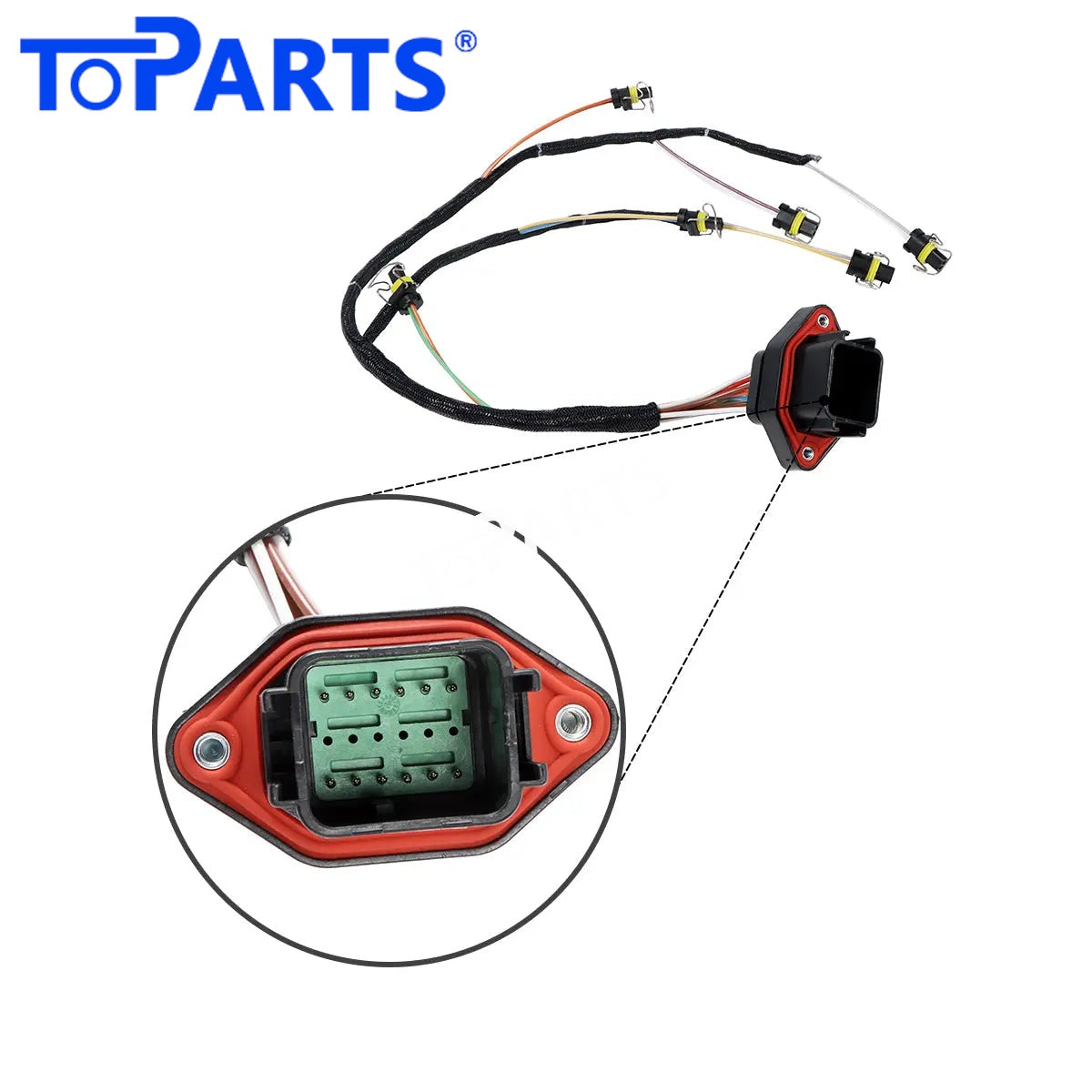

215-3249 419-0841 188-9865 Fuel Injector Wiring Harness for Caterpillar C-9 C9 Engine
If diagnosis has led you to the wiring, the 215-3249 419-0841 188-9865 Fuel Injector Wiring Harness gives you a complete, new harness for Caterpillar 330D, 336D, 330C, 627G, 637D, 637E excavators instead of a patchwork of repairs on old, brittle wire.
Designed around the C-9, C9 engine configuration, it connects to the same points as the factory harness.
Specs at a Glance
- Part Name: Fuel Injector Wiring Harness
- Part Number: 215-3249, 419-0841, 188-9865, 546-2154, 2153249, 4190841, 1889865, 5462154
- Engine: C-9, C9
- Condition: Aftermarket new
- Product Weight: 1 kg / 2.20 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Strict quality control standards; stable performance and high reliability
Applicable Models
Caterpillar 330D 336D 330C 627G 637D 637E 637G, etc
How It Works on Your Machine
On a modern diesel, each injector opens on a precisely timed electrical pulse from the ECM. The injector harness carries those pulses, so its condition directly decides whether fuel is delivered at the right moment and in the right amount to each cylinder.
Sitting under the valve cover or alongside the cylinder head, the injector harness works in one of the hottest and oiliest places on the engine. It delivers the high-current firing signals the injectors need, cylinder by cylinder, thousands of times a minute.
On Cat equipment, a damaged harness often shows up as active diagnostic codes before any visible failure, so replacing the wiring can clear problems that look like sensor or ECM faults.
FAQ
Do I need special tools to install it?
Standard hand tools are usually enough. Labelling connectors and taking photos before removal makes the job much easier.
Is this harness plug-and-play?
Yes. It is built to the original layout with matching connectors, so it installs in place of the original without cutting or splicing.
How do I know it will fit my machine?
Match the part number on your old harness, or send us your machine model and serial number and we will confirm before you order.
Why Full Replacement Pays Off
Patching wiring takes time: tracing the fault, cutting, crimping and sealing, often in an awkward position. When the insulation is hardened along the whole length, that time is better spent fitting a new harness that solves every weak spot at once.
Common Symptoms of a Failing Harness
Watch for these symptoms:
- Oil-soaked, brittle or cracked harness insulation under the valve cover
- Hard starting and reduced power under load
- Injector circuit fault codes on the monitor
- Black or white smoke from the exhaust
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
Confirming Fitment
The fastest way to confirm fit is to match the part number 215-3249 419-0841 188-9865 against the tag on your old harness or your parts book. If the tag is missing or unreadable, a few clear photos of the connectors are usually enough for us to identify the right part.
Tips for a Smooth Installation
- Clean the area around the valve cover thoroughly before opening it, so no dirt reaches the injectors.
- Inspect injector terminals and nuts; tighten to the specified torque.
- Replace the valve cover gasket and any pass-through seals while you are in there.
- Clear codes and check that the engine runs smoothly on all cylinders.
Shipping and Payment
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
