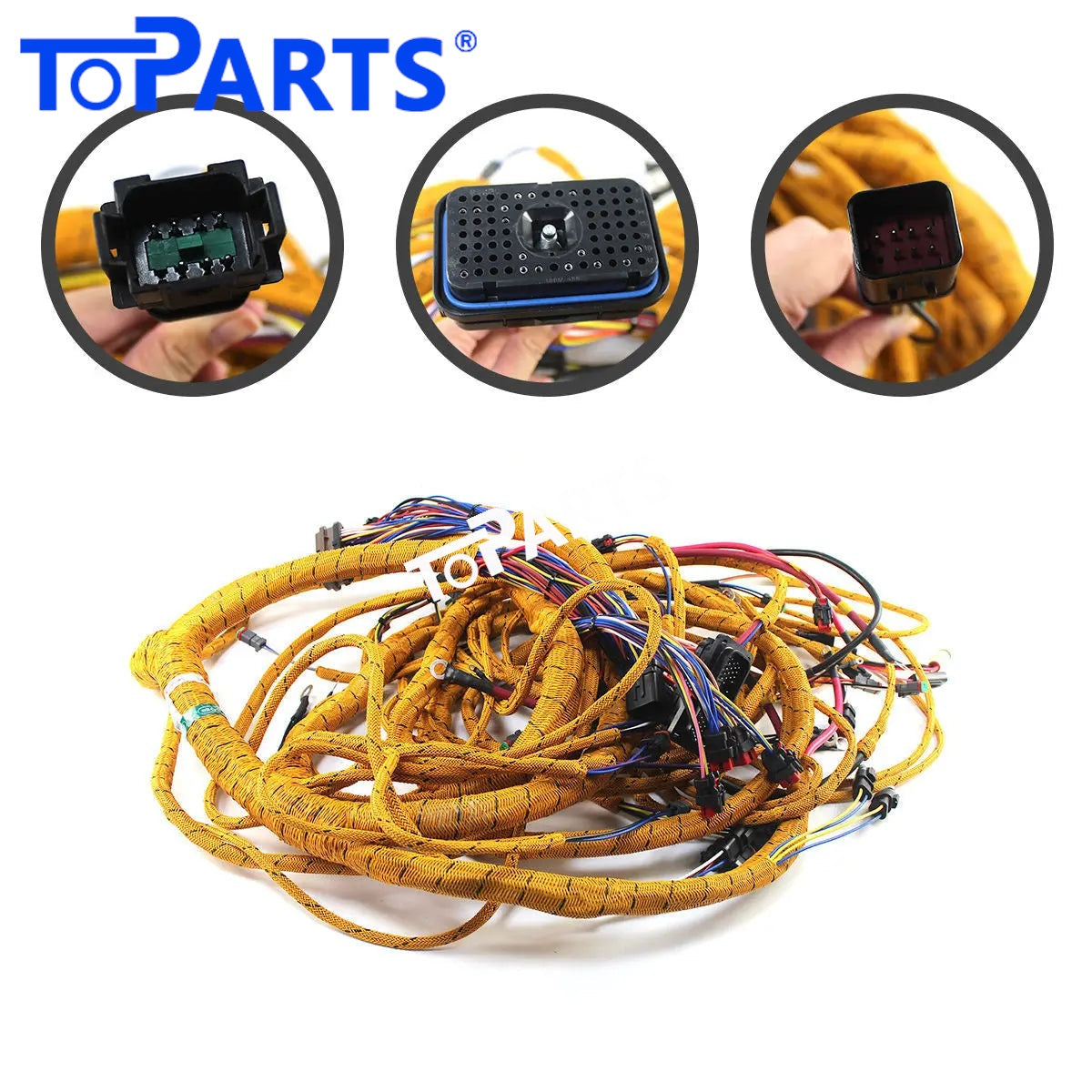

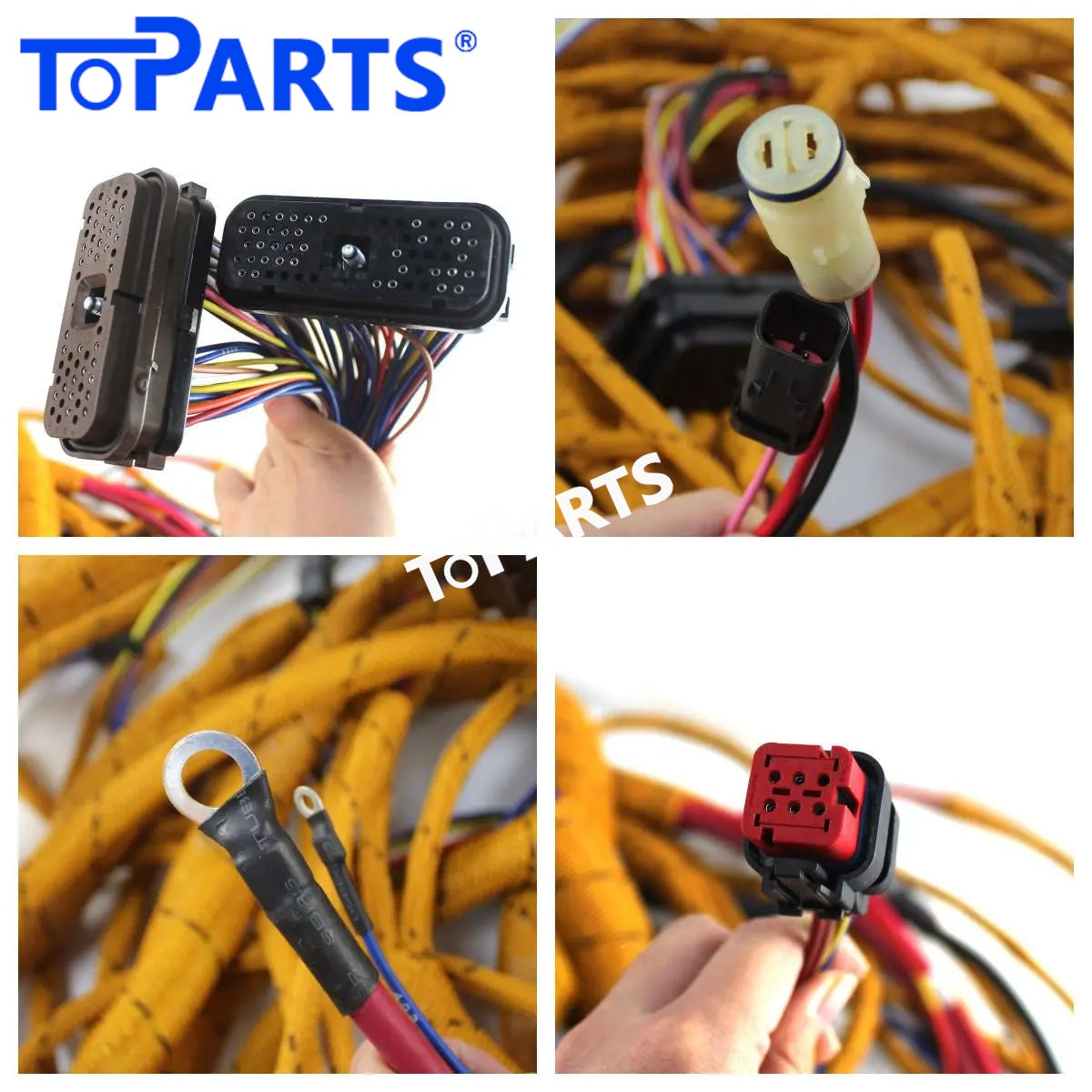

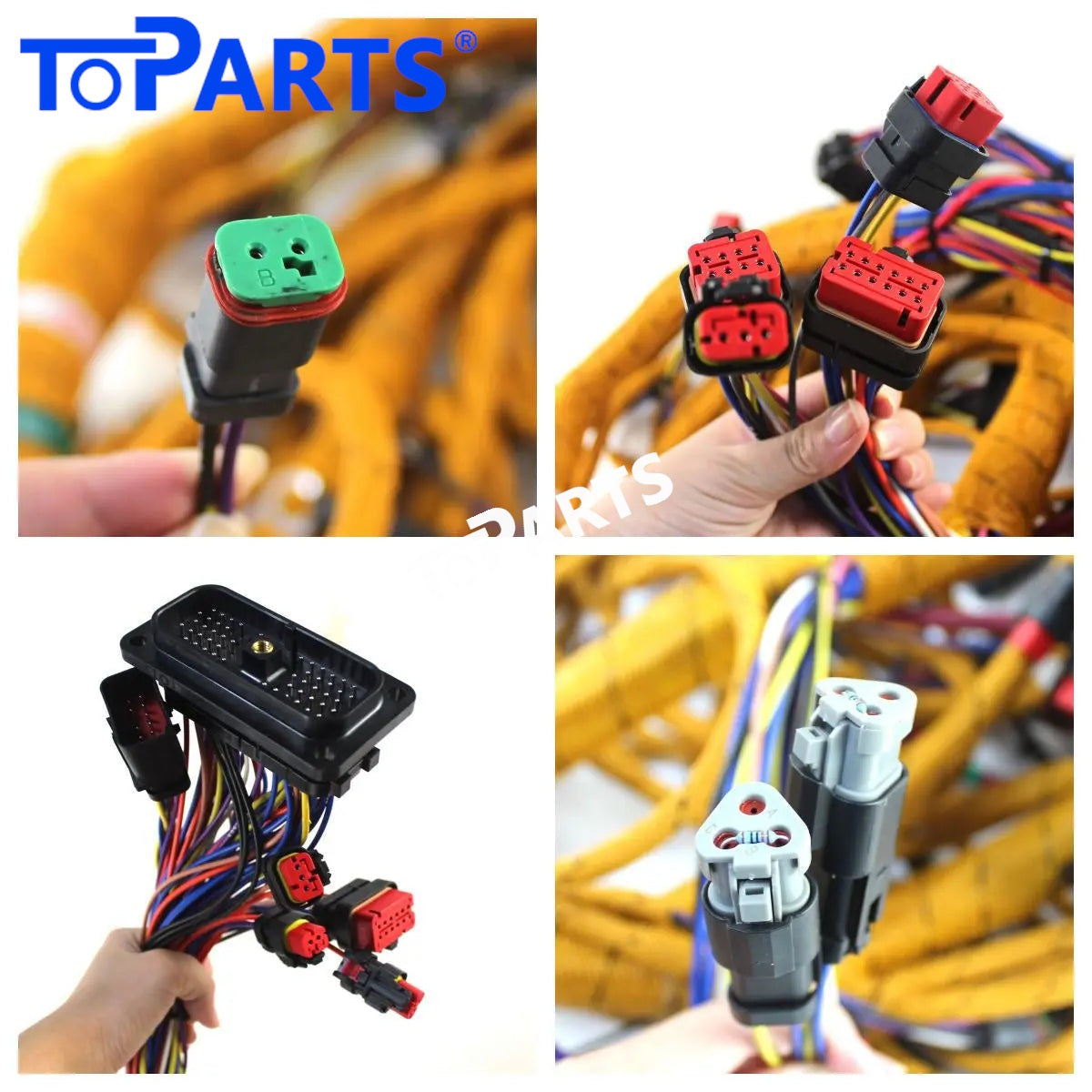

283-2932 2832932 Wiring Harness Assembly for CAT Caterpillar E329D 324D 325D
Electrical faults can stop an excavator as surely as a mechanical failure. The 283-2932 2832932 Wiring Harness Assembly replaces damaged or aged wiring on Caterpillar E329D, 325D, 324D excavators and returns the affected circuits to dependable operation.
Function Overview
Where the engine harness serves the engine, the external or main harness serves the whole machine. It connects the major systems of the excavator, so when it is damaged the symptoms can appear in places that seem unrelated: lights, gauges, solenoids, starting and more.
This is the backbone of the machine's electrical system. The Wiring Harness Assembly runs along the frame and upper structure, distributing power from the batteries and fuse box and carrying signals between the cab, the engine compartment, the hydraulic system and the work lights.
On Cat equipment, a damaged harness often shows up as active diagnostic codes before any visible failure, so replacing the wiring can clear problems that look like sensor or ECM faults.
Installation Tips
- Disconnect the battery isolator before starting.
- Work section by section, transferring clips and ties as you go, rather than removing the whole harness at once.
- Check every ground strap and clean its contact surface to bare metal.
- Add protective sleeving wherever the old harness showed signs of rubbing.
- Test lights, horn, solenoids and the monitor before refitting covers.
How to Tell It Is Time for a New One
Common warning signs are:
- Several unrelated circuits failing at once
- Blown fuses that keep recurring with no obvious cause
- Work lights, horn or wipers working only some of the time
- Starting problems traced to wiring rather than the battery or starter
- Hydraulic functions slowing down or stopping because solenoids lose signal
If these symptoms persist after checking fuses, batteries and grounds, the wiring itself is the next thing to suspect.
Why a New Harness Beats Patching
Patching wiring takes time: tracing the fault, cutting, crimping and sealing, often in an awkward position. When the insulation is hardened along the whole length, that time is better spent fitting a new harness that solves every weak spot at once.
How to Verify Compatibility
The fastest way to confirm fit is to match the part number 283-2932 2832932 against the tag on your old harness or your parts book. If the tag is missing or unreadable, a few clear photos of the connectors are usually enough for us to identify the right part.
Looking After Your Wiring
Avoid aiming a pressure washer directly at connectors and the ECM. Water forced past the seals is a common cause of corrosion and intermittent faults. A light spray and a dry cloth are kinder to the electrical system.
Specs at a Glance
- Part Name: Wiring Harness Assembly
- Part Number: 283-2932, 2832932
- Condition: Aftermarket new
- Product Weight: 14 kg / 30.86 lbs
- Brand: TOPARTS
- Feature: Quality checked before shipping; built for heavy-duty use
Compatible Models
Caterpillar E329D, 325D, 324D, etc
Order & Delivery
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
