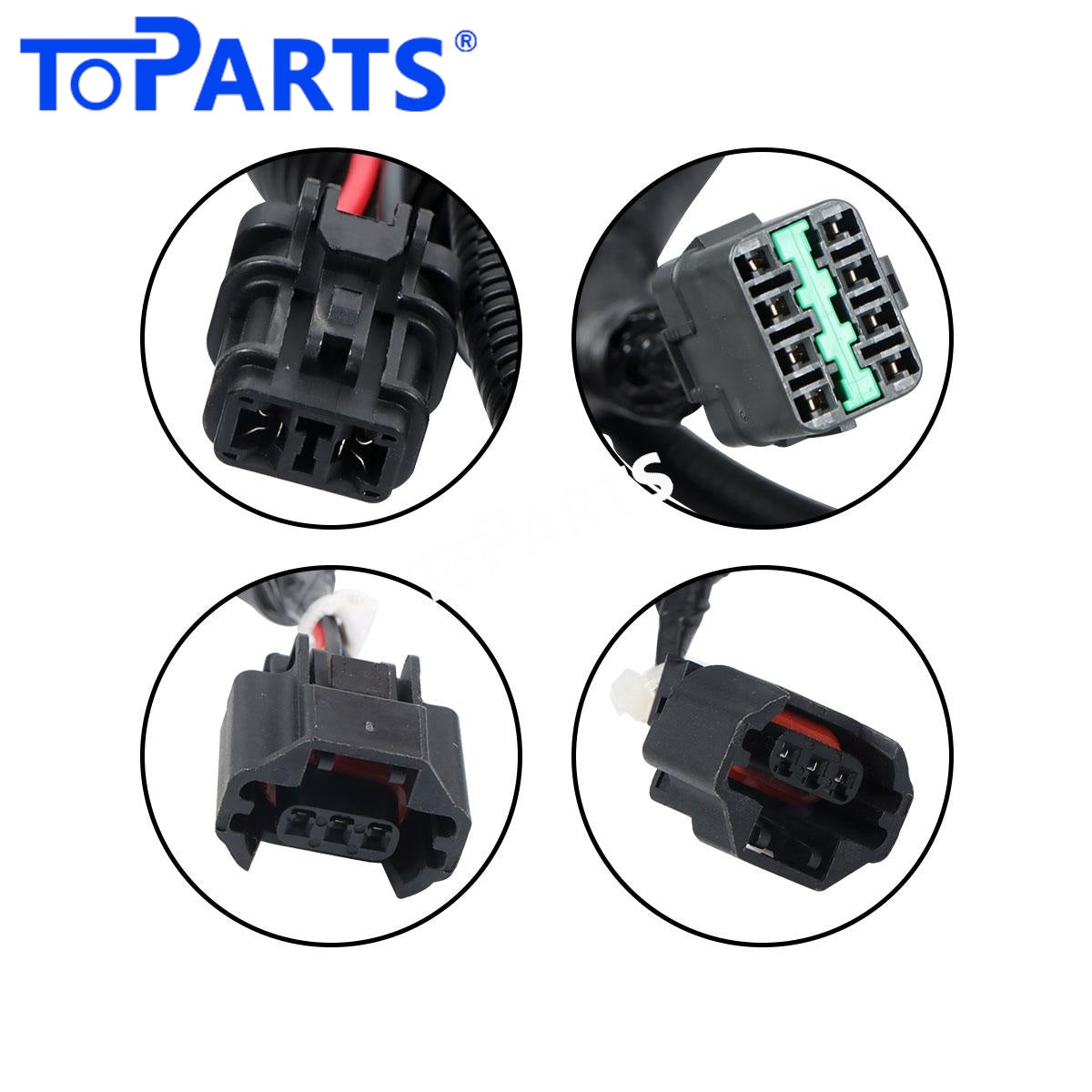

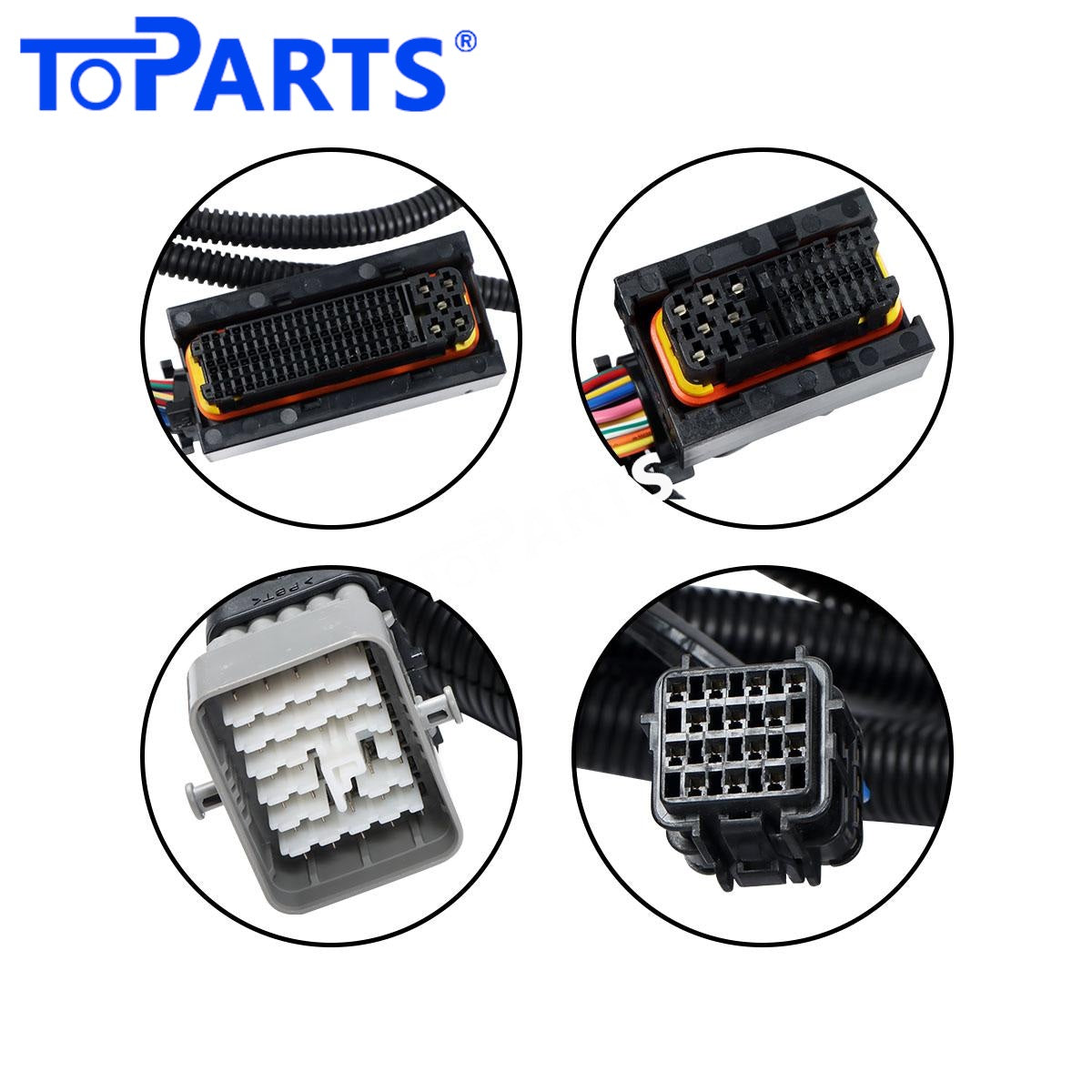

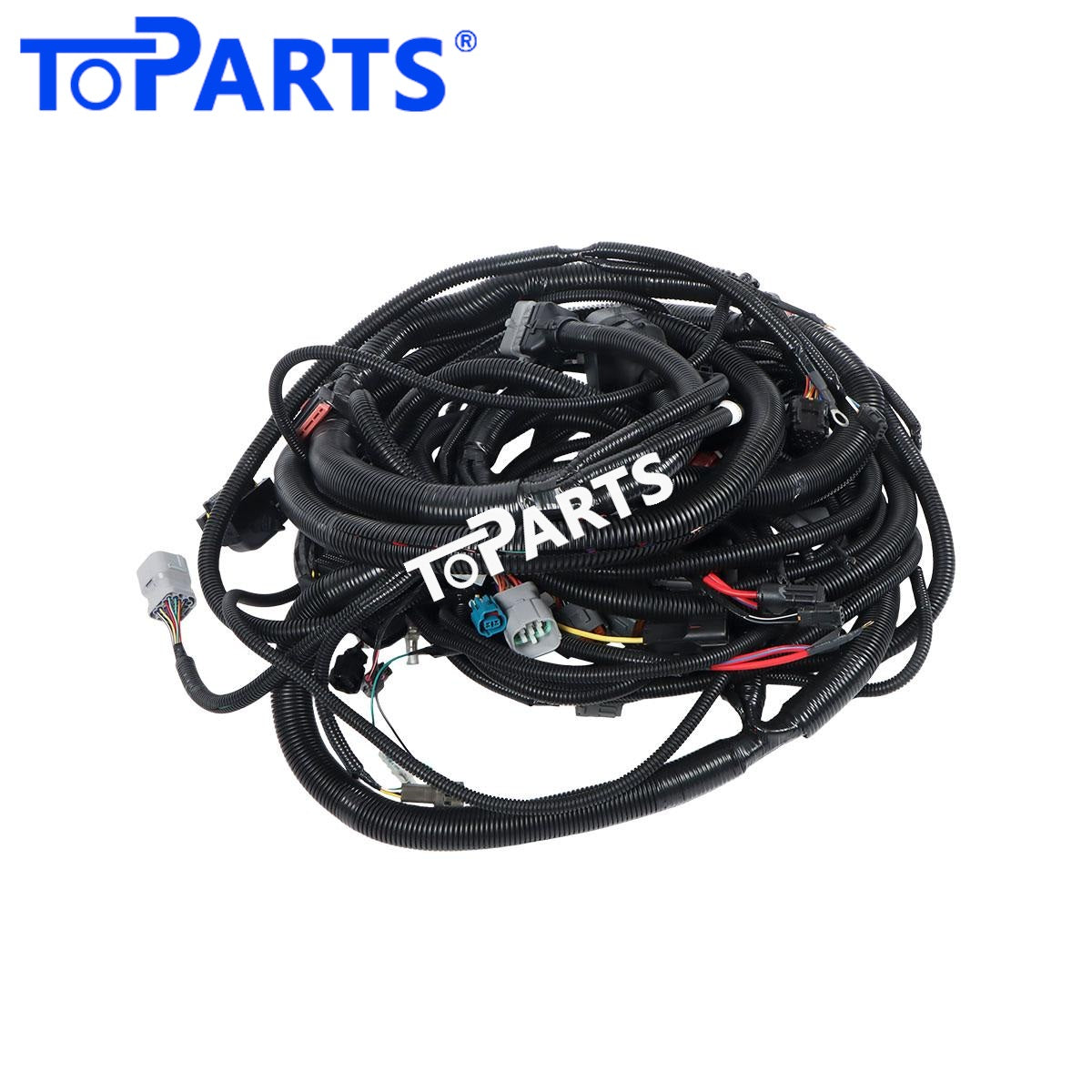

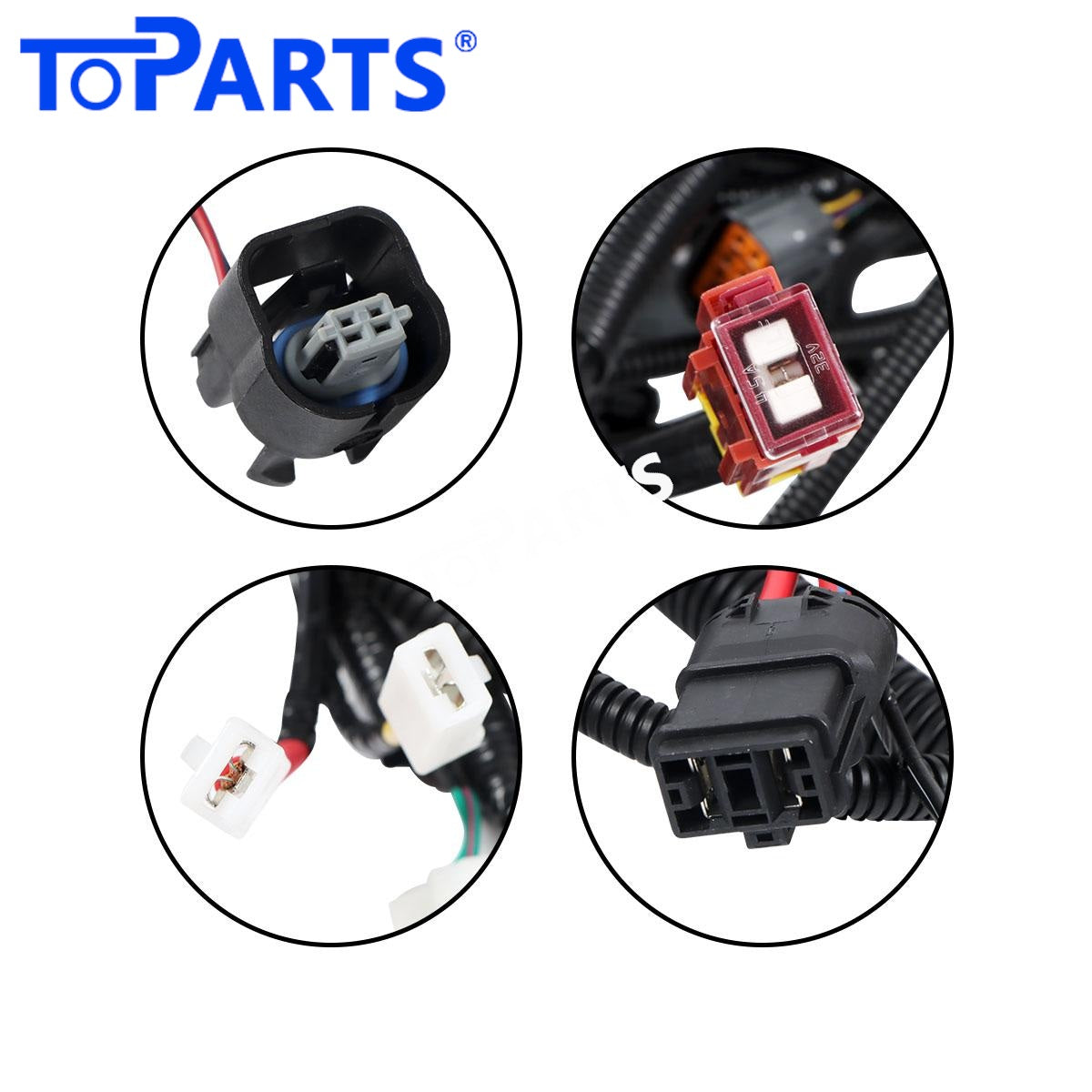

0006001 0005386 External Wiring Harness for Hitachi Excavator ZX200-3 ZX210-3 ZX240-3
Keep your Hitachi ZX200-3 ZX210-3 working with the TOPARTS 0006001 0005386 External Wiring Harness. It replaces the original harness one-for-one and is built for the vibration, heat and dirt that come with daily work on site.
Specifications
- Part Name: External Wiring Harness
- Part Number: 0006001, 0005386
- Condition: Aftermarket new
- Product Weight: 15.5 kg / 34.17 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Quality checked before shipping; built for heavy-duty use
Applicable Models
Hitachi Excavator ZX200-3 ZX210-3 ZX240-3
Why This Harness Matters
This is the backbone of the machine's electrical system. The External Wiring Harness runs along the frame and upper structure, distributing power from the batteries and fuse box and carrying signals between the cab, the engine compartment, the hydraulic system and the work lights.
Where the engine harness serves the engine, the external or main harness serves the whole machine. It connects the major systems of the excavator, so when it is damaged the symptoms can appear in places that seem unrelated: lights, gauges, solenoids, starting and more.
Hitachi ZAXIS and EX series machines combine electronic engine control with electronically managed hydraulics, so both systems depend on sound wiring to deliver their rated performance.
Keeping the New Harness in Good Shape
Rodents are a common cause of harness damage on machines that sit for long periods. Keeping the cab and engine compartment clean of food waste, and using deterrents where machines are parked for a while, helps protect the new wiring.
Why a New Harness Beats Patching
Harness repairs are hard to do well in the field. Moisture gets into joints, tape loosens with heat, and intermittent faults come back. Replacing the harness gives you factory-style connections throughout and makes future troubleshooting far simpler.
Installation Tips
- Disconnect the battery isolator before starting.
- Work section by section, transferring clips and ties as you go, rather than removing the whole harness at once.
- Check every ground strap and clean its contact surface to bare metal.
- Add protective sleeving wherever the old harness showed signs of rubbing.
- Test lights, horn, solenoids and the monitor before refitting covers.
Planning the Repair
Dealer lead times for wiring harnesses can stretch to weeks. Ordering a replacement in advance, or as soon as faults begin to appear, keeps your project on schedule and avoids rental costs for a substitute machine.
Warning Signs to Watch For
You may notice:
- Rodent damage, crushed sections or wires worn through where the harness rubs the frame
- Blown fuses that keep recurring with no obvious cause
- Starting problems traced to wiring rather than the battery or starter
- Monitor warnings that disappear when the machine is stopped
If these symptoms persist after checking fuses, batteries and grounds, the wiring itself is the next thing to suspect.
Payment & Shipping
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
