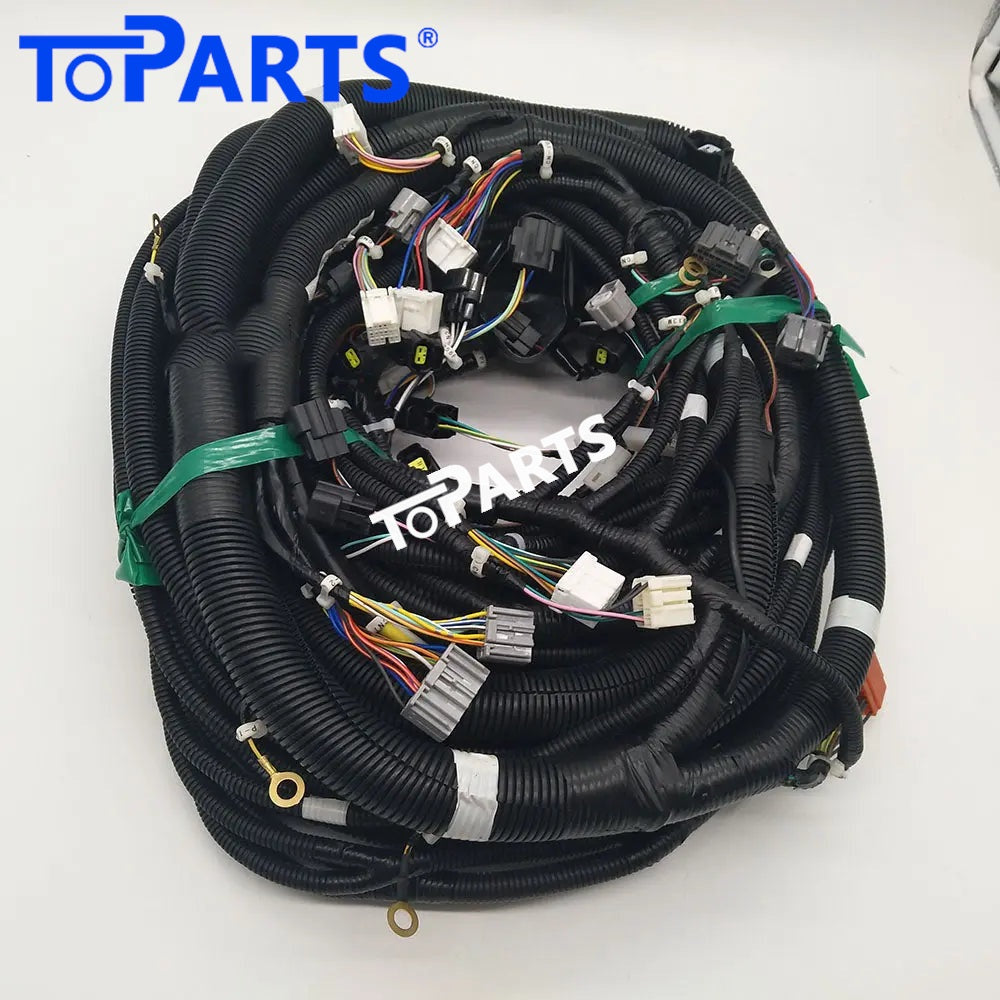

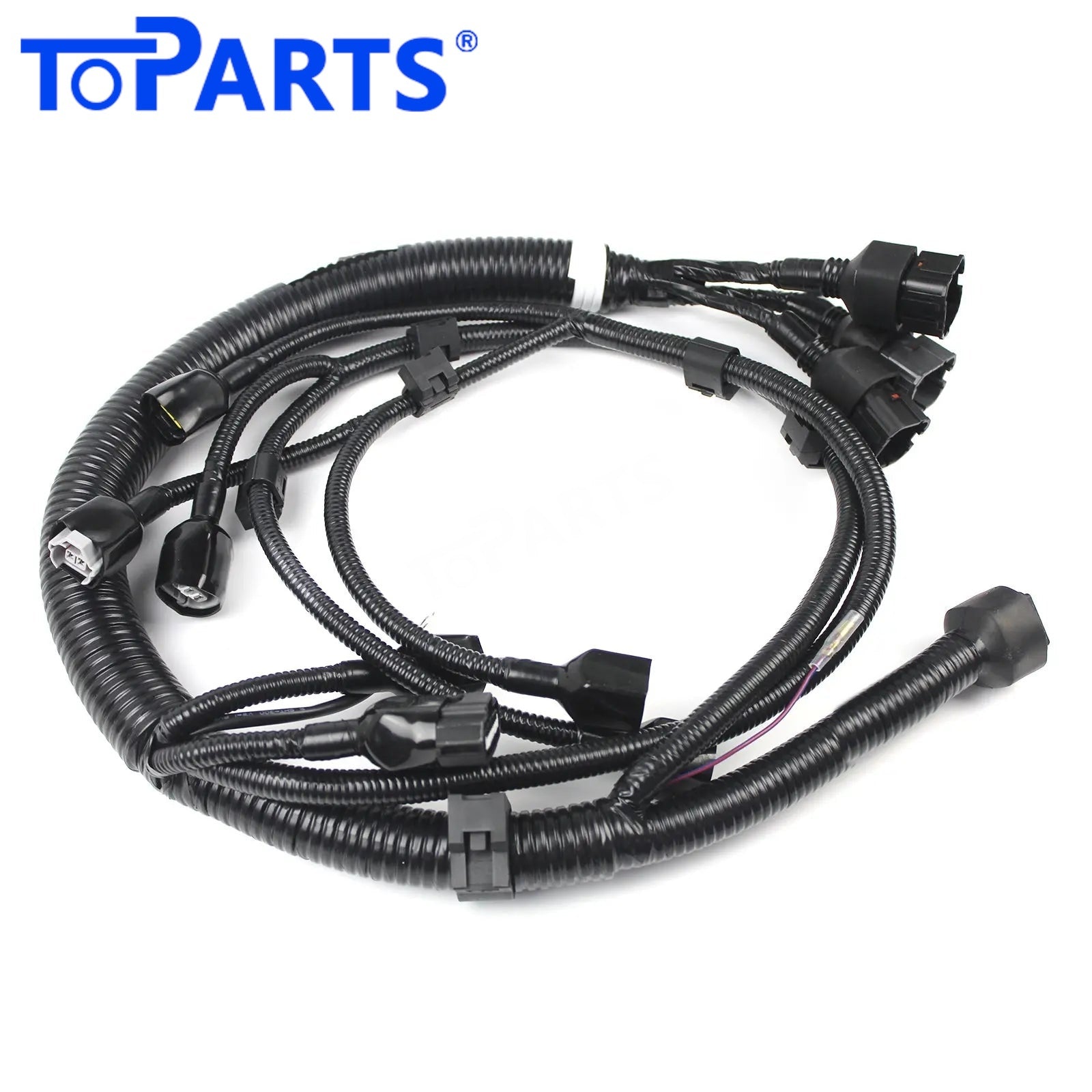

YN13E01525P4 External Wiring Harness SK200-8 SK210-8
Part number YN13E01525P4 is the External Wiring Harness used on Kobelco SK200-8, SK210-8 excavators. This aftermarket replacement from TOPARTS is designed to fit in place of the original without cutting, splicing or rerouting.
Part Information
- Part Name: External Wiring Harness
- Part Number: YN13E01525P4
- Condition: Aftermarket new
- Product Weight: 15 kg / 33.07 lbs
- Brand: TOPARTS
- Feature: Original connector layout; plug-and-play installation
Compatible Models
Kobelco SK200-8, etc
How It Works on Your Machine
Because it runs through the most exposed areas of the machine, the main harness takes more abuse than almost any other electrical part. Swinging, vibration, dust, washdowns and rodents all take their toll, which is why it is one of the most commonly replaced harnesses on older machines.
This is the backbone of the machine's electrical system. The External Wiring Harness runs along the frame and upper structure, distributing power from the batteries and fuse box and carrying signals between the cab, the engine compartment, the hydraulic system and the work lights.
Kobelco excavators are valued for fuel efficiency and smooth hydraulics, both of which depend on accurate electronic control and clean signals through the wiring.
Tips for a Smooth Installation
- Disconnect the battery isolator before starting.
- Work section by section, transferring clips and ties as you go, rather than removing the whole harness at once.
- Check every ground strap and clean its contact surface to bare metal.
- Add protective sleeving wherever the old harness showed signs of rubbing.
- Test lights, horn, solenoids and the monitor before refitting covers.
When to Replace It
Watch for these symptoms:
- Monitor warnings that disappear when the machine is stopped
- Blown fuses that keep recurring with no obvious cause
- Rodent damage, crushed sections or wires worn through where the harness rubs the frame
- Hydraulic functions slowing down or stopping because solenoids lose signal
- Starting problems traced to wiring rather than the battery or starter
Intermittent faults like these are classic signs of ageing wiring, and they rarely improve on their own.
Keeping the New Harness in Good Shape
Rodents are a common cause of harness damage on machines that sit for long periods. Keeping the cab and engine compartment clean of food waste, and using deterrents where machines are parked for a while, helps protect the new wiring.
The Cost of Waiting
An excavator sitting idle waiting for parts costs money every hour. Having the correct harness on hand means the repair becomes a scheduled job instead of an emergency, and the machine is back at work as soon as installation is finished.
Questions Buyers Often Ask
Do I need special tools to install it?
Standard hand tools are usually enough. Labelling connectors and taking photos before removal makes the job much easier.
Is this a genuine or aftermarket part?
Please see the Condition line in the specifications above. Every part is checked for fit and continuity before shipping.
Can I replace only part of the harness?
For a reliable result we recommend replacing the complete harness, since the rest of the old wiring has aged under the same conditions.
Shipping and Payment
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
