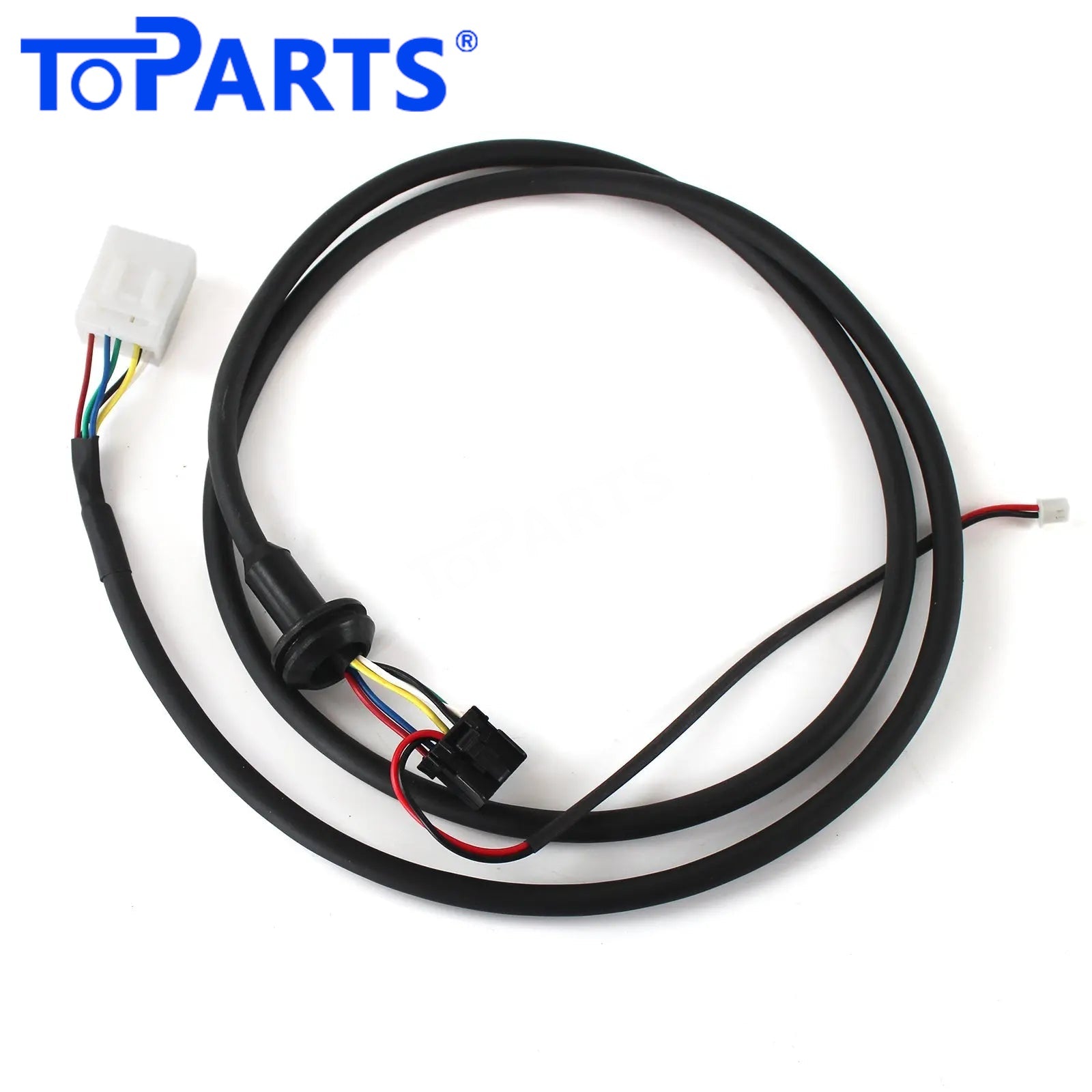

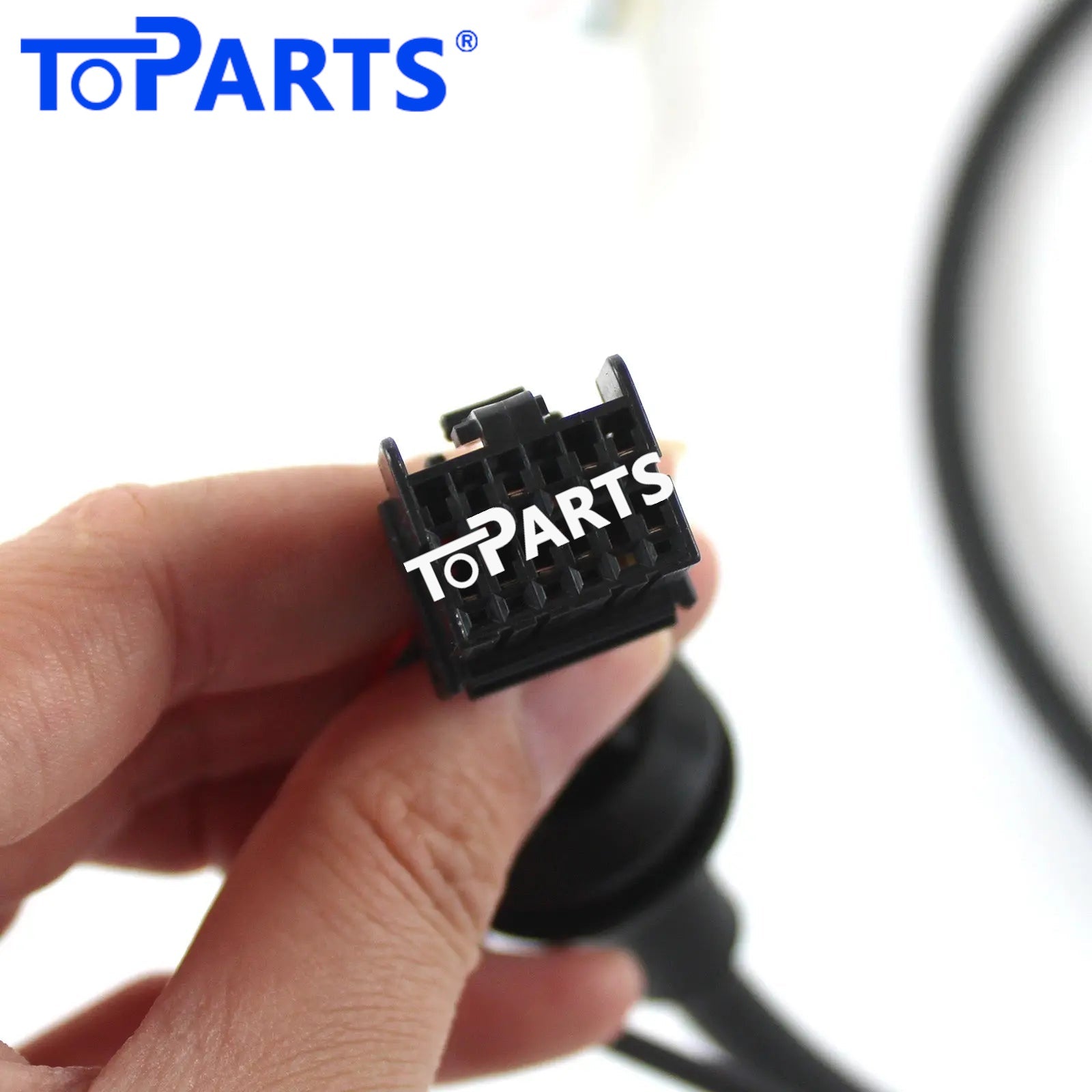

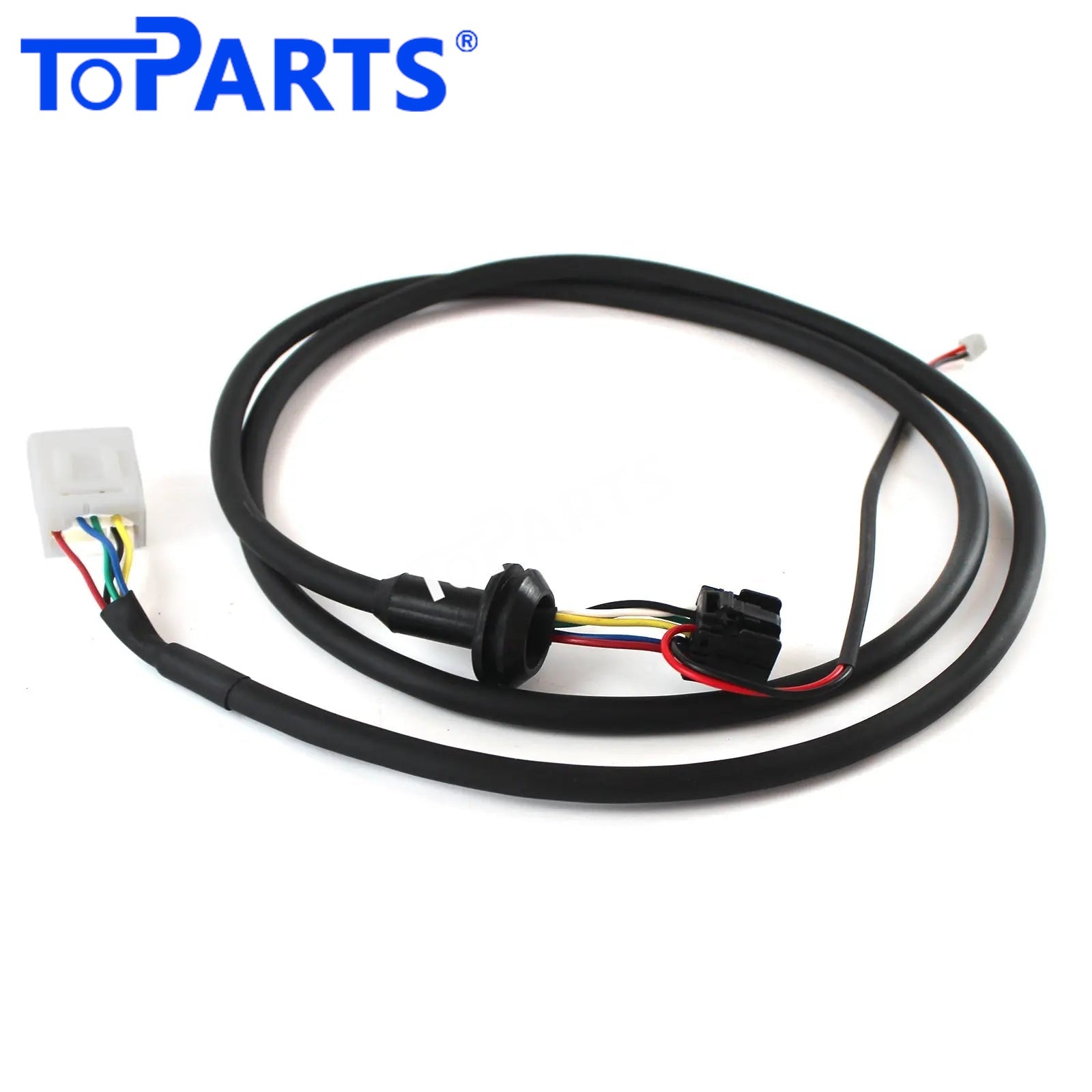

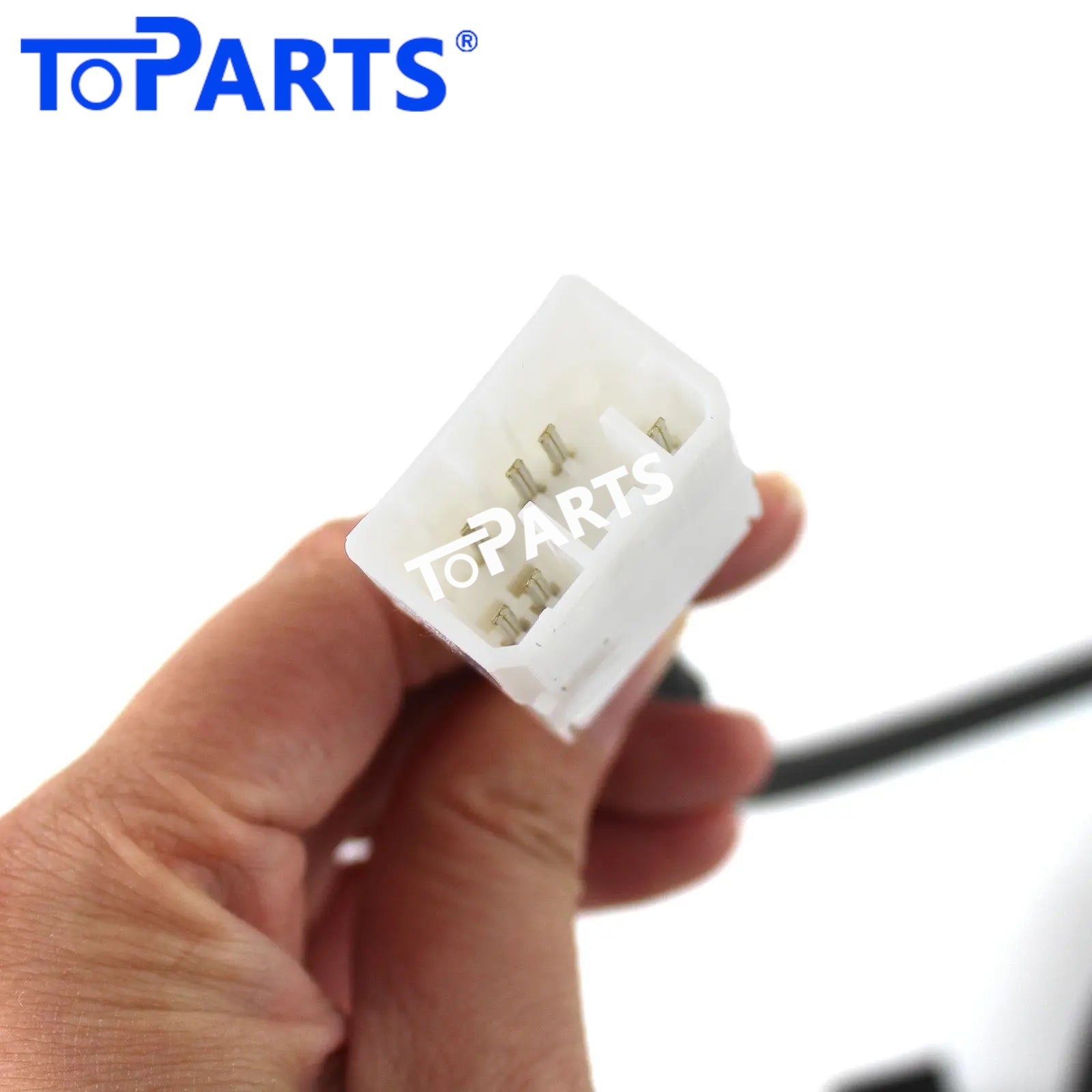

163-6810 1636810 Display Wire Harness for Caterpillar 320C 330C Excavator Parts
Restore reliable electrical performance to your Caterpillar 320C 330C with the 163-6810 (1636810) Display Wire Harness. Built as a direct replacement for the original part, it matches the factory routing, connector layout and length, so it goes in where the old one came out.
Function Overview
This part connects the cab monitor to the machine's controllers and power supply. Loose or damaged monitor wiring is a common cause of blank screens, flickering displays and false warnings that have nothing to do with the actual condition of the engine.
The monitor is how the machine talks to the operator: engine temperature, fuel level, warning lights, fault codes and working modes. The wiring and connectors feeding it must stay secure, or the operator loses the information needed to run the machine safely.
On Cat equipment, a damaged harness often shows up as active diagnostic codes before any visible failure, so replacing the wiring can clear problems that look like sensor or ECM faults.
Keep Your Machine Earning
Dealer lead times for wiring harnesses can stretch to weeks. Ordering a replacement in advance, or as soon as faults begin to appear, keeps your project on schedule and avoids rental costs for a substitute machine.
Questions Buyers Often Ask
Is this a genuine or aftermarket part?
Please see the Condition line in the specifications above. Every part is checked for fit and continuity before shipping.
Can I replace only part of the harness?
For a reliable result we recommend replacing the complete harness, since the rest of the old wiring has aged under the same conditions.
How do I know it will fit my machine?
Match the part number 163-6810 on your old harness, or send us your machine model and serial number and we will confirm before you order.
Fitting Advice
- Disconnect the battery before removing the monitor panel.
- Check connector pins for corrosion or damage.
- Make sure each connector clicks fully into its lock.
- Power on and confirm all gauges and indicators before reassembly.
Replace or Repair?
Splicing a damaged section can get a machine moving again, but each joint is a new point of failure. Old wire around the repair is usually just as aged as the part that broke, so the next fault is often not far away. A complete new harness resets the clock on the entire circuit.
Warning Signs to Watch For
You may notice:
- Loose or broken connector locks behind the panel
- Display resetting during operation
- Monitor screen blank or flickering
- Gauges or warning lights showing false readings
Intermittent faults like these are classic signs of ageing wiring, and they rarely improve on their own.
Specifications
- Part Name: Display Wire Harness
- Part Number: 163-6810, 1636810
- Condition: Aftermarket new
- Product Weight: 0.5 kg / 1.10 lbs
- Brand: TOPARTS
- Feature: Strict quality control standards; stable performance and high reliability
Fits the Following Machines
Caterpillar 320C, 330C, etc
Order & Delivery
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
