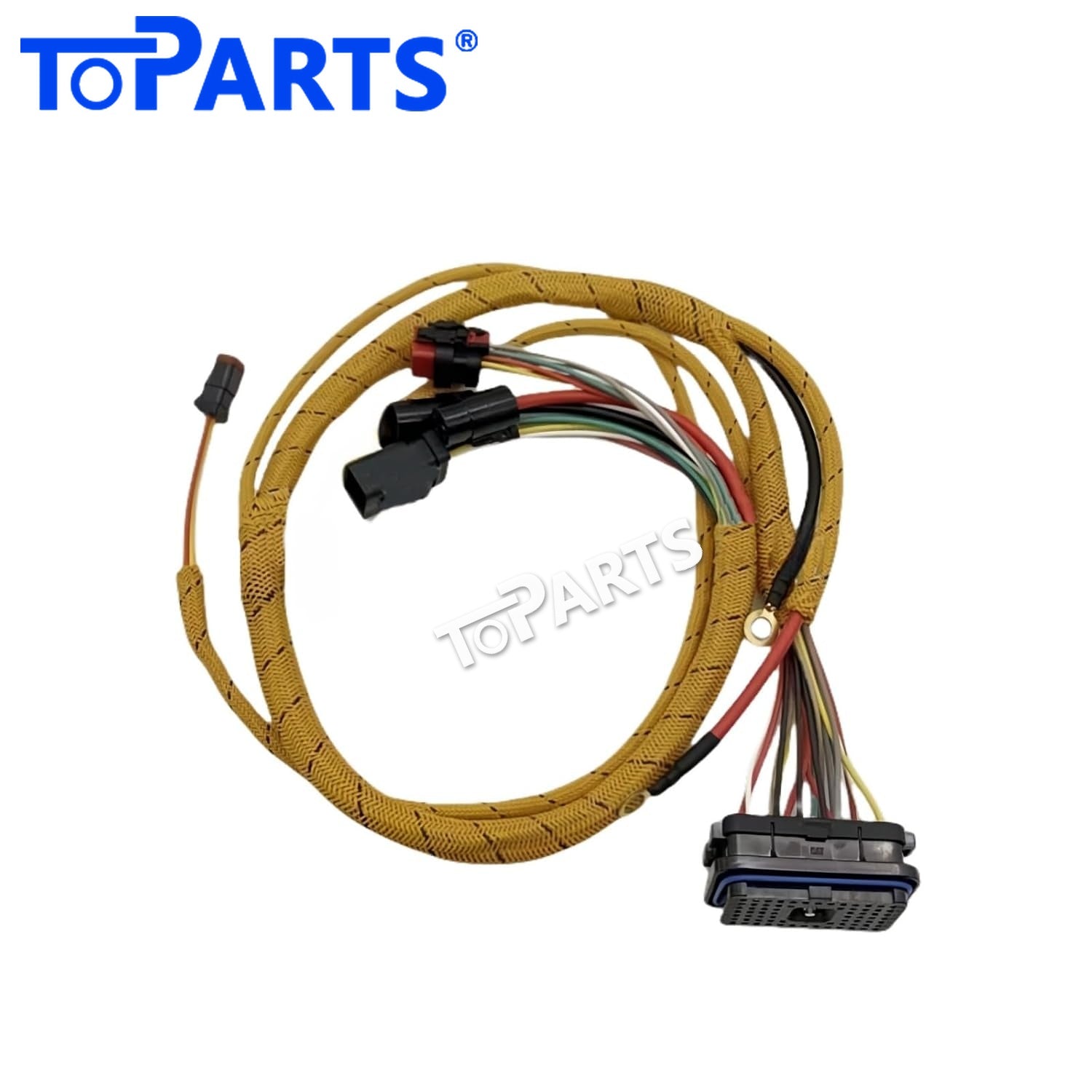

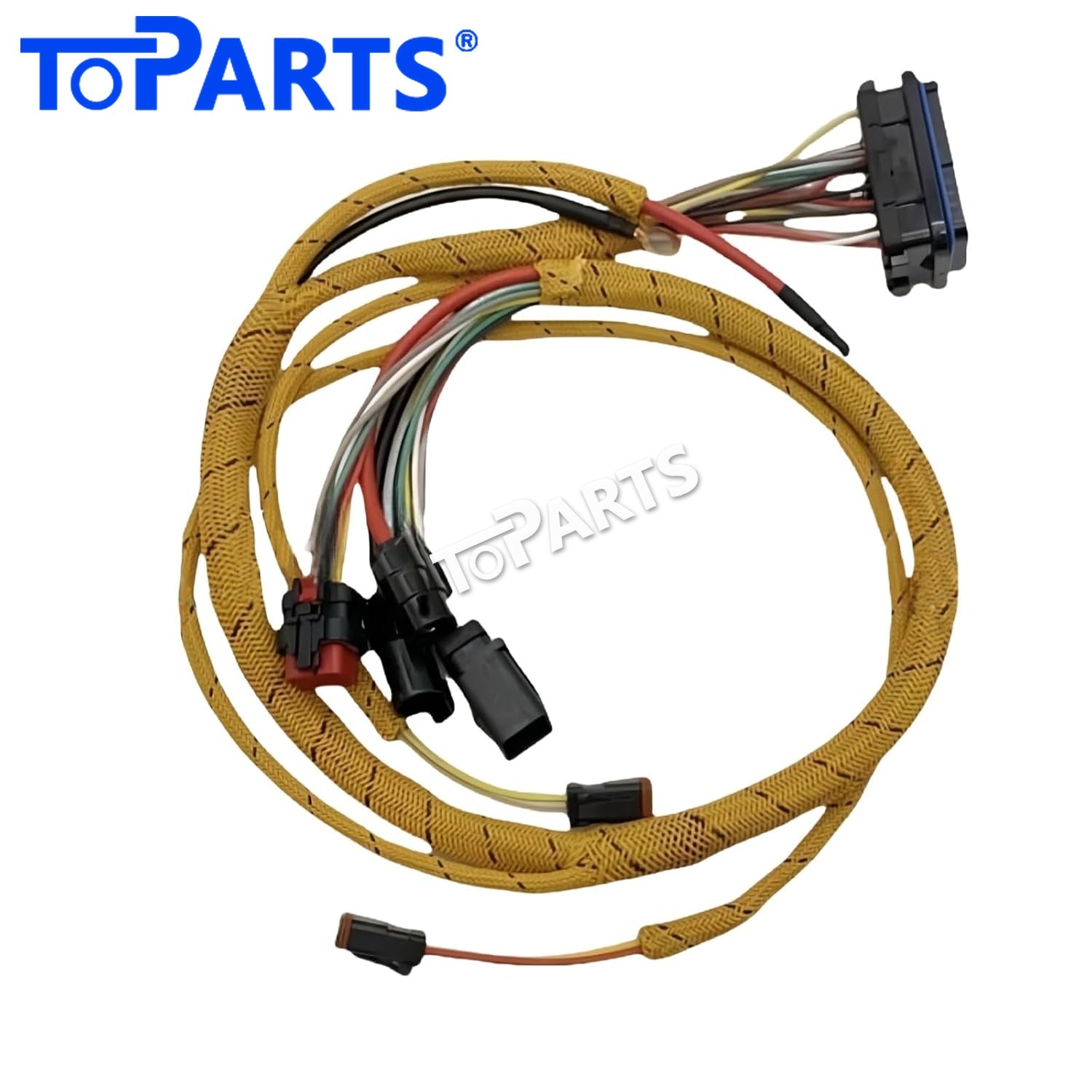

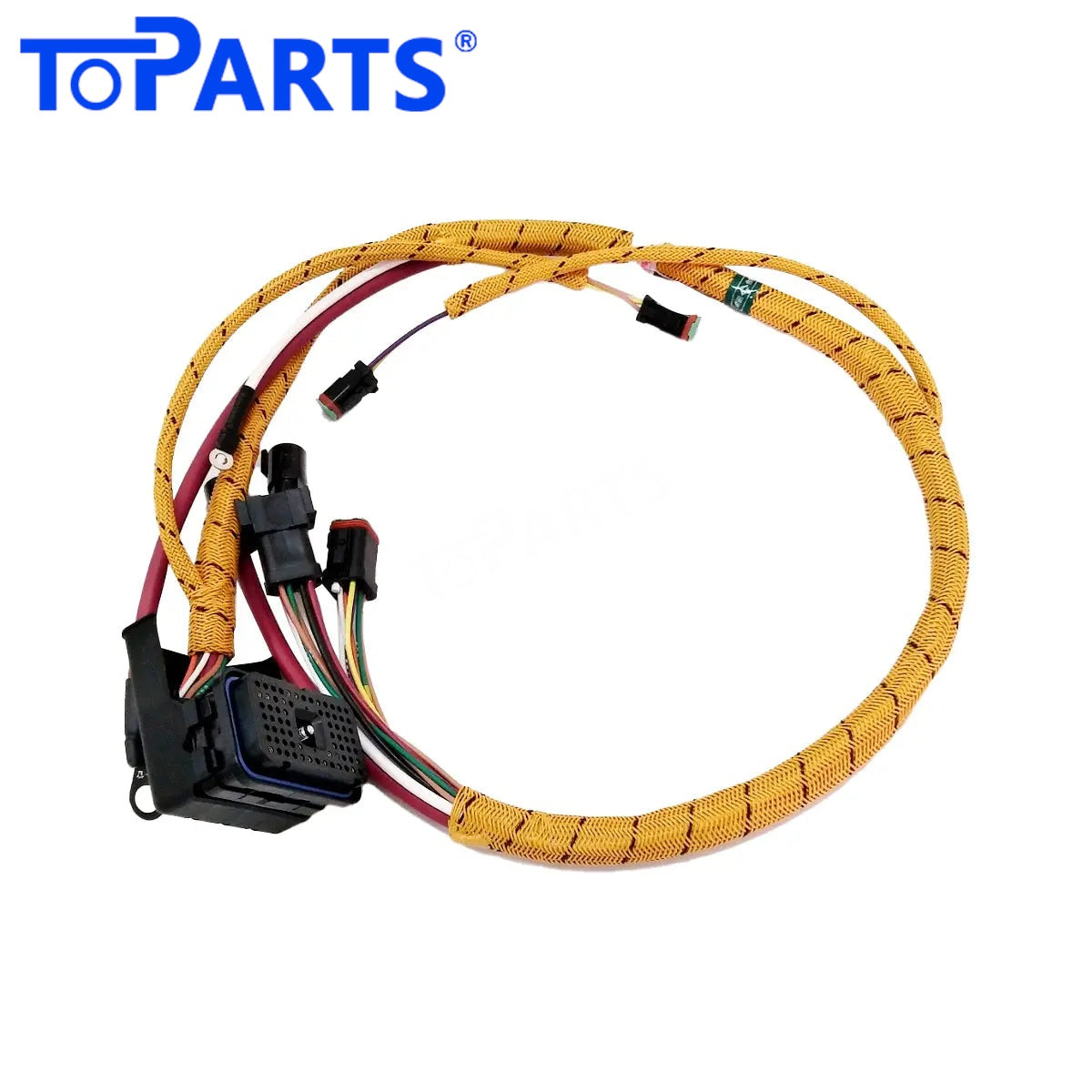

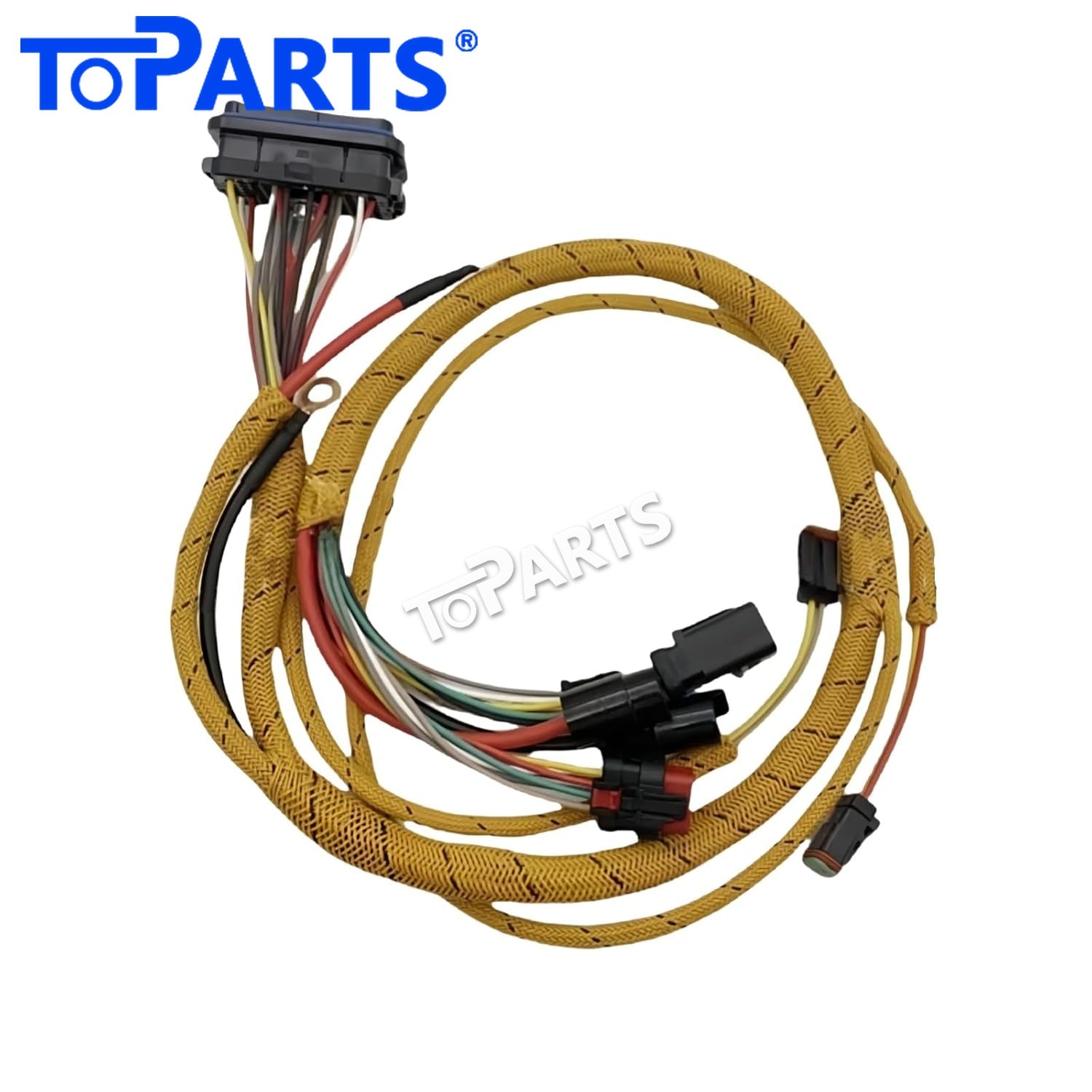

259-5069 2595069 Engine Wiring Harness for Caterpillar Excavator 345C 345C L 345C MH
If diagnosis has led you to the wiring, the 259-5069 2595069 Engine Wiring Harness gives you a complete, new harness for Caterpillar 345C excavator instead of a patchwork of repairs on old, brittle wire.
Product Details
- Part Name: Engine Wiring Harness
- Part Number: 259-5069, 2595069
- Condition: Aftermarket new
- Product Weight: 1.5 kg / 3.31 lbs
- Brand: TOPARTS
- Warranty: 6 months
- Feature: Matches original routing and length; durable, heat-resistant insulation
Application
Caterpillar Excavator 345C 345C L 345C MH
What This Harness Does
The Engine Wiring Harness is the nerve center of the engine bay. It links the engine control module to the sensors, injectors and actuators that keep combustion on target, carrying every signal the ECM needs to read speed, temperature and pressure and respond in milliseconds.
Mounted directly on the engine, this harness bundles the circuits that connect the electronic control unit with the parts doing the real work: sensors that measure, and actuators that respond. Clean, uninterrupted signals here are what allow the engine to run smoothly and efficiently.
On Cat equipment, a damaged harness often shows up as active diagnostic codes before any visible failure, so replacing the wiring can clear problems that look like sensor or ECM faults.
The Cost of Waiting
Dealer lead times for wiring harnesses can stretch to weeks. Ordering a replacement in advance, or as soon as faults begin to appear, keeps your project on schedule and avoids rental costs for a substitute machine.
Warning Signs to Watch For
Common warning signs are:
- Visible heat damage, cracked insulation or chafed wires near the engine block
- Engine cranks but will not start, or starts only after several attempts
- Engine stalling, misfiring or running roughly at idle
- Fault codes for sensors, injectors or the ECM appearing on the monitor
- Problems that come and go when the engine heats up or when the machine vibrates
Intermittent faults like these are classic signs of ageing wiring, and they rarely improve on their own.
Fitting Advice
- Label each connector on the old harness with masking tape before you unplug anything.
- Photograph the routing, clip positions and ground points from several angles.
- Clean and inspect the ECM connector pins; bent pins cause more faults than people expect.
- Keep the new harness clear of the exhaust manifold and turbocharger, and refit all heat shields.
- Clear stored fault codes after installation and run the engine to working temperature to confirm everything reads correctly.
Construction and Quality
The goal is simple: a harness that fits like the original and keeps working like it. Matching connectors, correct branch lengths and durable insulation mean stable performance and high reliability in daily heavy-duty use.
Keeping the New Harness in Good Shape
Avoid aiming a pressure washer directly at connectors and the ECM. Water forced past the seals is a common cause of corrosion and intermittent faults. A light spray and a dry cloth are kinder to the electrical system.
Ordering Information
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
