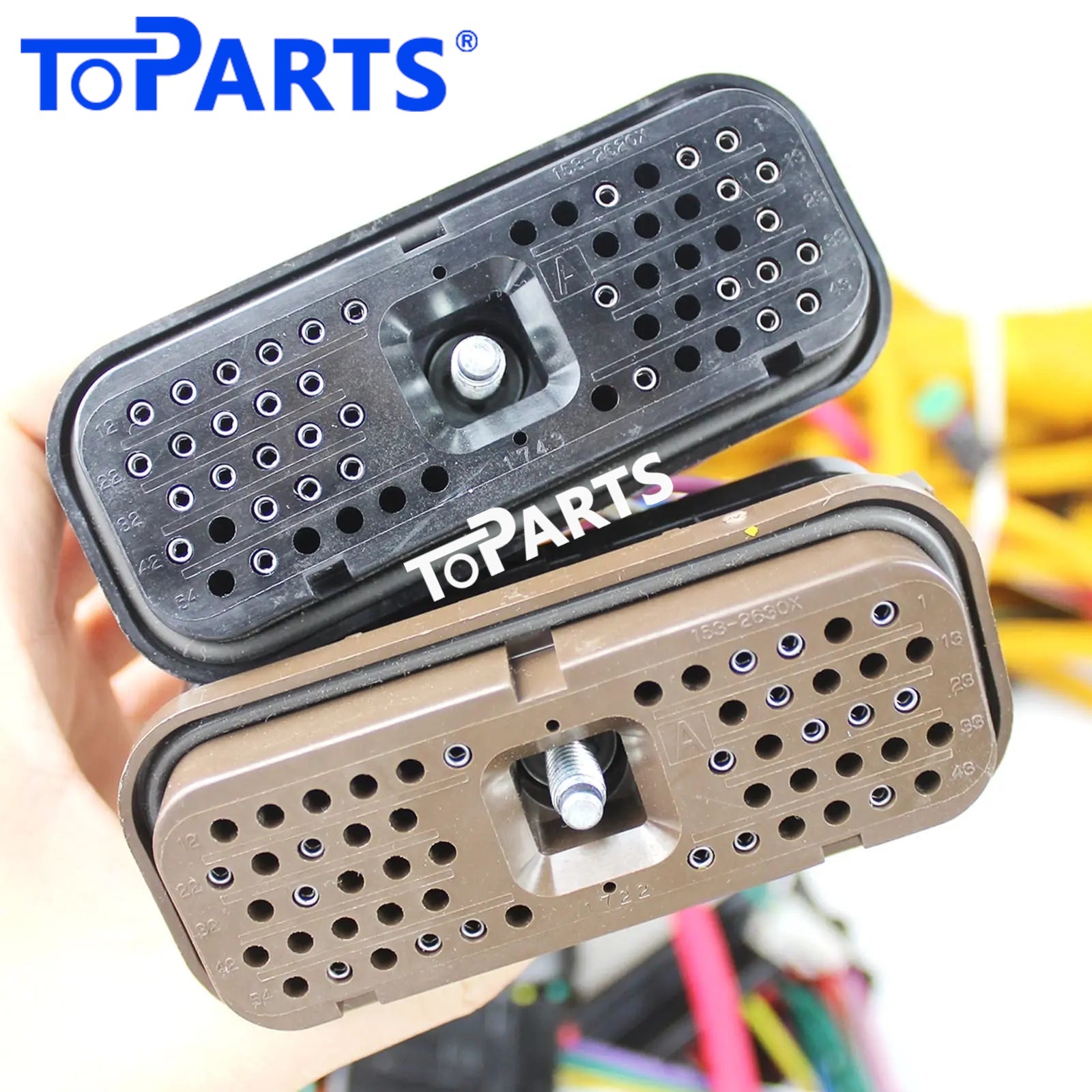

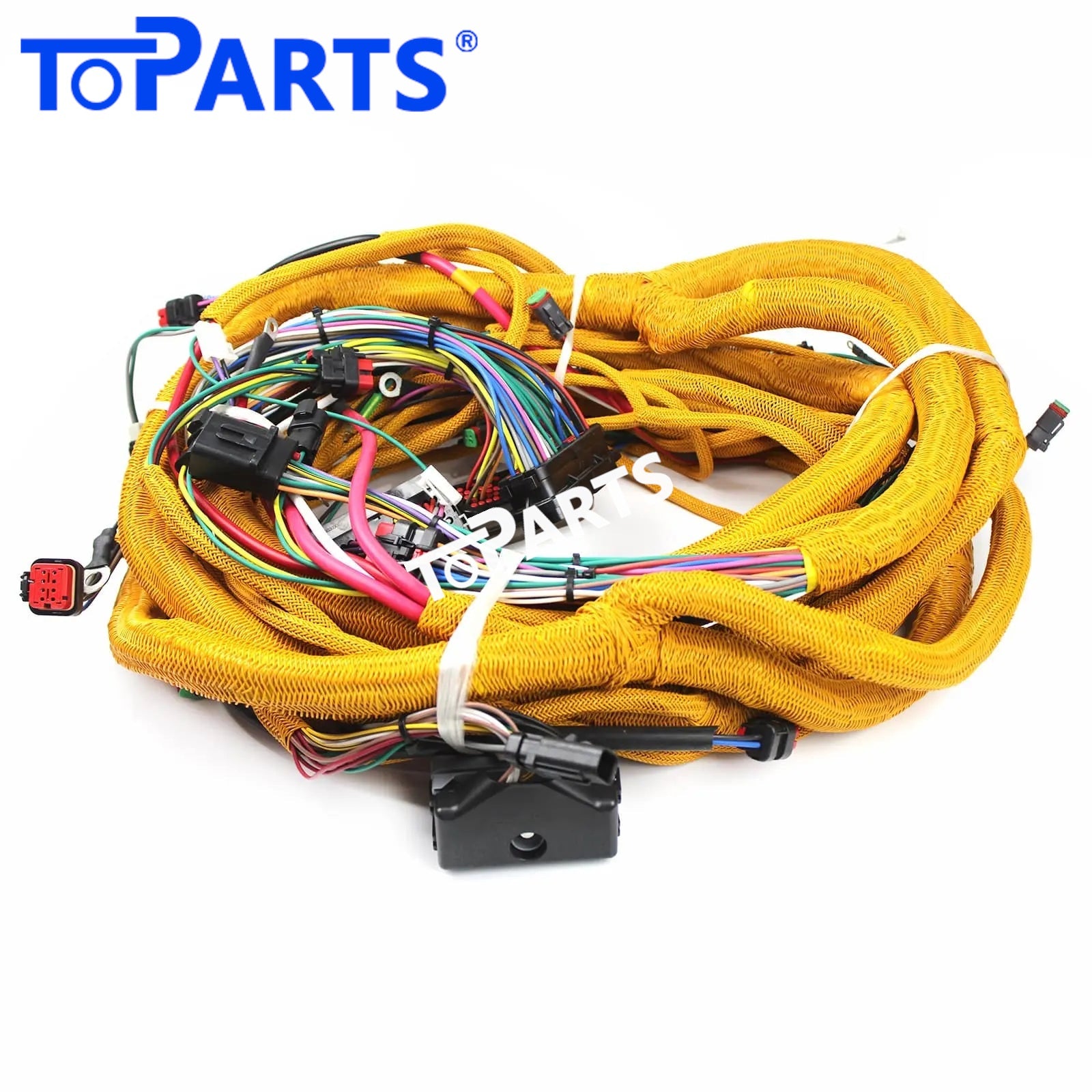

306-8610 3068610 Engine C6.4 Main External Wiring Harness for Caterpillar CAT Excavator 320D 323D
Restore reliable electrical performance to your Caterpillar 320D 323D with the 306-8610 3068610 Main External Wiring Harness. Built as a direct replacement for the original part, it matches the factory routing, connector layout and length, so it goes in where the old one came out.
Engine reference: C6.4. Please confirm your engine model along with the machine model when checking fitment.
Its Role in the Machine
Mounted directly on the engine, this harness bundles the circuits that connect the electronic control unit with the parts doing the real work: sensors that measure, and actuators that respond. Clean, uninterrupted signals here are what allow the engine to run smoothly and efficiently.
The Main External Wiring Harness is the nerve center of the engine bay. It links the engine control module to the sensors, injectors and actuators that keep combustion on target, carrying every signal the ECM needs to read speed, temperature and pressure and respond in milliseconds.
On Cat equipment, a damaged harness often shows up as active diagnostic codes before any visible failure, so replacing the wiring can clear problems that look like sensor or ECM faults.
Warning Signs to Watch For
You may notice:
- Problems that come and go when the engine heats up or when the machine vibrates
- Visible heat damage, cracked insulation or chafed wires near the engine block
- Sudden loss of power or the engine entering a derated mode
- Engine stalling, misfiring or running roughly at idle
- Gauges for engine temperature or oil pressure reading erratically
If these symptoms persist after checking fuses, batteries and grounds, the wiring itself is the next thing to suspect.
How to Verify Compatibility

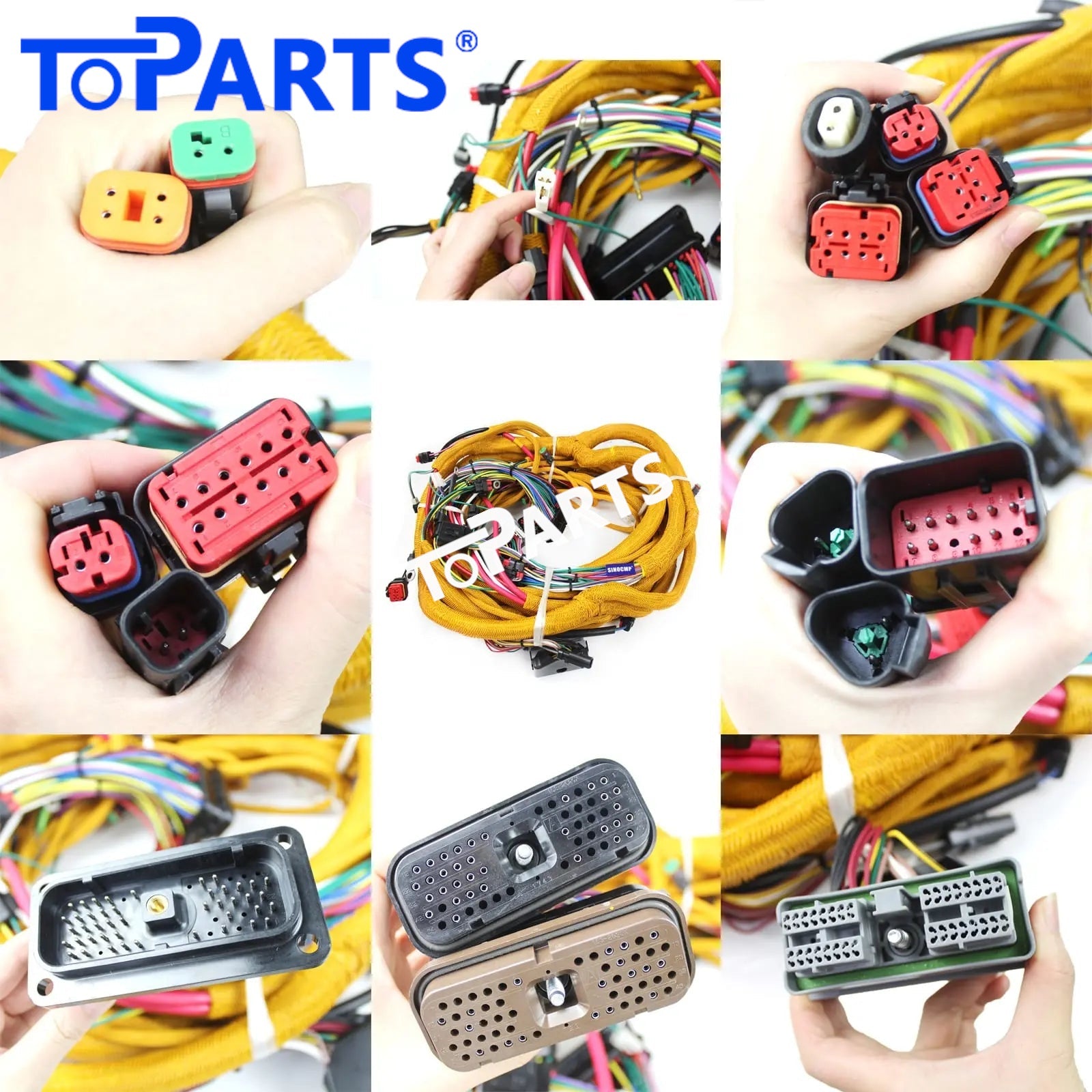

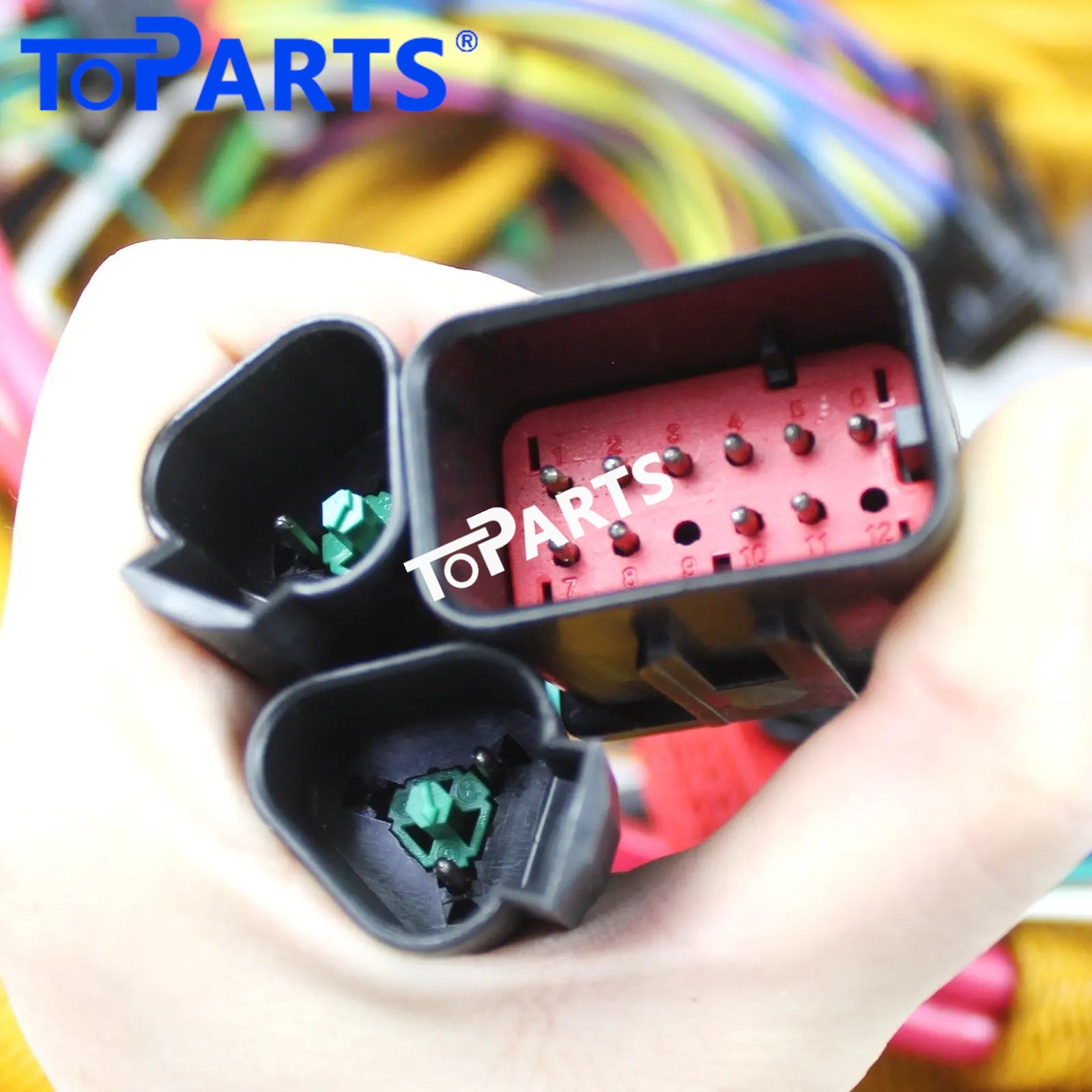

Before ordering, compare the part number printed on the label of your original harness with 306-8610 3068610. It is also worth comparing the connector shapes and the number of branches with our product photos. If your machine's serial range or engine variant differs, send us your machine details and we will confirm compatibility before you buy.
FAQ
Is this harness plug-and-play?
Yes. It is built to the original layout with matching connectors, so it installs in place of the original without cutting or splicing.
What should I do if the part does not match?
Contact us with photos of the original and the new part. We will help you resolve the issue quickly.
Do I need special tools to install it?
Standard hand tools are usually enough. Labelling connectors and taking photos before removal makes the job much easier.
The Cost of Waiting
Electrical problems tend to get worse rather than better. Replacing a deteriorating harness at a planned service interval is far cheaper than dealing with a breakdown in the middle of a job, especially on remote sites.
Installation Tips
- Label each connector on the old harness with masking tape before you unplug anything.
- Photograph the routing, clip positions and ground points from several angles.
- Keep the new harness clear of the exhaust manifold and turbocharger, and refit all heat shields.
- Clear stored fault codes after installation and run the engine to working temperature to confirm everything reads correctly.
Specs at a Glance
- Part Name: Main External Wiring Harness
- Part Number: 306-8610, 3068610
- Engine: C6.4
- Condition: Aftermarket new
- Product Weight: 14 kg / 30.86 lbs
- Brand: TOPARTS
- Feature: Original connector layout; plug-and-play installation
Fits the Following Machines
Caterpillar 320D, 323D, 320DL, etc
Ordering Information
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
