425-6526 4256526 Wiring Harness for Caterpillar Engine C-15 C-16 C-18

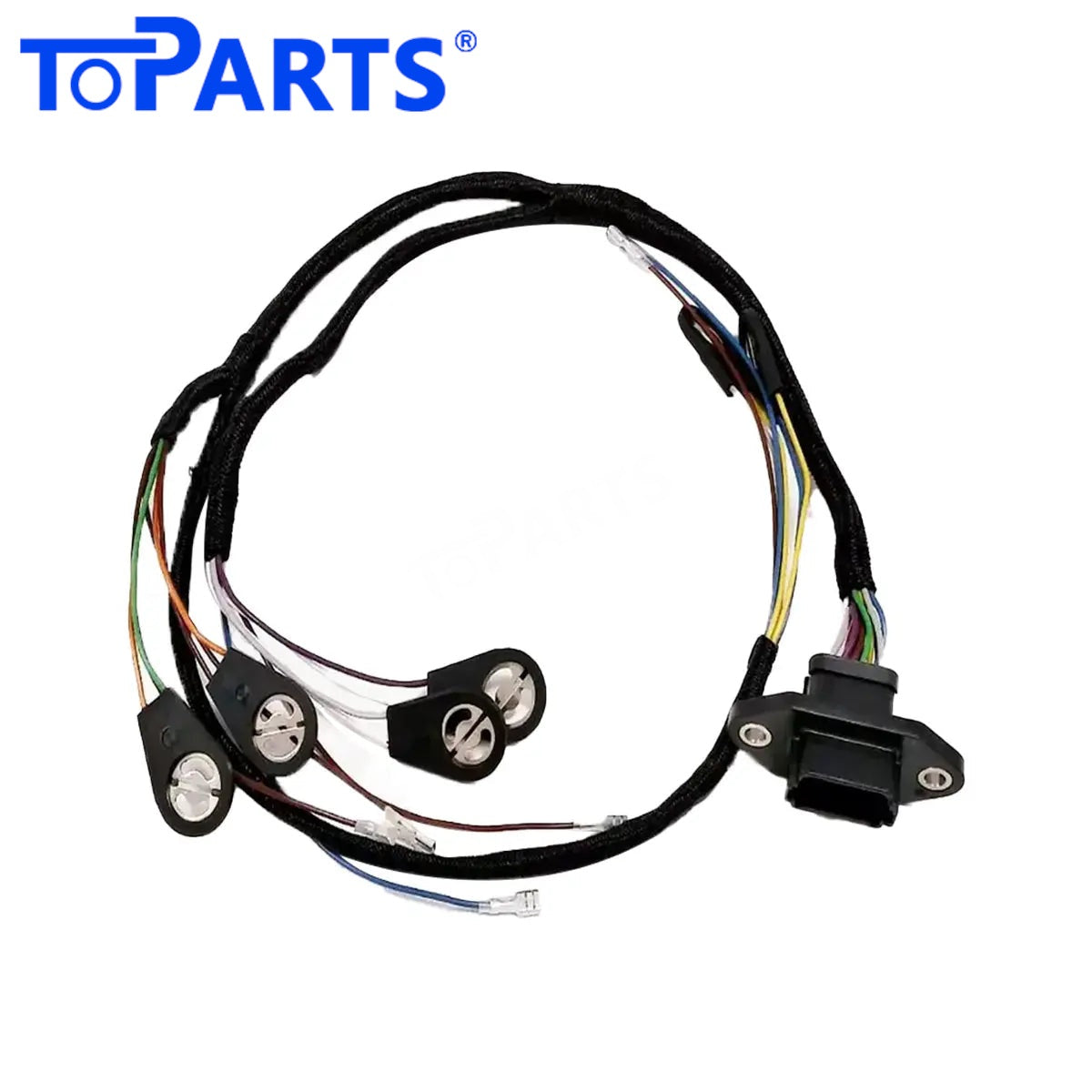

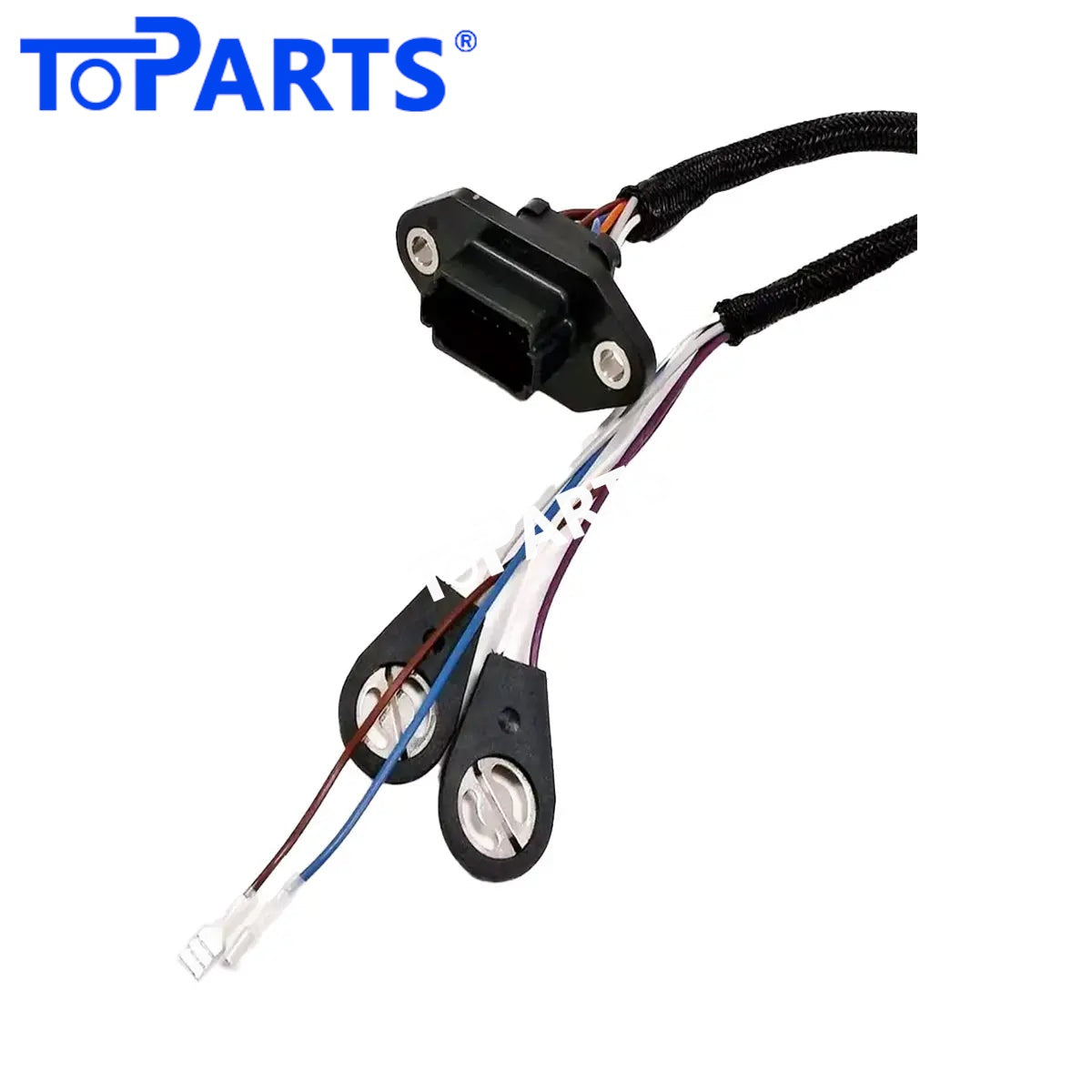

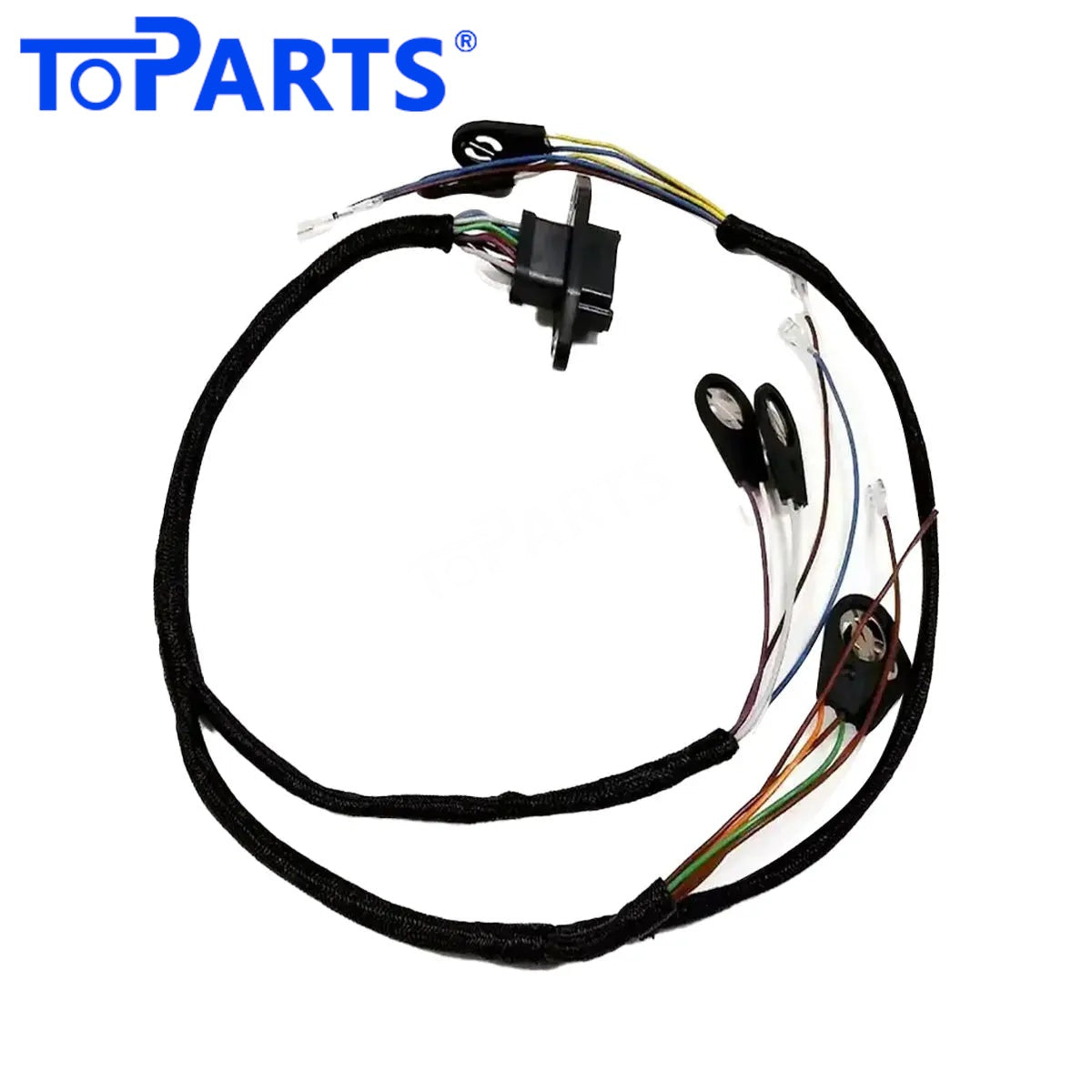

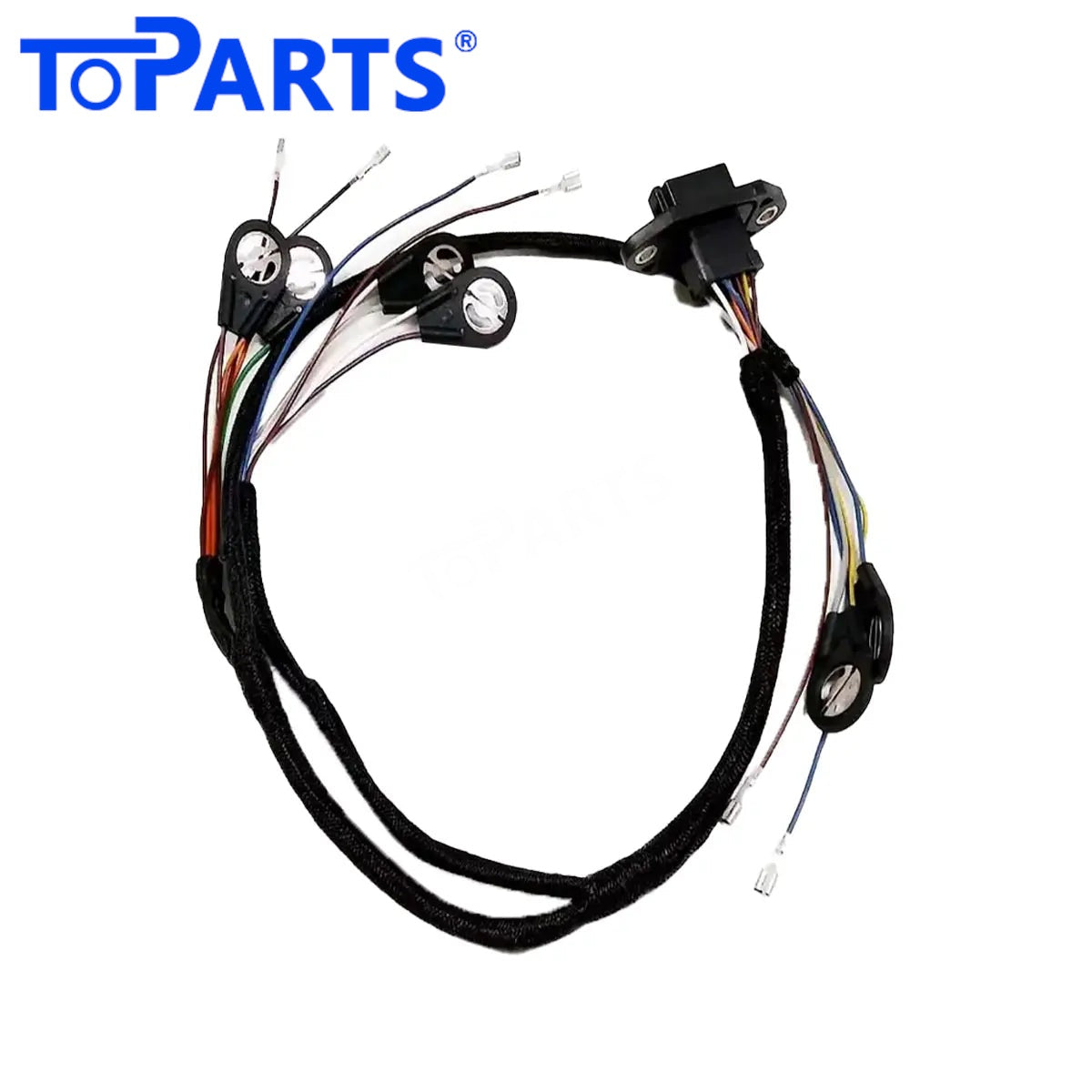

Looking for part 425-6526 4256526? This Wiring Harness is made for Caterpillar C-15, C-16, C-18, 3406E, 3456, C15 and reproduces the original harness design, from wire lengths and branch points to the connector types on each end.
Engine reference: C-15, C-16, C-18, 3406E, 3456, C15, C16, C18. Please confirm your engine model along with the machine model when checking fitment.
Function Overview
Sitting under the valve cover or alongside the cylinder head, the injector harness works in one of the hottest and oiliest places on the engine. It delivers the high-current firing signals the injectors need, cylinder by cylinder, thousands of times a minute.
The injector harness is short, but it carries some of the most critical signals on the engine. A weak connection on a single injector circuit can make one cylinder go dead, causing vibration, smoke and a noticeable loss of power.
On Cat equipment, a damaged harness often shows up as active diagnostic codes before any visible failure, so replacing the wiring can clear problems that look like sensor or ECM faults.
Warning Signs to Watch For
Common warning signs are:
- Rough idle and increased engine vibration
- Oil-soaked, brittle or cracked harness insulation under the valve cover
- Black or white smoke from the exhaust
- One or more cylinders misfiring
- Injector circuit fault codes on the monitor
If these symptoms persist after checking fuses, batteries and grounds, the wiring itself is the next thing to suspect.
Tips for a Smooth Installation
- Clean the area around the valve cover thoroughly before opening it, so no dirt reaches the injectors.
- Note the cylinder order of each injector lead before disconnecting.
- Replace the valve cover gasket and any pass-through seals while you are in there.
- Clear codes and check that the engine runs smoothly on all cylinders.
Planning the Repair
Electrical problems tend to get worse rather than better. Replacing a deteriorating harness at a planned service interval is far cheaper than dealing with a breakdown in the middle of a job, especially on remote sites.
Frequently Asked Questions
Is this a genuine or aftermarket part?
Please see the Condition line in the specifications above. Every part is checked for fit and continuity before shipping.
How do I know it will fit my machine?
Match the part number on your old harness, or send us your machine model and serial number and we will confirm before you order.
Can I replace only part of the harness?
For a reliable result we recommend replacing the complete harness, since the rest of the old wiring has aged under the same conditions.
Maintenance Advice
Avoid aiming a pressure washer directly at connectors and the ECM. Water forced past the seals is a common cause of corrosion and intermittent faults. A light spray and a dry cloth are kinder to the electrical system.
Product Details
- Part Name: Wiring Harness
- Part Number: 425-6526, 4256526
- Engine: C-15, C-16, C-18, 3406E, 3456, C15, C16, C18
- Condition: Aftermarket new
- Product Weight: 1 kg / 2.20 lbs
- Brand: TOPARTS
- Feature: Matches original routing and length; durable, heat-resistant insulation
Applicable Models
C-15, C-16, C-18, 3406E, 3456, C15, C16, C18
Payment & Shipping
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
