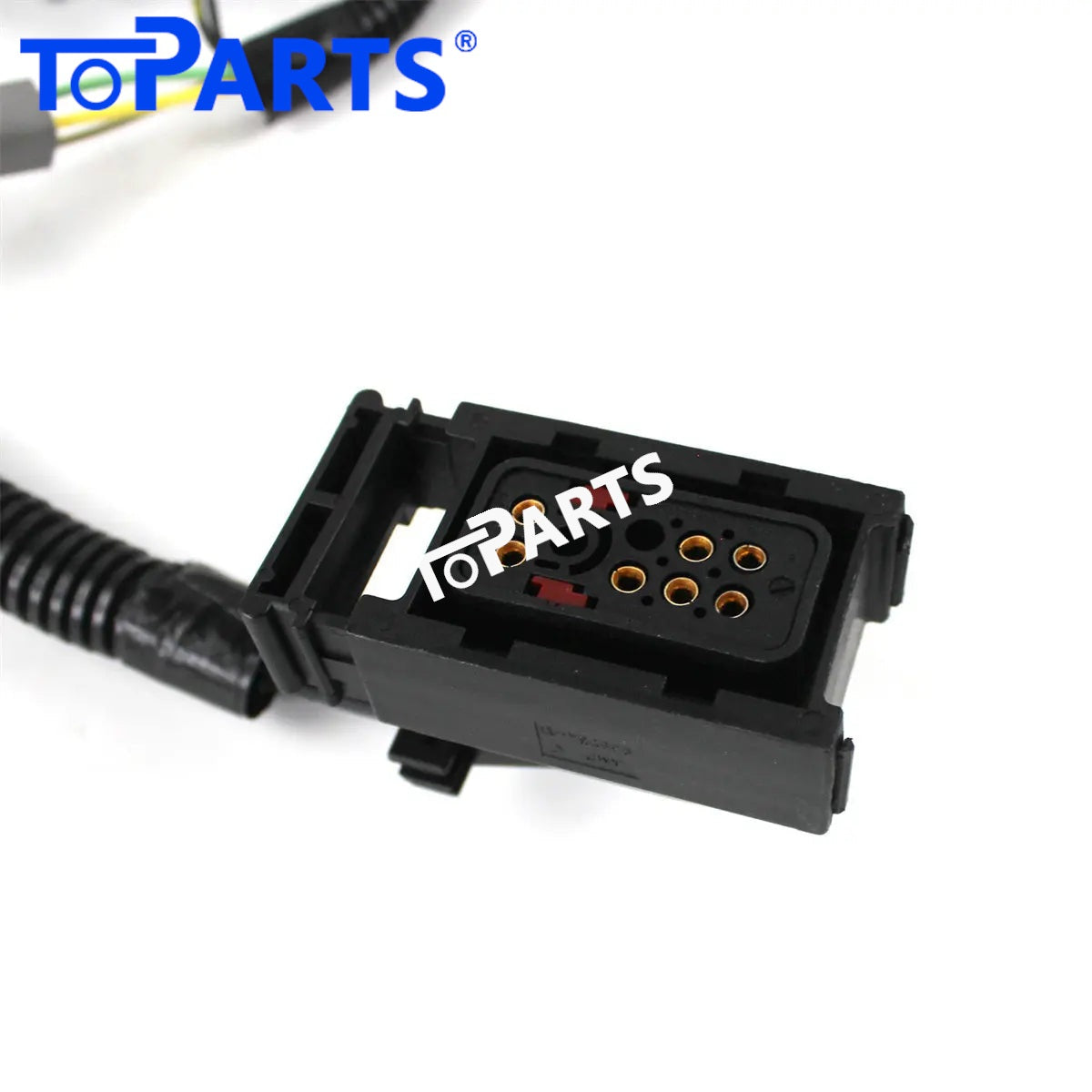

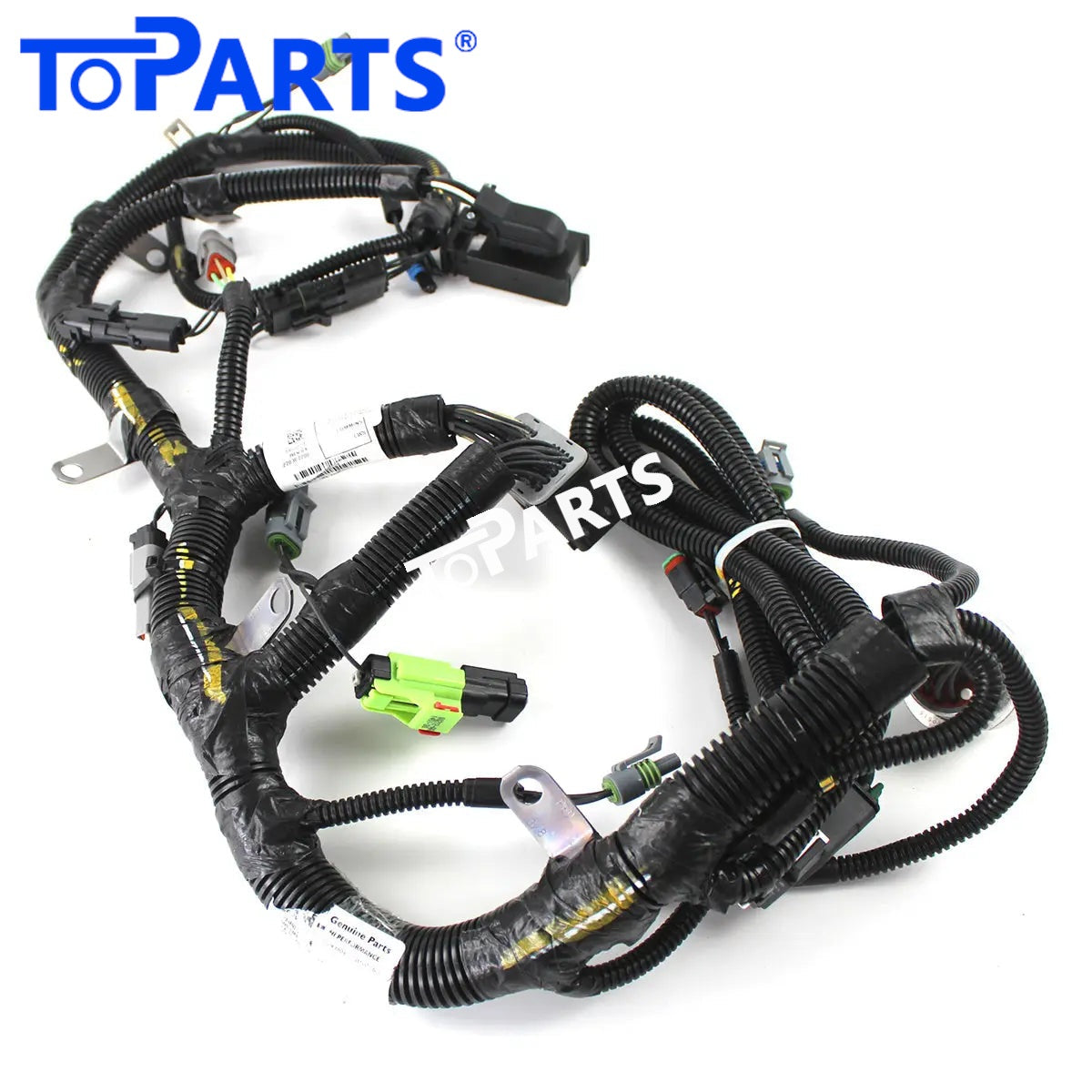

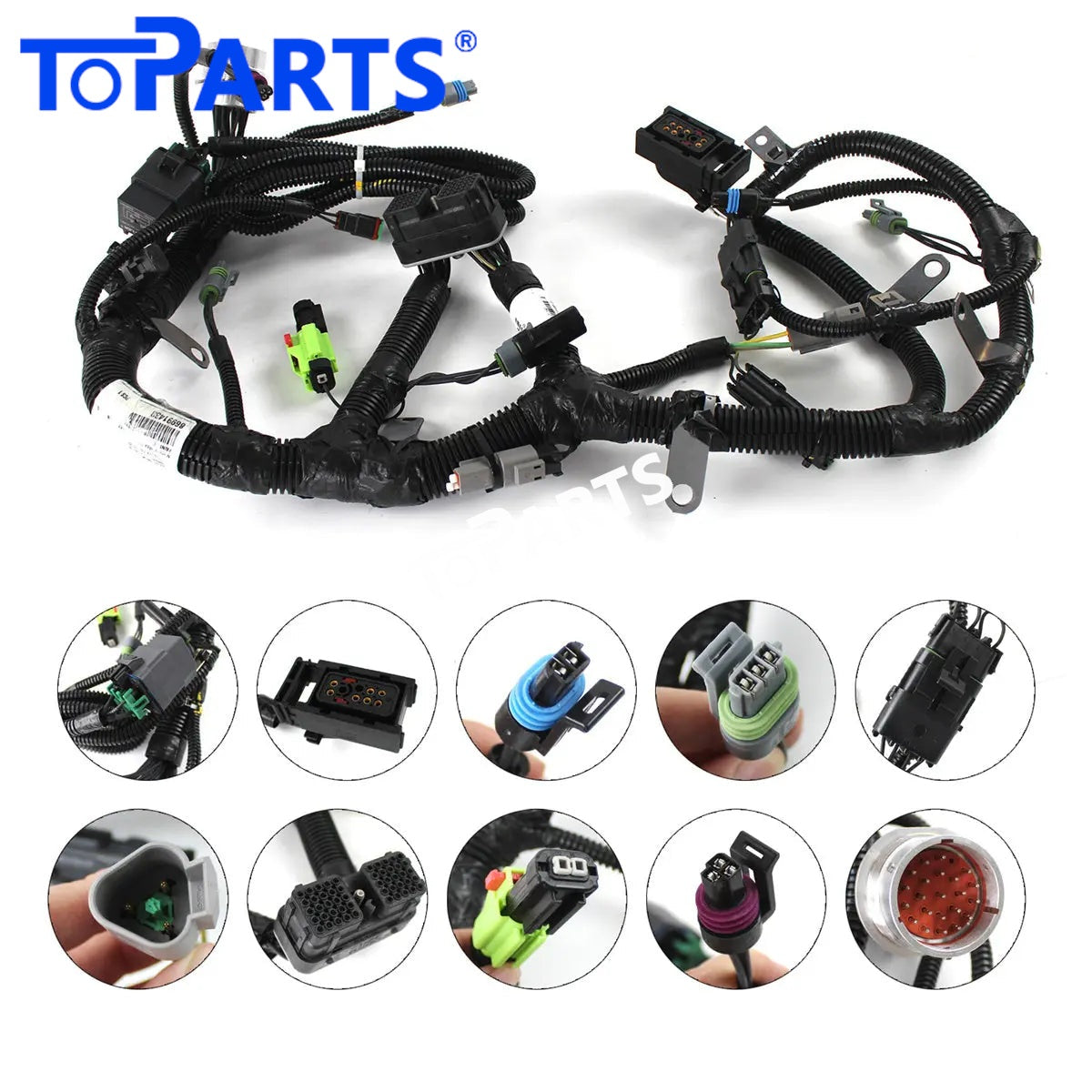

86991433 Engine Wiring Harness for Case CX210 CX240 CX290
If diagnosis has led you to the wiring, the 86991433 Engine Wiring Harness gives you a complete, new harness for Case CX210LR, CX240LR, CX210, CX240, CX290 excavators instead of a patchwork of repairs on old, brittle wire.
Specifications
- Part Name: Engine Wiring Harness
- Part Number: 86991433
- Condition: Genuine new
- Product Weight: 4 kg / 8.82 lbs
- Brand: TOPARTS
- Feature: Original connector layout; plug-and-play installation
Application
CX210LR, CX240LR, CX210, CX240, CX290, etc
How It Works on Your Machine
Every start, every throttle change and every load the excavator takes on is managed through this harness. It routes power and data between the ECM and the engine-mounted components, so a single damaged wire here can show up as a problem anywhere in the engine's behaviour.
Mounted directly on the engine, this harness bundles the circuits that connect the electronic control unit with the parts doing the real work: sensors that measure, and actuators that respond. Clean, uninterrupted signals here are what allow the engine to run smoothly and efficiently.
Case excavators share many electrical designs with Sumitomo models, and harness condition plays a big part in their reliability as machines age.
Made to Last on the Job Site
We check connector fit, wire continuity and overall layout before shipping, so the harness you receive is ready to install. The materials are chosen for the temperature range, vibration and contamination found on construction equipment.
Frequently Asked Questions
Is this harness plug-and-play?
Yes. It is built to the original layout with matching connectors, so it installs in place of the original without cutting or splicing.
Is this a genuine or aftermarket part?
Please see the Condition line in the specifications above. Every part is checked for fit and continuity before shipping.
Do I need special tools to install it?
Standard hand tools are usually enough. Labelling connectors and taking photos before removal makes the job much easier.
Before and During Installation
- Photograph the routing, clip positions and ground points from several angles.
- Clean and inspect the ECM connector pins; bent pins cause more faults than people expect.
- Keep the new harness clear of the exhaust manifold and turbocharger, and refit all heat shields.
- Clear stored fault codes after installation and run the engine to working temperature to confirm everything reads correctly.
Signs Your Harness Needs Replacing
Typical signs include:
- Problems that come and go when the engine heats up or when the machine vibrates
- Sudden loss of power or the engine entering a derated mode
- Visible heat damage, cracked insulation or chafed wires near the engine block
- Engine stalling, misfiring or running roughly at idle
- Gauges for engine temperature or oil pressure reading erratically
Intermittent faults like these are classic signs of ageing wiring, and they rarely improve on their own.
Repair vs. Replacement
A single visible fault is often a sign of wider ageing. Heat cycling and vibration affect every wire in the bundle, not just the one that failed. Fitting a new harness means you are not chasing the next fault next month.
Ordering Information
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
