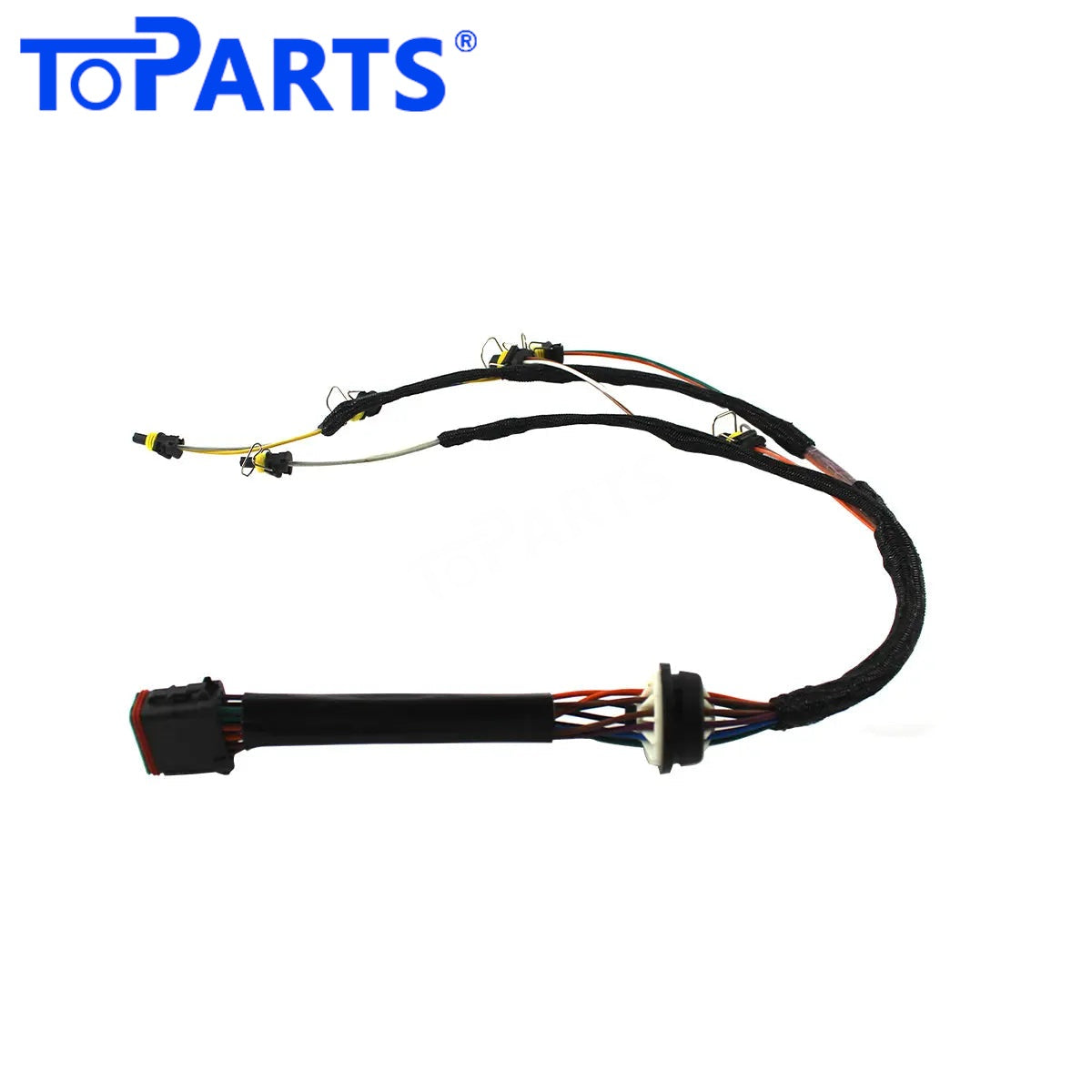

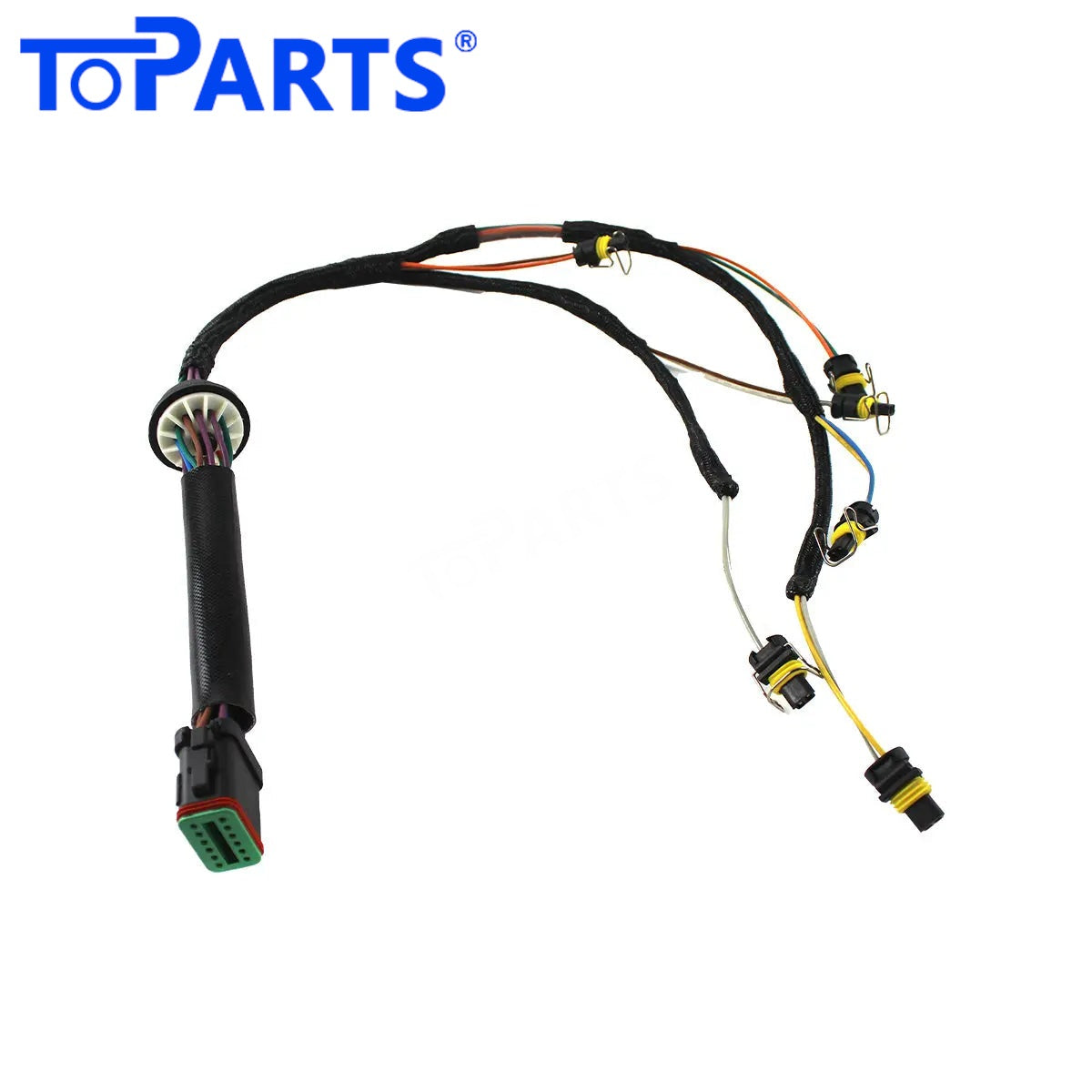

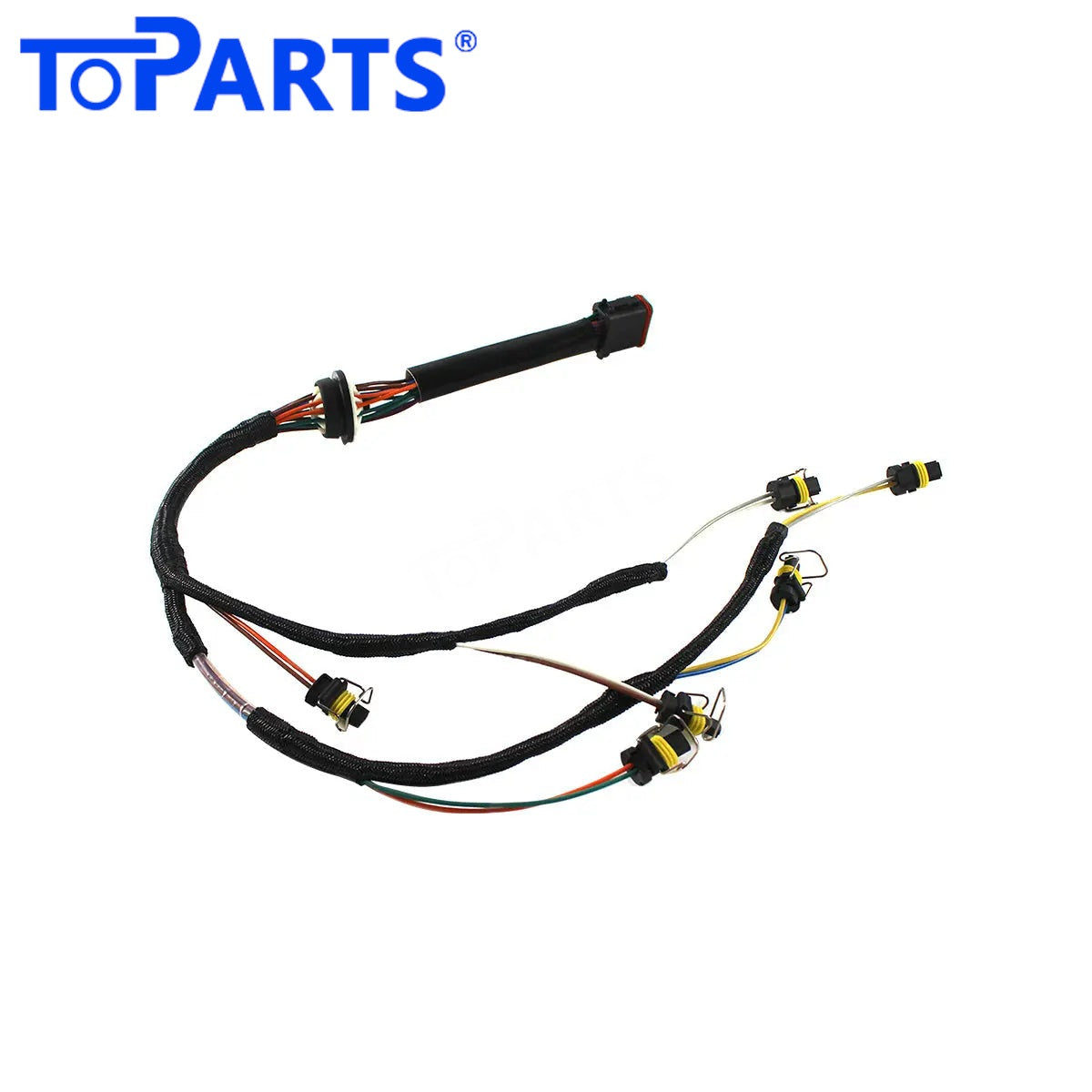

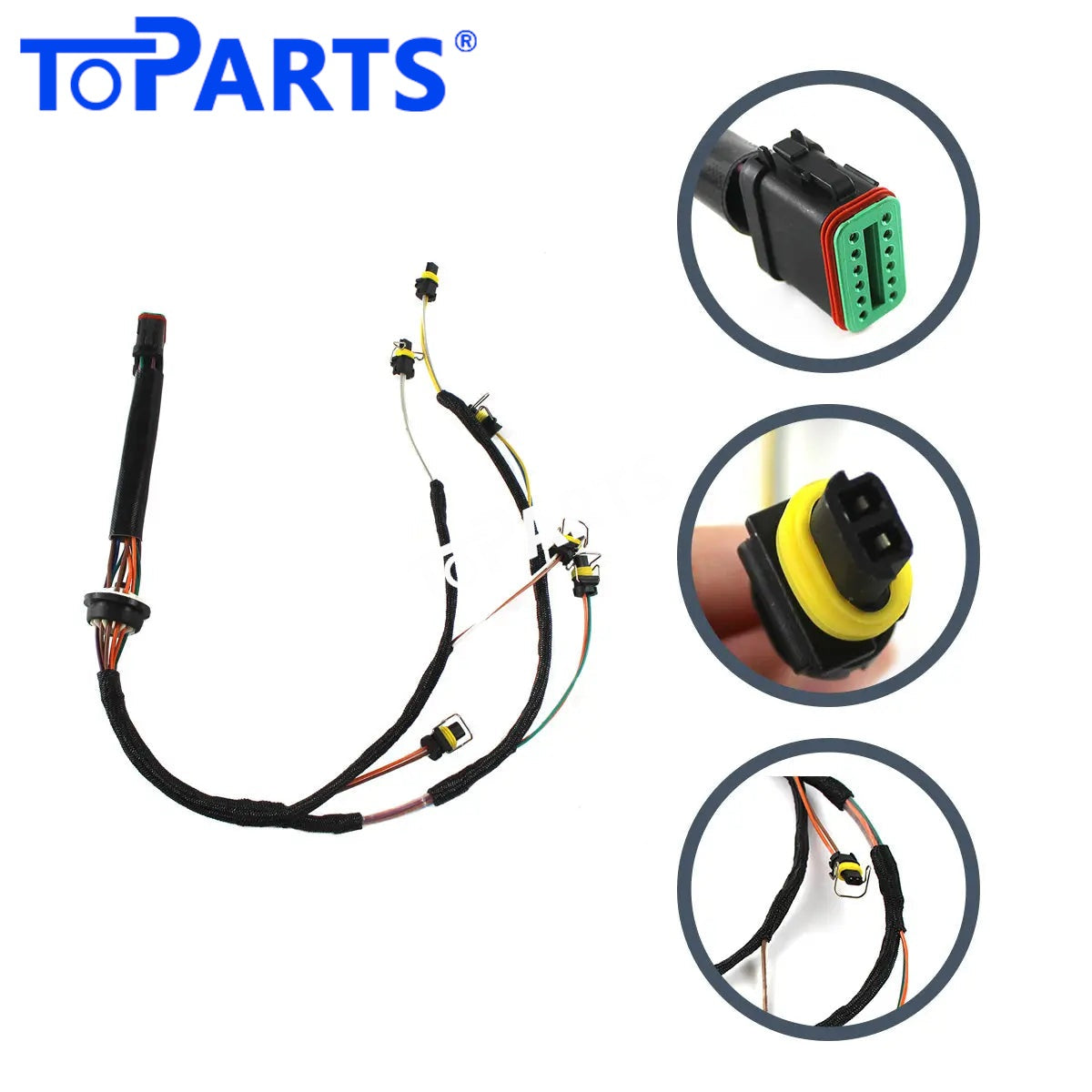

153-8920 1538920 Injector Wiring Harness for Caterpillar E325C 3126B
Keep your Caterpillar 322C 325C working with the TOPARTS 153-8920 1538920 Injector Wiring Harness. It replaces the original harness one-for-one and is built for the vibration, heat and dirt that come with daily work on site.
It is used with the C7 engine and is matched to that engine's sensor and connector layout.
Specs at a Glance
- Part Name: Injector Wiring Harness
- Part Number: 153-8920, 1538920
- Engine: C7
- Condition: Aftermarket new
- Product Weight: 1 kg / 2.20 lbs
- Brand: TOPARTS
- Feature: Quality checked before shipping; built for heavy-duty use
Fits the Following Machines
Caterpillar 322C, 322C FM 325C 325C FM 325C L, C7 Engine, etc
Its Role in the Machine
The injector harness is short, but it carries some of the most critical signals on the engine. A weak connection on a single injector circuit can make one cylinder go dead, causing vibration, smoke and a noticeable loss of power.
On a modern diesel, each injector opens on a precisely timed electrical pulse from the ECM. The injector harness carries those pulses, so its condition directly decides whether fuel is delivered at the right moment and in the right amount to each cylinder.
Caterpillar machines rely heavily on electronic engine and machine control, which makes healthy wiring essential for performance and fault-free operation.
The Cost of Waiting
Electrical problems tend to get worse rather than better. Replacing a deteriorating harness at a planned service interval is far cheaper than dealing with a breakdown in the middle of a job, especially on remote sites.
How to Verify Compatibility
The fastest way to confirm fit is to match the part number 153-8920 1538920 against the tag on your old harness or your parts book. If the tag is missing or unreadable, a few clear photos of the connectors are usually enough for us to identify the right part.
Replace or Repair?
Harness repairs are hard to do well in the field. Moisture gets into joints, tape loosens with heat, and intermittent faults come back. Replacing the harness gives you factory-style connections throughout and makes future troubleshooting far simpler.
Installation Tips
- Note the cylinder order of each injector lead before disconnecting.
- Inspect injector terminals and nuts; tighten to the specified torque.
- Replace the valve cover gasket and any pass-through seals while you are in there.
- Clear codes and check that the engine runs smoothly on all cylinders.
When to Replace It
You may notice:
- One or more cylinders misfiring
- Injector circuit fault codes on the monitor
- Black or white smoke from the exhaust
- Rough idle and increased engine vibration
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
Ordering Information
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
