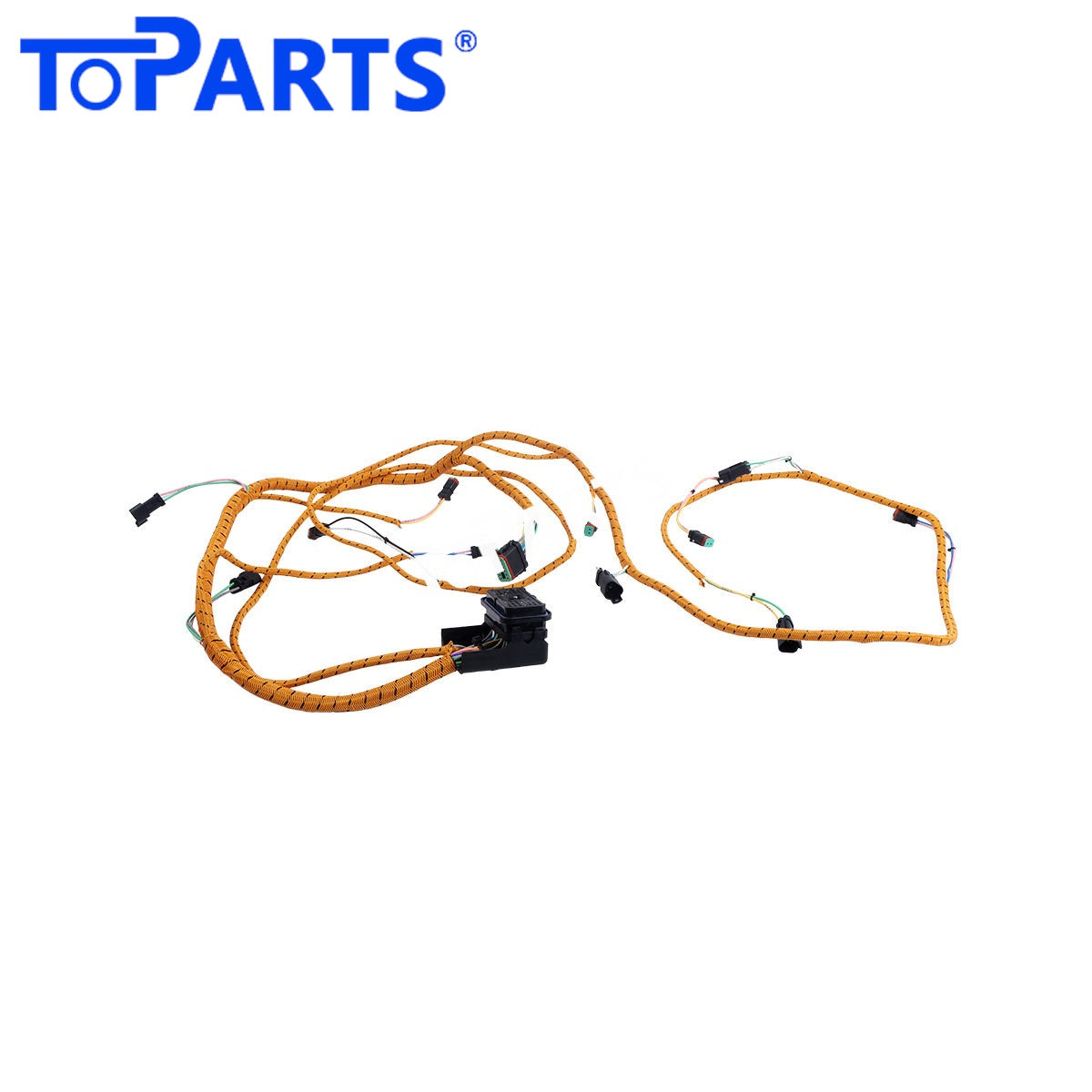

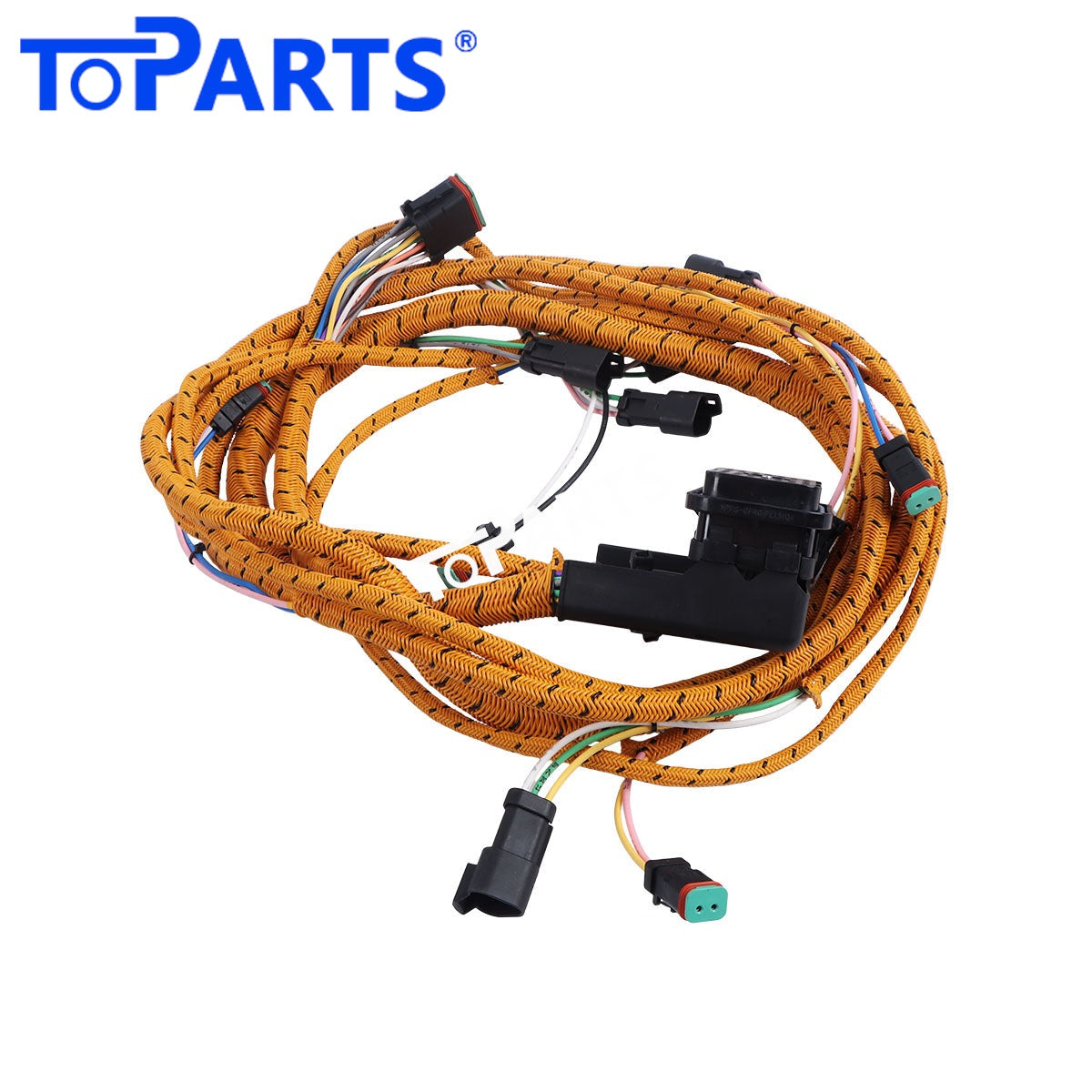

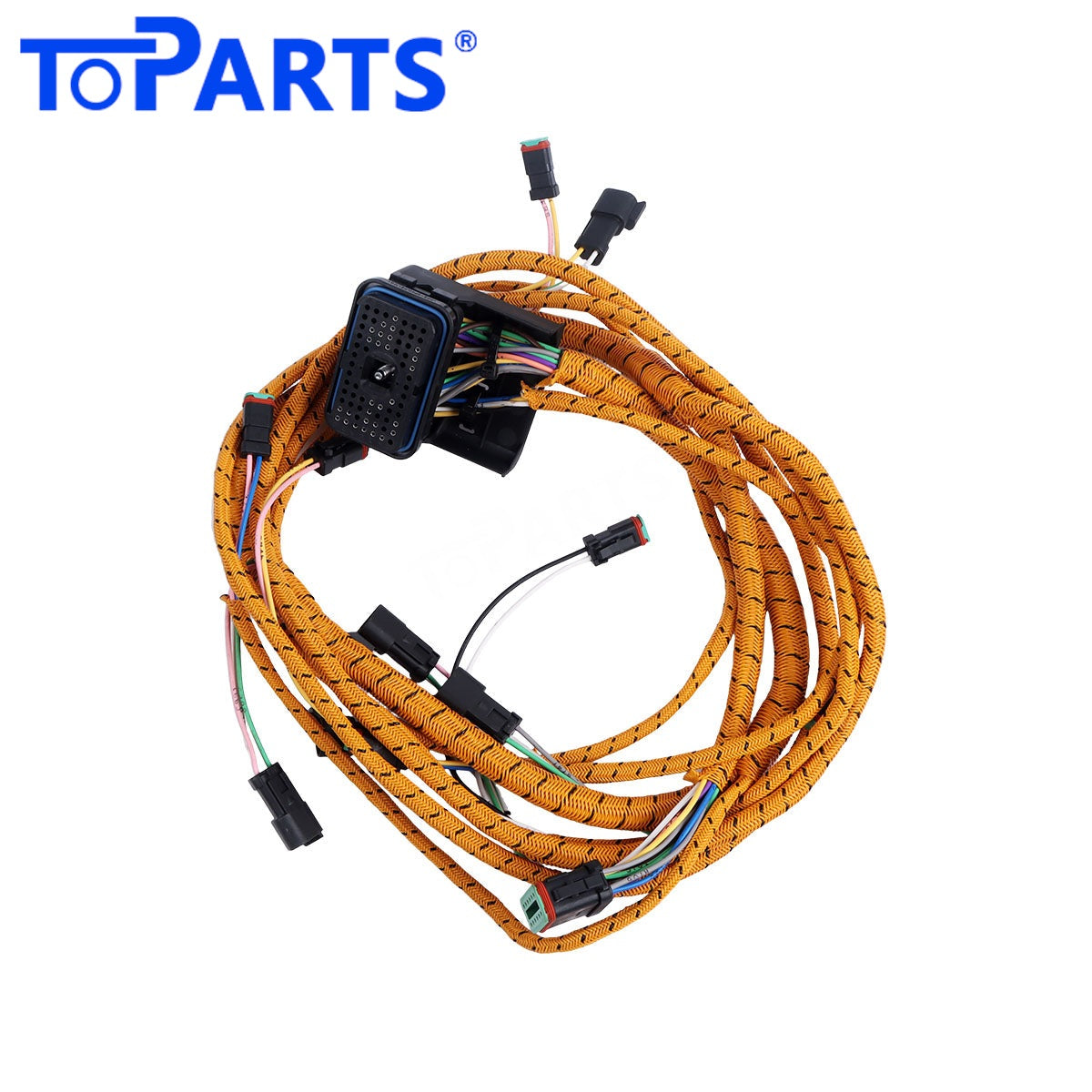

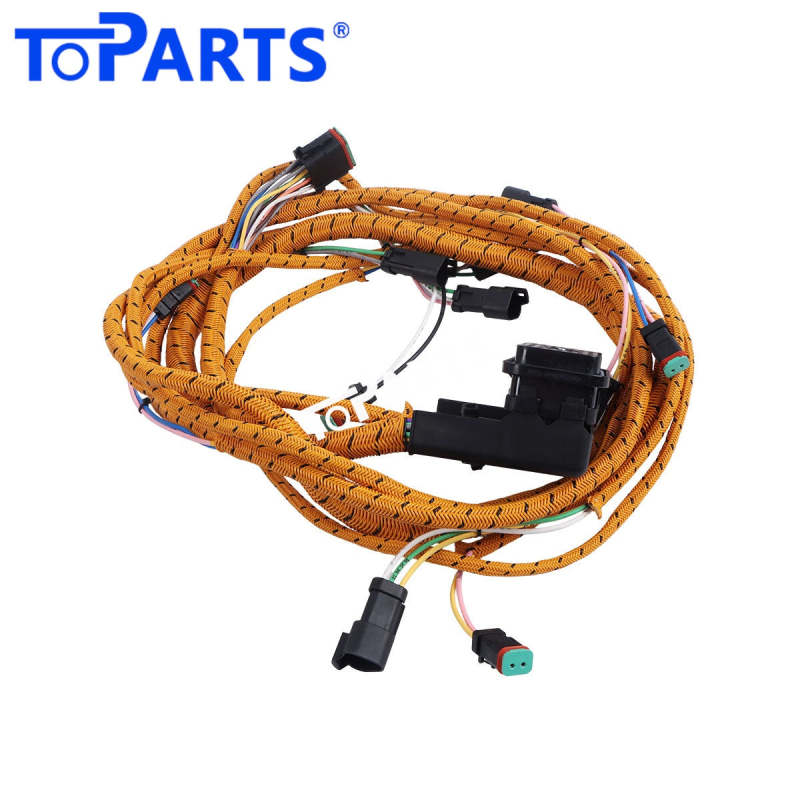

132-5317 1325317 Engine Wiring Harness for Caterpillar CAT Case 3406E Truck Engine
Looking for part 132-5317 1325317? This Engine Wiring Harness is made for Caterpillar 3406E truck and reproduces the original harness design, from wire lengths and branch points to the connector types on each end.
Engine reference: 3406E. Please confirm your engine model along with the machine model when checking fitment.
Why This Harness Matters
Every start, every throttle change and every load the truck takes on is managed through this harness. It routes power and data between the ECM and the engine-mounted components, so a single damaged wire here can show up as a problem anywhere in the engine's behaviour.
Think of this harness as the communication line of the engine. Speed sensors, temperature senders, pressure switches and fuel system components all report back through it, and the controller sends its commands out along the same path.
On Cat equipment, a damaged harness often shows up as active diagnostic codes before any visible failure, so replacing the wiring can clear problems that look like sensor or ECM faults.
Common Symptoms of a Failing Harness
You may notice:
- Gauges for engine temperature or oil pressure reading erratically
- Sudden loss of power or the engine entering a derated mode
- Engine stalling, misfiring or running roughly at idle
- Engine cranks but will not start, or starts only after several attempts
When diagnostics point to a circuit fault rather than a failed component, replacing the wiring is often the most cost-effective repair.
Make Sure It Fits

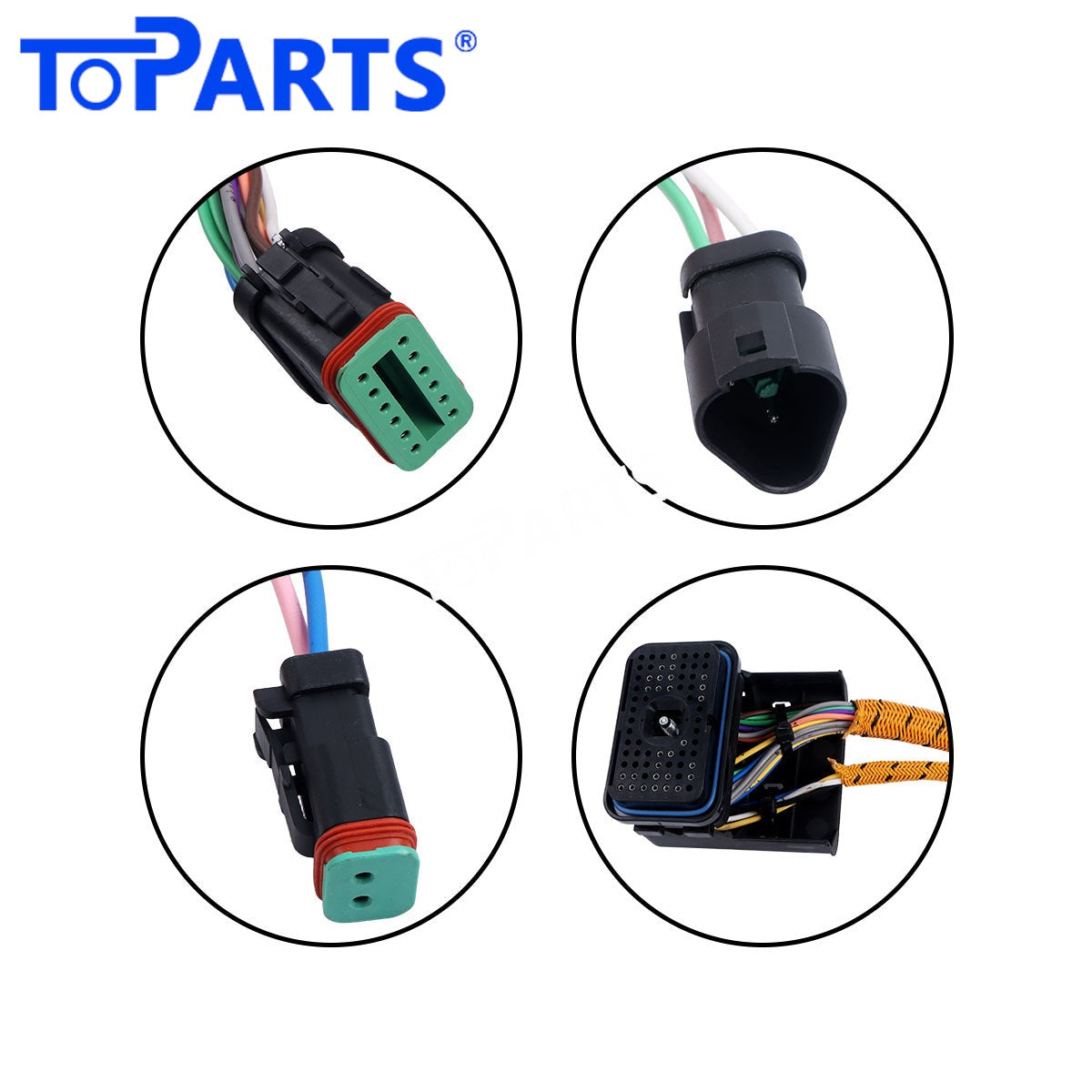

Before ordering, compare the part number printed on the label of your original harness with 132-5317 1325317. It is also worth comparing the connector shapes and the number of branches with our product photos. If your machine's serial range or engine variant differs, send us your machine details and we will confirm compatibility before you buy.
Why a New Harness Beats Patching
Patching wiring takes time: tracing the fault, cutting, crimping and sealing, often in an awkward position. When the insulation is hardened along the whole length, that time is better spent fitting a new harness that solves every weak spot at once.
Fitting Advice
- Label each connector on the old harness with masking tape before you unplug anything.
- Photograph the routing, clip positions and ground points from several angles.
- Clean and inspect the ECM connector pins; bent pins cause more faults than people expect.
- Keep the new harness clear of the exhaust manifold and turbocharger, and refit all heat shields.
- Clear stored fault codes after installation and run the engine to working temperature to confirm everything reads correctly.
Construction and Quality
TOPARTS harnesses are made to the original layout so that every connector reaches its component without strain. Protective conduit and tape guard the wires against abrasion, heat and oil in the engine bay and around the frame.
Product Details
- Part Name: Engine Wiring Harness
- Part Number: 132-5317, 1325317
- Engine: 3406E
- Condition: Aftermarket new
- Product Weight: 1.25 kg / 2.76 lbs
- Brand: TOPARTS
- Feature: Quality checked before shipping; built for heavy-duty use
Fits the Following Machines
Caterpillar CAT Case 3406E Truck Engine
