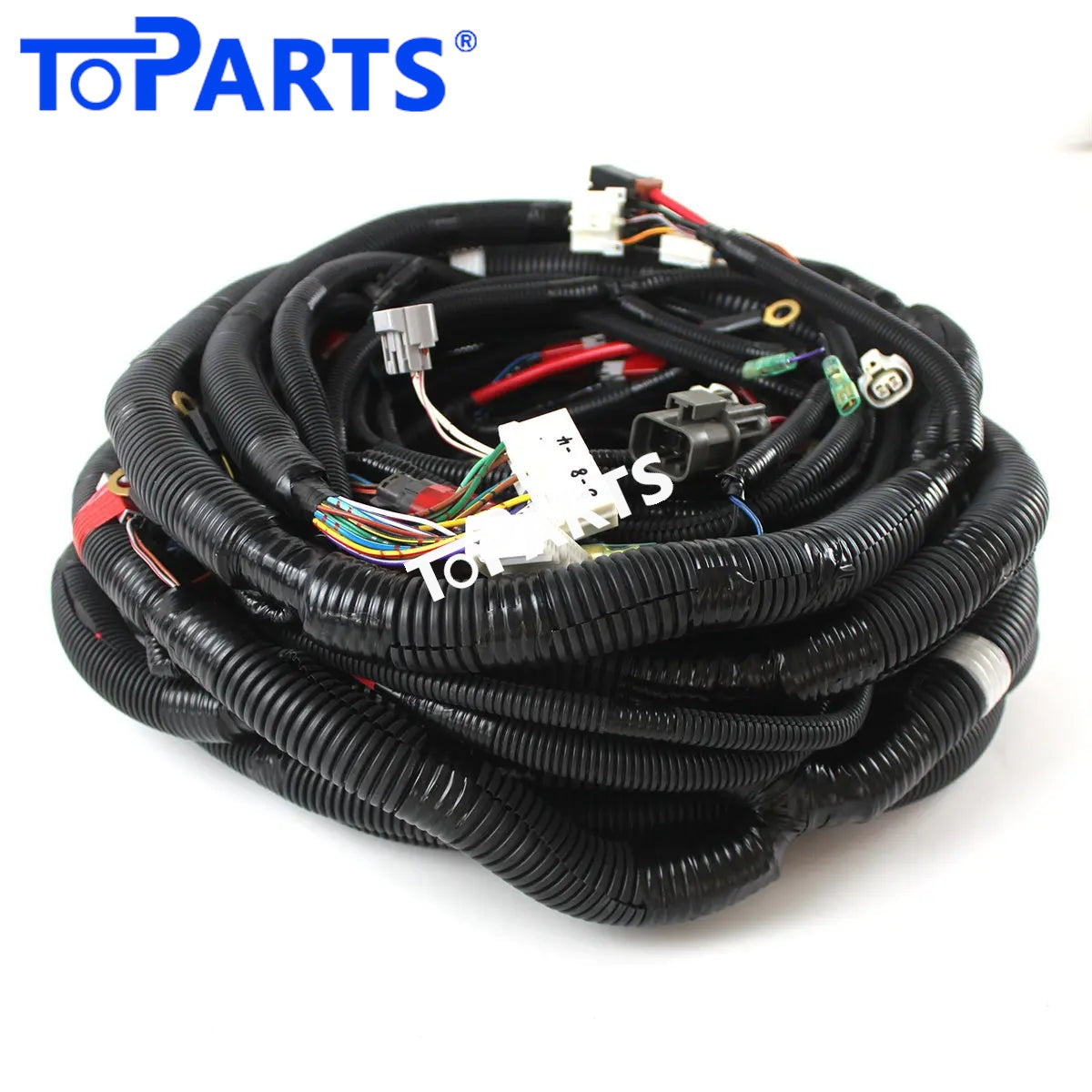

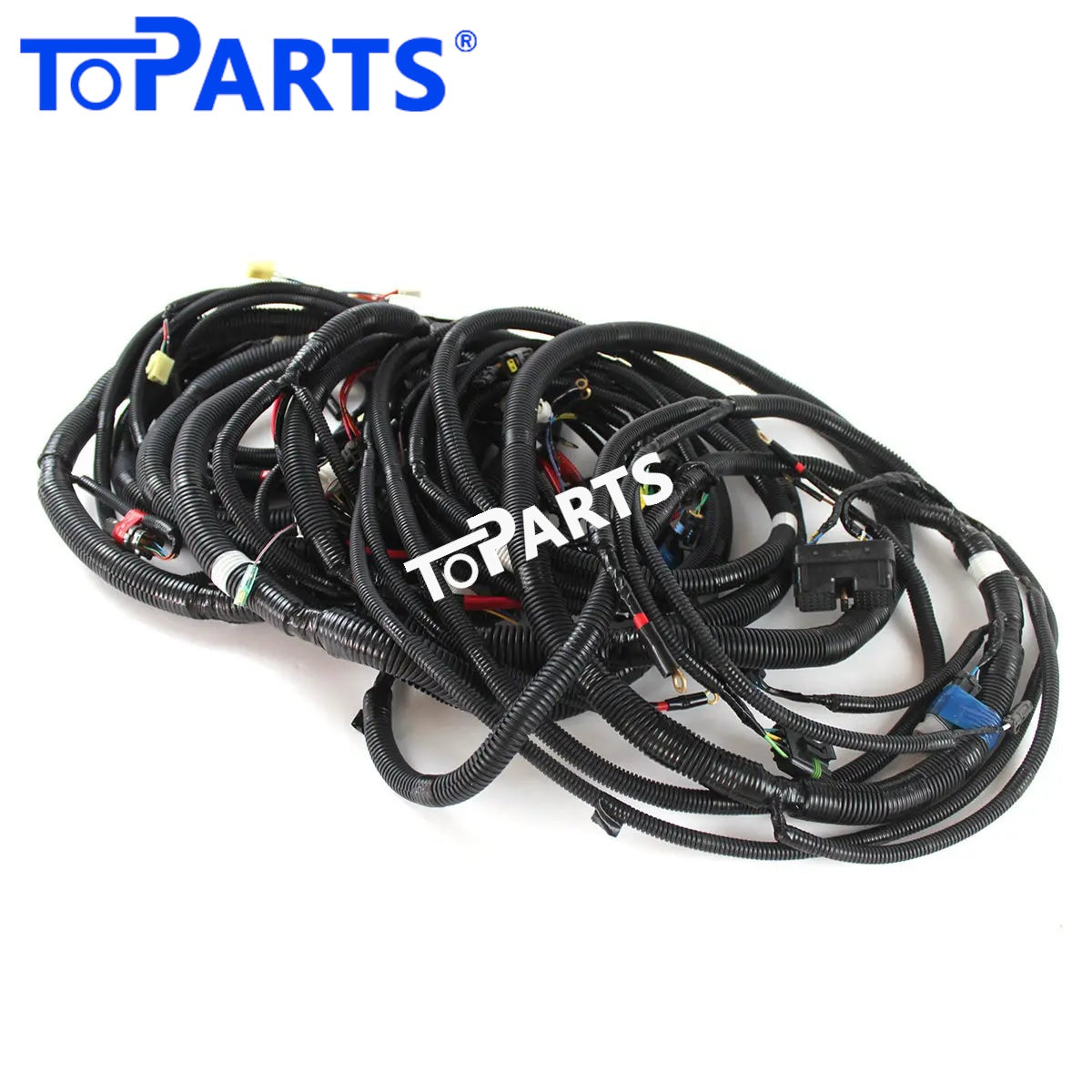

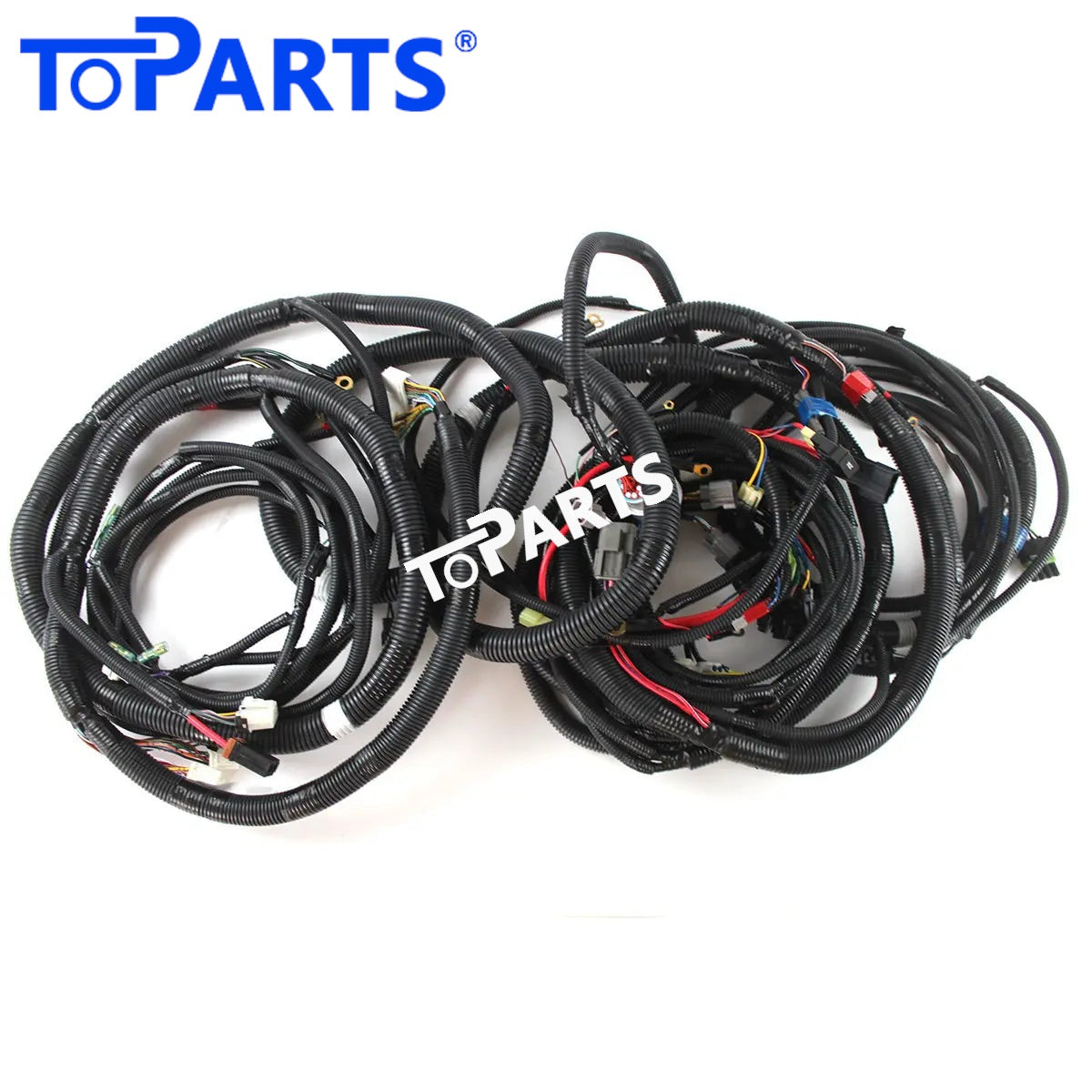

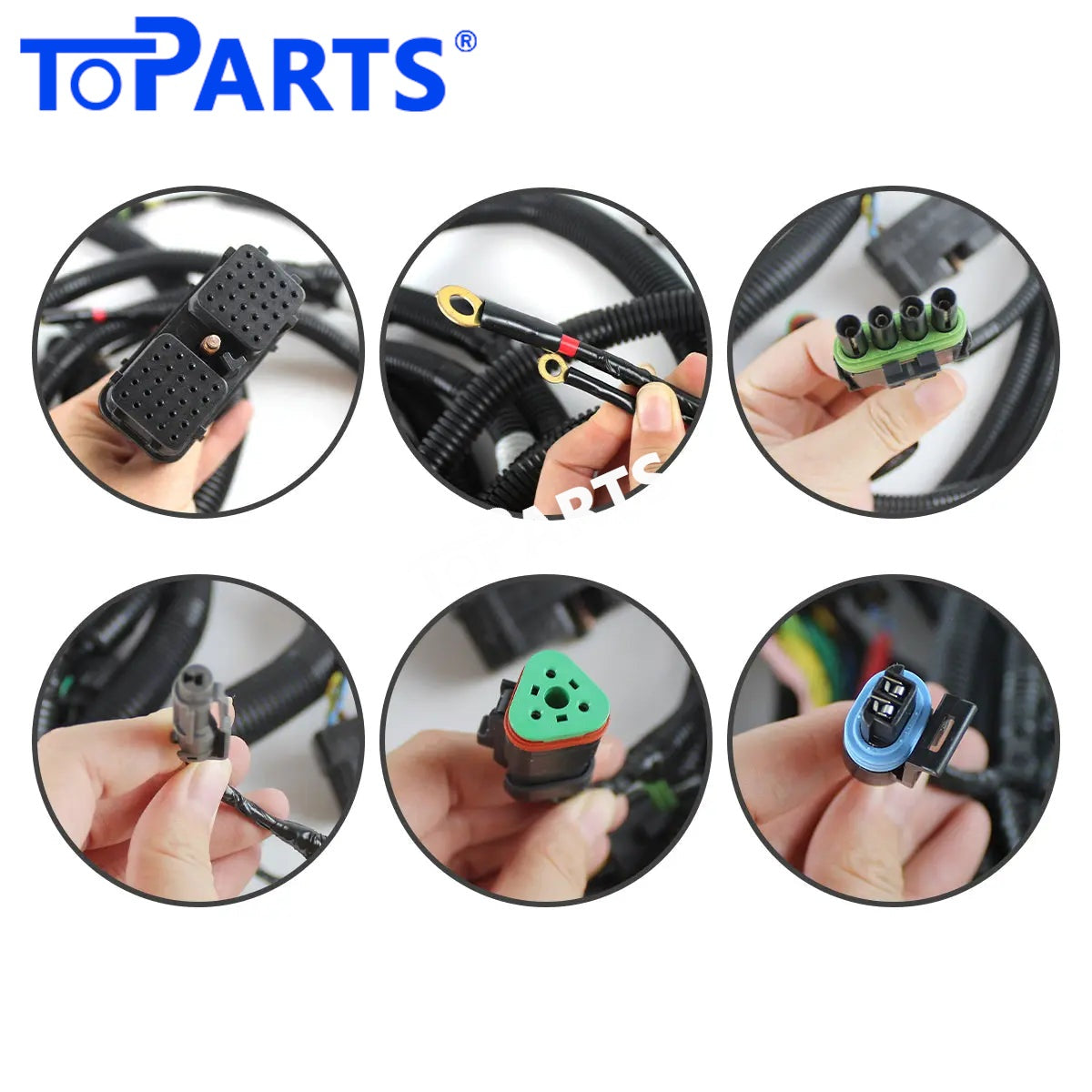

KRR1601 Main Wire Harness for CASE CX240 CX210 Excavator Parts
Electrical faults can stop an excavator as surely as a mechanical failure. The KRR1601 Main Wire Harness replaces damaged or aged wiring on Case CX240, CX210 excavators and returns the affected circuits to dependable operation.
Part Information
- Part Name: Main Wire Harness
- Part Number: KRR1601
- Condition: Genuine new
- Product Weight: 8.5 kg / 18.74 lbs
- Brand: TOPARTS
- Feature: Quality checked before shipping; built for heavy-duty use
Compatible Models
Case Excavator CX240, CX210, etc
What This Harness Does
Because it runs through the most exposed areas of the machine, the main harness takes more abuse than almost any other electrical part. Swinging, vibration, dust, washdowns and rodents all take their toll, which is why it is one of the most commonly replaced harnesses on older machines.
Laid out around the frame and through the house of the excavator, this harness is the long-distance carrier of the electrical system. It ties together the cab controls, controllers, pump and valve solenoids, sensors and lighting into one connected network.
On Case machines, wiring faults frequently show as monitor warnings or controller errors that disappear and return.
Why a New Harness Beats Patching
A single visible fault is often a sign of wider ageing. Heat cycling and vibration affect every wire in the bundle, not just the one that failed. Fitting a new harness means you are not chasing the next fault next month.
Before and During Installation
- Disconnect the battery isolator before starting.
- Check every ground strap and clean its contact surface to bare metal.
- Add protective sleeving wherever the old harness showed signs of rubbing.
- Test lights, horn, solenoids and the monitor before refitting covers.
Signs Your Harness Needs Replacing
Watch for these symptoms:
- Starting problems traced to wiring rather than the battery or starter
- Work lights, horn or wipers working only some of the time
- Blown fuses that keep recurring with no obvious cause
- Several unrelated circuits failing at once
Intermittent faults like these are classic signs of ageing wiring, and they rarely improve on their own.
Keep Your Machine Earning
An excavator sitting idle waiting for parts costs money every hour. Having the correct harness on hand means the repair becomes a scheduled job instead of an emergency, and the machine is back at work as soon as installation is finished.
Common Questions
Do I need special tools to install it?
Standard hand tools are usually enough. Labelling connectors and taking photos before removal makes the job much easier.
How do I know it will fit my machine?
Match the part number on your old harness, or send us your machine model and serial number and we will confirm before you order.
How long does shipping take?
Orders are shipped by express courier such as DHL, FedEx, UPS or TNT, and you will receive a tracking number by email as soon as your parcel leaves our warehouse.
Payment & Shipping
- Payment Method: PayPal, Stripe, Credit card, Visa, etc.
- Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
- Track Your Order: An email containing the tracking number with a link will be sent to you as soon as it ships.
Note: Please verify your part number and match our product pictures to your original item before ordering. If you have any questions, please feel free to contact us. Thanks.
